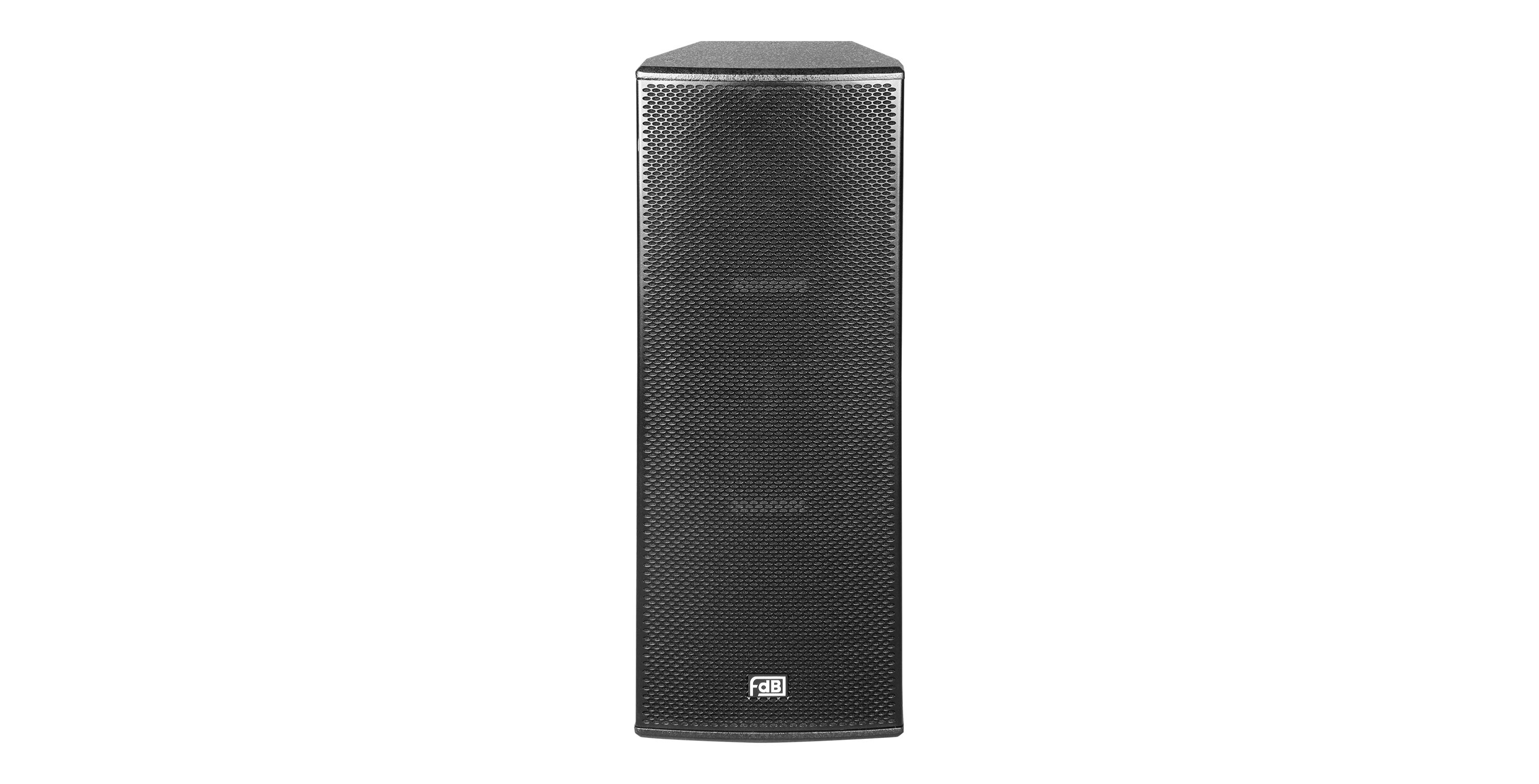

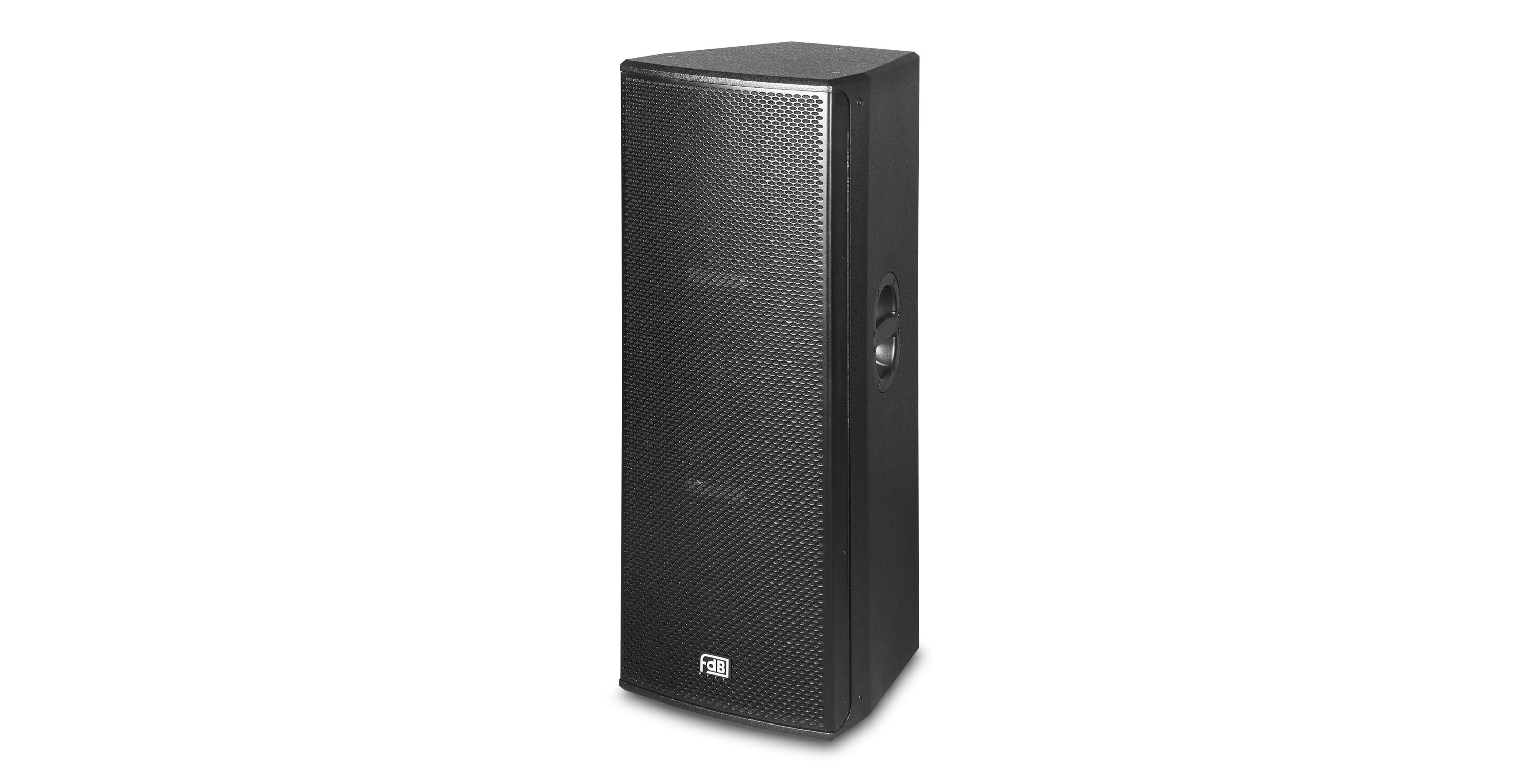

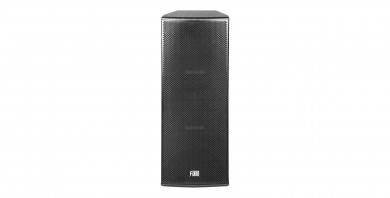

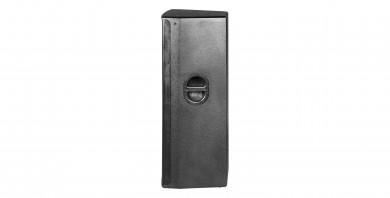

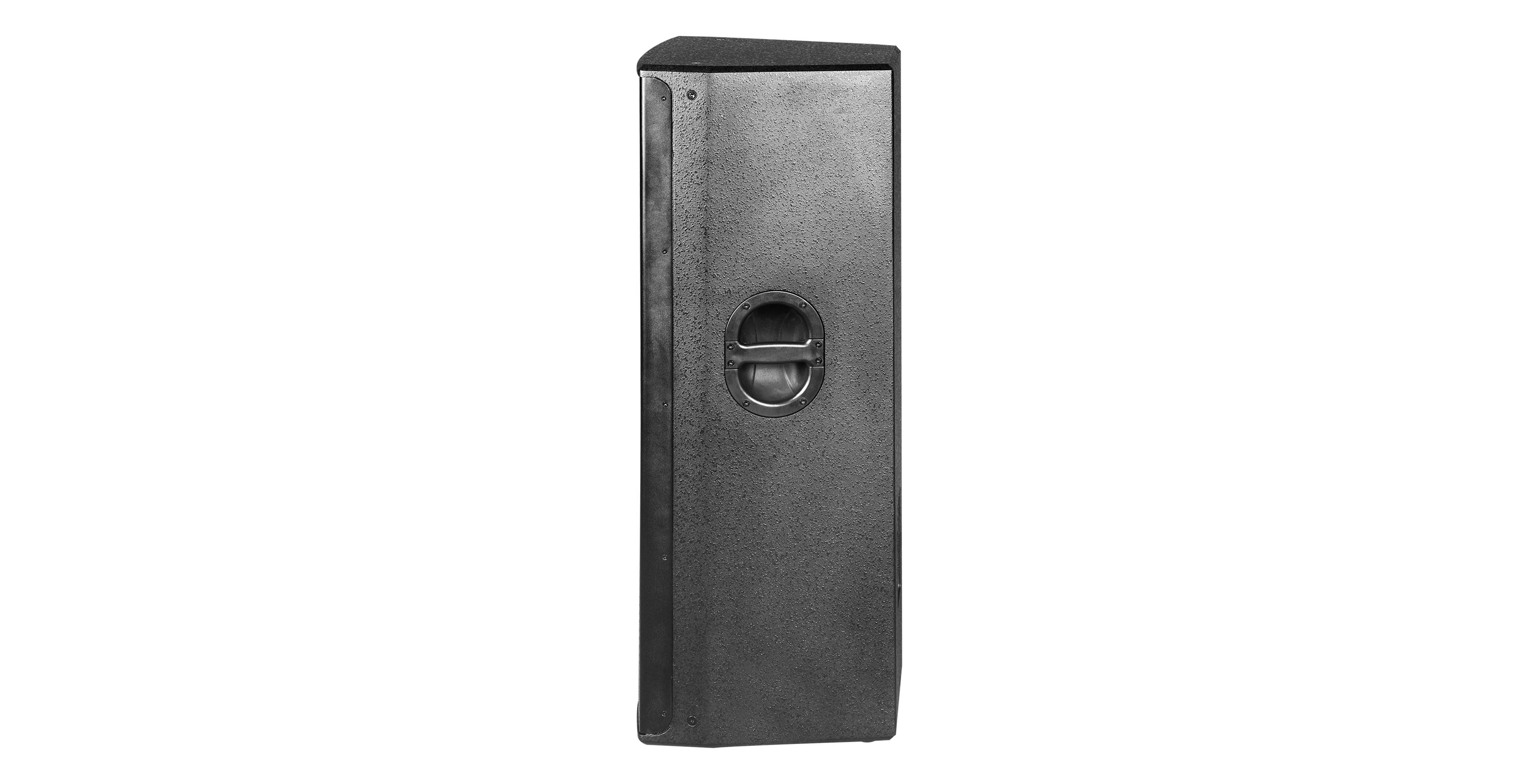

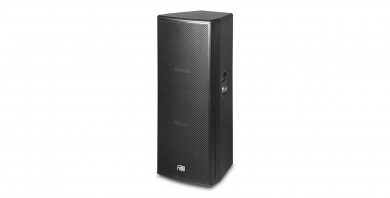

U212G
2x12"两分频全音域音箱
产品概述
The U212G is the ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality.
U212G是一款双12"两分音全音域音箱。采用两只12"高效率低音单元，一只1.4"喉口75芯钛膜高音驱动器配置90°×45° 专门设计号角，箱体采用多层复合夹板，水性环保喷涂制作。
产品特点
FEATURES
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency's sensitivity can be adjusted
●Rotatable 90°×45° horn
●Flexible mounting options
产品特征
●中高音灵敏度可调
●高质量单元配置，高强度夹板箱体
●多吊挂点，操作简易快捷
●超长品质保证期：品质与信心的保证
适用范围
●用于全音域扩声、剧院、厅堂扩声、慢摇吧
●多功能厅、高级酒店会所
●流动商演、乐队扩声以及舞台返送音箱
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency's sensitivity can be adjusted
●Rotatable 90°×45° horn
●Flexible mounting options
产品特征
●中高音灵敏度可调
●高质量单元配置，高强度夹板箱体
●多吊挂点，操作简易快捷
●超长品质保证期：品质与信心的保证
适用范围
●用于全音域扩声、剧院、厅堂扩声、慢摇吧
●多功能厅、高级酒店会所
●流动商演、乐队扩声以及舞台返送音箱
技术参数
| MODEL | U212G |
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
40 Hz-20kHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 750W RMS,3000W peak |
| SENSITIVITY | 100dB 1watt/1 metre |
| MAXIMUM SPL | 128dB continuous,134 dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×45° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 480mm×470mm×1128mm |
| NET WEIGHT | 39 kg/pc |
| GROSS WEIGHT | 45 kg/pc |

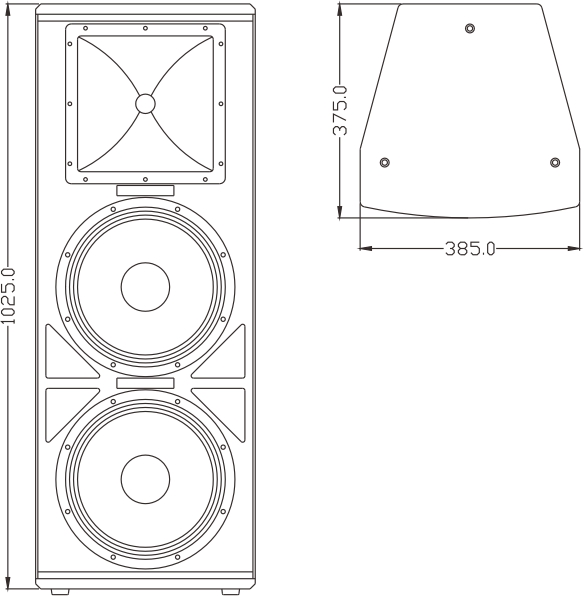

安装尺寸图
