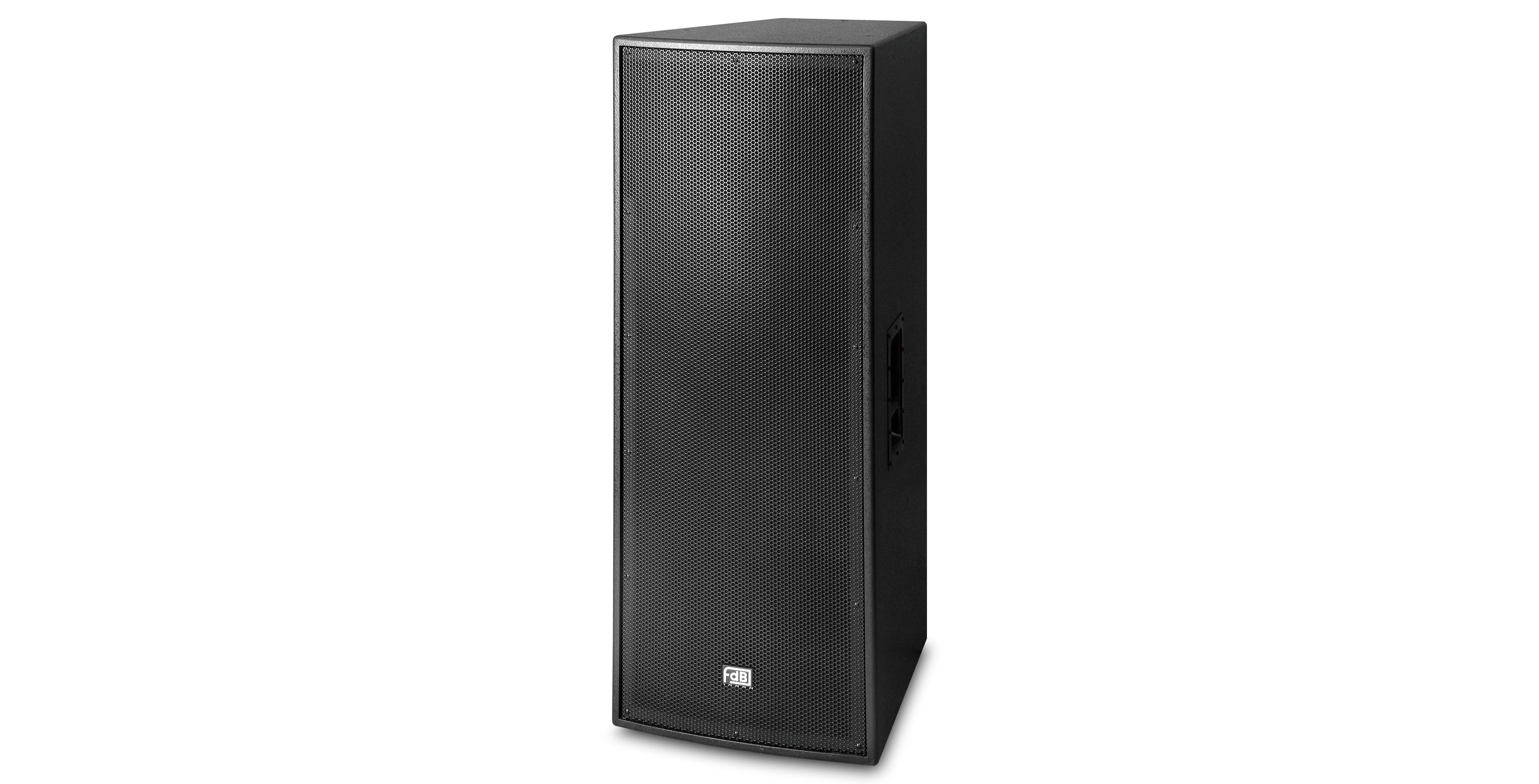

FT2153II
2x15" 2-way Loudspeaker System
DESCRIPTION
The FT2153Ⅱis a dual 15" two-way full range speaker. Unit configuration: 2x15" high efficiency mid-bass unit, 1x1" exit throat 44mm polyester diaphragm HF driver with special designed horn. The cabinet is made of MDF with water-based environmental protection paint.
FEATURES
●High quality MDF housing
●Multi-hanging points
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms ,small outdoor reinforcement
●Multi-hanging points
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms ,small outdoor reinforcement
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 40Hz-20kHz |
|
FREQUENCY RESPONSE(-10dB) |
35Hz-20kHz |
| DRIVERS | 2×15"(385mm)/3" voice coil LF |
| 1×1"(25mm)/ 1.7"voice coil HF | |
| RATED POWER | 800W RMS,3200W peak |
| SENSITIVITY | 100dB 1watt/1 metre |
| MAXIMUM SPL | 130 dB continuous,136 dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 100°×50° |
| CROSSOVER FREQUENCIES | 2.2 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 705mm×615mm×1460mm |
| NET WEIGHT | 57 kg/pc |
| GROSS WEIGHT | 69 kg/pc |
