M Series

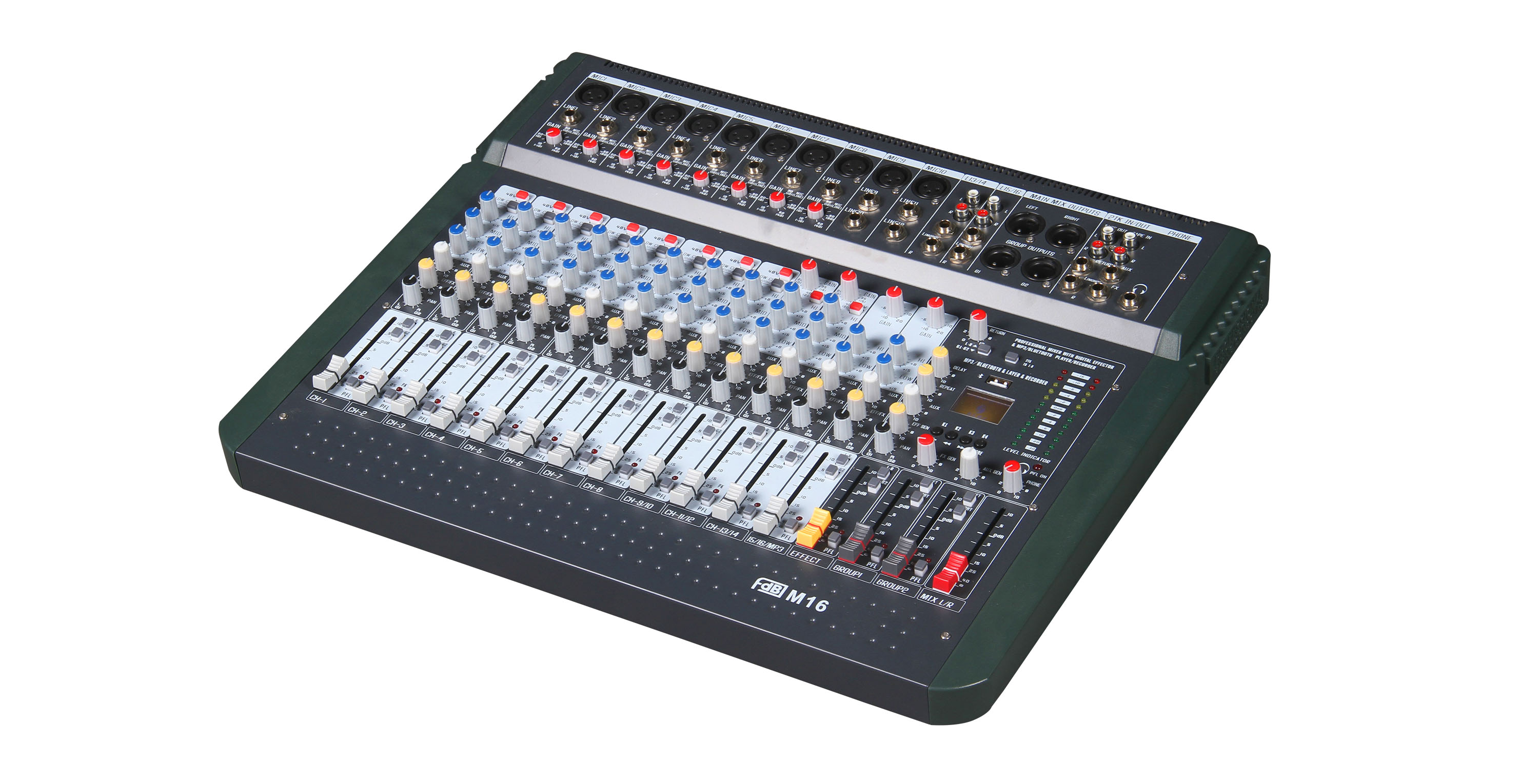

M 系列多功能模拟调音台
产品概述
M8/M12/M16是三款多功能模拟调音台，具有体积小、重量轻、功能全、操作直观、音色自然等特点。内置模拟效果器，自带蓝牙、USB播放功能，USB录音功能。适合中小型演出、会议室、文化礼堂、多功能厅等各种扩声系统。
技术参数
| 型号MODEL | M8 | M12 | M12 | |
| 麦克风输入Micphone Input | 4路 4 channels | 8路8 channels | 12路12 channels | |
| 立体声输入Stereo Input | 4路 4 channels | 4路4 channels | 4路4 channels | |
| USB/蓝牙输入USB/Bluetooth Input | 2路 2 channels | 2路2 channels | 2路2 channels | |
| 立体声主输出Stereo Main Output | 2路 2 channels | 2路2 channels | 2路2 channels | |
| 编组输出Marshalling Output | 2路 2 channels | 2路1 channels | 2路1 channels | |
| 辅助输出Secondary Output | 1路 1 channel | 1路1 channels | 1路1 channels | |
| 监听输出Monitor Output | 1路 1 channel | 1路1 channels | 1路1 channels | |
| 频率响应Frequency Response | 20Hz-20KHz ±0.5dB | 20Hz-20KHz ±0.5dB | 20Hz-20KHz ±0.5dB | |
| 总谐波失真 THD | ≤1%(额定条件Rating Conditions:20Hz-20KHz) | |||
| 等效输入噪音 Equivalent Input Noise | ≤-110dBm | ≤-110dBm | ≤-110dBm | |
| 输入通道EQ特性 Input Channel EQ | 低频LF:80Hz ±15dB;中频MF:2.5KHz ±15dB;高频HF:12KHz ±15dB; | |||
| 线路输入最大增益 Line Input Max Gain | ≥20dB | ≥40dB | ≥40dB | |
| 话筒输入最大增益 Microphone Input Max Gain | ≥50dB | ≥60dB | ≥60dB | |
| 输入阻抗 Input Impedance | 话筒Microphone:≥1.0KHz;线路Circuit:≥10KHz; 辅助返回输入Auxiliary Returnst:20KHz | |||
| 输出阻抗 Output Impedance | 主总输出Master Total :≤300Ω;录音输出Audiot:≤10KHz;辅助输出Secondary :≤10KHz | |||
| 效果器Effectors | 模拟效果器,延时时间/重复次数可调 | |||
| 工作电压Operating Voltage | AC 220V/50Hz | AC 220V/50Hz | AC 220V/50Hz | |
| 整机功耗Power Consumption | ≤40W | ≤40W | ≤40W | |
| 产品尺寸Dimensions（HxWxD）mm | 95x345x410 | 90x445x410 | 90x500x410 | |
| 净重NET Weight | 3.84 KG | 5.1 KG | 5.7 KG | |
