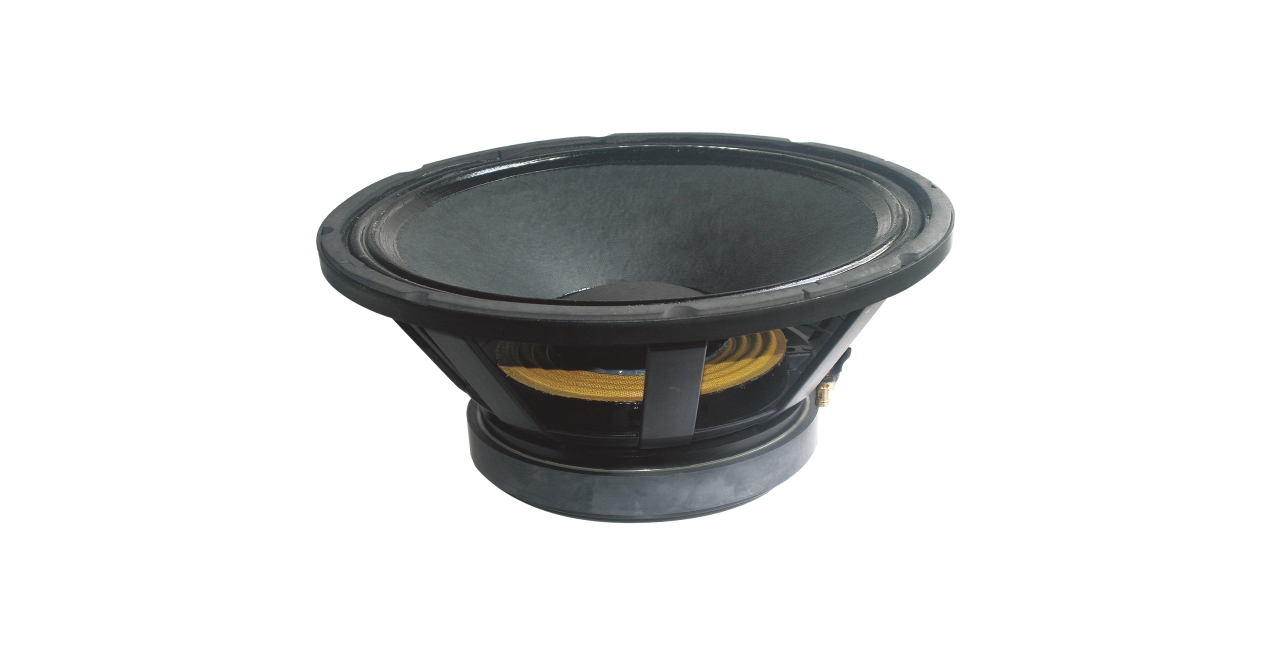

PL1540
技术参数
| MODEL | PL1540 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | 380/15 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 2000 | Watt |
| Power Capacity | 500 | Watt |
| Sensitivity | 98 | dB |
| Frequency Range | 35-2000 | Hz |
| Minimum Impedance | 6.3 | ohm |
| Voice Coil Diameter | 100/4 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 25 | mm |
| Number of layers | 2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 12 | mm |
| Cone Material | Half pressed pulp | |
| THIELE - SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 35 | Hz |
| DC resistance Re | 5.2 | ohm |
| Mechanical facto Qms | 6.67 | |
| Electrical factor Qes | 0.25 | |
| Total factor Qts | 0.24 | |
| BL Factor BL | 26.2 | T.m |
| Effective Moving Mass Mms | 129.8 | gr |
| Equivalent Cas air load Vas | 161 | liters |
| Effettive piston area Sd | 0.089 | m2 |
| Max. linear excursion (mathematical) Smax | ±8 | mm |
| Voice -C coil inductance @ 1KHz Le | 1.5 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 393 | mm |
| Bolt Circle Diameter | 372 | mm |
| Baffle Cutout Diameter | 354 | mm |
| Depth | 182 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 14.1 | kg |
| Shipping Weight | 15 | kg |
| Shipping Box | 410x410x220 | mm |
