>> K12B/K12BAS
K12B/K12BAS
1x15"Sub-woofer/1x15"Active Sub-woofer
DESCRIPTION
K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
FEATURES
● Small volume and light weight for full range speaker
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Applications: band performance, small mobile business performance, conference rooms, multi-purpose halls, churches
SPECIFICATIONS
| MODEL | K12B | K12BAS |
| FREQUENCY RESPONSE(-10dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-20kHz |
| LF DRIVER | 1×12"/ 3"voice coil | 1×12"/ 3"voice coil |
| HF DRIVER | -- | -- |
| RATED POWER | 300W RMS,1200W peak | 1350W/8Ω+450W/8Ω |
| SENSITIVITY | 96dB 1watt/1meter | -- |
| MAXIMUM SPL | 121dB continuous,127dB peak | 121dB continuous,127dB peak |
| IMPEDANCE | 8 ohms | -- |
| DISPERSION(-6dB) | -- | -- |
| CROSSOVER FREQUENCIES | -- | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | Balanced Differential line |
| PACKAGE SIZE | 605×415×632 mm | 605×415×632 mm |
| NET WEIGHT | 24 kg/pc | 26 kg/pc |
| GROSS WEIGHT | 28 kg/pc | 30 kg/pc |

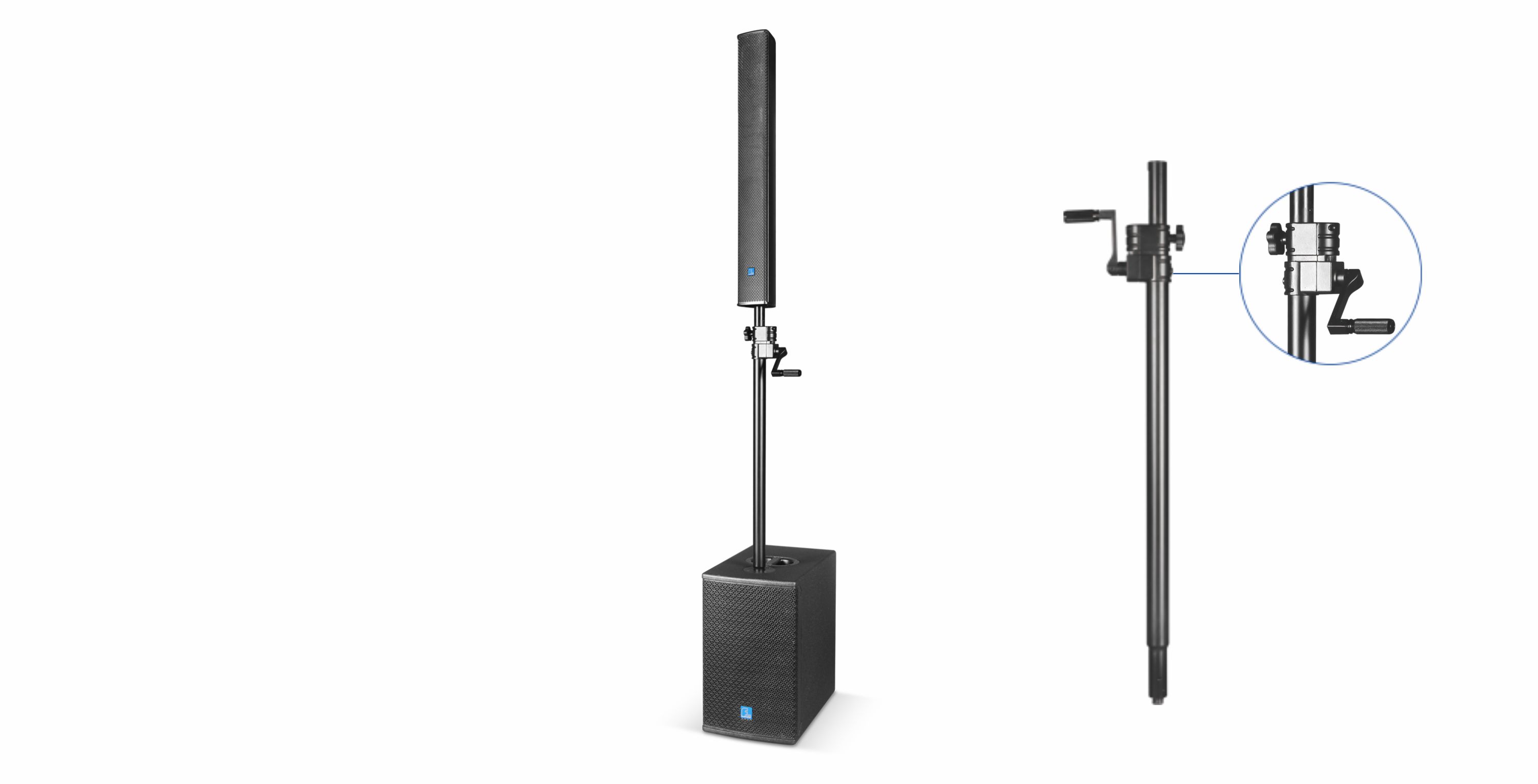

CONFIGURATION
