Location： >> Products >> K Column System
>> K15B/K15BAS
K15B/K15BAS
1x15"Sub-woofer/1x15"Active Sub-woofer
DESCRIPTION

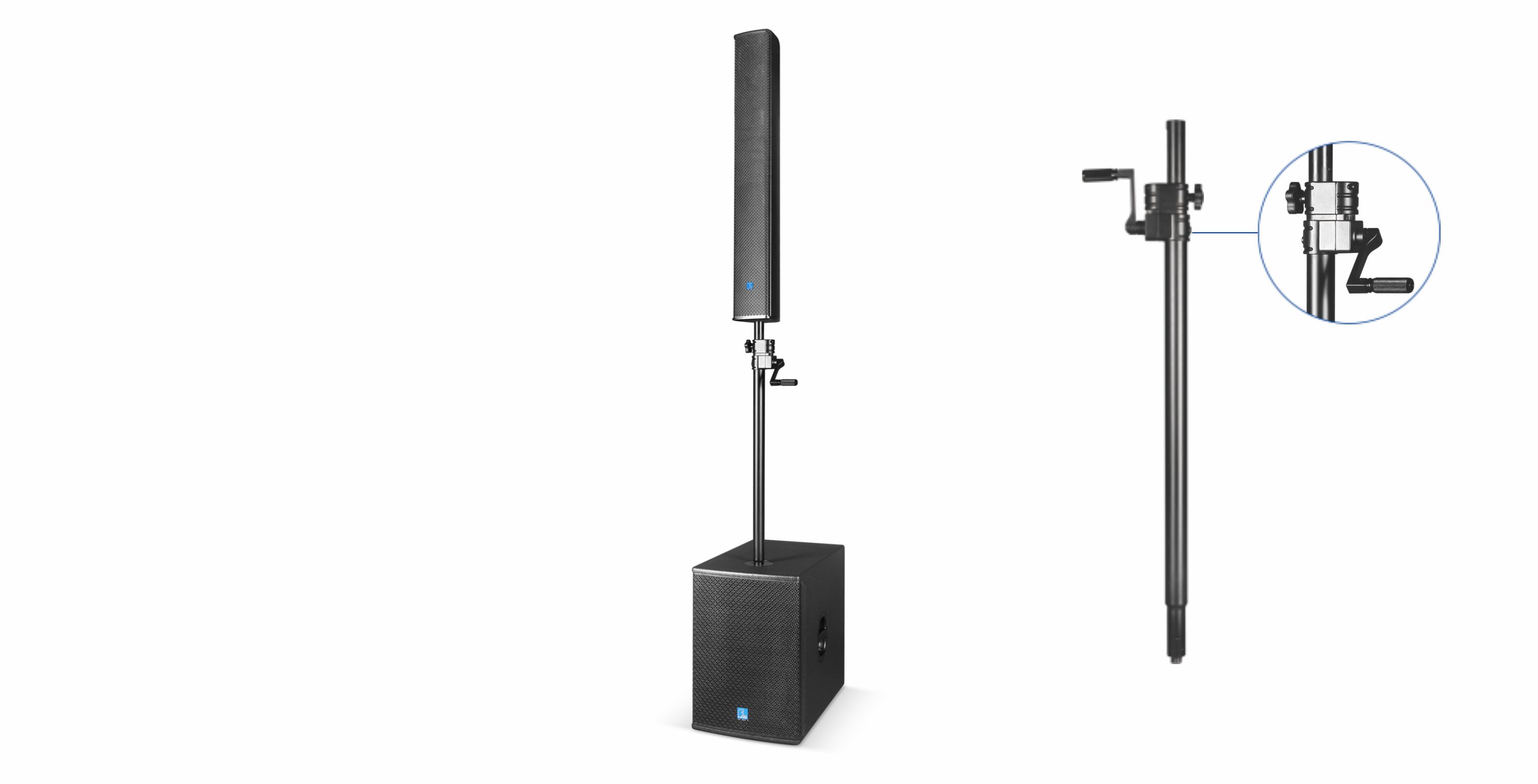

K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
FEATURES
● Small volume and light weight for full range speaker
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Applications: band performance, small mobile business performance, conference rooms, multi-purpose halls, churches
SPECIFICATIONS
| MODEL | K15B | K15BAS |
| FREQUENCY RESPONSE(-10dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-20kHz |
| LF DRIVER | 1×15"/ 3"voice coil | 1×15"/ 3"voice coil |
| HF DRIVER | -- | -- |
| RATED POWER | 400W RMS,1600W peak | 1350W/8Ω+450W/8Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 125dB continuous,131dB peak | 125dB continuous,131dB peak |
| IMPEDANCE | 8 ohms | -- |
| DISPERSION(-6dB) | -- | -- |
| CROSSOVER FREQUENCIES | -- | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | Balanced Differential line |
| PACKAGE SIZE | 740×495×695 mm | 740×495×695 mm |
| NET WEIGHT | 32 kg/pc | 34 kg/pc |
| GROSS WEIGHT | 36 kg/pc | 38 kg/pc |

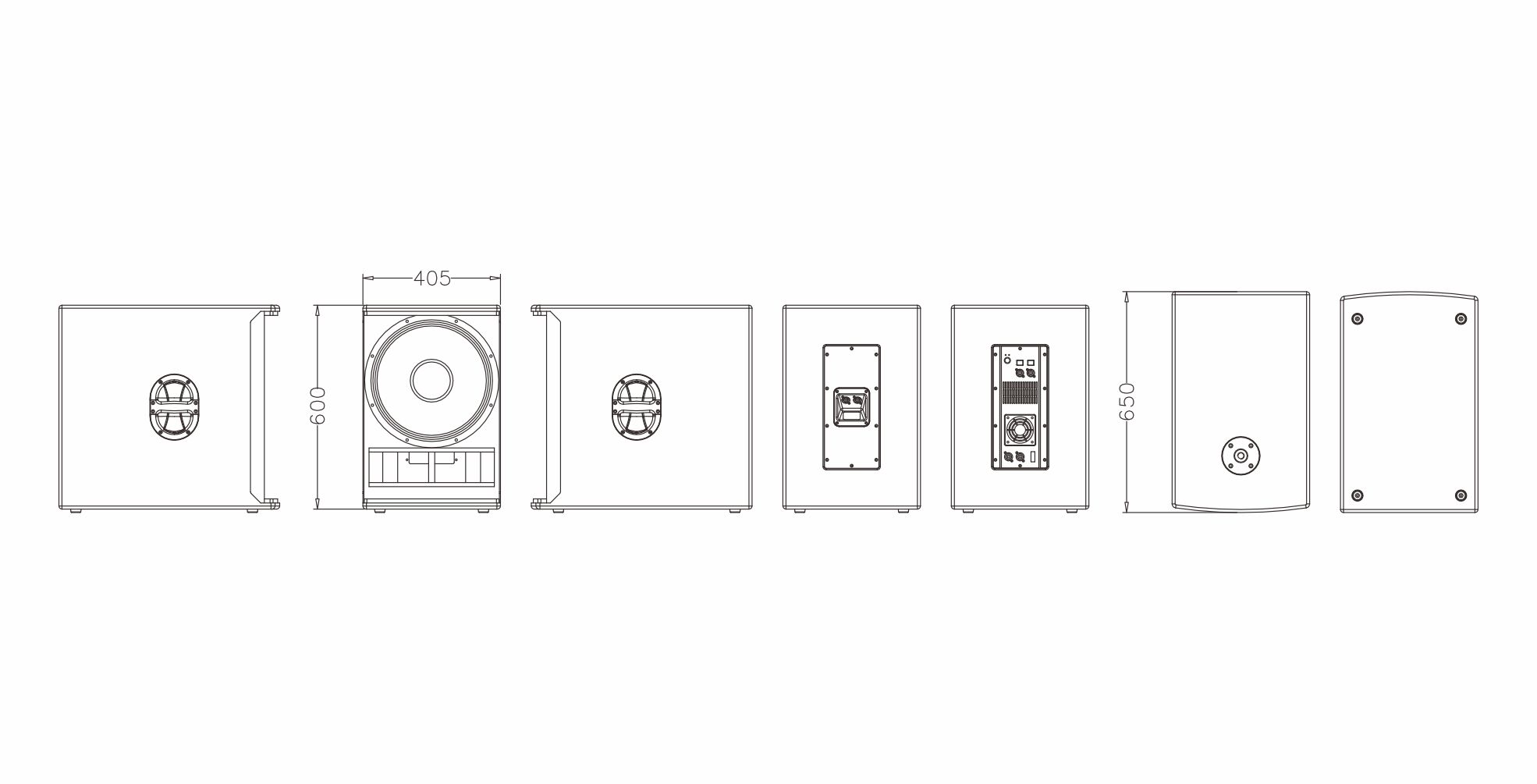

CONFIGURATION
