TH212/TH212DA
1x12" 2-way Loudspeaker System
DESCRIPTION
TH Series is a high sensitivity, high SPL, long-throw speaker, mid-bass and HF driver all feature horn-loaded design, make the sound transparent and bright, all adopt neodymium units, the cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. The model with A is an active speaker equipped with two channels digital amplifier with DSP.
FEATURES
● Mid-bass and HF driver all feature horn-loaded design
● High power, high sensitivity, high SPL
● Clear, transparent and bright sound
● Can be used for single hanging, a variety of combinations of hanging
● Active or passive options are available
● High power, high sensitivity, high SPL
● Clear, transparent and bright sound
● Can be used for single hanging, a variety of combinations of hanging
● Active or passive options are available
● Applications: theatres, concert halls, multifunction halls, lecture halls, bars, livehouse, large-scale sound reinforcement, touring
SPECIFICATIONS
| MODEL | TH212 | TH212DA |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz | 60Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-19kHz | 55Hz-19kHz |
| LF DRIVER | 1×12"/ 3.5"voice coil | 1×12"/ 3.5"voice coil |
| MF DRIVER | -- | -- |
| HF DRIVER | 1×2"/ 3"voice coil | 1×2"/ 3"voice coil |
| RATED POWER | 400W RMS,1600W peak | 1350W/8Ω+450W/8Ω |
| SENSITIVITY | 98dB 1watt/1meter | -- |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms | -- |
| DISPERSION(-6dB) | 60°×40° | 60°×40° |
| CROSSOVER FREQUENCIES | 1.3kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | Balanced Differential line |
| PACKAGE SIZE | 520×500×790 mm | 520×500×790 mm |
| NET WEIGHT | 27.5 kg/pc | 30 kg/pc |
| GROSS WEIGHT | 30.5 kg/pc | 33 kg/pc |

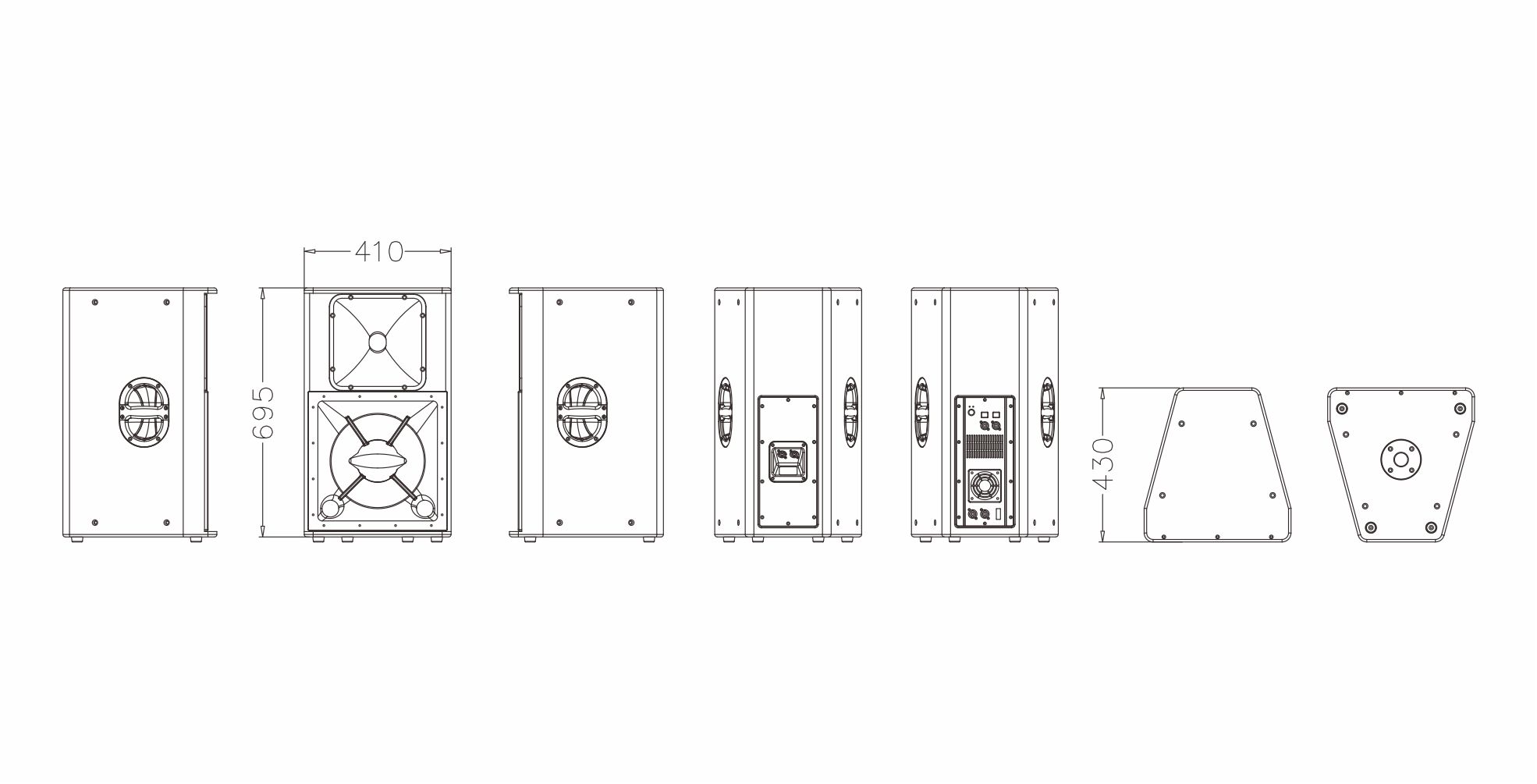

CONFIGURATION
