MC-104

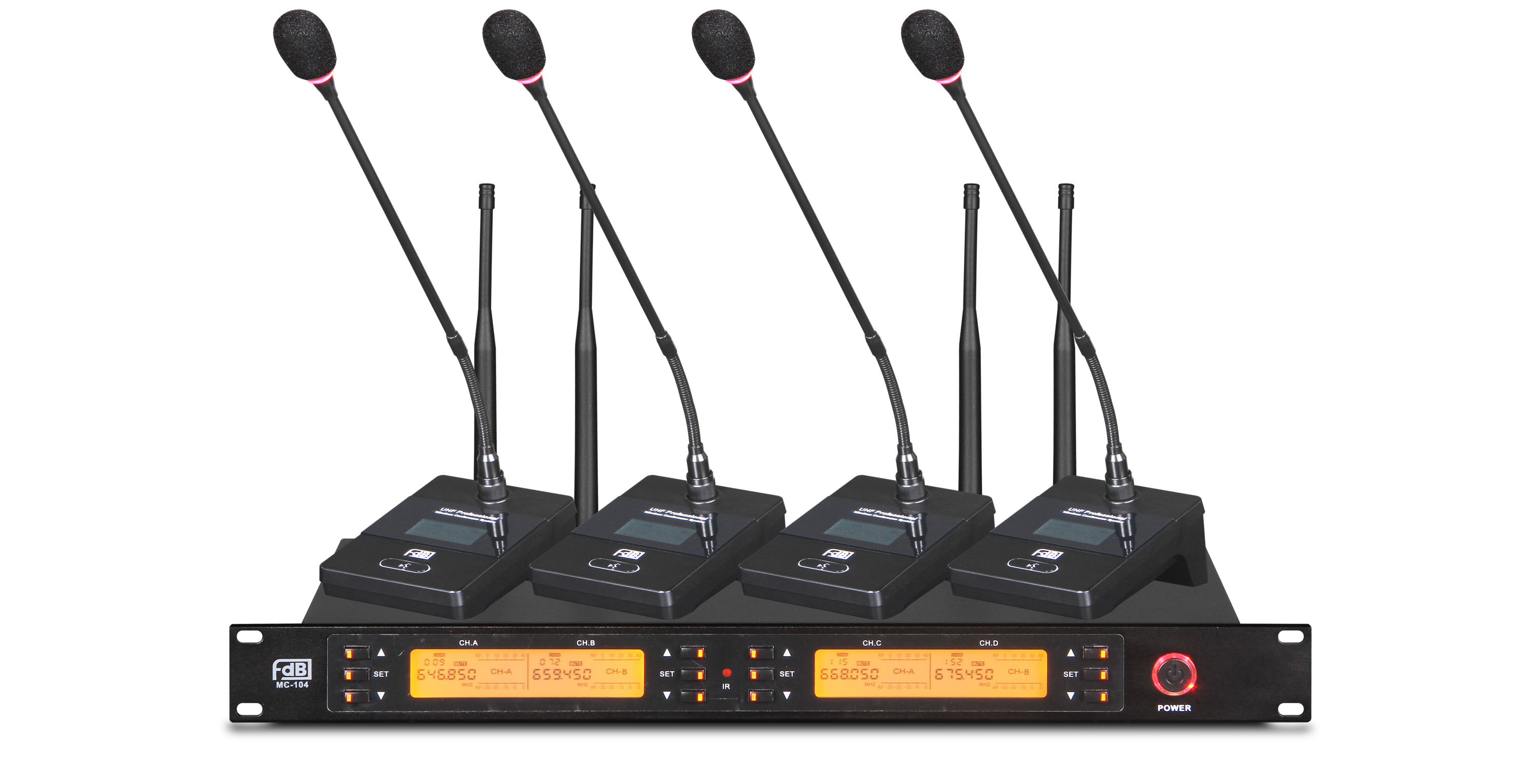

Wireless all-digital conference system
DESCRIPTION
MC-104 is a one-to-four wireless conference system. It adopts UHF high frequency band transimission and DPLL digital phase-locked loop mutli-channel frequency synthesis technology to make transmission more reliable and anti-interference ability stronger. Convenient to use multiple sets of machines at the same time, easily avoid all kinds of interference. The system is easy to operate, easy to install, economic and applicable, is a good choice for conference engineering.
SPECIFICATIONS
| MODEL | MC-104 | |
| RECEIVER | Frequency Range | UHF 640-690MHz |
| Modulation Mode | FM | |
| Bandwidth | 50MHz | |
| Maximum Number of Channels | 200 | |
| Channel Spacing | 250KHz | |
| Frequency Stability | ±0.005%以内Range | |
| Maximum Frequency Offset | ±45KHz | |
| Dynamic Range | 100dB | |
| S/N Ratio | ＞105dB | |
| THD | ≤0.5% | |
| Sensitivity | 12dBμV(80dBS/N) | |
| Spurious Suppression | ≥75dB | |
| Antenna Interface | BNC/50Ω | |
| Maximum Output Level | +10dBV | |
| Power Supply | DC 13.5V 600mA | |
| Dimensions | 420x190x45mm | |
| Net Weight | 1.8KG | |
| TRANSMITTER | Carrier Frequency | UHF 640-690MHz |
| Head Type | Capacitive | |
| Polar Mode | Single directivity | |
| Dynamic Range | ≥100dB | |
| Frequency Response | 40Hz~20KHz | |
| Power Supply | DC 3V(1.5V AAx2) |
