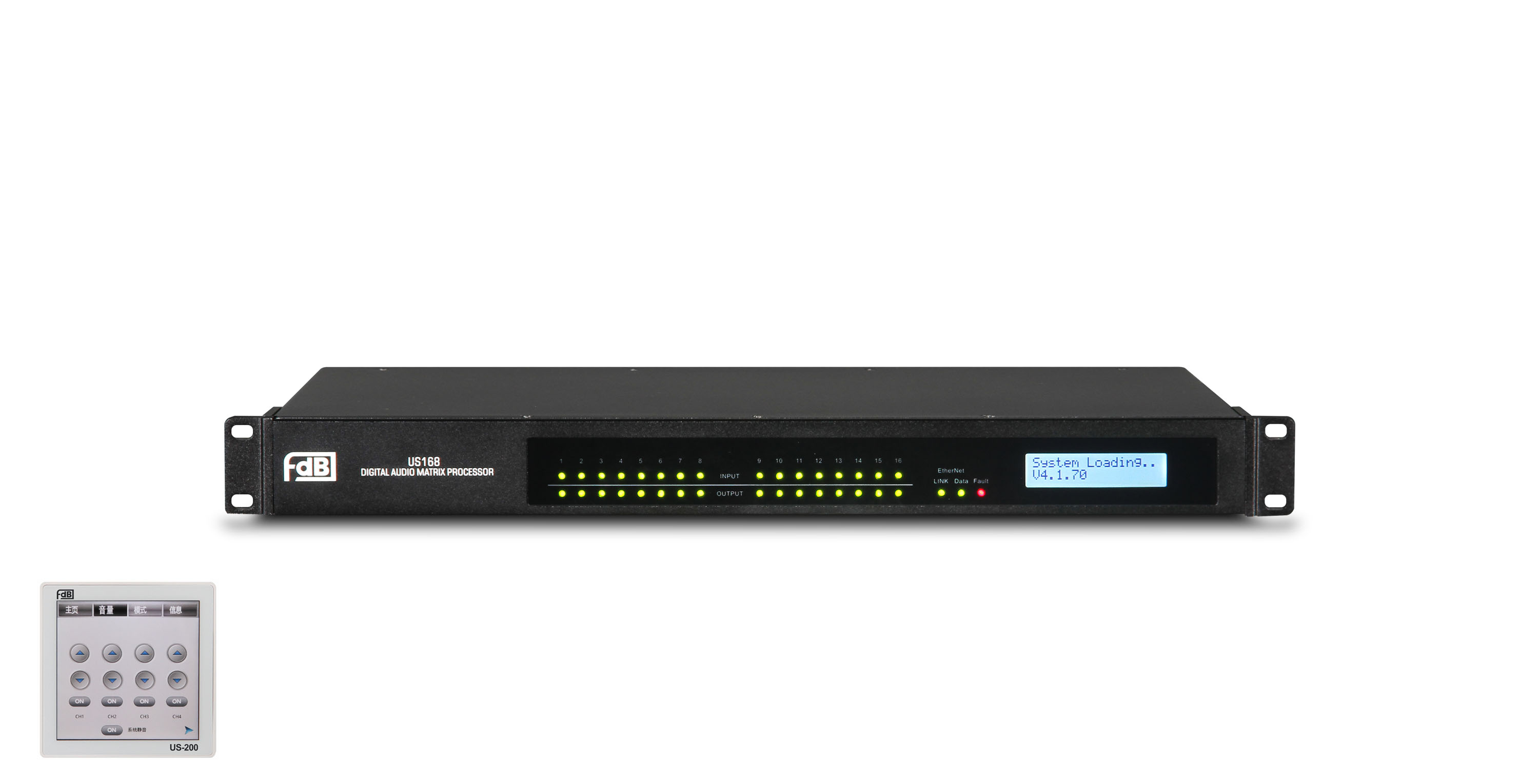

US168 / US1616
Audio matrix processor
DESCRIPTION
●Using the fourth generation SHARC ADSP-21489 high performance floating-point DSP chip, powerful audio processing capabilities
●The 48 Khz sampling frequency guarantees the capture of sound details with an AD/DA dynamic range of 114 dB
●Built-in pink/white noise/sinusoidal generator
●The slope of the divider Bessel/Butterworth/Link-Riley is optional in the 6-48dB/ OCT range
●Input Channel function: noise gate/16 segment parameter equalization/ high/ low pass/ compressor/ delay/automatic mixing
●Output channel functions: matrix mixer, 16-segment parameter equalization, high-low pass, limiter, delay
●Input Channel support MIC and line switch, with 48V phantom power supply ●Each input channel is independent of the adaptive feedback suppressor, which effectively solves the field microphone howling
●AEC echo cancellation
●Ethernet and 232 interface, and open RS232, TCP/IP protocol to achieve third-party control
●There is video tracking code output, easy to control the realization of video linkage function
●PC software auto-discovery processor, support 32 sets of scene presets, can be flexibly invoked through the protocol
●The 48 Khz sampling frequency guarantees the capture of sound details with an AD/DA dynamic range of 114 dB
●Built-in pink/white noise/sinusoidal generator
●The slope of the divider Bessel/Butterworth/Link-Riley is optional in the 6-48dB/ OCT range
●Input Channel function: noise gate/16 segment parameter equalization/ high/ low pass/ compressor/ delay/automatic mixing
●Output channel functions: matrix mixer, 16-segment parameter equalization, high-low pass, limiter, delay
●Input Channel support MIC and line switch, with 48V phantom power supply ●Each input channel is independent of the adaptive feedback suppressor, which effectively solves the field microphone howling
●AEC echo cancellation
●Ethernet and 232 interface, and open RS232, TCP/IP protocol to achieve third-party control
●There is video tracking code output, easy to control the realization of video linkage function
●PC software auto-discovery processor, support 32 sets of scene presets, can be flexibly invoked through the protocol
SPECIFICATIONS
| MODEL | US168 | US1616 |
| INPUT/OUTPUT CHANNELS | 16 IN/8 OUT | 16 IN/16 OUT |
| INPUT/OUTPUT CONNECTOR | INPUT/OUTPUT: PHOENIX CONNECTOR | |
| FREQUENCY RESPONSE | 20Hz-20KHz，±0.3dB | 20Hz-20KHz，±0.3dB |
| S/N RATIO | ＞115dBu | ＞115dBu |
| THD | ＜0.006 1KHz 0dBu | ＜0.006 1KHz 0dBu |
| CROSSTALK | ＜100dB BELOW FULL SCALE | ＜100dB BELOW FULL SCALE |
| MAX INPUT LEVEL | +18dBu@1KHz | +18dBu@1KHz |
| MAX OUTPUT LEVEL | +18dBu@1KHz BYPASS | +18dBu@1KHz BYPASS |
| INPUT IMPEDANCE | 5KΩ | 5KΩ |
| OUTPUT IMPEDANCE | 600Ω | 600Ω |
| DSP | 48KHz 24bit AD/DA 400MHz 32bit浮点DSP | 48KHz 24bit AD/DA 400MHz 32bit浮点DSP |
| POWER SUPPLY | AC 110-240V 50/60Hz 功率:70W | AC 110-240V 50/60Hz 功率:70W |
| DIMENSIONS(WxDxH)mm | 480X250X44 | 480X250X44 |
| NET WEIGHT | 3.5 KG | 3.5 KG |
| US-200Loudspeaker System Processor Controller | ||
| MODEL | US-200 | |
| DISPLAY RESOLUTION | 480x480 | |
| INTERFACE TYPE | 4PIN PHOENIX CONNECTOR | |
| POWER SUPPLY | DC:+24V, Max Power Consumption 2.4W | |
| DIMENSIONS(WxHxD)mm | 90.7x90.7x27.9 | |
