●32-bit DSP SHARC process, 96kHz sampling rate, 24-bit AD/DA convert.
●Input processing includes High-cut, Low-cut, 8 PEQ, Noise gate, Gain, Mute, Phase, Delay, Link and so on.
●Output processing includes X-over, 9 PEQ, Gain, Mute, Compressor/ Limiter, Phase, Delay, Link and so on.
●Adjustable PEQ frequency, Gain and bandwidth. We can choose style: Peak, L -shelf, H-shelf, Low cut, High cut, Allpass 1, Allpass 2.
●Every input and output can do matrix assign flexibly, and all the input and output channel name can be changed.
●All the input and output with independent phase curve adjust function, PEQ style choose allpass 1 is 180° curve adjust, allpass 2 is 360° curve adjust.
●The style of all High-cut,Low-cut filter and Distributor unit: Butterworth, Linkwitz-Riley, Bessel; slope is from -6dB/Oct to -48dB/Oct.
●Adjustable compressor/limiter threshold, ratio, attached time and release time.
●Maximal delay time is 680ms for all input/output channels.
●Parameter Settings between any channel can be  copied freely, and any channel can be linkage adjusted.
●Displays the current PEQ curves of all input or output channels in any input or output channel window.
●Built-in test signal generator, output mode optional pink noise, white noise and 20Hz-20kHz sinusoidal adjustable, and signal amplitude adjustable.
●The front panel is equipped with input and output levelindicator light, USB control port, rear panel 232 & 485 control port, and Ethernet connection remote control port. One-button connection makes the user's operation easier and faster, and the computer can be wireless
●30 user presets,the complete machine state and each preset can be stored and called separately. The ID setting function can cascade control 255pcs machines, and also has password protection function to make the device more secure.

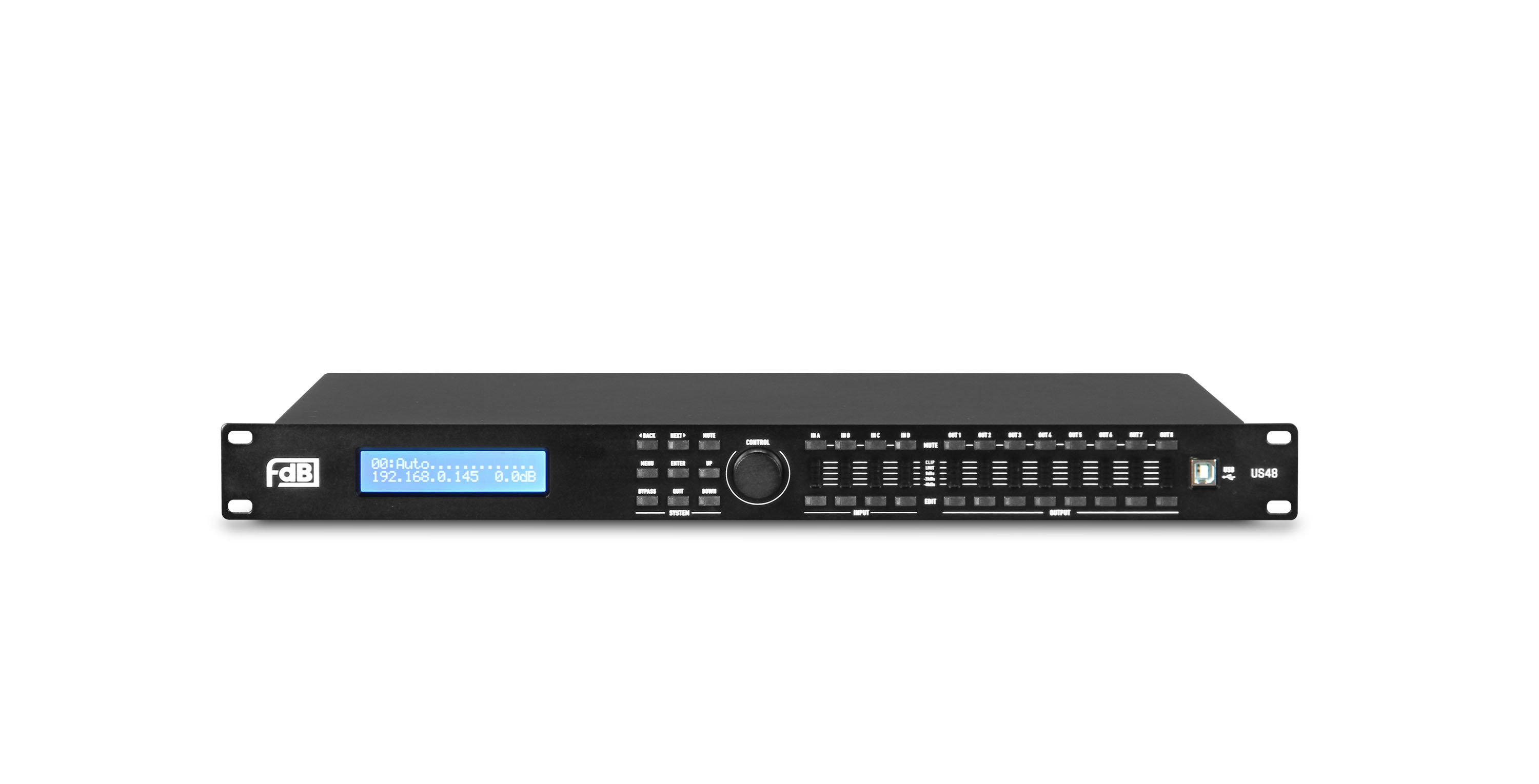

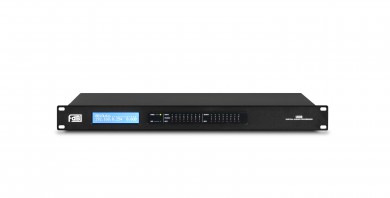

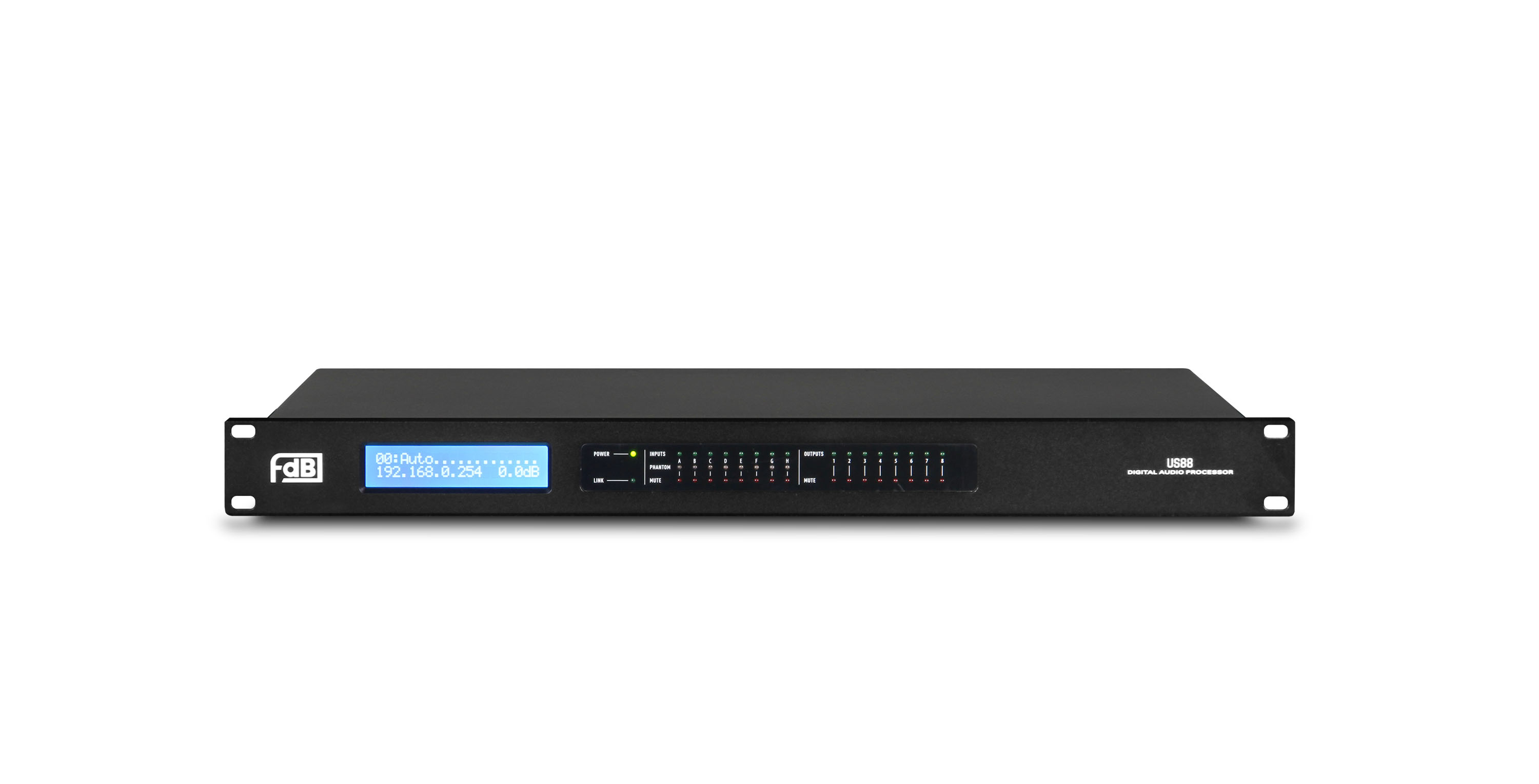

MODEL	US24	US26	US36	US48	US88
INPUT/OUTPUT CHANNELS	2 IN/4 OUT	2 IN/6 OUT	3 IN/6 OUT	4 IN/8 OUT	8 IN/8 OUT
INPUT/OUTPUT CONNECTOR	INPUT:XLR FEMALE, OUTPUT:XLR MALE				PHOENIX CONNECTOR
FREQUENCY RESPONSE	20Hz-20KHz，±0.3dB
S/N RATIO	＞115dBu
THD	＜0.003 1KHz 0dBu
CROSSTALK	＜100dB BELOW FULL SCALE
MAX INPUT LEVEL	+20dBu@1KHz
MAX OUTPUT LEVEL	+20dBu@1KHz  BYPASS
INPUT IMPEDANCE	10KΩ
OUTPUT IMPEDANCE	100Ω
DSP	96KHz 24bit AD/DA 400MHz 32bit浮点FLOATING  POINT DSP
POWER SUPPLY	AC 220V 50/60Hz 功耗POWER  CONSUMPTION:＜20W
DIMENSIONS(WxDxH)mm	483X270X45
NET WEIGHT	4 KG

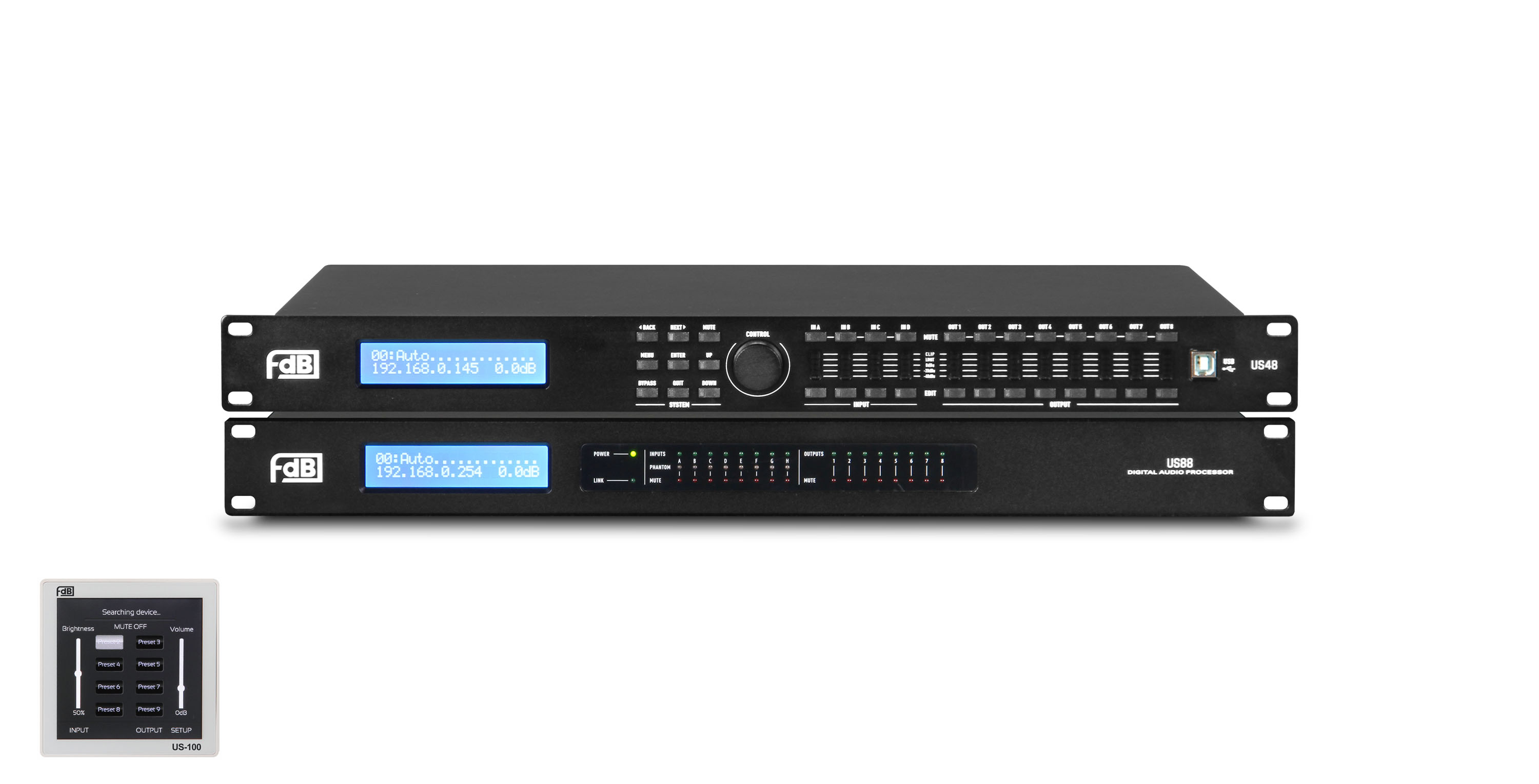

US-100 Loudspeaker System Processor Controller
MODEL	US-100
DISPLAY RESOLUTION	480x480
INTERFACE TYPE	4PIN PHOENIX CONNECTOR
POWER SUPPLY	DC:+24V, Max Power Consumption 2.4W
DIMENSIONS(WxHxD)mm	90.7x90.7x27.9

US24 US26 US36 US48 US88-2023.PDF
