DESCRIPTION

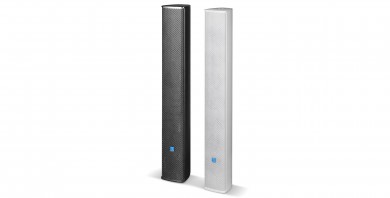

The CL4027 series is a 4”, two-way,all-weather column speaker with different colours or functions, with waterproof, dustproof, windproof, anti-uv aging, dustproof and waterproof covers specially designed for input and output, and multi-layer different functional grille. The product meets the IP56 standard. The exposed metal parts are sprayed with stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel to meet all-weather use. The sound is soft and balanced. Unit configuration: 6x4" 25mm voice coil ferrite mid-bass units, 1x1" exit throat 34mm HF driver with horn, the cabinet is made of aluminum alloy, and the upper and lower panels of the cabinet are die-cast. The B and W after the model represent black, T represents the configuration of transformer and band switch to achieve a variety of different output powers including constant resistance.
FEATURES
●Aluminum alloy housing, impact resistance, weather resistance
●Two-way design, wide horizontal and vertical angles, soft and balanced sound
●Various installation methods, easy and fast operation
●Applications: outdoor sound reinforcement, parks, churches, conference rooms, classrooms, sound reinforcement for outdoor screens
SPECIFICATIONS
| MODEL | CL4027B/CL4027W | CL4027BT/CL4027WT |
| FREQUENCY RESPONSE(-10dB) | 120Hz-18kHz | 120Hz-18kHz |
| DRIVERS | 6×4"(100mm)/1"voice coil LF | 6×4"(100mm)/1"voice coil LF |
| 1×1"(25mm)/1.4"voice coil HF | 1×1"(25mm)/1.4"voice coil HF | |
| INPUT VOLTAGE | 100V | |
| RATED POWER | 200W RMS,800W peak | 37.5W/75W/150W/OFF/6Ω200W |
| SENSITIVITY | 96dB 1watt/1 metre | 96dB 1watt/1 metre |
| MAXIMUM SPL | 119dB continuous,125dB peak | 119dB continuous,125dB peak |
| IMPEDANCE | 6 ohms nominal | 6 ohms nominal |
| DISPERSION(-6dB) | 100°×40° | 100°×40° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | 2.2kHz passive |
| INPUT CONNECTORS | M22-2P | M22-2P |
| PACKAGE SIZE | 1050mm×380mm×193mm(1 pair) | 1050mm×380mm×193mm(1 pair) |
| NET WEIGHT | 11 kg/pc | 12 kg/pc |
| GROSS WEIGHT | 26 kg/pair | 27 kg/pair |

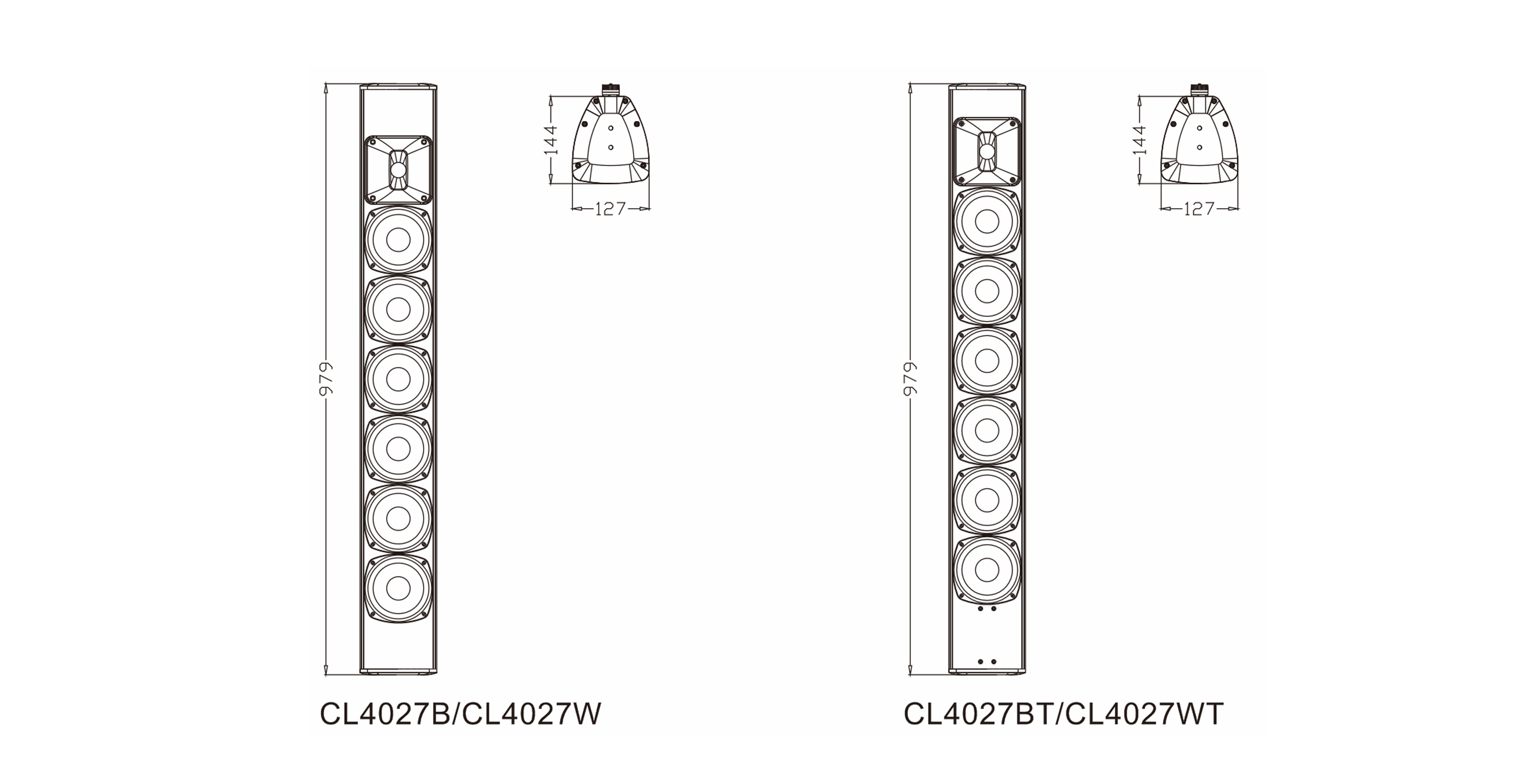

CONFIGURATION
