DESCRIPTION

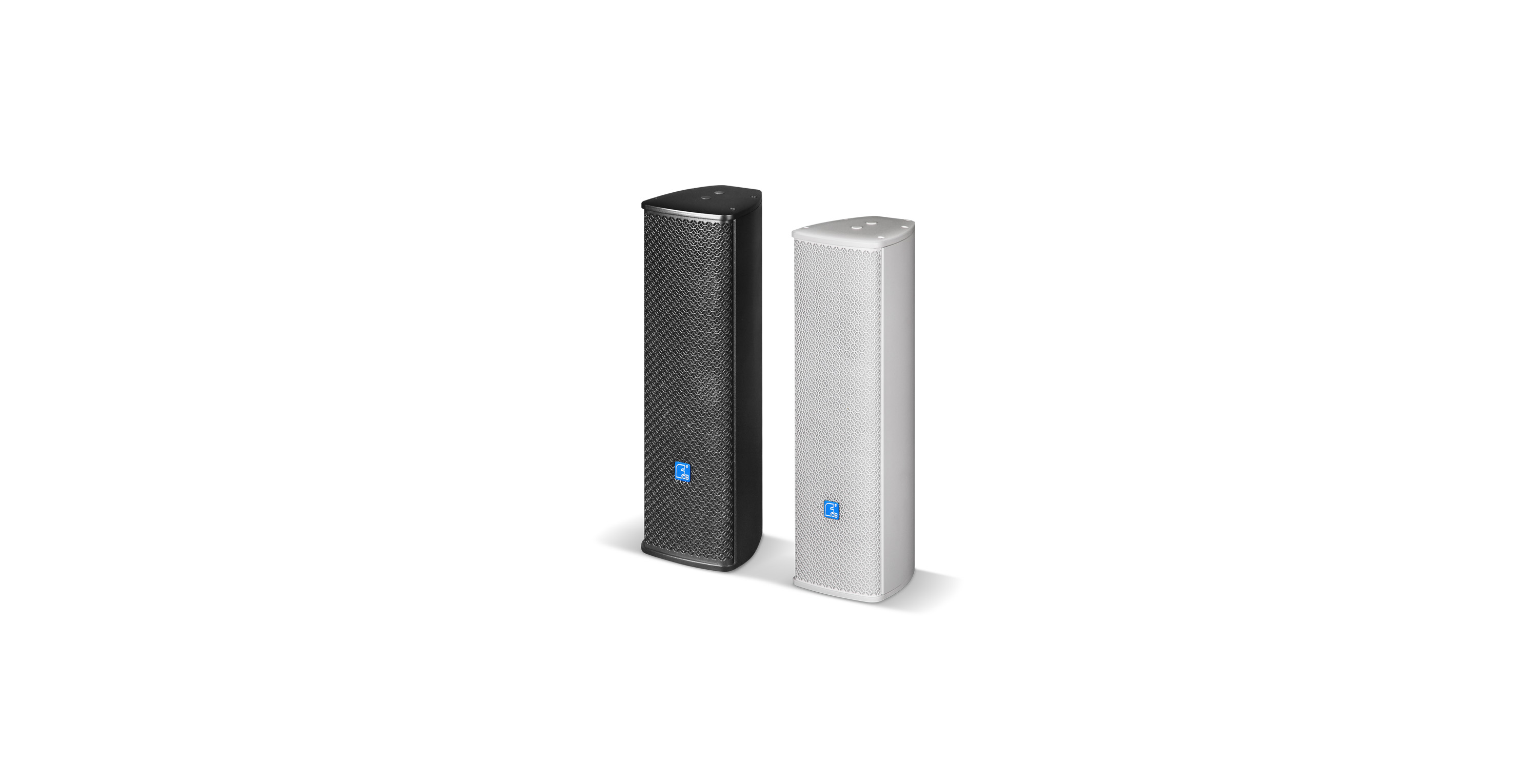

The CL4023 series is a 4”, two-way,all-weather column speaker with different colours or functions, with waterproof, dustproof, windproof, anti-uv aging, dustproof and waterproof covers specially designed for input and output, and multi-layer different functional grille. The product meets the IP56 standard. The exposed metal parts are sprayed with stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel to meet all-weather use. The sound is soft and balanced. Unit configuration: 2x4" 25mm voice coil ferrite mid-bass units, 1x1" exit throat 34mm HF driver with horn, the cabinet is made of aluminum alloy, and the upper and lower panels of the cabinet are die-cast. The B and W after the model represent black, T represents the configuration of transformer and band switch to achieve a variety of different output powers including constant resistance.
FEATURES
●Aluminum alloy housing, impact resistance, weather resistance
●Two-way design, wide horizontal and vertical angles, soft and balanced sound
●Various installation methods, easy and fast operation
●Applications: outdoor sound reinforcement, parks, churches, conference rooms, classrooms
SPECIFICATIONS
| MODEL | CL4023B/CL4023W | CL4023BT/CL4023WT |
| FREQUENCY RESPONSE(-10dB) | 120Hz-18kHz | 120Hz-18kHz |
| DRIVERS | 2×4"(100mm)/1"voice coil LF | 2×4"(100mm)/1"voice coil LF |
| 1×1"(25mm)/1.4"voice coil HF | 1×1"(25mm)/1.4"voice coil HF | |
| INPUT VOLTAGE | 100V | |
| RATED POWER | 65W RMS,260W peak | 15W/30W/60W/OFF/8Ω65W |
| SENSITIVITY | 91dB 1watt/1 metre | 91dB 1watt/1 metre |
| MAXIMUM SPL | 109dB continuous,115dB peak | 109dB continuous,115dB peak |
| IMPEDANCE | 8 ohms nominal | 8 ohms nominal |
| DISPERSION(-6dB) | 100°×60° | 100°×60° |
| CROSSOVER FREQUENCIES | 1.8kHz passive | 1.8kHz passive |
| INPUT CONNECTORS | M22-2P | M22-2P |
| PACKAGE SIZE | 517mm×380mm×193mm(1Pair) | 517mm×380mm×193mm(1Pair) |
| NET WEIGHT | 5.5 kg/pc | 6 kg/pc |
| GROSS WEIGHT | 13 kg/pair | 14 kg/pair |

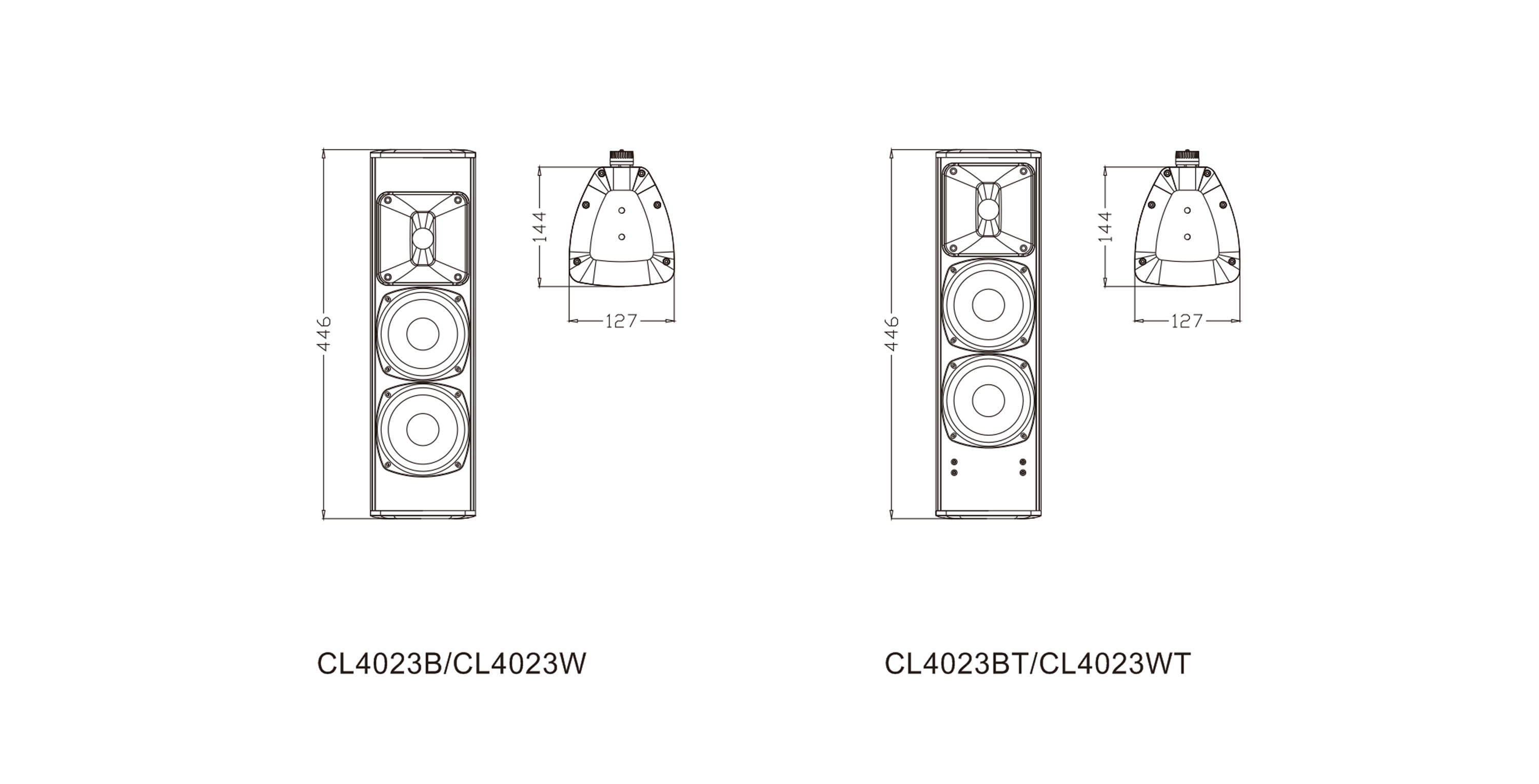

CONFIGURATION
