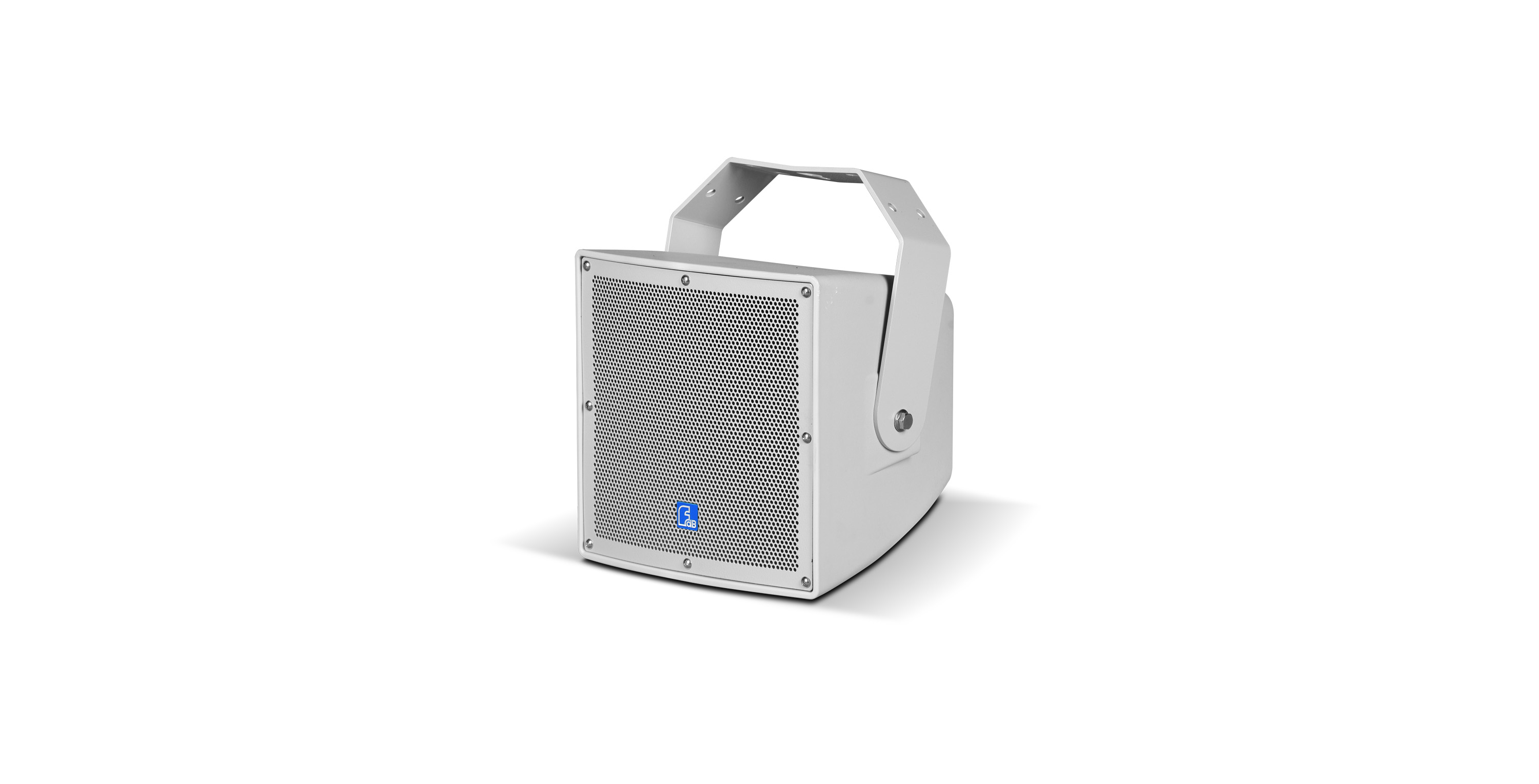

DESCRIPTION
LT206 is a 6.5",coaxial, two-way, all-weather speaker, with waterproof, dustproof, windproof, anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, multi-layer different functional grille. The cabinet meets the IP56 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x6.5" ferrite mid-bass and 1x 0.8" exit throat 25mm HF driver coaxial unit, the cabinet is made of polymer compound injection molding. LT206T is equipped with transformer and band switch based on LT206 to achieve a variety of different output powers including constant resistance.
FEATURES
●The cabinet is made of polymer compound injection molding
●Coaxial point sound source
●Customized unit, better bass performance
●Applications: outdoor restaurants, bars, parks, near-filed sound reinforcement of scenic areas, houseboats and seasides (customized)
SPECIFICATIONS
| MODEL | LT206 | LT206T |
| FREQUENCY RESPONSE(-3dB) | -- | -- |
| FREQUENCY RESPONSE(-10dB) | 100Hz-18kHz | 100Hz-18kHz |
| DRIVERS | 1×6.5" (165mm)/1.4" voice coil LF | 1×6.5"(165mm)/1.4" voice coil LF |
| 1×0.8" (20mm)/1" voice coil HF | 1×0.8"(20mm)/1"voice coil HF | |
| INPUT VOLTAGE | -- | 100V |
| RATED POWER | 100W RMS,400W peak | 25W/50W/100W/OFF/8Ω |
| SENSITIVITY | 93dB 1watt/1 metre | 93dB 1watt/1 metre |
| MAXIMUM SPL | 113dB continuous,119dB peak | 113dB continuous,119dB peak |
| IMPEDANCE | 8 ohms nominal | 8 ohms nominal |
| DISPERSION(-6dB) | 100°×100° | 100°×100° |
| CROSSOVER FREQUENCIES | 2.8kHz passive | 2.8kHz passive |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 313mm×313mm×278mm | 313mm×313mm×278mm |
| NET WEIGHT | 6 kg/pc | 7 kg/pc |
| GROSS WEIGHT | 7.5 kg/pc | 8.5 kg/pc |
CONFIGURATION
