PLA212B
2x12" Sub-woofer
DESCRIPTION
PLA212B is a dual 12", all-weather subwoofer, designed with priority given to waterproof, dustproof, windproof, anti-uv aging, and five-layer grille design of different materials. The product meets the IP66 standard, all hanging parts and connecting parts are made of stainless steel, three-point hanging system, ensure safety. Can be matched with PLA312, PLA410, PLA612 to improve the low frequency performance of the system. Unit configuration:2x12" customized mid-bass unit. The cabinet is made of polymer composite material through a special process.
FEATURES
●Pass IP66 testing
●Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance

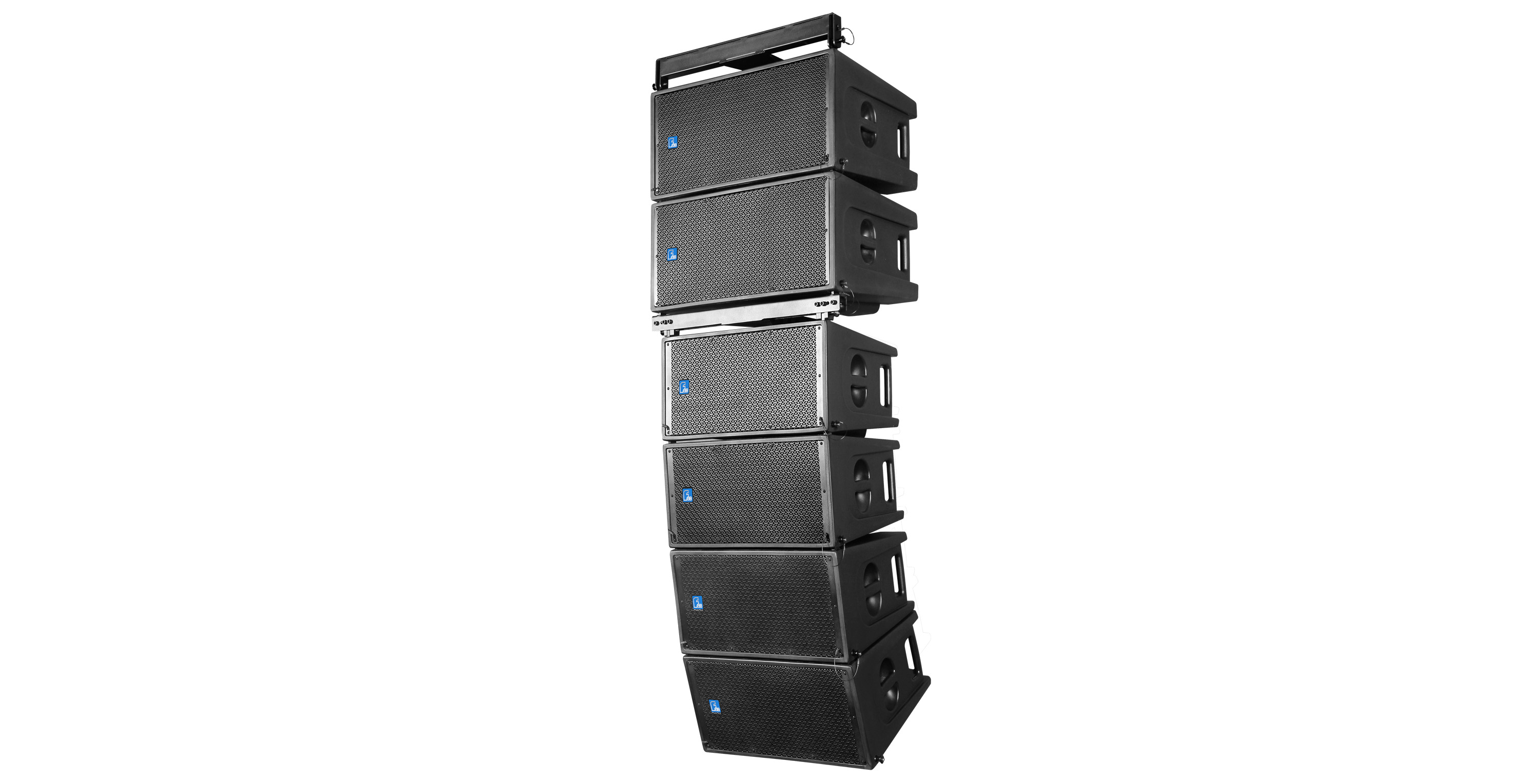

●Can be matched with PLA312,PLA410 and PLA612
●Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance
●Can be matched with PLA312,PLA410 and PLA612
●Applications: outdoor fixed installation
SPECIFICATIONS
| MODEL | PLA212B |
| FREQUENCY RESPONSE(-10dB) | 50Hz-300Hz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| RATED POWER | 600W RMS, 2400W peak |
| SENSITIVITY | 98dB 1watt/1meter |
| MAXIMUM SPL | 126dB continuous,132dB peak |
| IMPEDANCE | 8 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 700mm×524mm×931mm |
| NET WEIGHT | 33 kg/pc |
| GROSS WEIGHT | 40 kg/pc |
