DESCRIPTION

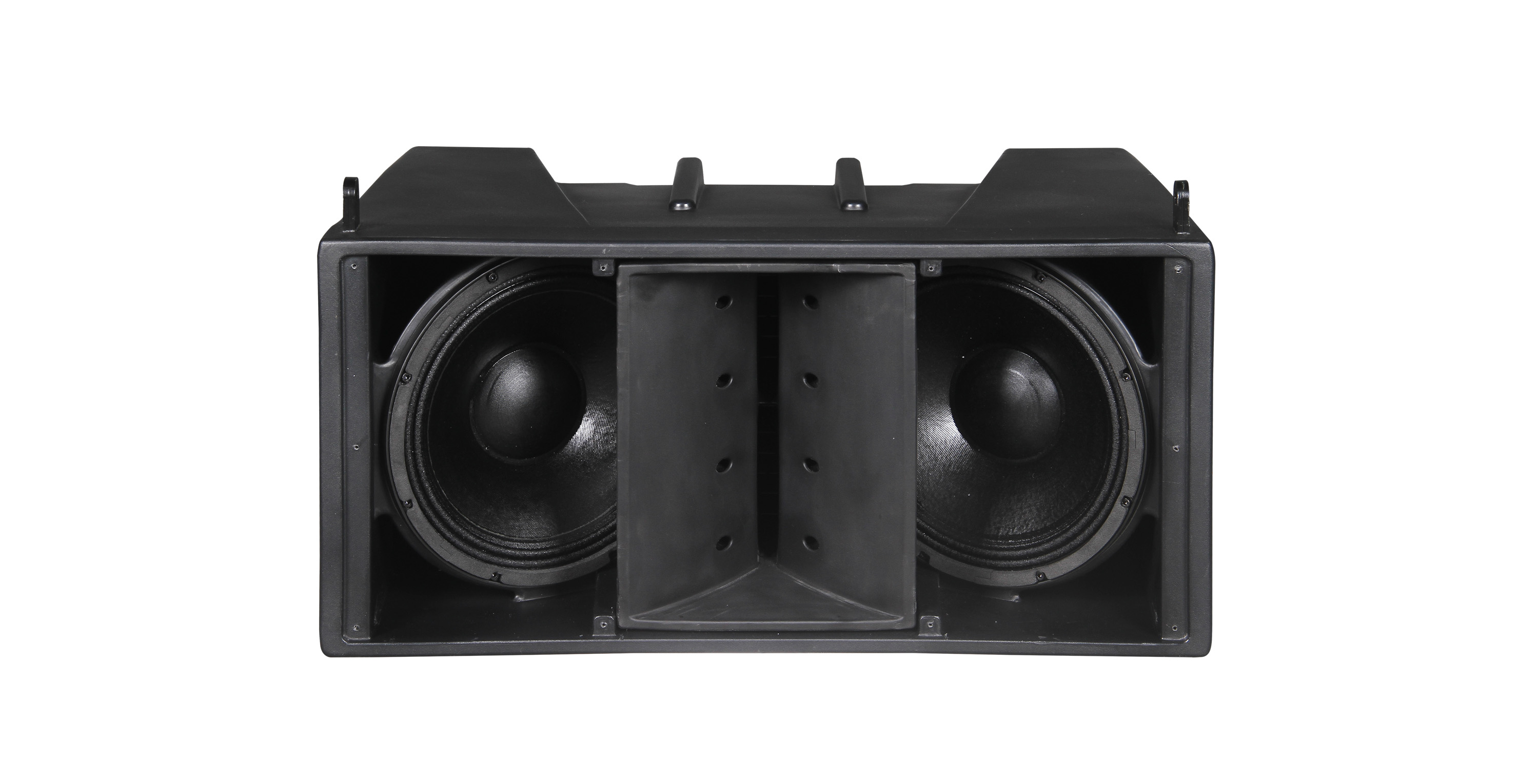

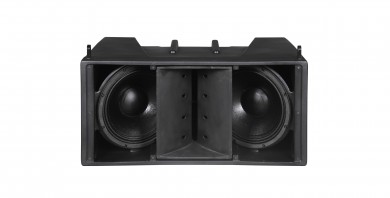

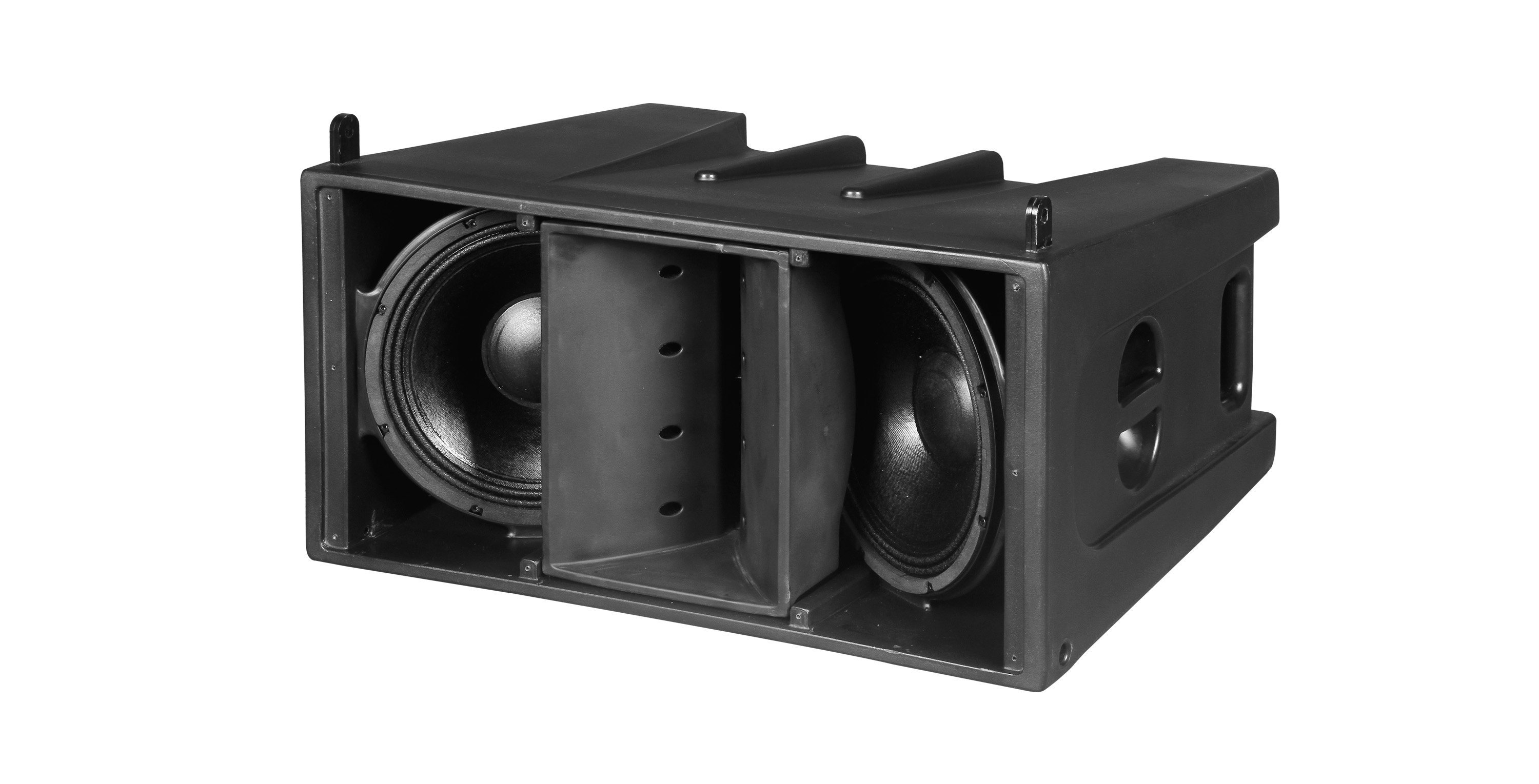

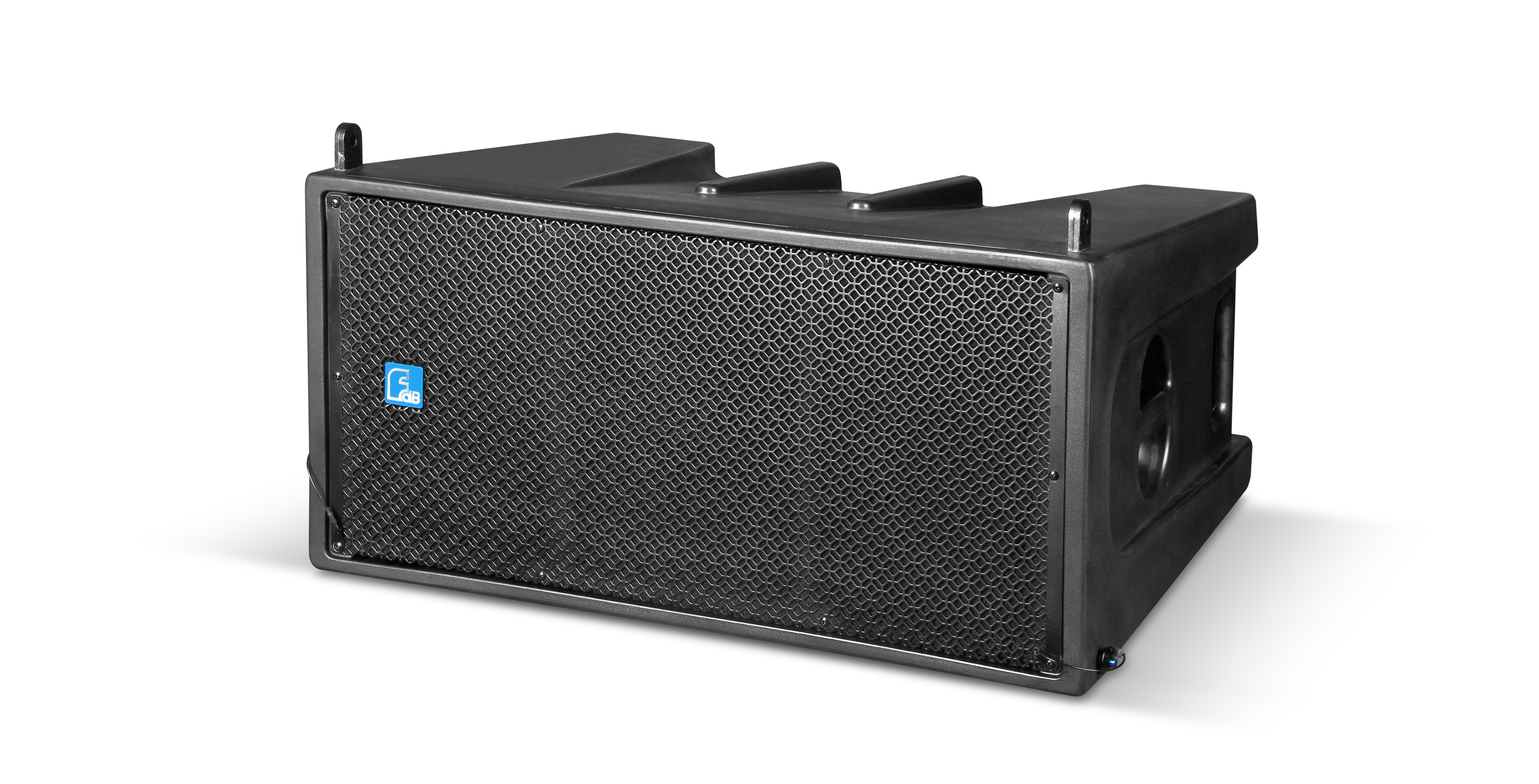

PLA612 is a Bi-amp, three-way, all-weather line array speaker, designed with priority given to waterproof, dustproof, windproof, anti-uv aging, and five-layer grille design of different materials. The product meets the IP66 standard, all hanging parts and connecting parts are made of stainless steel or aluminum, features low-distortion mid-bass unit and mid-high coaxial driver with special waveguide and horn, accurate coverage, three-point hanging system, ensure safety. Unit configuration:2x12" high efficiency mid-bass unit, 2x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of polymer composite material through a special process.
FEATURES
●Pass IP66 testing
●Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance
●Bi-amp way, give full play to the unit efficiency, obtain the best sound quality
●Can be matched with PLA212B
●Applications: outdoor fixed installation
SPECIFICATIONS
| MODEL | PLA612 |
| FREQUENCY RESPONSE(-10dB) | LF: 60Hz-1KHz MF+HF：500Hz-18KHz |
| 2×12"(300mm)/3"voice coil LF | |
| DRIVERS | 2×1.4"(36mm)/3.5"voice coil MF |
| 2×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | LF: 800W RMS,3200W peak |
| MF+HF: 300W RMS,1200W peak | |
| SENSITIVITY | LF: 101dB 1watt/1meter |
| MF+HF: 110dB 1watt/1meter | |
| MAXIMUM SPL | LF: 130dB continuous,136dB peak |
| MF+HF: 134dB continuous,140dB peak | |
| IMPEDANCE | LF: 8 ohms nominal |
| MF+HF: 16 ohms nominal | |
| DISPERSION(-6dB) | Horizontal coverage: 90° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 600Hz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 700mm×524mm×931mm |
| NET WEIGHT | 39 kg/pc |
| GROSS WEIGHT | 46 kg/pc |

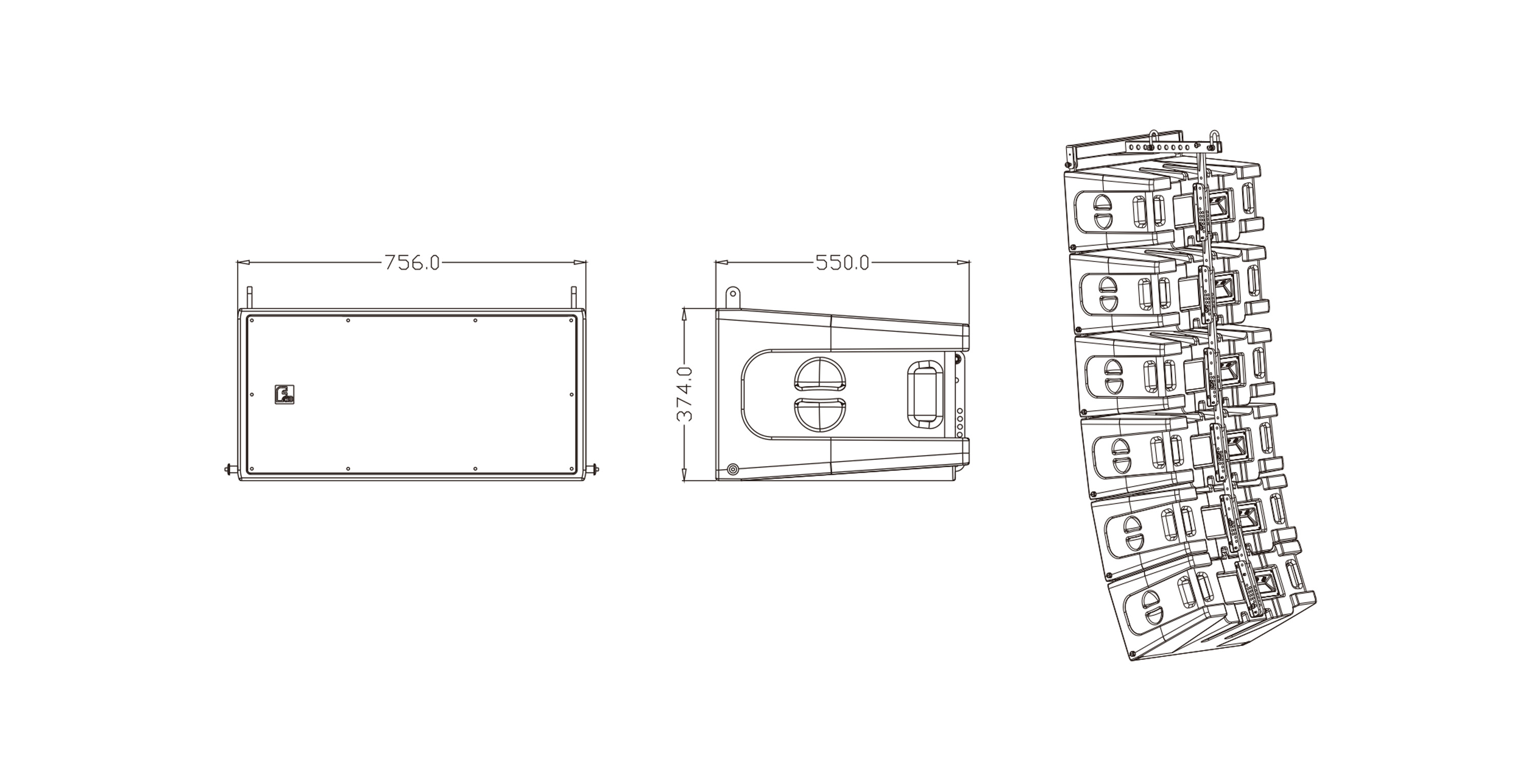

CONFIGURATION
