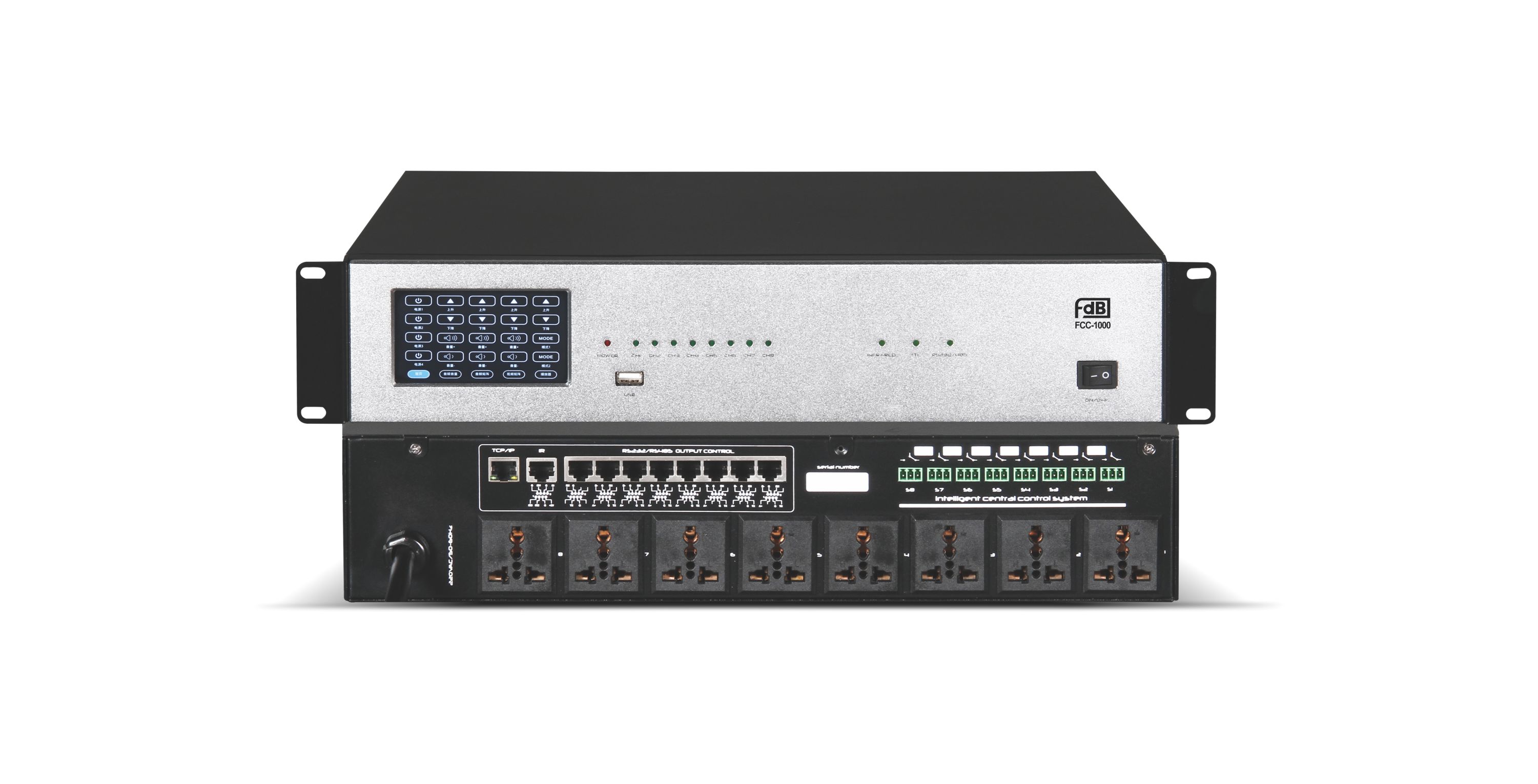

FCC-1000
Intelligent central control system
DESCRIPTION
FCC-1000 is an intelligent central control system host, using the advanced processing chip in the world, with the ability to quickly process and send detection data, with advanced bipolar AC ripple elimination technology. It adopts TCP/UDP/IP, TTL, IR, RS232, RS485 communication methods, supports a variety client devices connection, supports tablet, mobile phone, computer system management. It is built in 8 channels intelligent power controller, adjustable channel delay, free channel grouping and device cascading. The 4.3” real color touch screen on the panel can realize the function control of the machine.
SPECIFICATIONS
| Ethernet Control Port： | 1 channel(TJ45) |
| Infrared Control Port: | 1 channel(TJ45) |
| TTL Control Port： | 1 channel(TJ45) |
| RS232/RS485 Control Port： | 7 channels(RJ45) |
| Short-circuit signal output control port： | 8 channels (Phoenix Connector) |
| Touch Screen Control Port： | 4.3" real color touch screen |
| Strong Current Specifications： | |
| Work Voltage： | AC220V/50~60HZ |
| Max Load： | <7000W(Resistive Load) |
| Single Channel Load： | <2500W |
| Controlled Channels： | 8 channels(Universal strong current socket) |
| Dimension (LxWxH)： | 300*483*88mm |
