S215

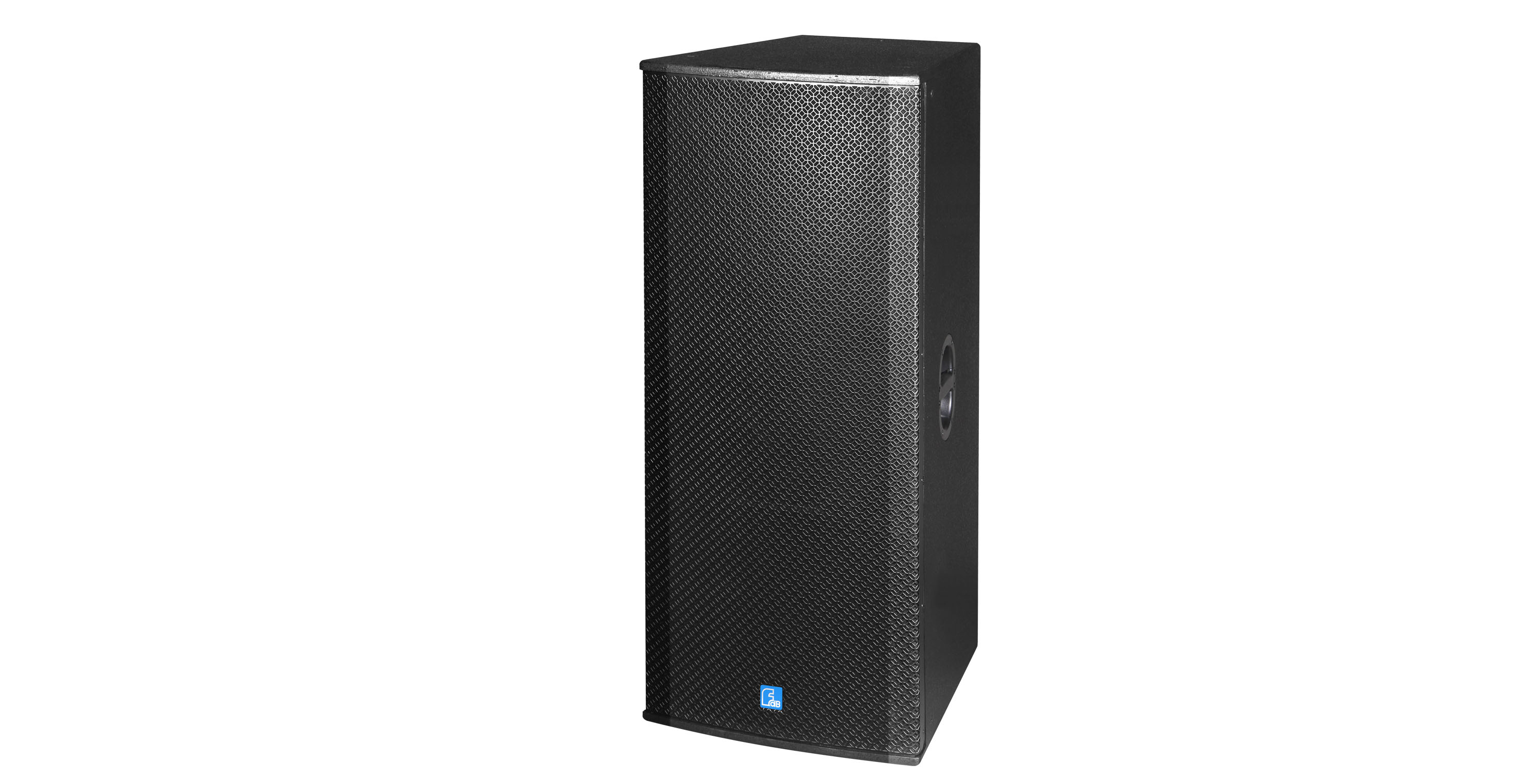

2x15" 2-way Loudspeaker System
DESCRIPTION
The S215 is a dual 15" two way full range speaker with bright and powerful sound. Unit configuration: 2x15" high efficiency mid-bass unit, 1x2" exit throat 75mm titanium diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality unit configuration, high strength plywood housing
●High SPL
●Applications: indoor and outdoor sound reinforcement in full range, multifunction halls
●High SPL
●Applications: indoor and outdoor sound reinforcement in full range, multifunction halls
SPECIFICATIONS
| MODEL | S215 |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 45Hz-20KHz |
| DRIVERS | 2×15"(385mm)/3"voice coil LF |
| 1×2"(50mm)/3"voice coil HF | |
| RATED POWER | 800W RMS,3200W peak |
| SENSITIVITY | 99dB 1watt/1meter |
| MAXIMUM SPL | 128dB continuous,134dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 80°×40° |
| CROSSOVER FREQUENCIES | 1.3kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 715mm×615mm×1255mm |
| NET WEIGHT | 55 kg/pc |
| GROSS WEIGHT | 61 kg/pc |
