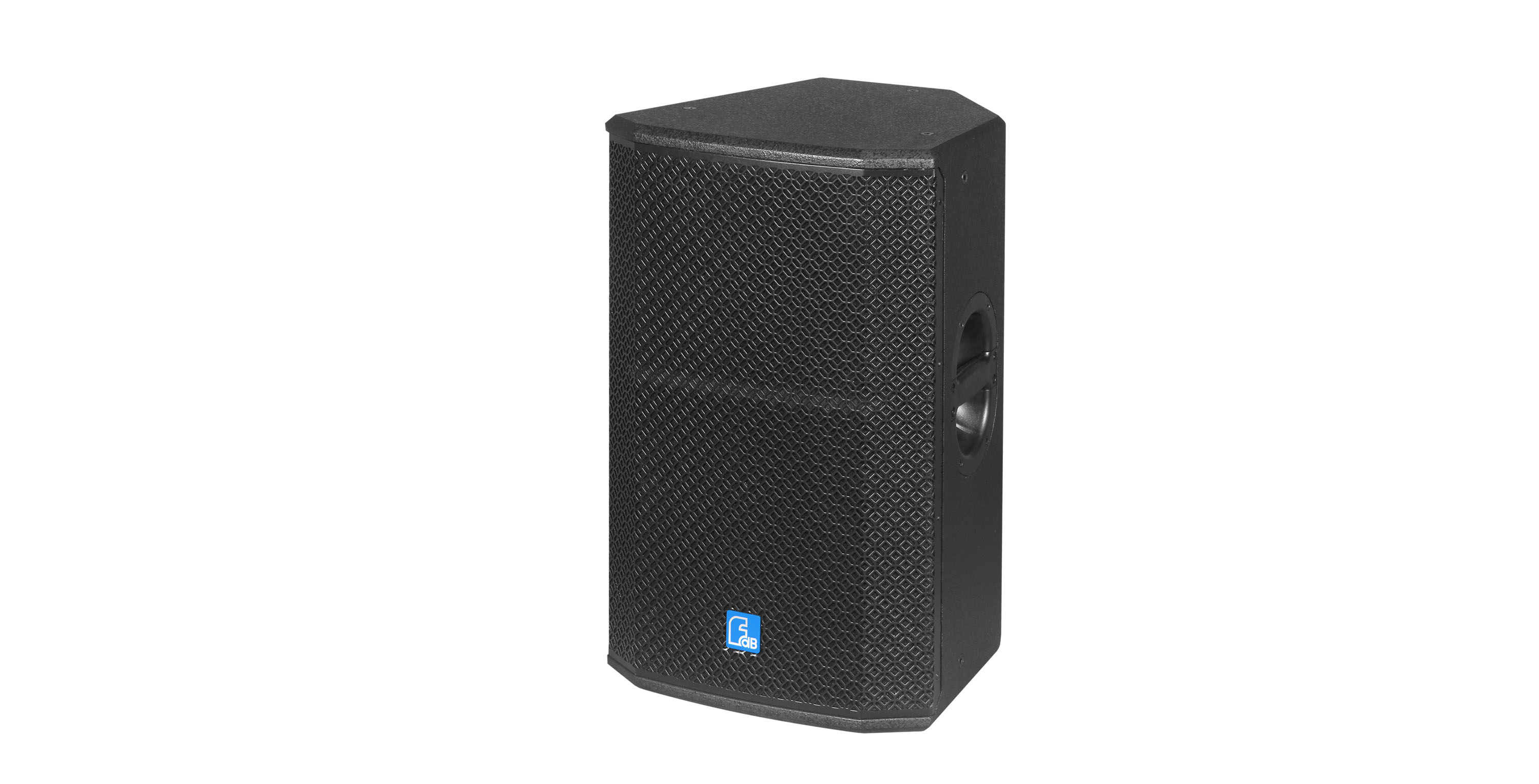

S112
1x12" 2-way Loudspeaker system
DESCRIPTION
The S112 is a 12" two way full range speaker with clear,soft and powerful sound. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 44mm polyester diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality unit configuration, high SPL
●Rotatable horn, multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms , hotel entertainment, touring
●Rotatable horn, multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms , hotel entertainment, touring
SPECIFICATIONS
| MODEL | S112 |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20KHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1meter |
| MAXIMUM SPL | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 1.7kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |

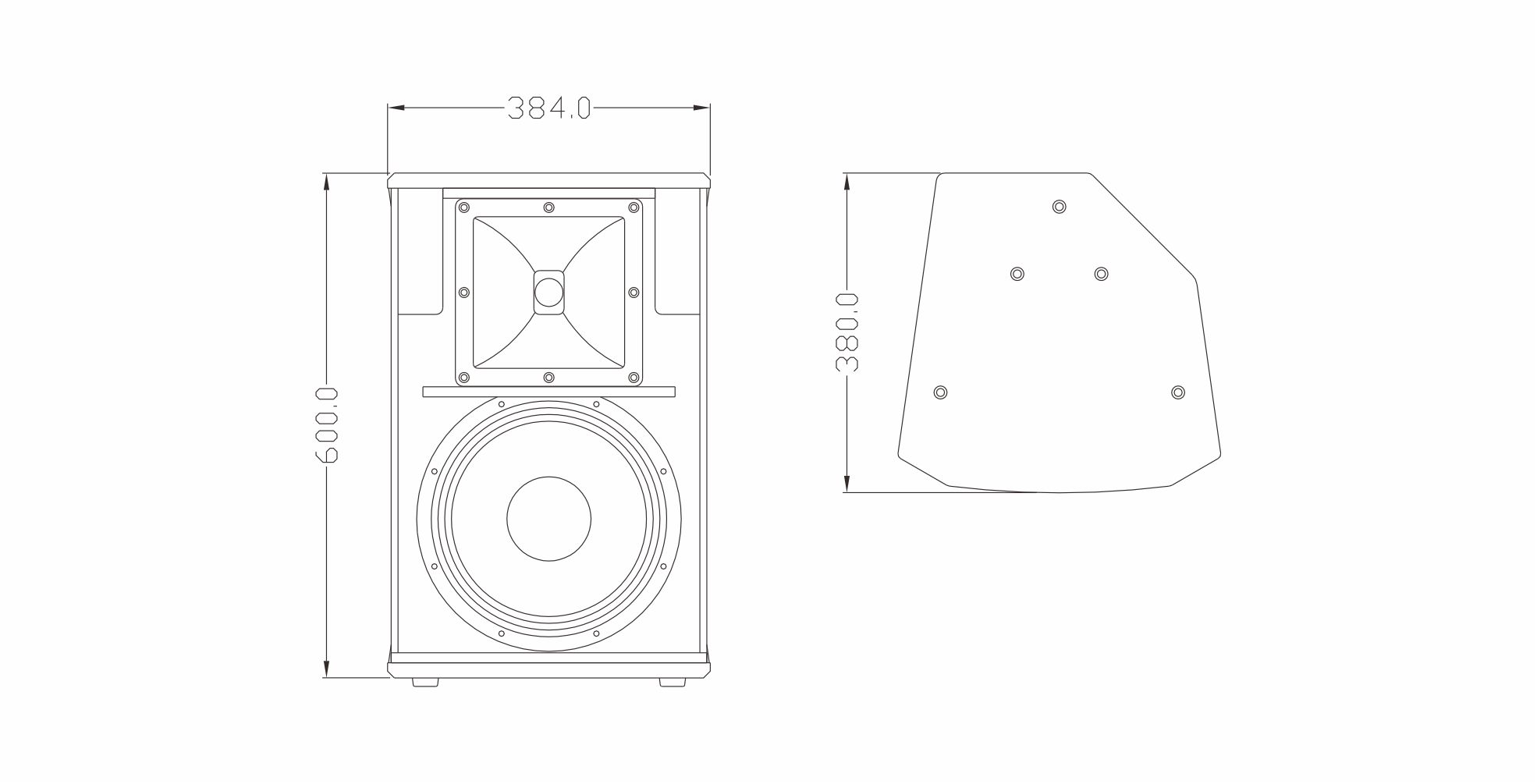

| PACKAGE SIZE | 464mm×460mm×700mm |
| NET WEIGHT | 20 kg/pc |
| GROSS WEIGHT | 24 kg/pc |
