S110
1x10" 2-way Loudspeaker System
DESCRIPTION
The S110 is a 10", small sized, two way full range speaker with clear and soft sound. Unit configuration: 1x10" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Clear and soft sound
●Multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms , hotel entertainment, touring
●Multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms , hotel entertainment, touring
SPECIFICATIONS
| MODEL | S110 |
| FREQUENCY RESPONSE(-3dB) | 70 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 65 Hz-20kHz |
| DRIVERS | 1×10"(250mm)/2.5"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 95dB 1watt/1 metre |
| MAXIMUM SPL | 119dB continuous,125 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 1.7kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 410mm×405mm×600mm |
| NET WEIGHT | 14 kg/pc |
| GROSS WEIGHT | 17 kg/pc |

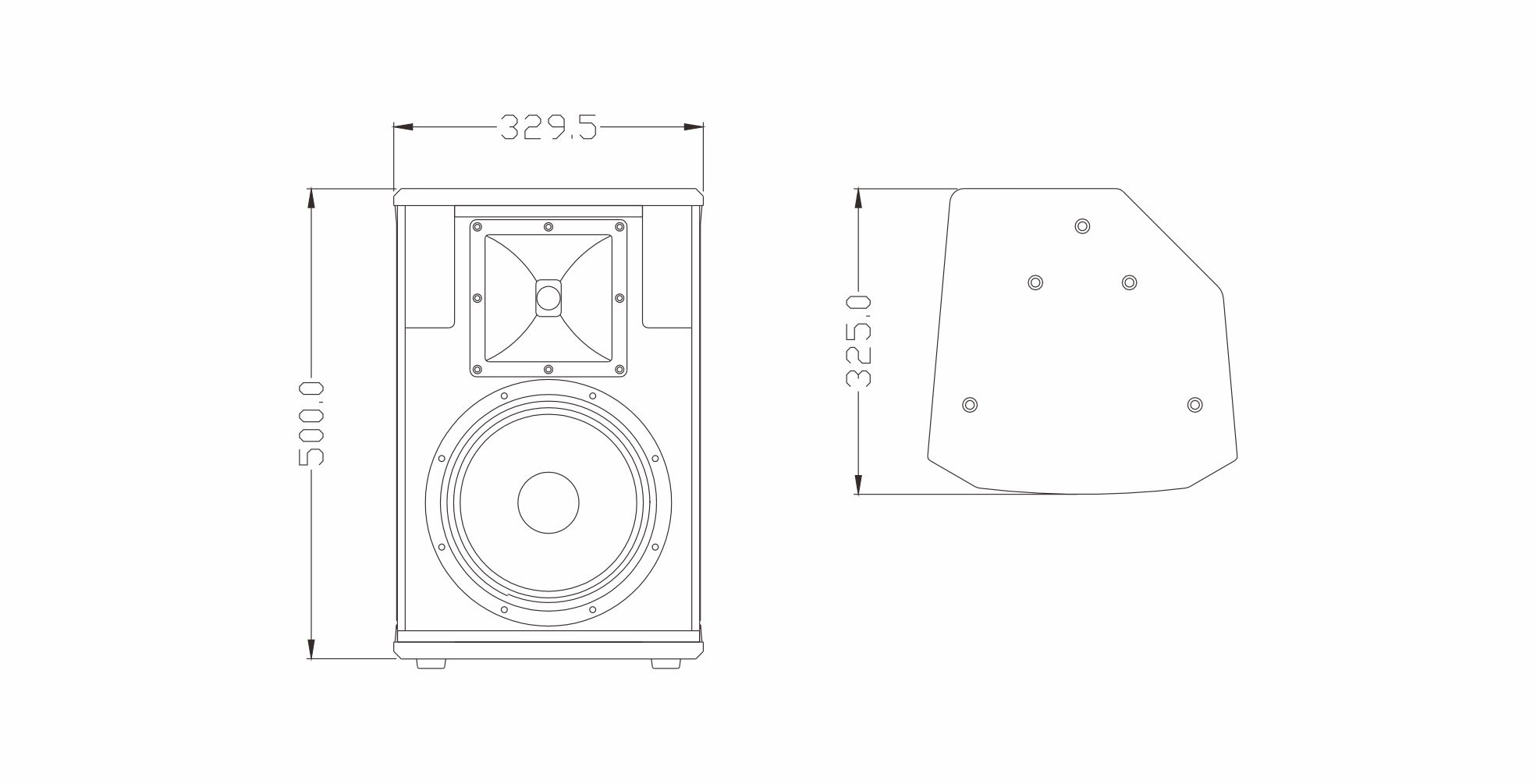

CONFIGURATION
