S106
1x6.5" Two-way loudspeaker system
DESCRIPTION

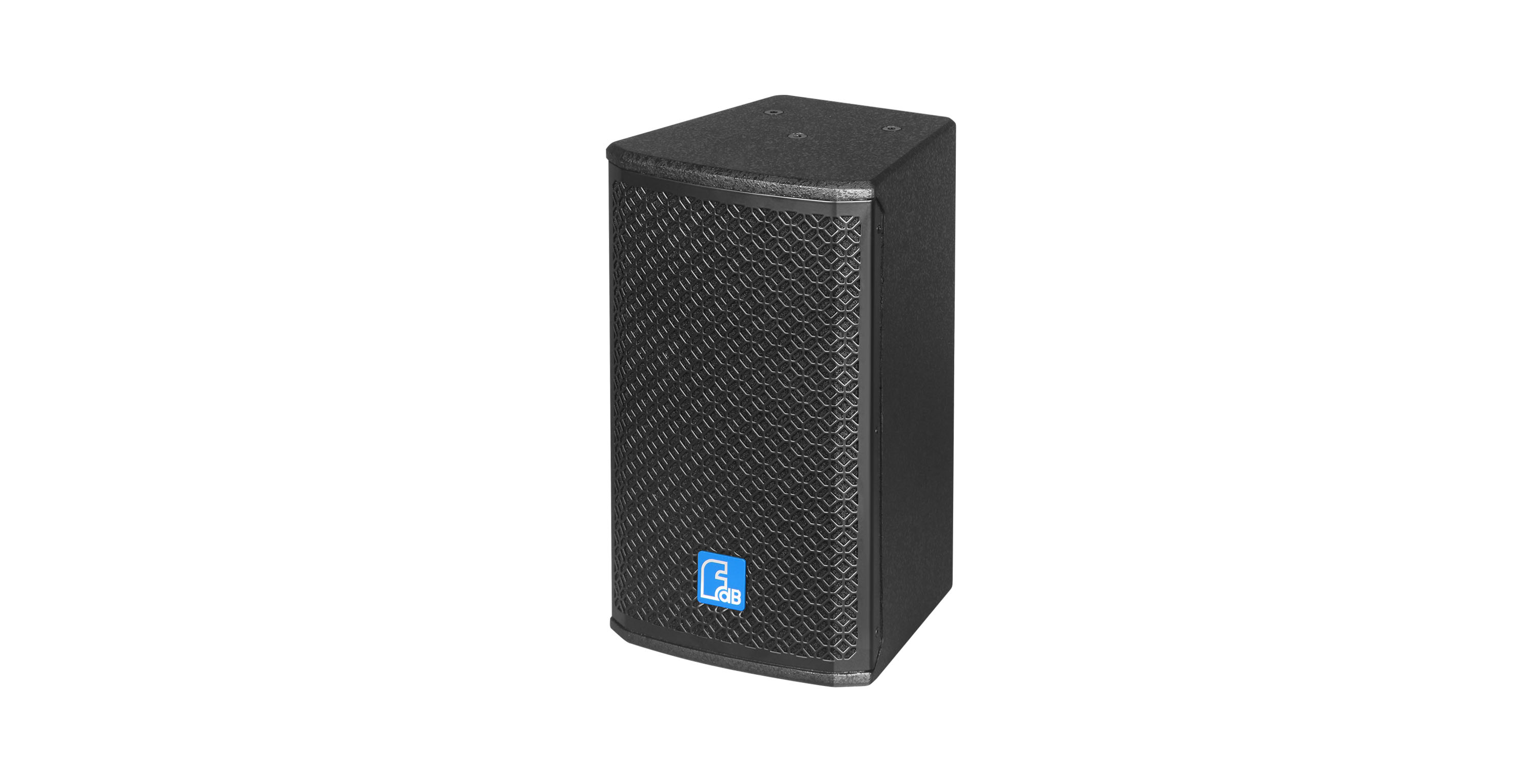

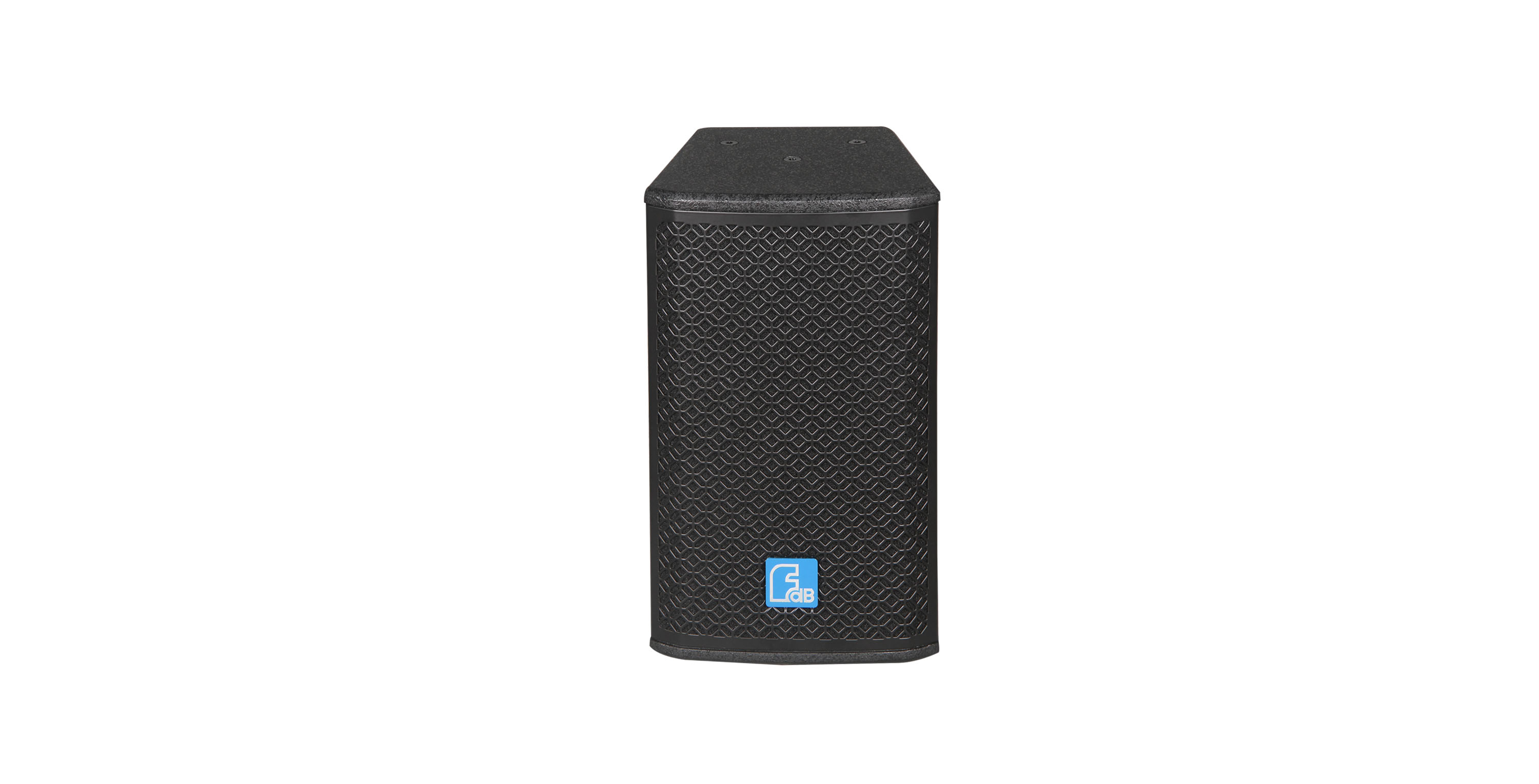

The S106 is a 6.5", small sized, light weight, two way full range speaker with clear and soft sound. Unit configuration: 1x6.5" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver with 110°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Clear and soft sound
●Rotatable horn, multi-ways for installation
●Applications: conference rooms,
multifunction halls, classrooms
●Rotatable horn, multi-ways for installation
●Applications: conference rooms,
multifunction halls, classrooms
SPECIFICATIONS
| MODEL | S106 |
| FREQUENCY RESPONSE(-3dB) | 90 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 85Hz-20KHz |
| DRIVERS | 1×6.5"(165mm)/2"voice coil LF |
| 1×1"(25mm)/1"voice coil HF | |
| RATED POWER | 120W RMS,480W peak |
| SENSITIVITY | 90dB 1watt/1 metre |
| MAXIMUM SPL | 111dB continuous,117 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.5kHz passive |
| INPUT CONNECTORS | Covered barrier strip terminals |
| PACKAGE SIZE | 520mm×292mm×455mm(pair/carton) |
| NET WEIGHT | 6 kg/pc |
| GROSS WEIGHT | 15 kg/pair |
