DESCRIPTION

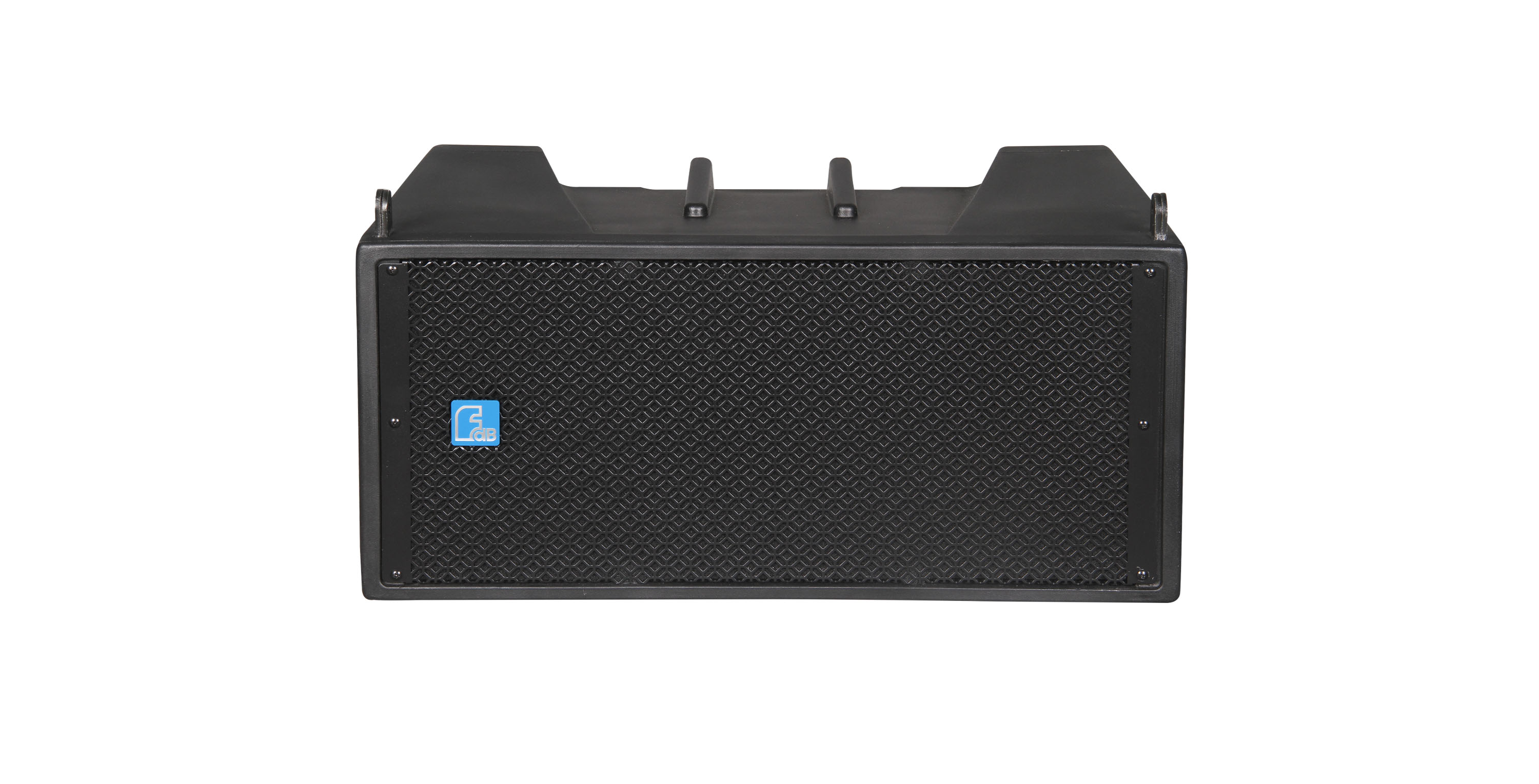

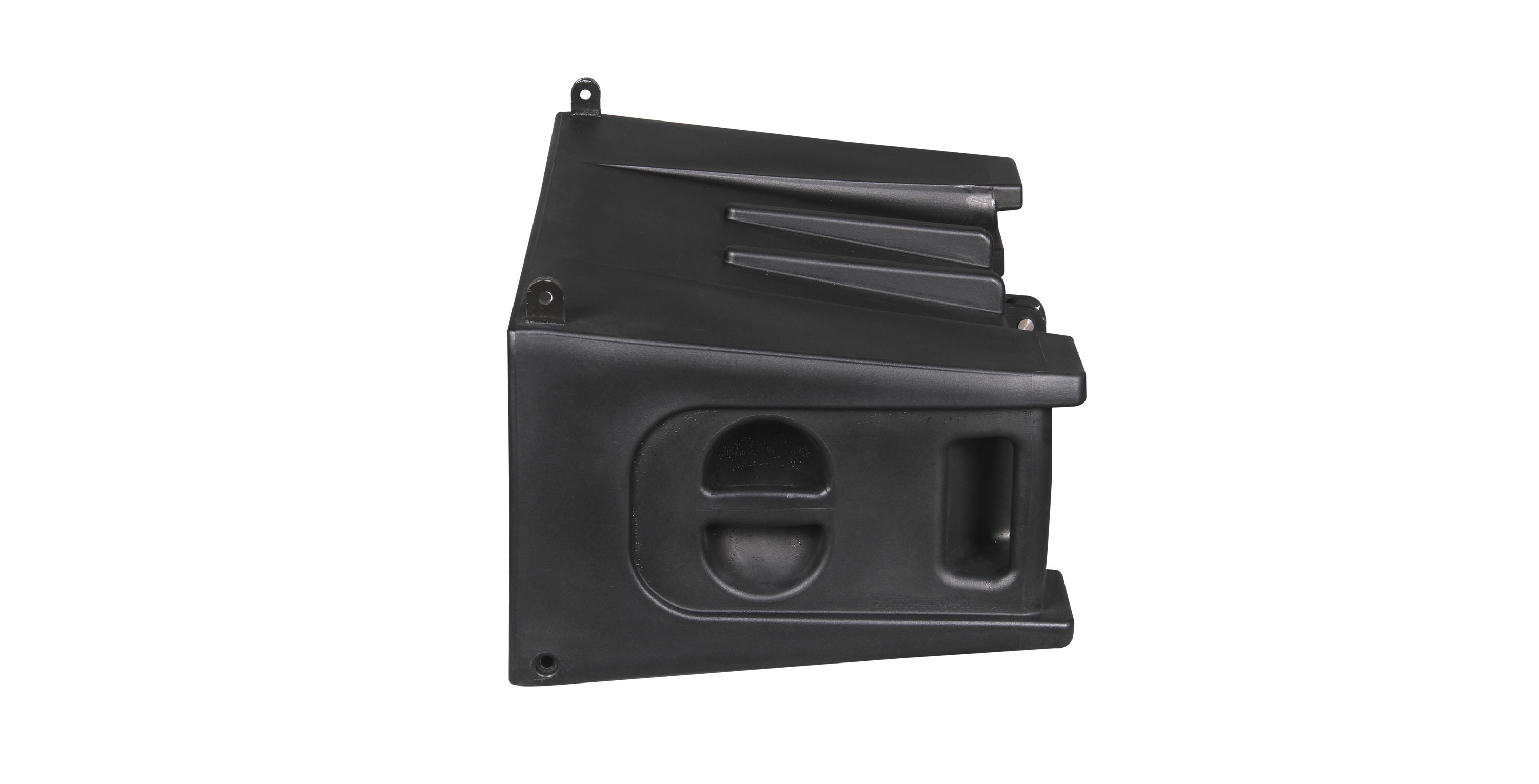

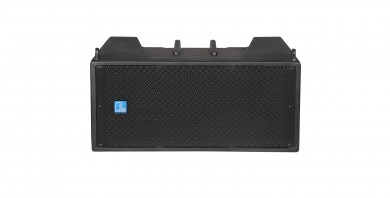

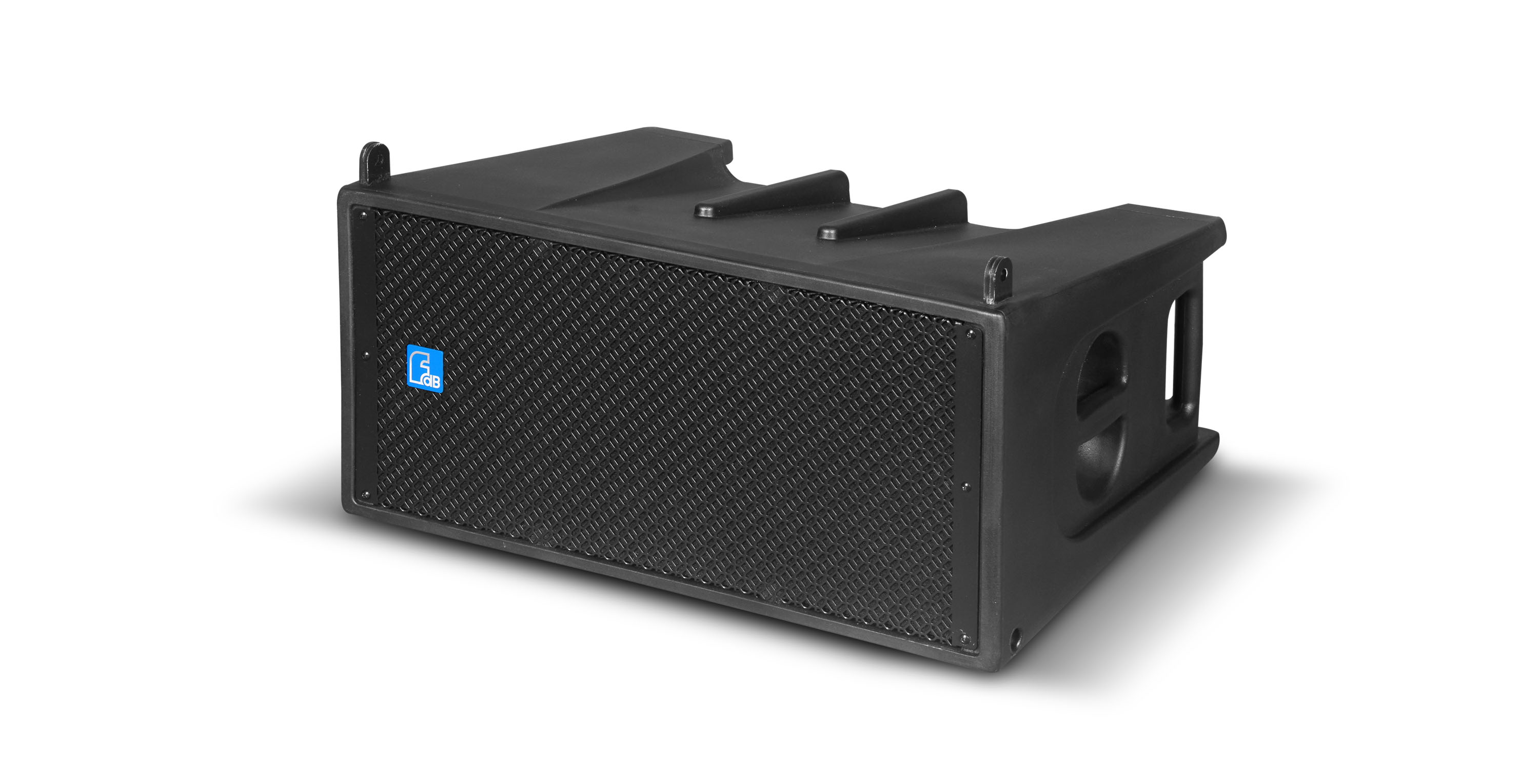

PLA410 is a two-way, all-weather line array speaker, designed with priority given to waterproof, dustproof, windproof, anti-uv aging, and five-layer grille design of different materials. The product meets the IP66 standard, all hanging parts and connecting parts are made of stainless steel or aluminum, features low-distortion mid-bass unit and mid-high coaxial driver with special waveguide and horn, accurate coverage, three-point hanging system, ensure safety. Unit configuration:2x10" high efficiency mid-bass unit, 1x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of polymer composite material through a special process.
FEATURES
●Pass IP66 testing
●Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance
●Passive way, simple operation, save amplifiers
●Can be matched with PLA212B
●Applications: outdoor fixed installation
SPECIFICATIONS
| MODEL | PLA410 |
| FREQUENCY RESPONSE(-3dB) | 70Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 65Hz-20KHz |
| DRIVERS | 2×10"(250mm)/3"voice coil LF |
| 1×1.4"(36mm)/3.5"voice coil MF | |
| 1×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | 500W RMS,2000W peak |
| SENSITIVITY | 101dB 1watt/1meter |
| MAXIMUM SPL | 128dB continuous,134dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage: 90° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 700Hz, 6KHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 550mm×396mm×770mm |
| NET WEIGHT | 23 kg/pc |
| GROSS WEIGHT | 27 kg/pc |
