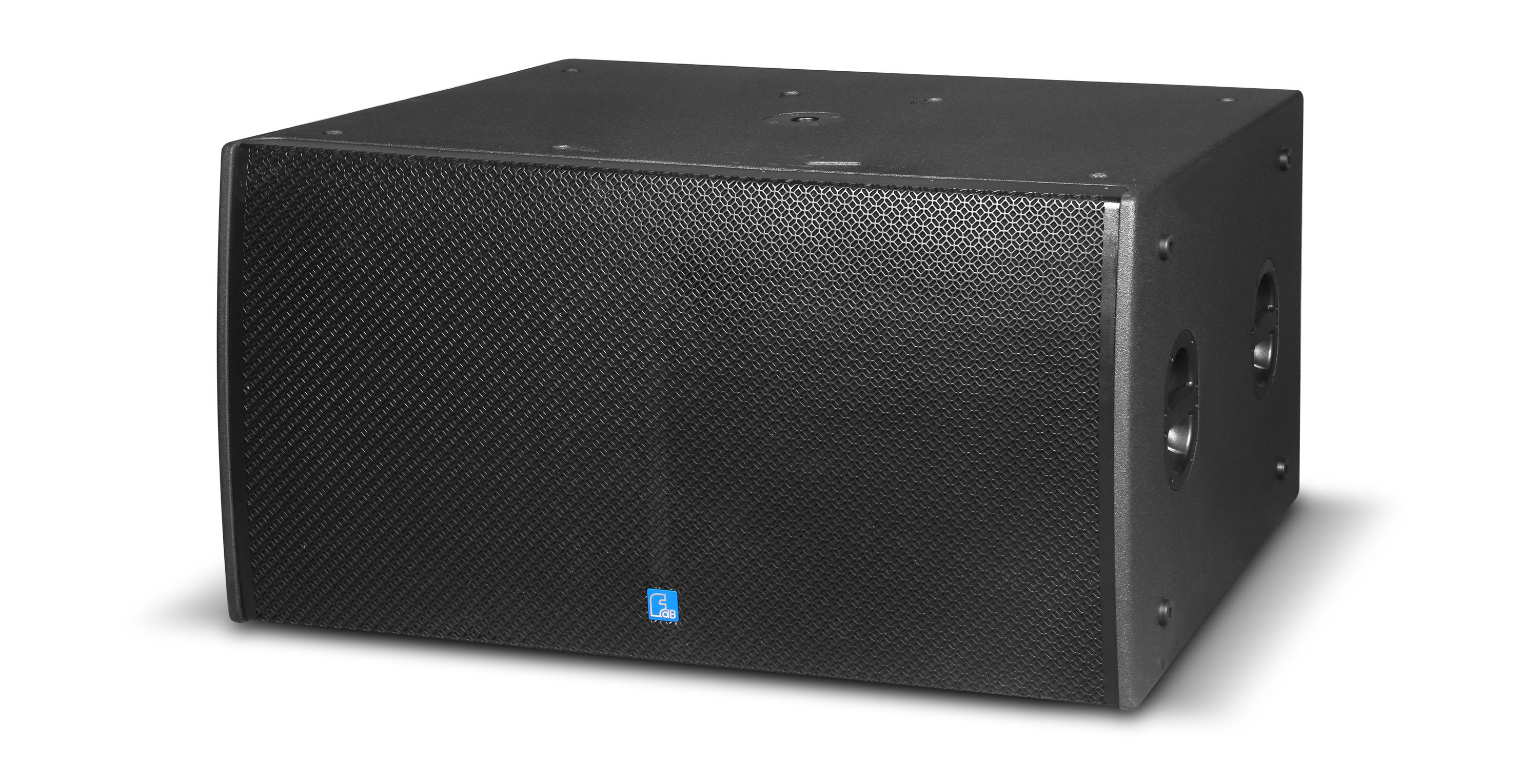

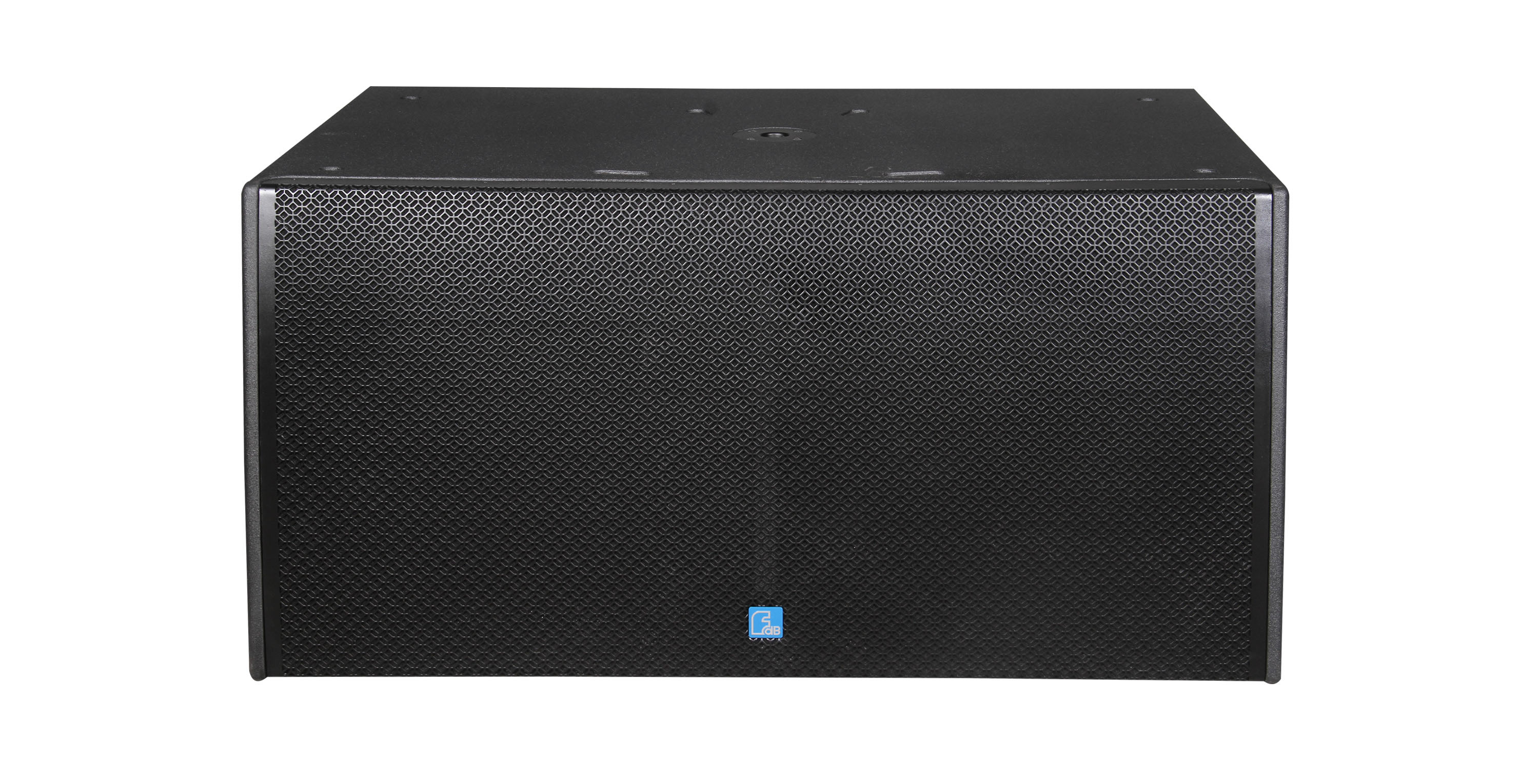

DLA221B    2x21" Sub-woofer

DESCRIPTION

DLA221B is a dual 21" subwoofer. It features 2x21" 115mm voice coil woofer, bass-reflex design,  can be used with line array and point source full range speakers to improve the low frequency performance. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.



FEATURES

●High quality components, bass-reflex design, full and powerful sound
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely


SPECIFICATIONS

MODEL DLA221B
FREQUENCY RESPONSE(-3dB) 35Hz-300Hz
DRIVERS 2×21"(530mm)/4.5"voice coil LF
RATED POWER 800W+800W RMS, 3200W+3200W peak
SENSITIVITY 103dB  1watt/1meter
MAXIMUM SPL 135dB continuous,141dB peak
IMPEDANCE 4 ohms +4 ohms nominal
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 1275mm×870mm×695mm
NET WEIGHT 104 kg/pc
GROSS WEIGHT 112 kg/pc

CONFIGURATION

DOWNLOAD
