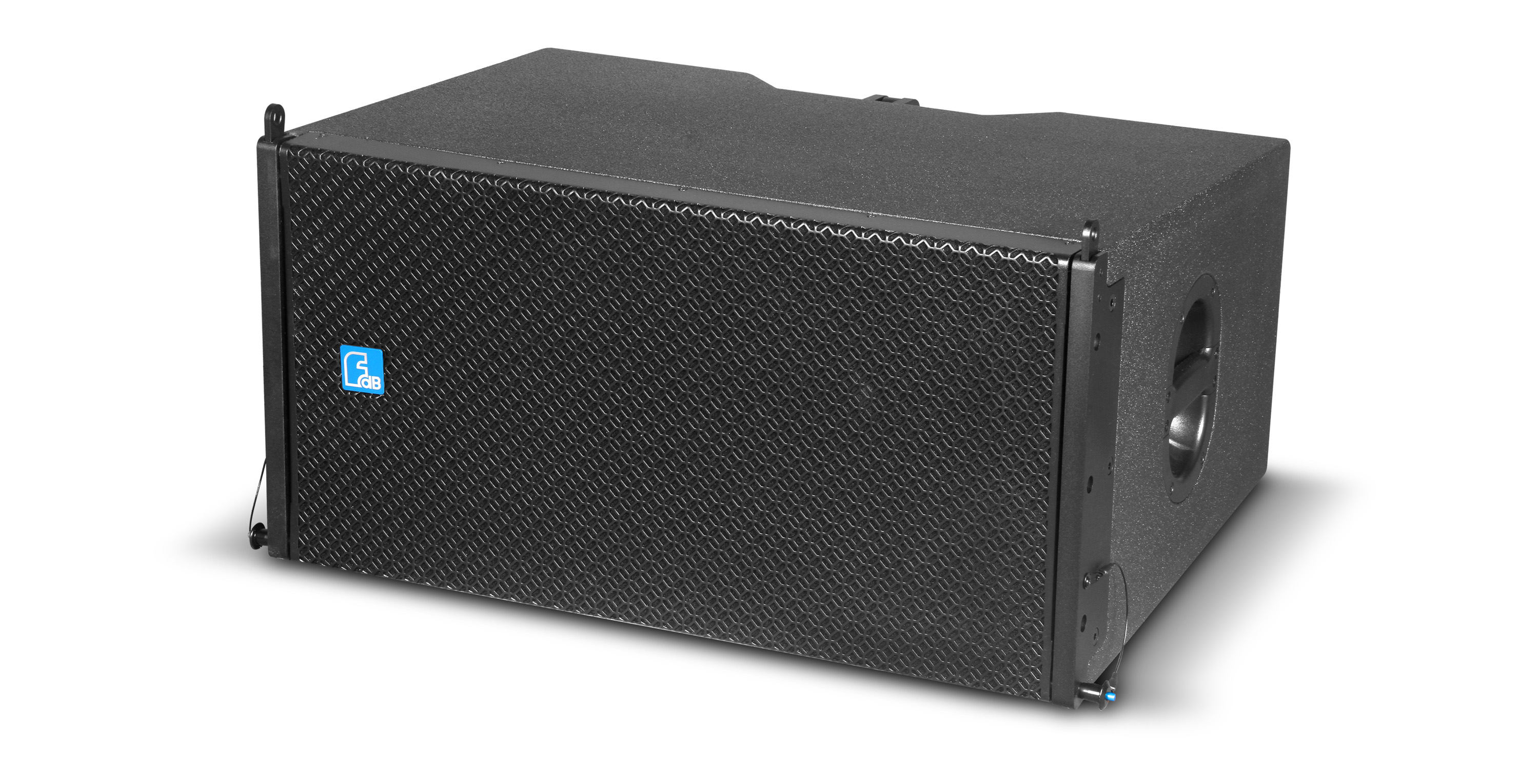

DLA612
2x12" 3-way line array system
DESCRIPTION
DLA612 is a compact, big-sized, light weight, high SPL, Bi-amp, 3-way line array speaker. It features low distortion mid-bass unit, mid-high coaxial driver with special waveguide and horn, accurate coverage, uniform changes, three-point hanging system, the whole system installation is fast, stable and safe. Unit configuration:2x12" high efficiency neodymium mid-bass units, 2x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Product parameters have been entered into EASE loudspeaker database
●Mid-high coaxial unit, real 3-way speaker, clear and powerful.
●Bi-amp way, give full play to the unit efficiency, obtain the best sound quality
●Aluminum driver mounting plate, aluminum waveguide, greatly reduce the chance of heat damage
●Applications: large entertainment venues, stadiums and big concerts
●Mid-high coaxial unit, real 3-way speaker, clear and powerful.
●Bi-amp way, give full play to the unit efficiency, obtain the best sound quality
●Aluminum driver mounting plate, aluminum waveguide, greatly reduce the chance of heat damage
●Applications: large entertainment venues, stadiums and big concerts
SPECIFICATIONS
| MODEL | DLA612 |
| FREQUENCY RESPONSE(-10dB) | LF: 60Hz-650Hz, MF+HF: 500Hz-18KHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| 2×1.4"(36mm)/3.5"voice coil MF | |
| 2×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | LF：800W RMS, 3200W peak |
| MF+HF: 300W RMS,1200W peak | |
| SENSITIVITY | LF: 101dB 1watt/1meter |
| MF+HF: 110dB 1watt/1meter | |
| MAXIMUM SPL | LF: 130dB continuous,136dB peak |
| MF+HF: 134dB continuous,140dB peak | |
| IMPEDANCE | LF: 8 ohms nominal |
| MF+HF: 16 ohms nominal | |
| DISPERSION(-6dB) | Horizontal: 90° |
| Vertical coverage: Varies, depending on array length and configuration | |
| CROSSOVER FREQUENCIES | 600Hz, 5.8kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 600mm×460mm×815mm |
| NET WEIGHT | 33 kg/pc |
| GROSS WEIGHT | 38 kg/pc |
