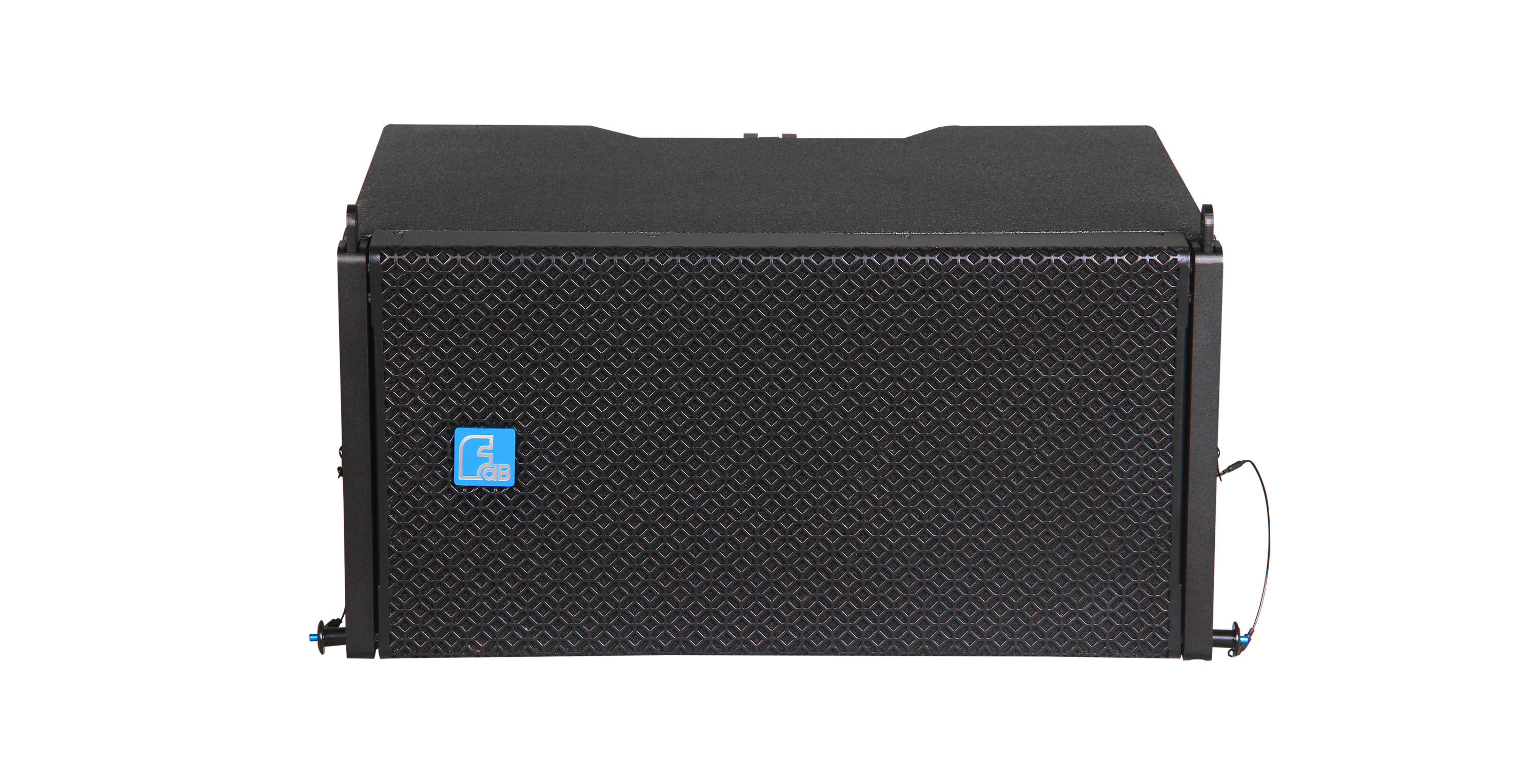

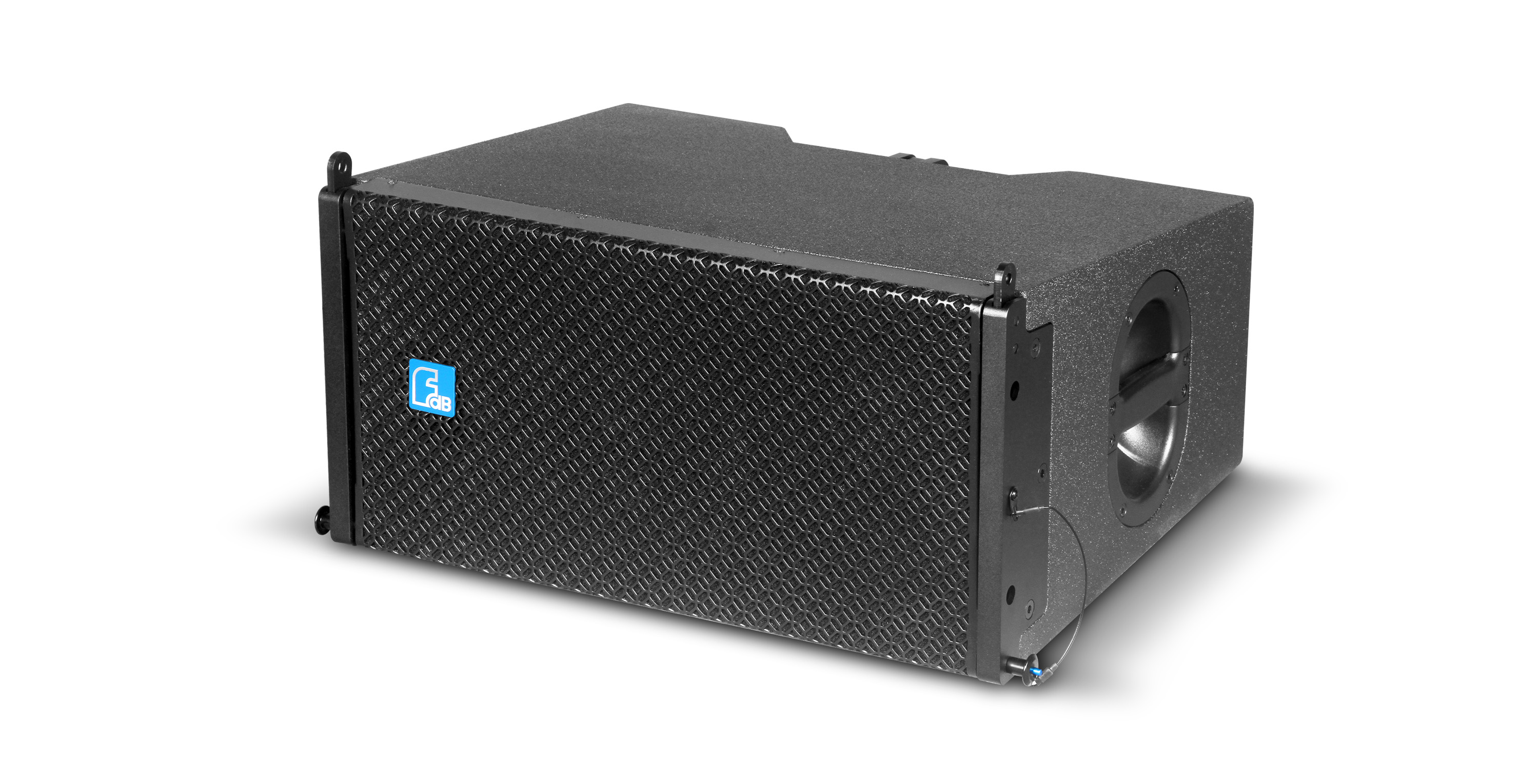

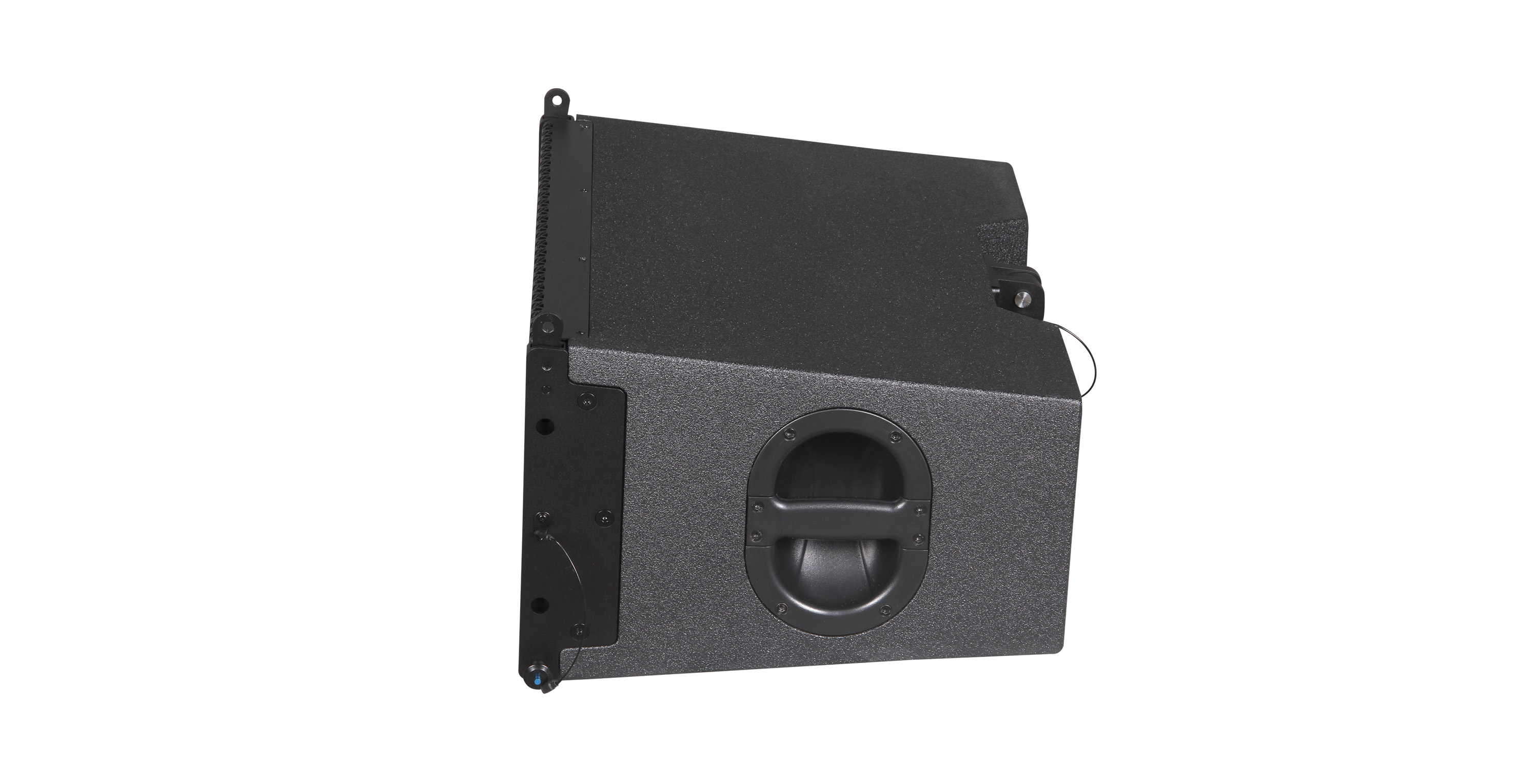

DLA408/DLA408A
2x8" 2-way line array system
DESCRIPTION

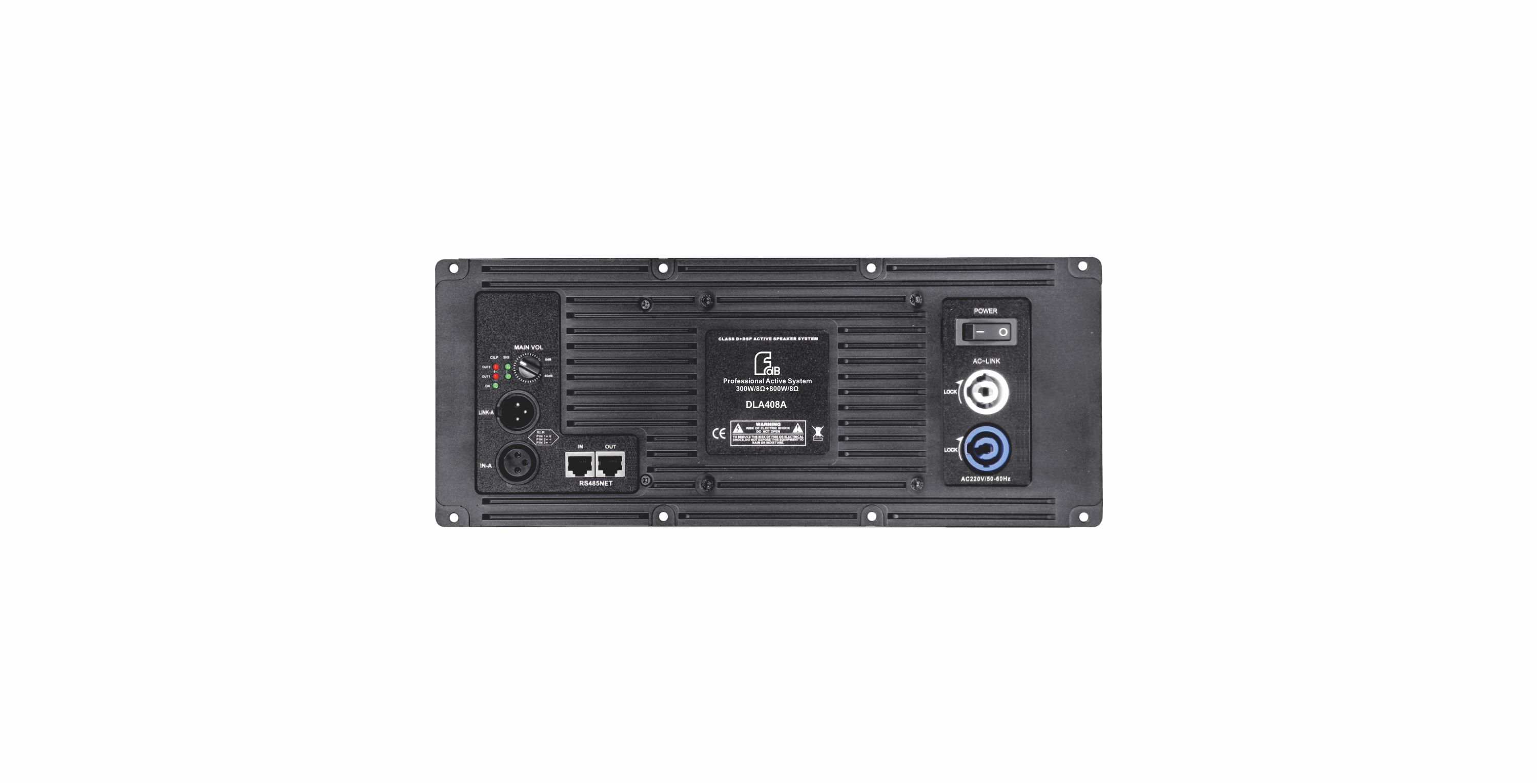

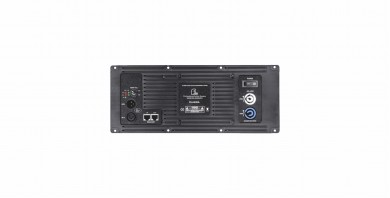

DLA408 is a small-sized, light weight, high SPL, 3-way line array speaker. It features low distortion mid-bass unit, mid-high coaxial driver with special waveguide and horn, accurate coverage, uniform changes, three-point hanging system, the whole system installation is fast, stable and safe. Unit configuration:2x8" high efficiency neodymium mid-bass units, 1x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA408A is an active line array speaker with two channels digital amplifier with DSP.
FEATURES
●Product parameters have been entered into EASE loudspeaker database
●Mid-high coaxial unit, real 3-way speaker, clear and bright
●Passive way, simple operation, save amplifiers

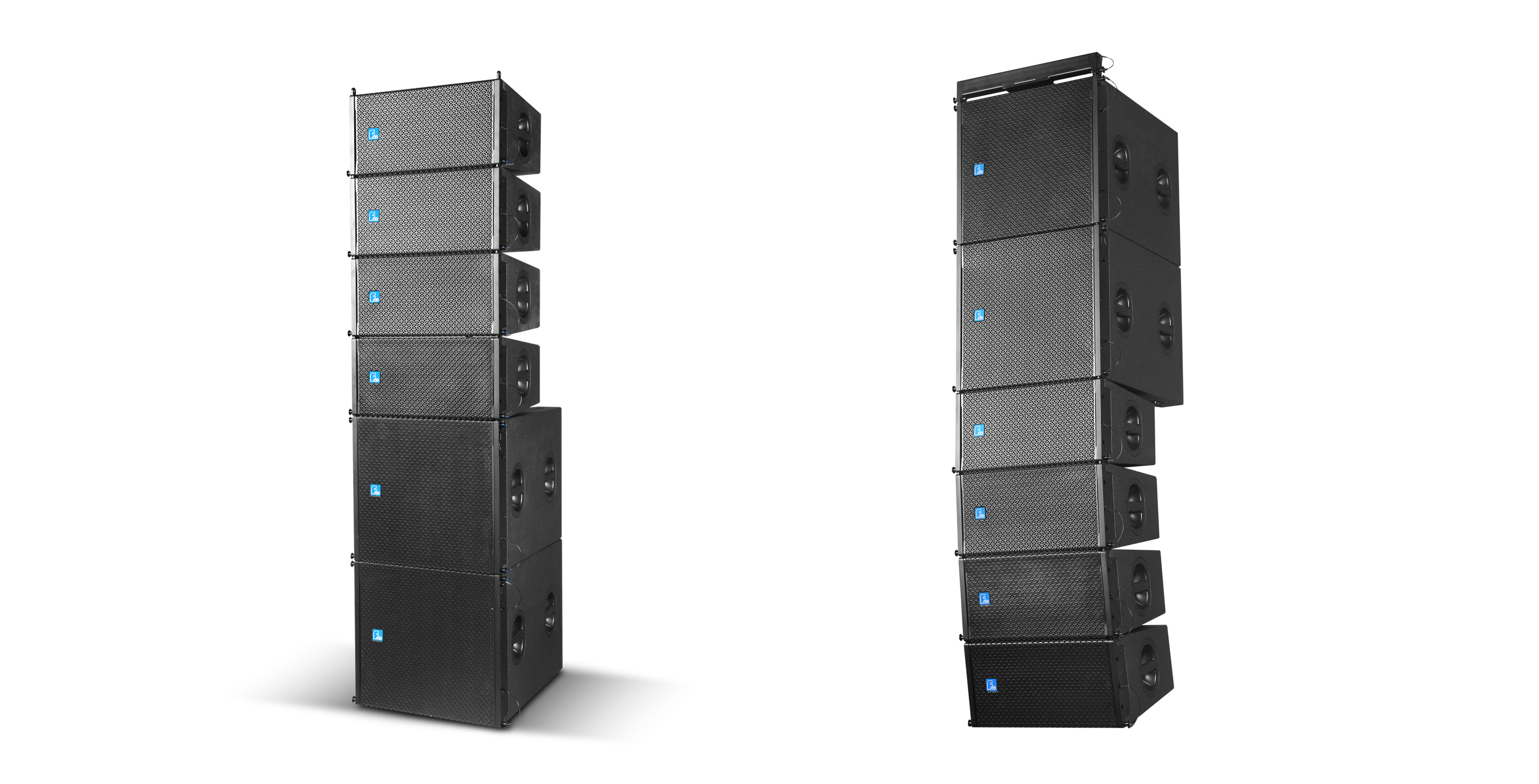

●Quick setup for hanging and stacking.
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
●Mid-high coaxial unit, real 3-way speaker, clear and bright
●Passive way, simple operation, save amplifiers
●Quick setup for hanging and stacking.
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
SPECIFICATIONS
| MODEL | DLA408 | DLA408A |
| FREQUENCY RESPONSE(-3dB) | 80Hz-18kHz | 80Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20kHz | 75Hz-20kHz |
| DRIVERS | 2×8"(200mm)/2"voice coil LF | 2×8"(200mm)/2"voice coil LF |
| 1×1.4"(36mm)/3.5"voice coil MF | 1×1.4"(36mm)/3.5"voice coil MF | |
| 1×1.4"(36mm)/1.7"voice coil HF | 1×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak | 300W/8Ω+600W/8Ω |
| SENSITIVITY | 99 dB 1watt/1 metre | — |
| MAXIMUM SPL | 125 dB continuous,131 dB peak | 125 dB continuous,131 dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | Horizontal coverage: 100° | Horizontal coverage: 100° |
| Vertical coverage: Varies, depending | Vertical coverage: Varies, depending | |
| on array length and configuration | on array length and configuration | |
| CROSSOVER FREQUENCIES | 900Hz，6KHz passive | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 515mm×375mm×655mm | 515mm×375mm×655mm |
| NET WEIGHT | 21 kg/pc | 23 kg/pc |
| GROSS WEIGHT | 24 kg/pc | 26 kg/pc |

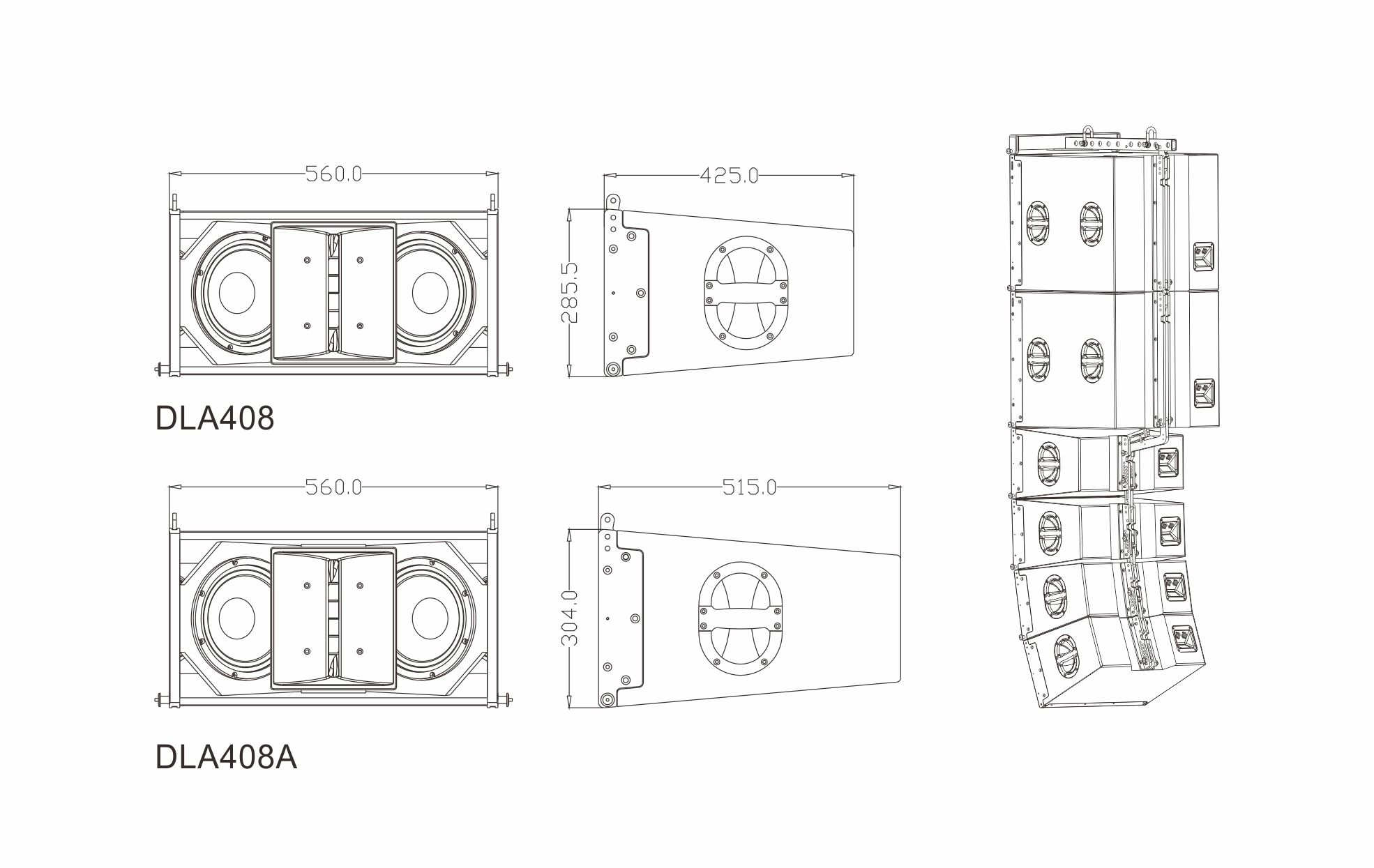

CONFIGURATION
DOWNLOAD
