DLA406
4x6" 2-way line array system
DESCRIPTION

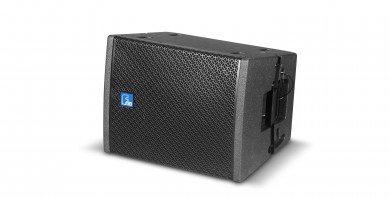

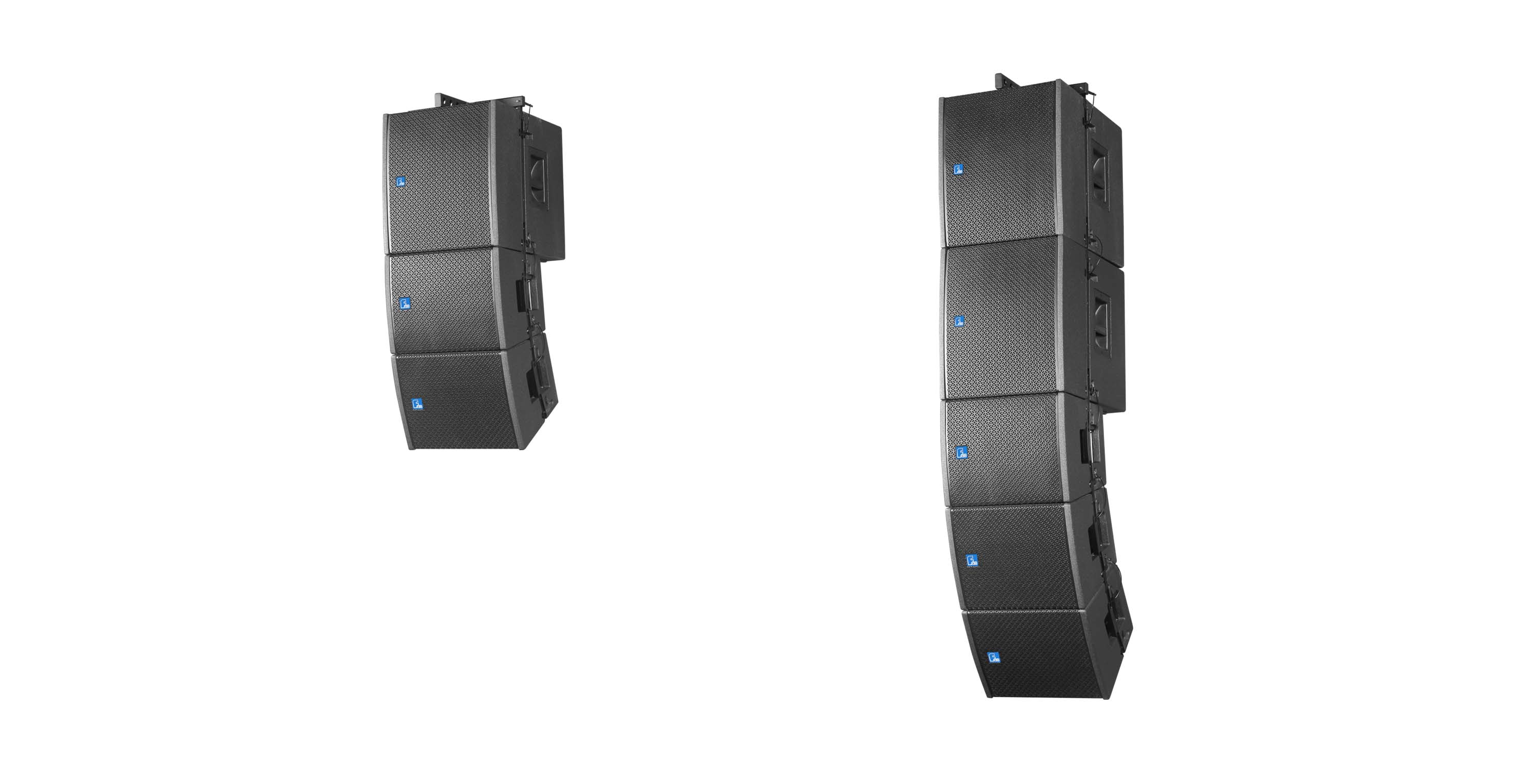

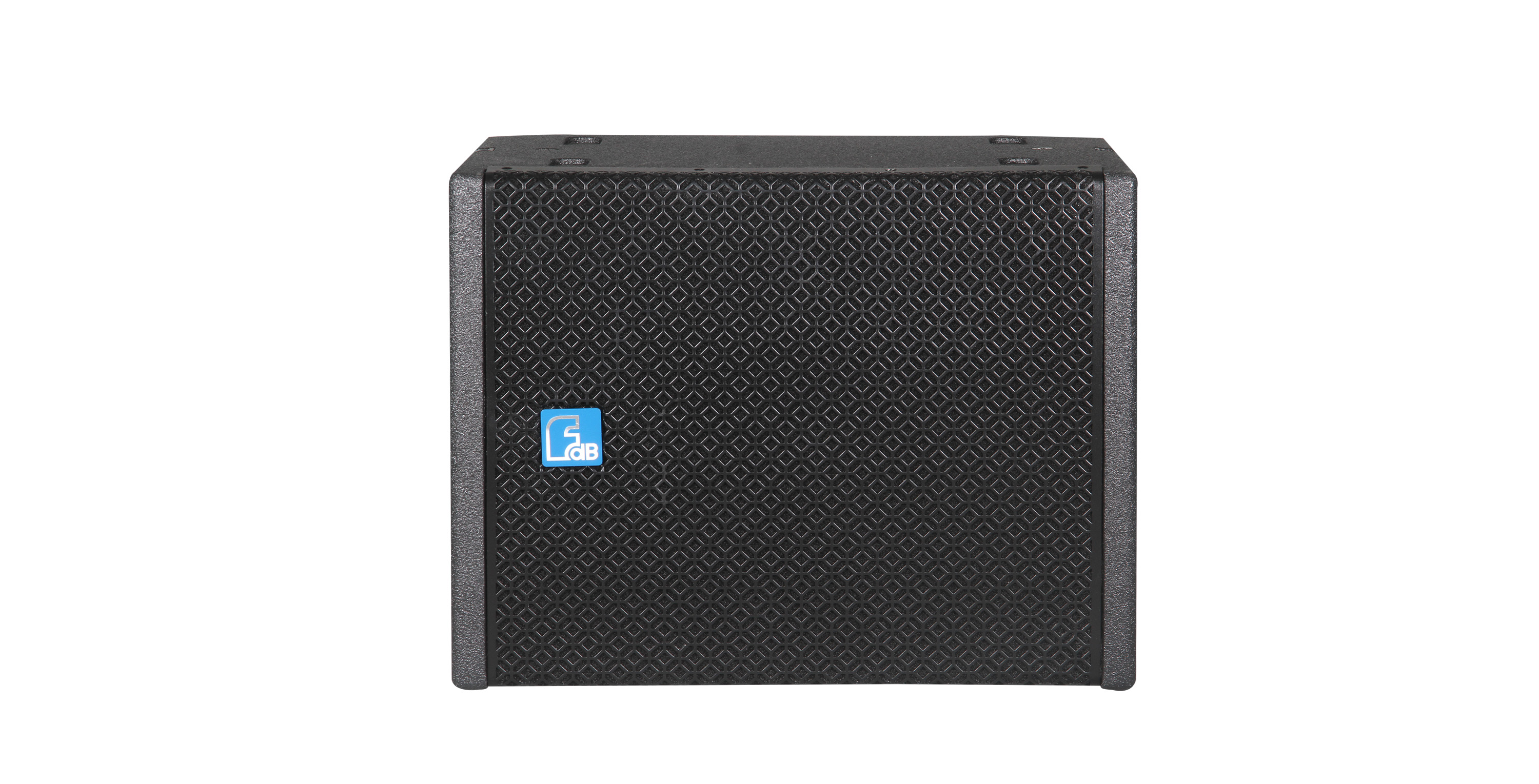

DLA406 is a small-sized, light weight, integrated line array speaker. It features low distortion mid-bass unit, high quality HF driver with special waveguide and horn, accurate coverage, uniform changes, two-point hanging system is simple and easy to install, can be used in a single, two or three pieces combination. Unit configuration: 4 x6" high efficiency neodymium mid-bass units, 2x1" exit throat 44mm voice coil neodymium HF drivers. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Special designed waveguide and horn, ensure accurate coverage angle and uniform changes
●Passive way, simple operation, save amplifiers

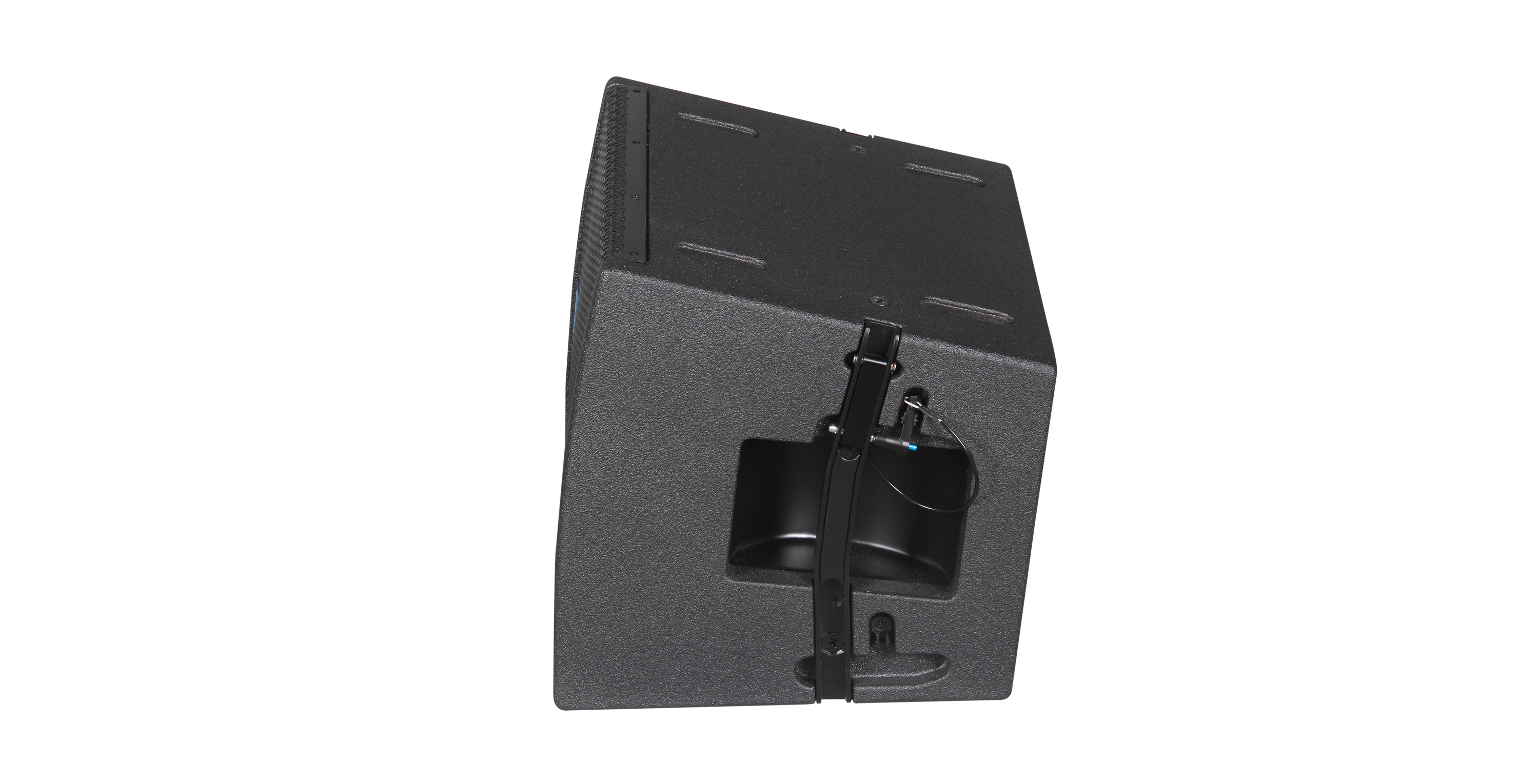

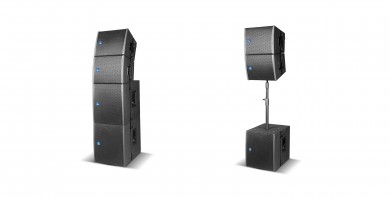

●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, churches, and small touring
●Passive way, simple operation, save amplifiers
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, churches, and small touring
SPECIFICATIONS
| MODEL | DLA406 |
| FREQUENCY RESPONSE(-3dB) | 80Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20kHz |
| DRIVERS | 4×6"(150mm)/1.5"voice coil LF |
| 2×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 320W RMS,1280W peak |
| SENSITIVITY | 99dB 1watt/1 metre |
| MAXIMUM SPL | 124 dB continuous,130 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage: 100° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 1.1kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 435mm×435mm×540mm |
| NET WEIGHT | 14 kg/pc |
| GROSS WEIGHT | 17 kg/pc |

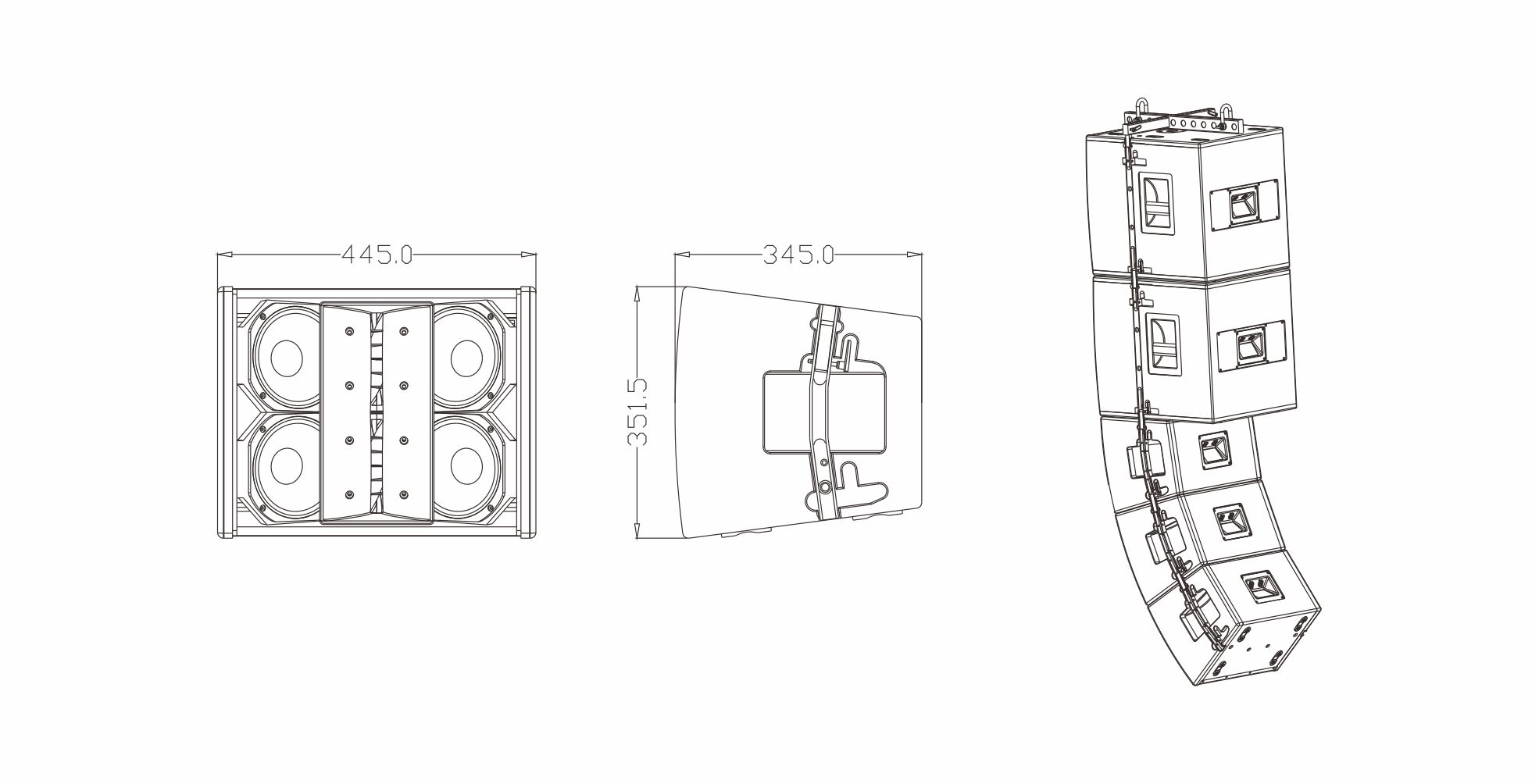

CONFIGURATION
