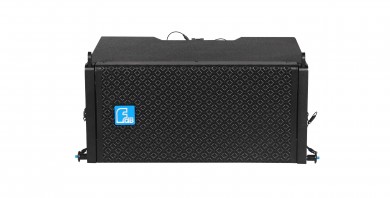

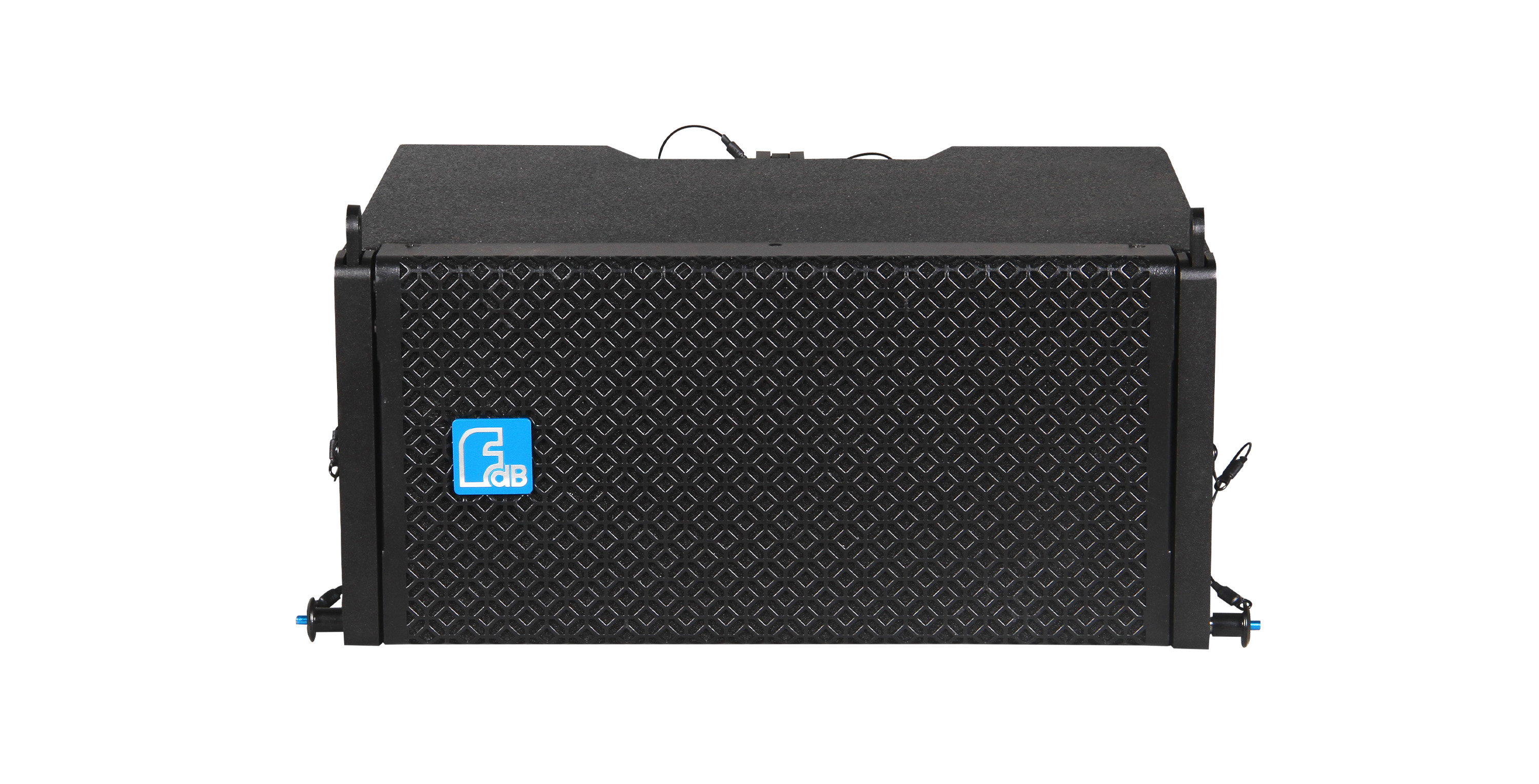

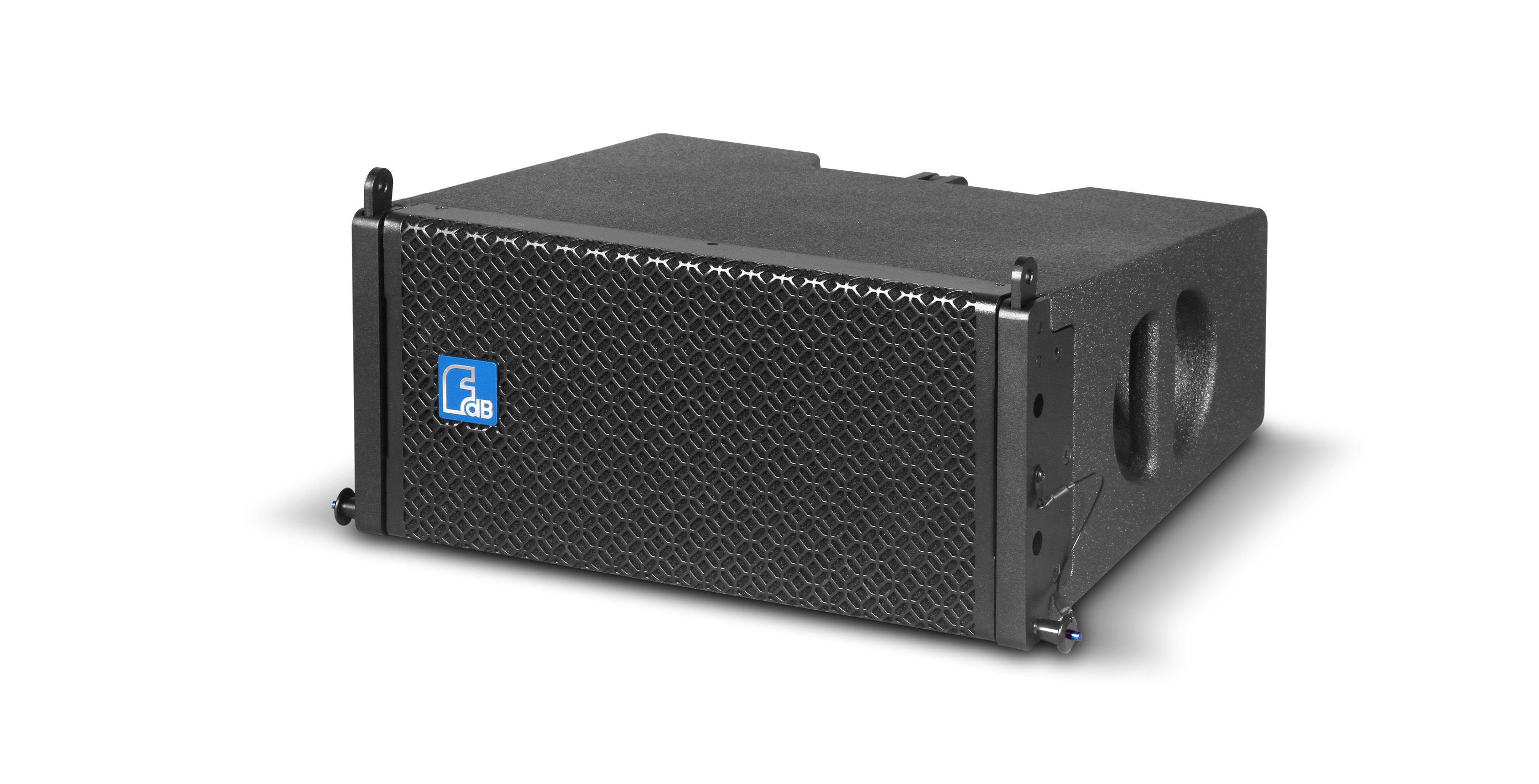

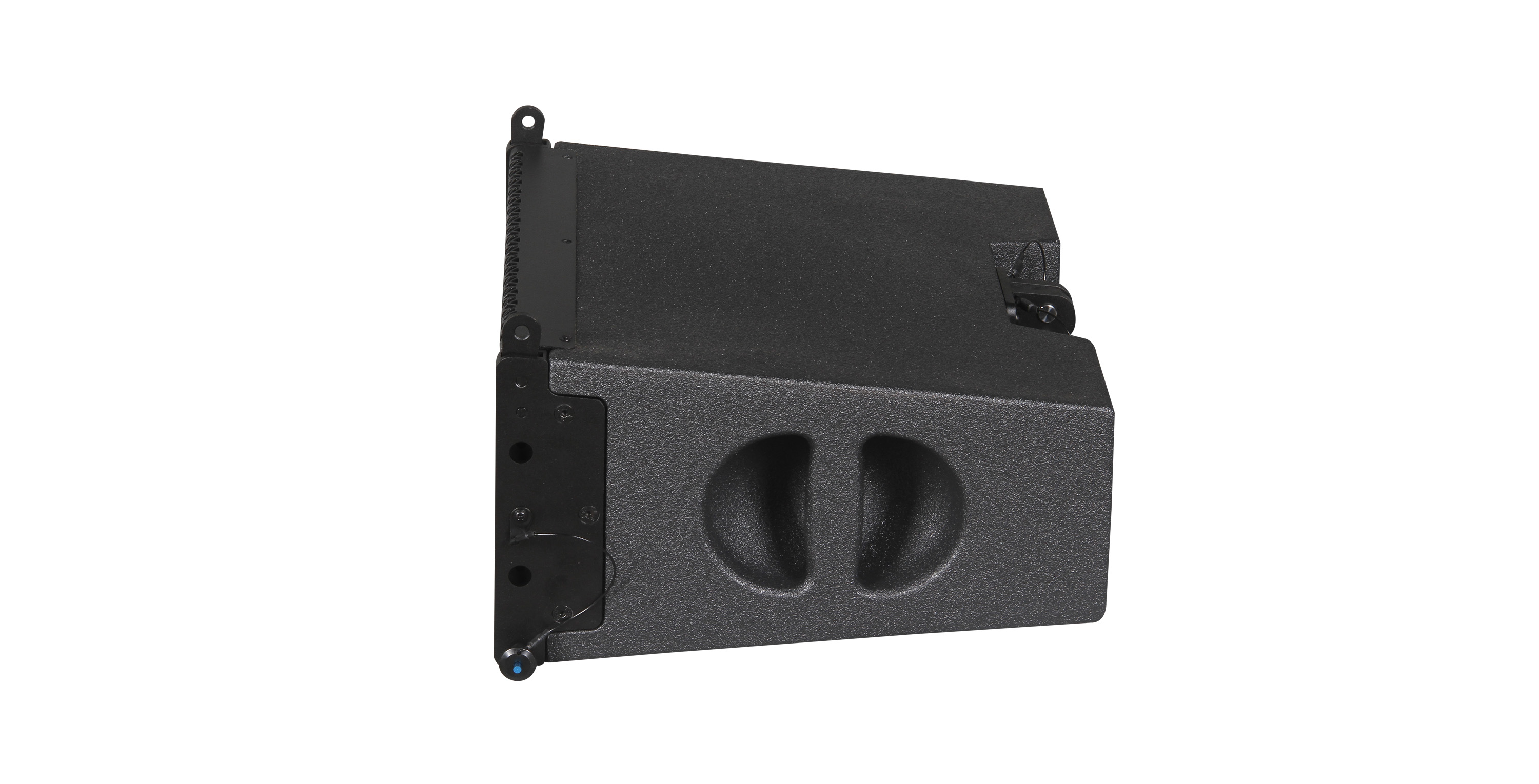

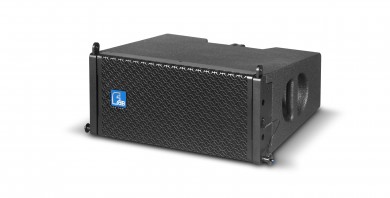

DLA206
2x6" 2-way line array system
DESCRIPTION
DLA206 is a small-sized, light weight line array speaker. It features low distortion mid-bass unit, high quality HF driver with special waveguide and horn, accurate coverage, uniform changes, three-point hanging system and left & right symmetrical design complement each other, the whole system installation is fast, stable and safe. Unit configuration:2x6" high efficiency neodymium mid-bass units, 1x1" exit throat 44mm voice coil neodymium HF driver. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Special designed waveguide and horn, ensure accurate coverage angle and uniform changes
●Passive way, simple operation, save amplifiers

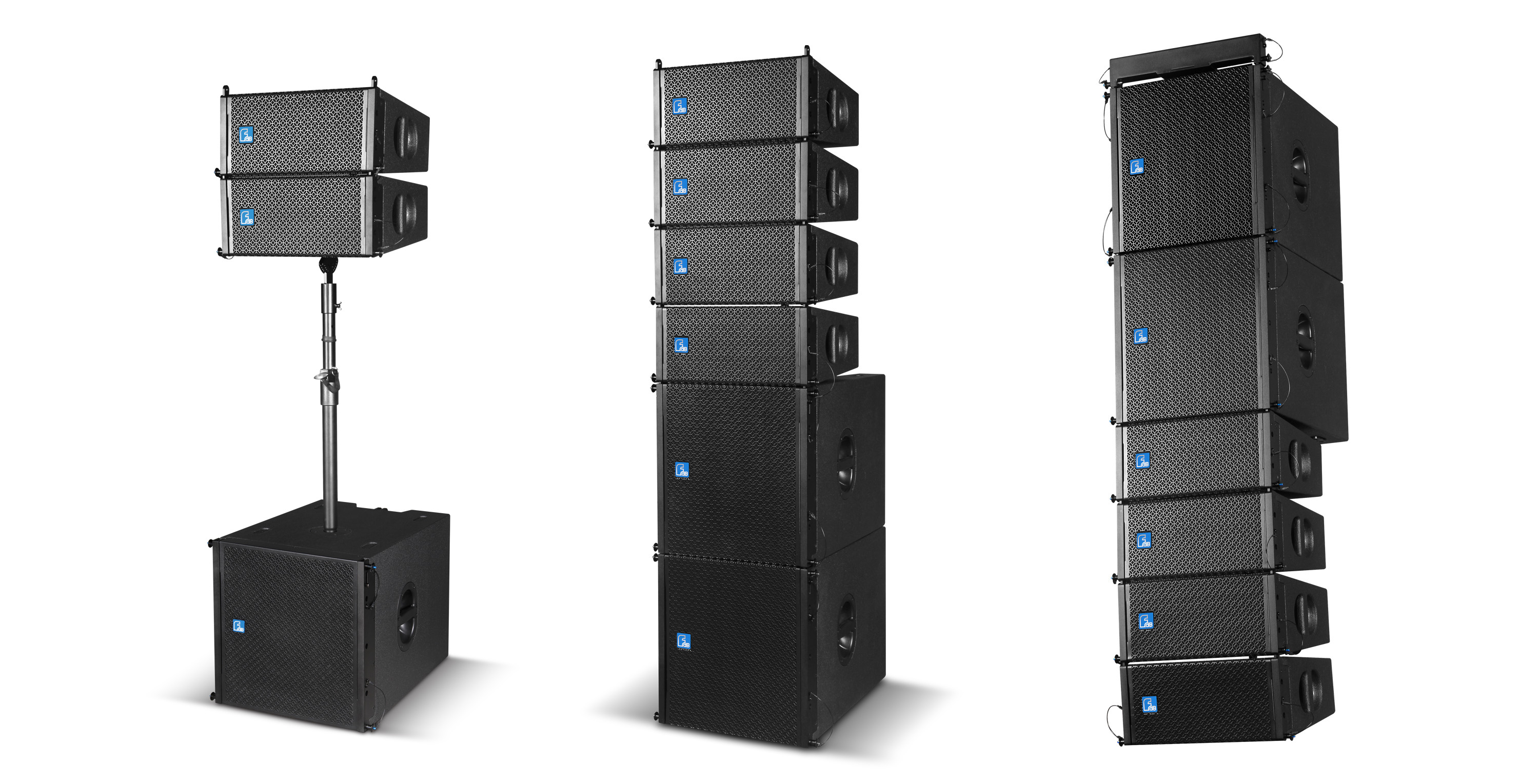

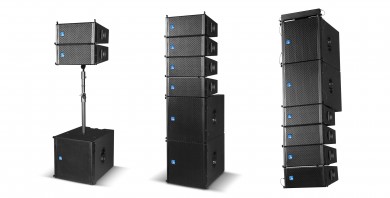

●Quick setup for hanging, stacking and supporting
●Passive way, simple operation, save amplifiers
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, churches, and small touring
SPECIFICATIONS
| MODEL | DLA206 |
| FREQUENCY RESPONSE(-3dB) | 90Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 85Hz-20kHz |
| DRIVERS | 2×6"(150mm)/1.5"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 160W RMS,640W peak |
| SENSITIVITY | 96dB 1watt/1meter |
| MAXIMUM SPL | 118dB continuous,124 dB peak |
| IMPEDANCE | 16 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage: 100° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 1.1kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 452mm×280mm×515mm |
| NET WEIGHT | 9 kg/pc |
| GROSS WEIGHT | 11 kg/pc |
