MLA218S/MLA218SA
2x18"Sub-woofer/2x18" Active Sub-woofer
DESCRIPTION

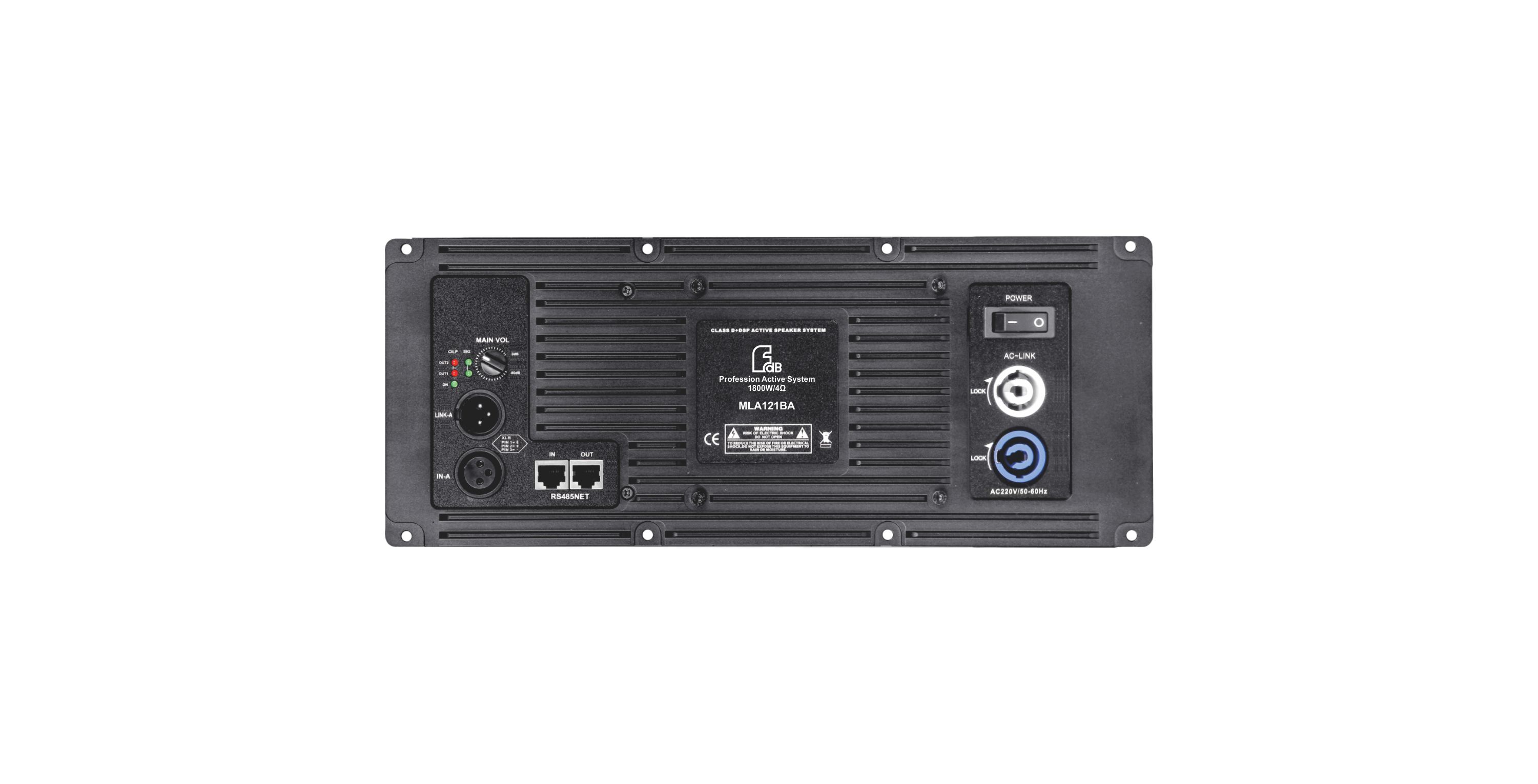

The MLA218S is a dual 18" low frequency enlosure designed for sub-bass reinforcement to MLA212, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminum alloy.The MLA218SA is equipped with BA2.88 digital amplifier module based on MLA218S to be an active subwoofer .
FEATURES
●High quality plywood with polyurea paint
●Bass reflex and horn-loaded design
●Compact vented sub-bass
●Good used for stadiums, big scale performance, conference centers and odeums
●Bass reflex and horn-loaded design
●Compact vented sub-bass
●Good used for stadiums, big scale performance, conference centers and odeums
SPECIFICATIONS
| MODEL | MLA218S | MLA218SA |
| FREQUENCY RESPONSE(-3dB) | 35Hz-150Hz | 35Hz-150Hz |
| DRIVERS | 2×18"(460mm)/4"voice coil LF | 2×18"(460mm)/4"voice coil LF |
| RATED POWER | 1200W RMS,4800W peak | 1200W/4Ω+1200W/4Ω |
| SENSITIVITY | 103dB 1watt/1meter | -- |
| MAXIMUM SPL | 134dB continuous,140dB peak | 134dB continuous,140dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 1030mm×850mm×655mm | 1030mm×850mm×655mm |
| NET WEIGHT | 77 kg/pc | 80 kg/pc |
| GROSS WEIGHT | 87 kg/pc | 99 kg/pc |
