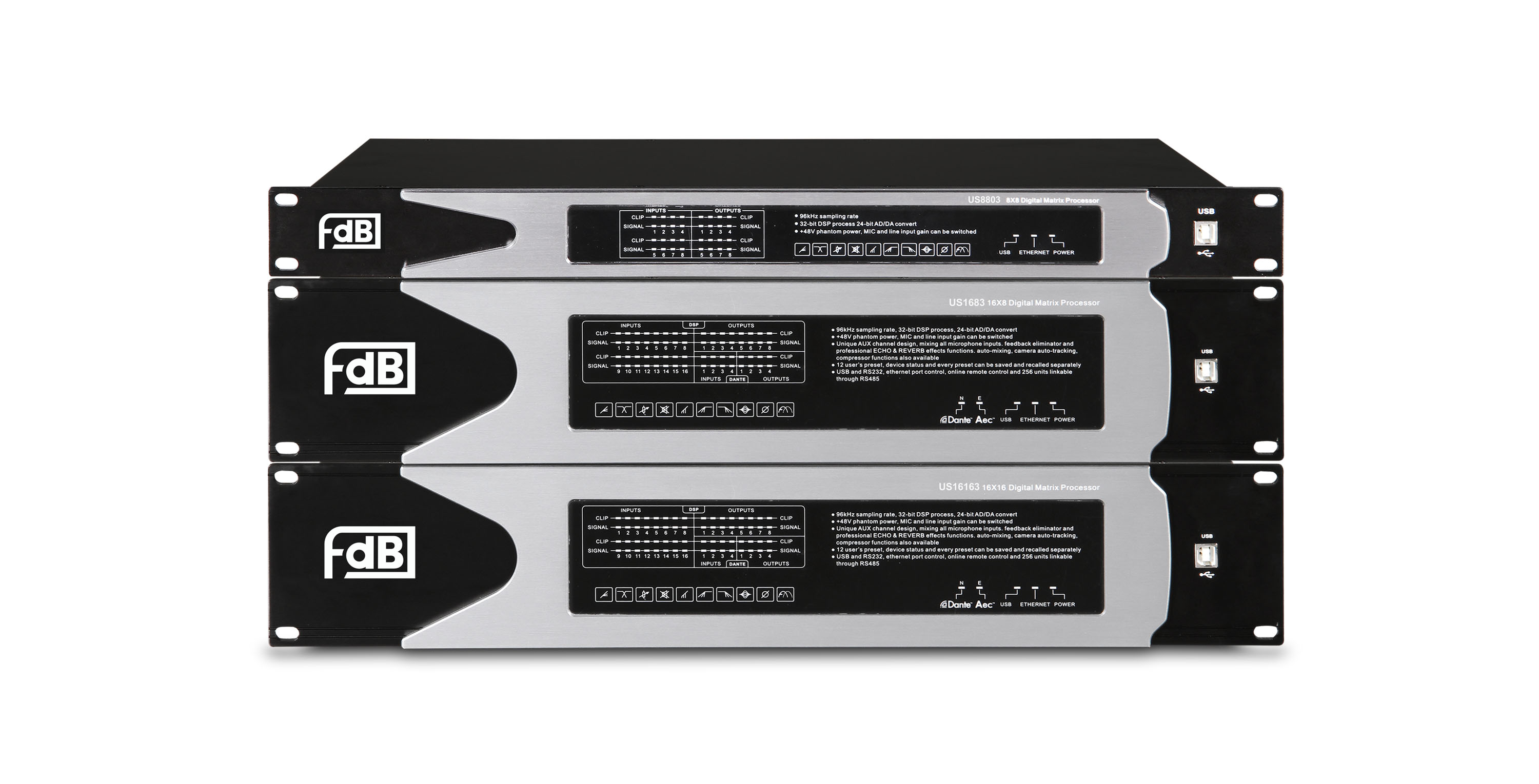

US8803/US1683/US16163
AUDIO MATRIX PROCESSOR
DESCRIPTION
●32-bit SHARC DSP process, 96kHz sampling rate, 24bit AD/DA convert.
●Each analog input channel has a +48V phantom power supply, the microphone and linear input gain can be switched,the microphone input sensitivity can be adjusted.
●The Input channel processing includes low cut, independent feedback suppression, PEQ, noise gate, gain, mute, phase, linkage adjustment, volume grouping adjustment and other processing functions.
●The outputchannel processing includes frequency division, PEQ, gain, mute, compression/limiter, phase, delay, linkage adjustment, volume grouping adjustment and other processing units.
●All channels' PEQ gain, bandwidth and frequency can be continuously adjusted, and the types can be selected: PEQ, low-shelf filtering, high-shelf filtering, low-cut filtering, high-cut filtering,first-order phase-shifting, second-order phse-shifting.
●Every input and output can do matrix assign flexibly, and all the input and output channels'name can be changed.
●All the input and output with independent phase curve adjust functions, PEQ style choose allpass 1 -180°curve adjust, allpass 2 -360°curve adjust.
●All types of high-cut and low-cut filters are available: Butterworth, Linkwitz-Riley, Bessel, and continuous slope.
●The input channels'noise gate threshold value, start-up time and recovery time are continuously adjustable. The output's compression/ limiter threshold, ratio, start-up time and recovery time are continously adjusted.
●All output channel's delay modules have delay time up to 680ms.
●Parameter Settings between any channel can be copied freely, and any channel can be linkage adjusted.
●Displays the current frequency response curves of all input or output channels in any input or output channel window.
●Unique EFX channel design, with professional ECHO and REVERB dual engine multiple effectors, can beautify and modify the timbre, can also fully support the karaoke function, can be widely used in conferences, multi-function halls and other applications.
●AUX channel has powerful automatic mixing processing function, mixing threshold, amplitude, start time, recovery time and other parameters can be adjusted continuously. At the same time with automatic camera tracking trigger function, trigger threshold, amplitude, start time, recovery time and other parameters can be adjusted continuously.
●Built-in test signal generator, output mode optional pink noise, white noise and 20Hz-20kHz sinusoidal adjustable, and signal amplitude adjustable.
●The front panel is equipped with input and output level indicator light, USB control port, rear panel 232& 485 control port, and Ethernet connection remote control port. One-button connection makes the user's operation easier and faster, and the computer can be wireless
●Multiple user presets, the complete machine state and each preset can be stored and called separately. The ID setting function can cascade control 255pcs machines, and also has password protection function to make the device more secure
●Each analog input channel has a +48V phantom power supply, the microphone and linear input gain can be switched,the microphone input sensitivity can be adjusted.
●The Input channel processing includes low cut, independent feedback suppression, PEQ, noise gate, gain, mute, phase, linkage adjustment, volume grouping adjustment and other processing functions.
●The outputchannel processing includes frequency division, PEQ, gain, mute, compression/limiter, phase, delay, linkage adjustment, volume grouping adjustment and other processing units.
●All channels' PEQ gain, bandwidth and frequency can be continuously adjusted, and the types can be selected: PEQ, low-shelf filtering, high-shelf filtering, low-cut filtering, high-cut filtering,first-order phase-shifting, second-order phse-shifting.
●Every input and output can do matrix assign flexibly, and all the input and output channels'name can be changed.
●All the input and output with independent phase curve adjust functions, PEQ style choose allpass 1 -180°curve adjust, allpass 2 -360°curve adjust.
●All types of high-cut and low-cut filters are available: Butterworth, Linkwitz-Riley, Bessel, and continuous slope.
●The input channels'noise gate threshold value, start-up time and recovery time are continuously adjustable. The output's compression/ limiter threshold, ratio, start-up time and recovery time are continously adjusted.
●All output channel's delay modules have delay time up to 680ms.
●Parameter Settings between any channel can be copied freely, and any channel can be linkage adjusted.
●Displays the current frequency response curves of all input or output channels in any input or output channel window.
●Unique EFX channel design, with professional ECHO and REVERB dual engine multiple effectors, can beautify and modify the timbre, can also fully support the karaoke function, can be widely used in conferences, multi-function halls and other applications.
●AUX channel has powerful automatic mixing processing function, mixing threshold, amplitude, start time, recovery time and other parameters can be adjusted continuously. At the same time with automatic camera tracking trigger function, trigger threshold, amplitude, start time, recovery time and other parameters can be adjusted continuously.
●Built-in test signal generator, output mode optional pink noise, white noise and 20Hz-20kHz sinusoidal adjustable, and signal amplitude adjustable.
●The front panel is equipped with input and output level indicator light, USB control port, rear panel 232& 485 control port, and Ethernet connection remote control port. One-button connection makes the user's operation easier and faster, and the computer can be wireless
●Multiple user presets, the complete machine state and each preset can be stored and called separately. The ID setting function can cascade control 255pcs machines, and also has password protection function to make the device more secure
●The US-1 touch control box is used together, making the equipment easy to operate, convenient and easy to control.
SPECIFICATIONS
| MODEL | US8803 | US1683 | US16163 | |
| INPUT/OUTPUT CHANNELS | 8 IN/8 OUT | 16 IN/8 OUT | 16 IN/16 OUT | |
| 口INPUT/OUTPUT CONNECTOR | INPUT/OUTPUT: PHOENIX SOCKET | |||
| FREQUENCY RESPONSE | 20Hz-20KHz ±0.3dB | 20Hz-20KHz ±0.3dB | 20Hz-20KHz ±0.3dB | |
| DYNAMIC RANGE | 115dBu | 115dBu | 115dBu | |
| THD | <0.008% at 1kHz(0dBu) | <0.008% at 1kHz(0dBu) | <0.008% at 1kHz(0dBu) | |
| CROSSTALK | >70dBu，20Hz-20kHz | >70dBu，20Hz-20kHz | >70dBu，20Hz-20kHz | |
| CMRR | >75dBu 1KHz | >75dBu 1KHz | >75dBu 1KHz | |
| MIC INPUT | CONNECTION TYPE | BALANCED CONNECTION | ||
| PHANTOM POWER | 48V DC | 48V DC | 48V DC | |
| GAIN | 50dBu | 50dBu | 50dBu | |
| IMPEDANCE | 2KΩ | 2KΩ | 2KΩ | |
| LINE INPUT | CONNECTION TYPE | BALANCED CONNECTION | ||
| GAIN | 35dBu | 35dBu | 35dBu | |
| MAX OUTPUT LEVEL | 18dBu | 18dBu | 18dBu | |
| IMPEDANCE | ＞10KΩ | ＞10KΩ | ＞10KΩ | |
| OUTPUT | CONNECTION TYPE | BALANCED CONNECTION | ||
| MAX OUTPUT LEVEL | 18dBu | 18dBu | 18dBu | |
| IMPEDANCE | ＜500Ω | ＜500Ω | ＜500Ω | |
| DSP | 24bit sigma-delta A/D、D/A CONVERSION，32bit SHARC DSP, 96kHzSAMPLING | |||
| DIMENSIONS(WxDxH)mm |
|
482x254x44 | 482x254x89 | 482x254x89 |
| NET WEIGHT | 3.8KG | 4.9KG | 4.9KG | |
