U115SAS
1x15" Active Sub-woofer System
DESCRIPTION

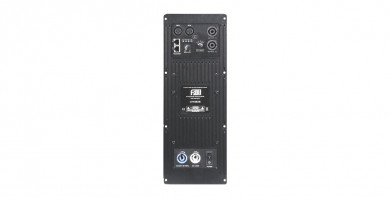

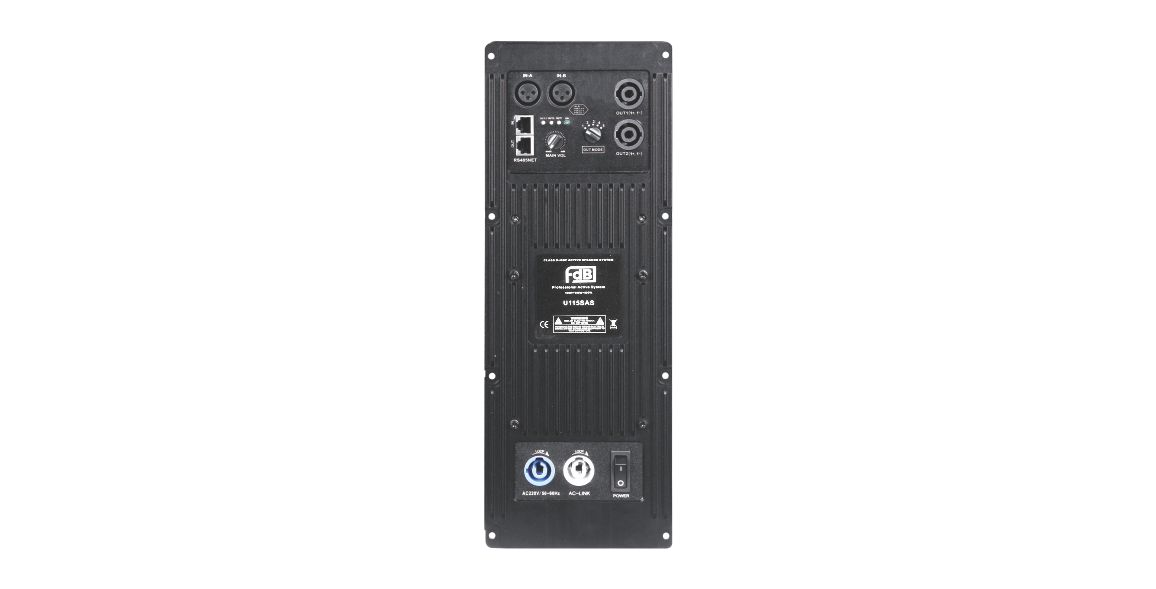

The U115SAS is a single 15" low frequency enclosure designed for sub-bass reinforcement to U compact series in a wide variety of fixed installation, made of high quality plywood. U115SAS is equipped with SA3.448 digital amplifier module to be an active system with left & right side full range output and sub output based on U115S.
FEATURES
● High quality plywood with special environmental protection paint
● Bass reflex design
● High temperature 4"(100mm) voice coil
● Top hat fitting for pole mounting to U108V /U110V
● Bass reflex design
● High temperature 4"(100mm) voice coil
● Top hat fitting for pole mounting to U108V /U110V
SPECIFICATIONS
| MODEL | U115SAS |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1×15"(385mm)/4"voice coil LF |
| RATED POWER | 2x400W/8Ω+1200W/4Ω |
| MAXIMUM SPL | 127dB continuous,133 dB peak |
| INPUT CONNECTORS | Balanced Differential line |
| PACKAGE SIZE | 670mm×550mm×605mm |
| NET WEIGHT | 33 kg/pc |
| GROSS WEIGHT | 36 kg/pc |
