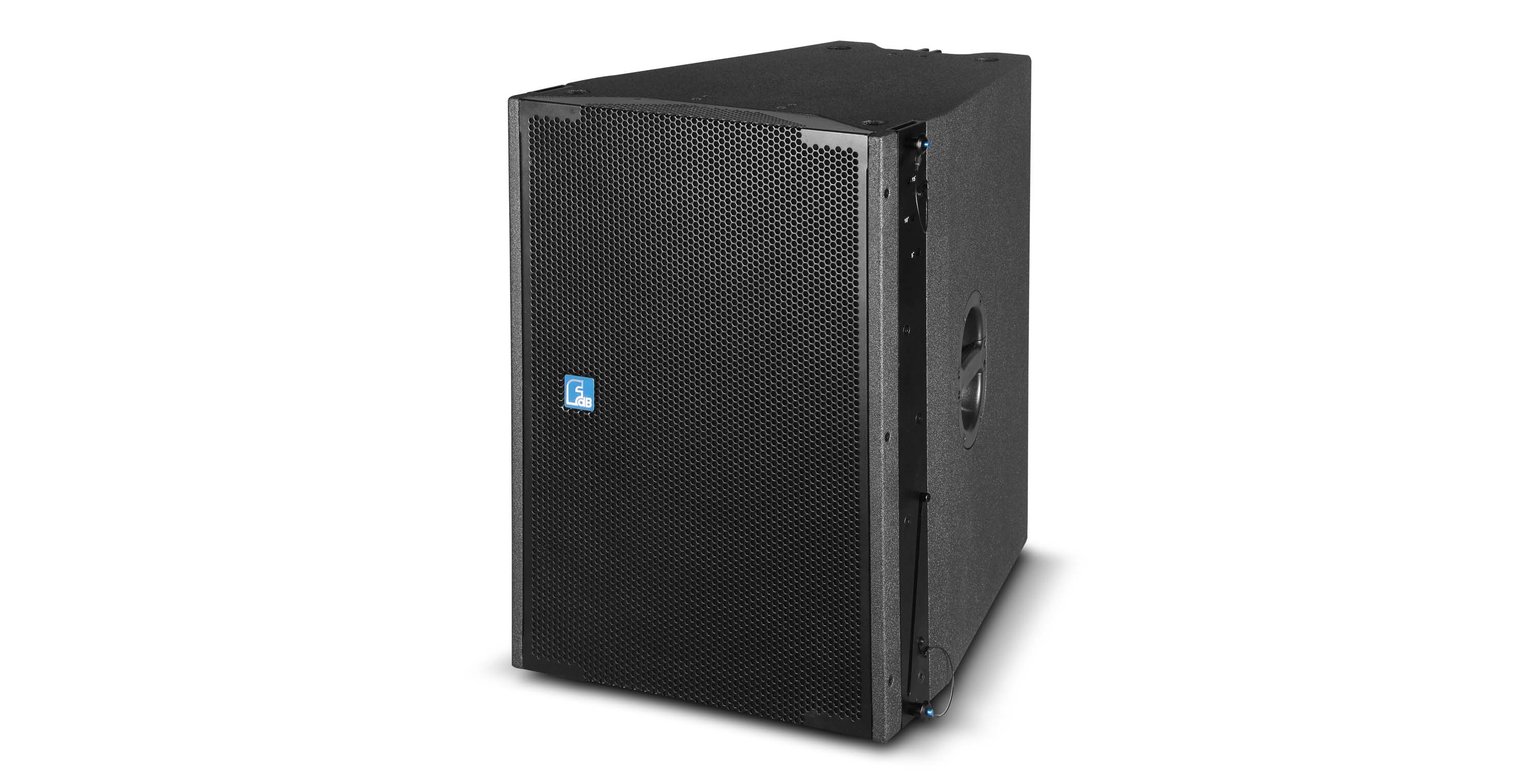

HT612/HT612A
2x12" 2-way line array system /2x12" 2-way active line array system
DESCRIPTION

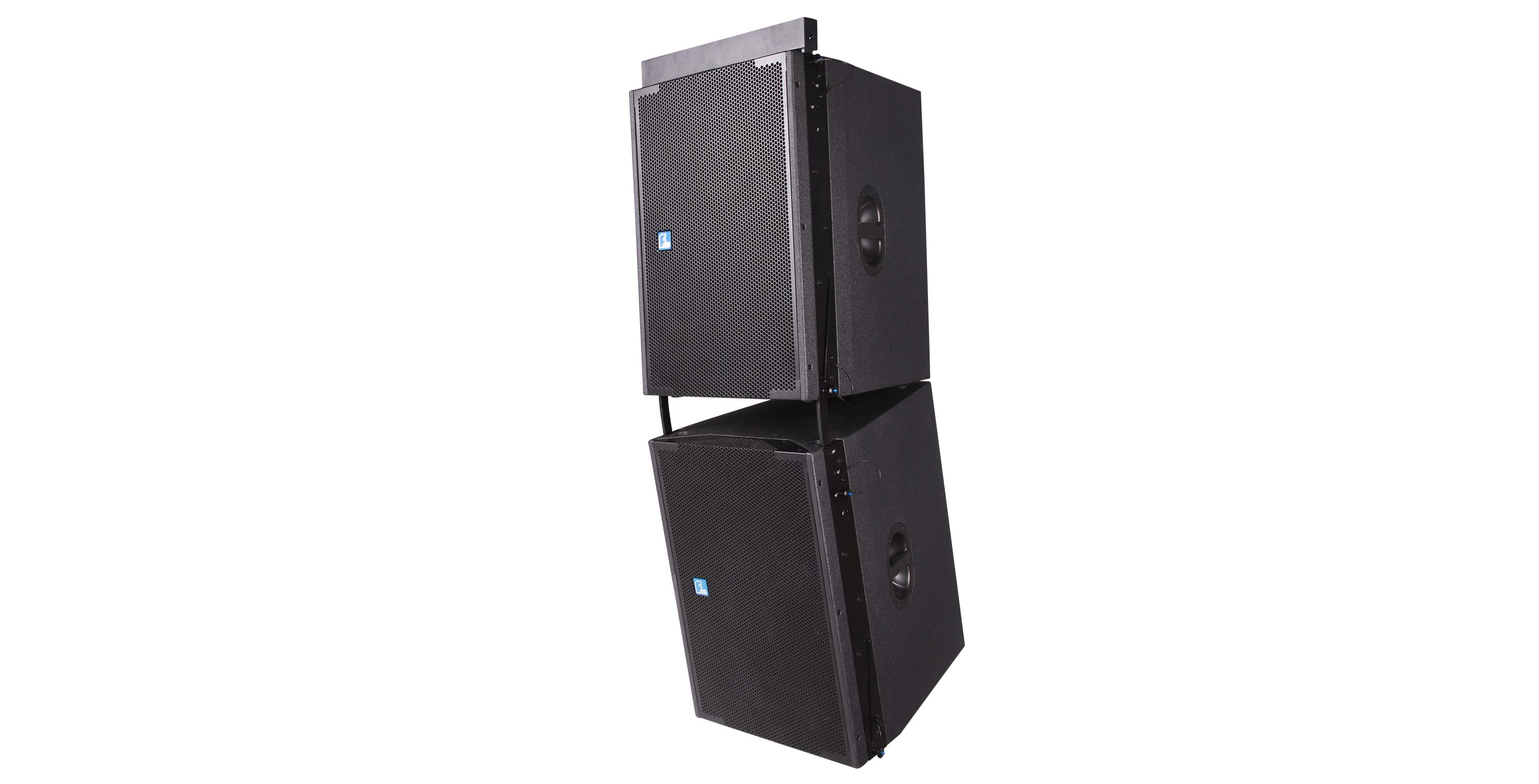

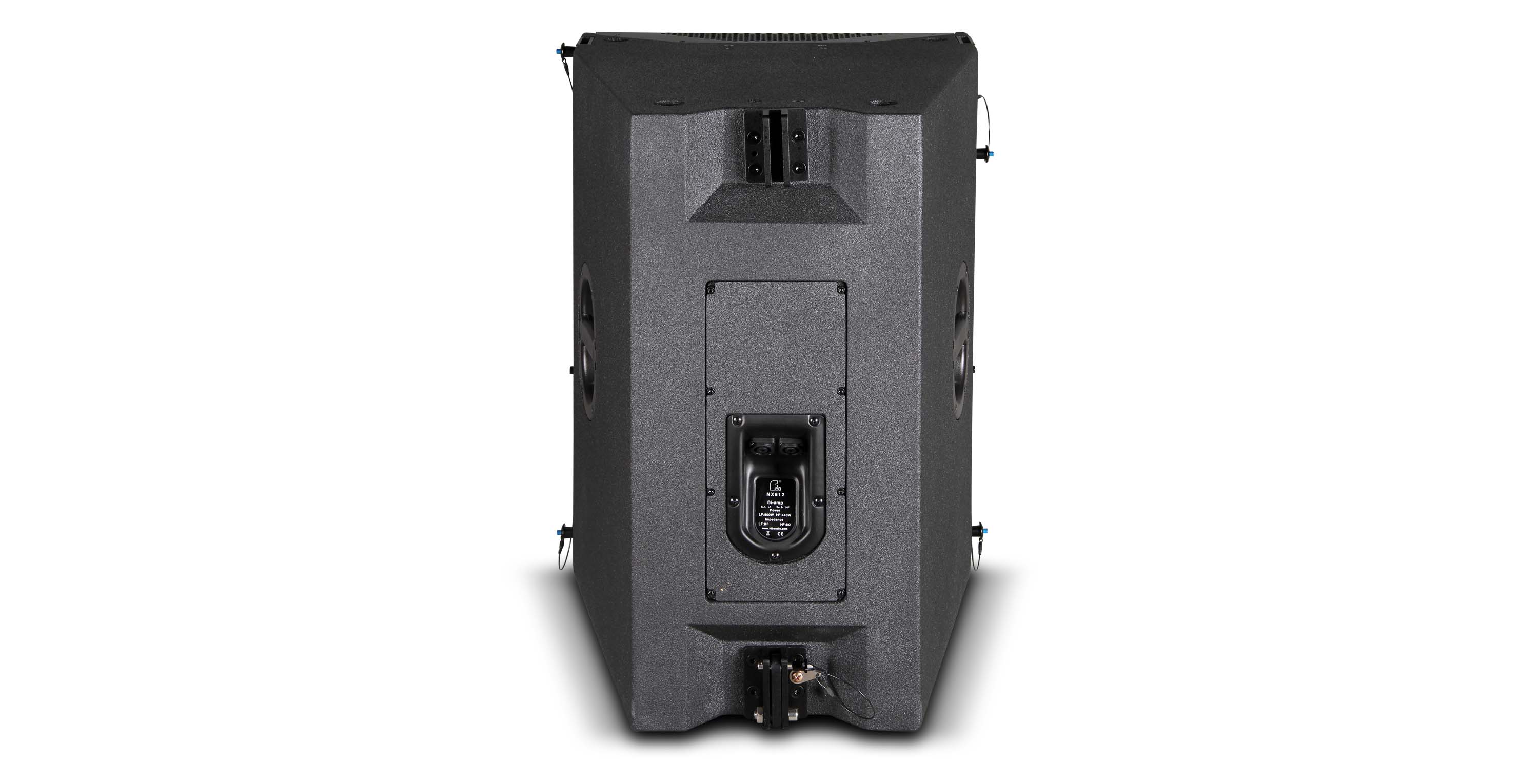

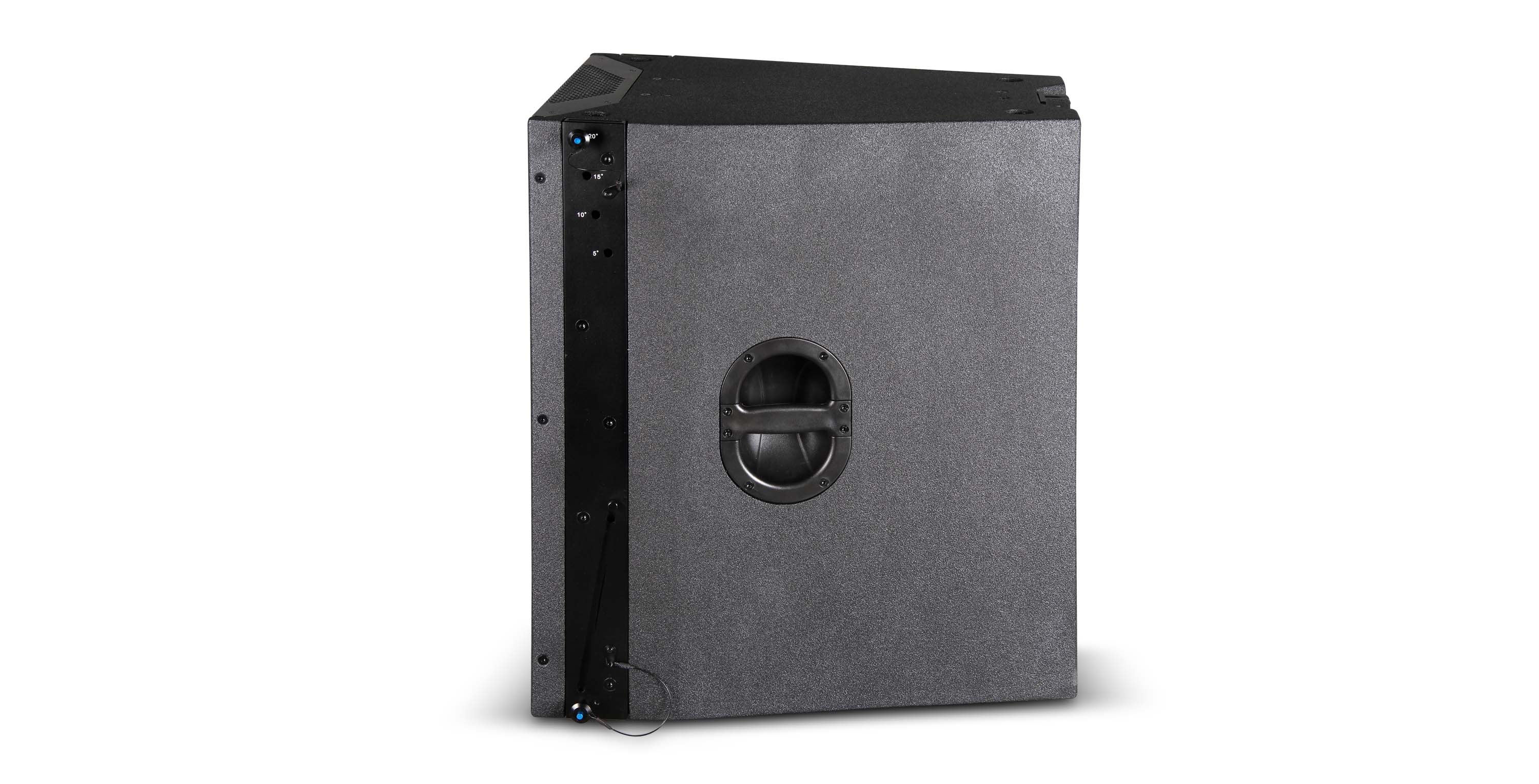

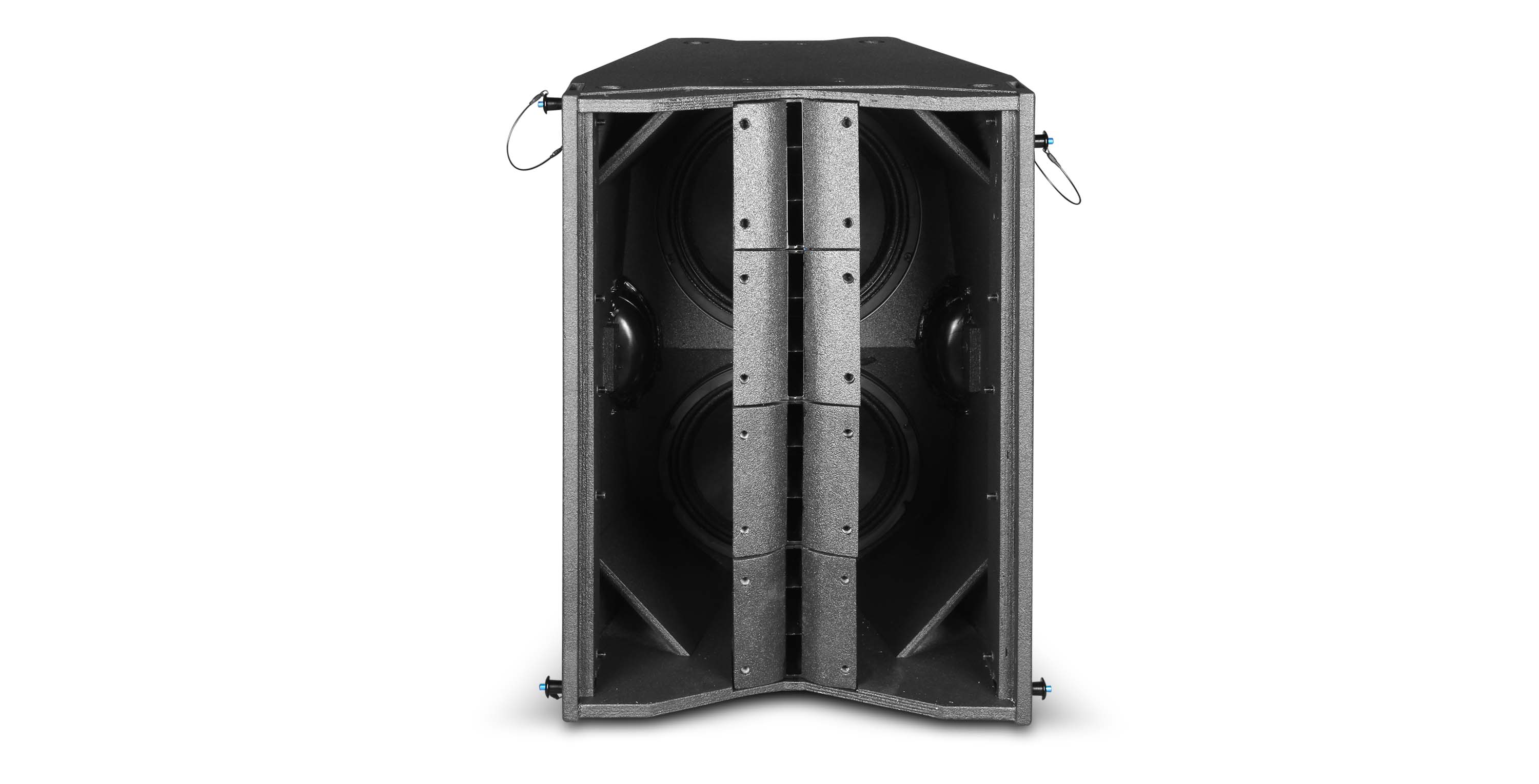

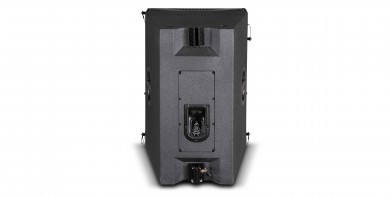

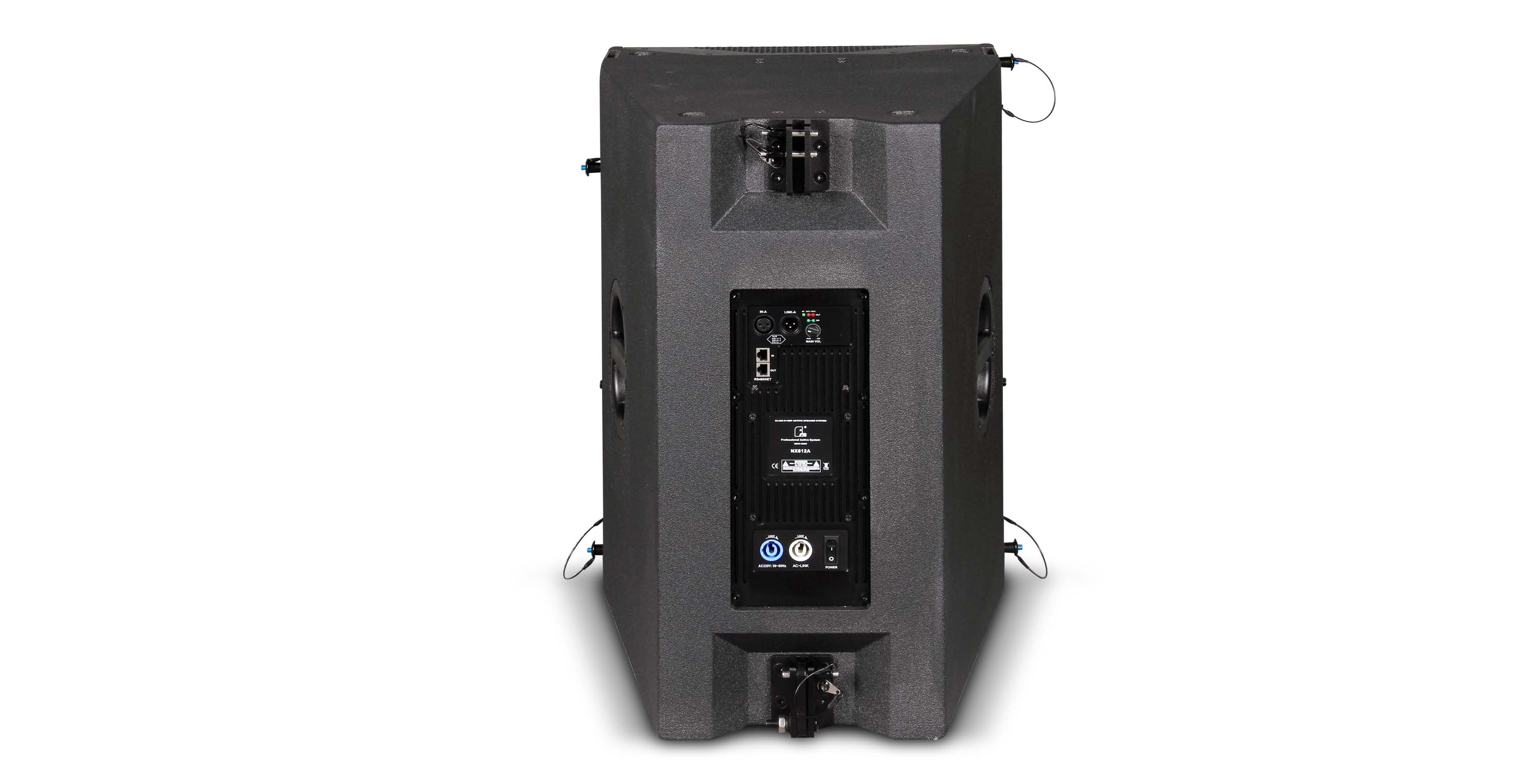

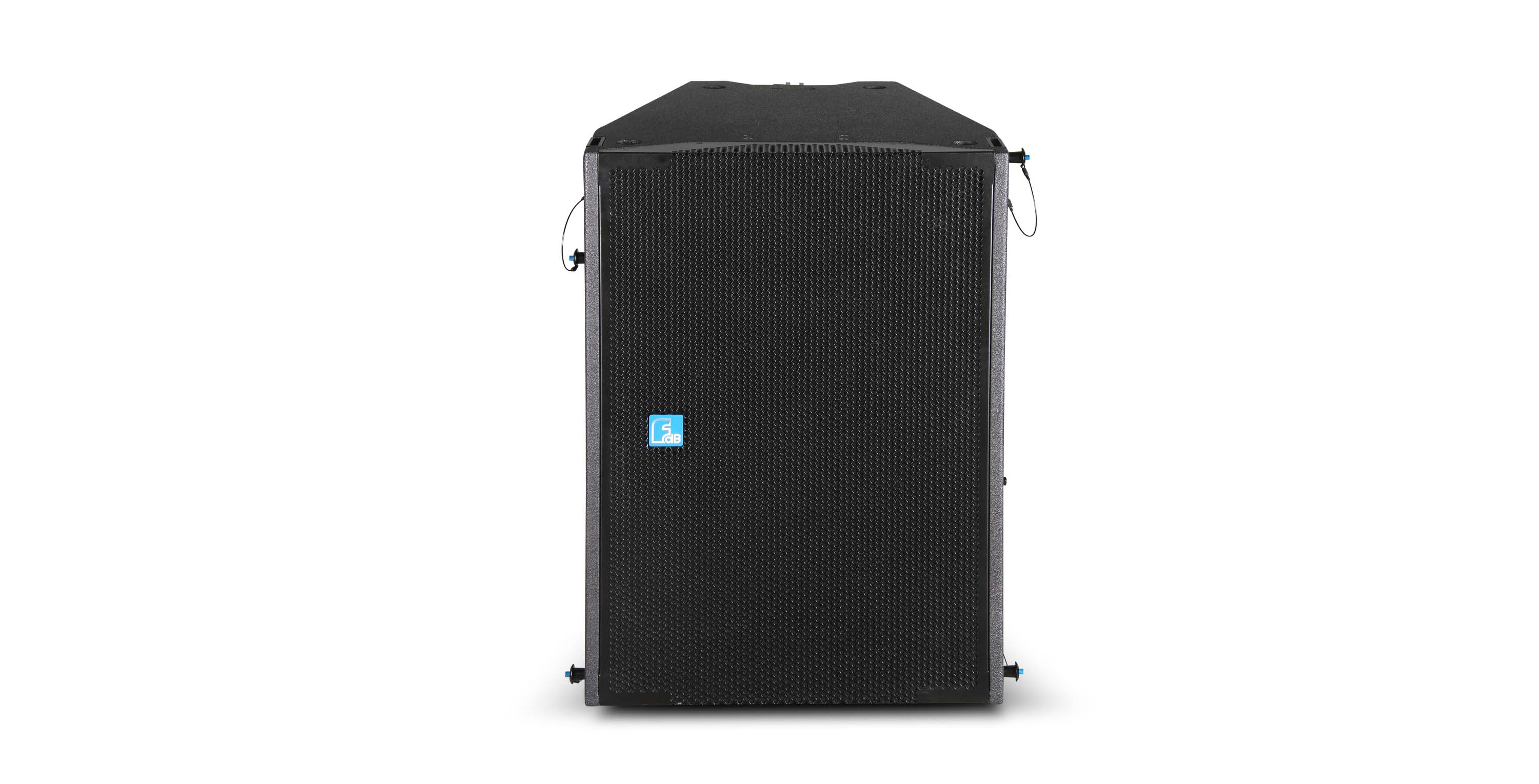

HT612 is a compact loudspeaker system using medium and low frequency horn and high frequency linear coupling technology, which can obtain relatively high SPL by using small volume and weight, and can be combined with more than one, can be used with stand and can be hung, which is more convenient and fast to install. HT612 is fitted with two 12" neodymium LF drivers and four 1" neodymium HF drivers coupled to a patent horn,made of high quality plywood with polyurea waterproof paint. HT612A is equipped with FA2.68 digital amplifier module based on HT612 to be an active loudspeaker.
FEATURES
FEATURES
●High quality plywood with polyurea waterproof paint
●Application of coupling technology
●Coaxial design
●Small size, high SPL

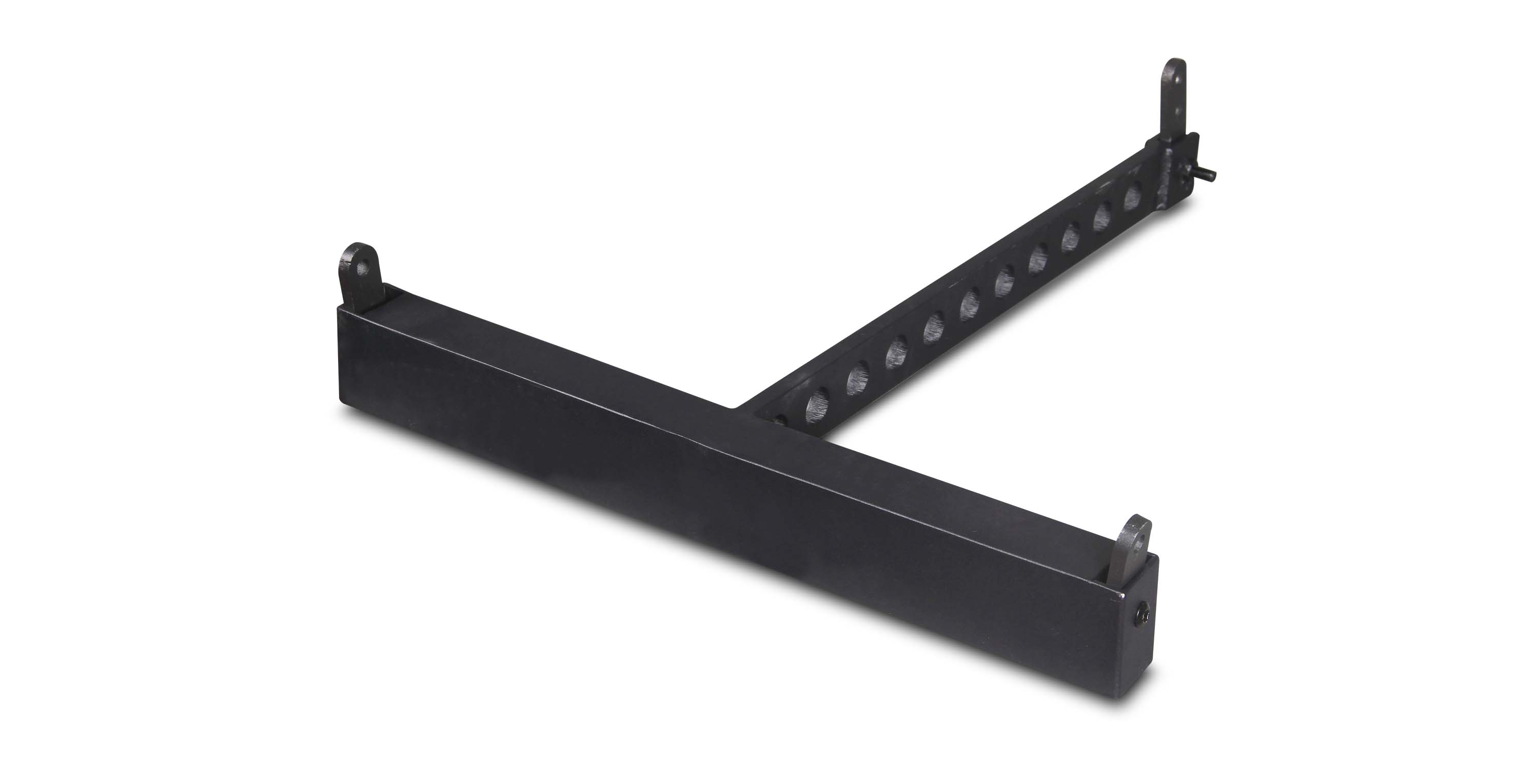

●Support pole mounting, can be hung, more convenient to install
●Used for moving performance, clubs, multi-purpose hall, theatre and stadiums
●High quality plywood with polyurea waterproof paint
●Application of coupling technology
●Coaxial design
●Small size, high SPL
●Support pole mounting, can be hung, more convenient to install
●Used for moving performance, clubs, multi-purpose hall, theatre and stadiums
SPECIFICATIONS
| MODEL | HT612 | HT612A |
| FREQUENCY RESPONSE(-3dB) | LF: 60Hz-2.5kHz | 60Hz-18kHz |
| HF: 1KHz-18kHz | -- | |
| DRIVERS | 2×12"(300mm)/3" voice coil LF | 2×12"(300mm)/3" voice coil LF |
| 4×1"(25mm)/1.7" voice coil HF | 4×1"(25mm)/1.7" voice coil HF | |
| RATED POWER | LF: 800W RMS,3200W peak | 600W/8Ω+1200W/4Ω @AMPLIFIER POWER |
| HF: 240W RMS,960W peak |
HF: 240W RMS,960W peak |
|
| SENSITIVITY | LF: 107dB 1watt/1meter | LF: 107dB 1watt/1meter |
| HF: 113dB 1watt/1meter | HF: 113dB 1watt/1meter | |
| MAXIMUM SPL | LF: 136dB continuous,142dB peak | 136dB continuous,142dB peak |
| HF: 137dB continuous,143dB peak | HF: 137dB continuous,143dB peak | |
| IMPEDANCE | LF: 8 ohms nominal | LF: 4 ohms nominal |
| HF: 8 ohms nominal |
HF: 8 ohms nominal |
|
| DISPERSION(-6dB) | 90° × 30° | 90° x 30° |
| CROSSOVER FREQUENCIES | 1.5KHz passive | 1.5KHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 691mm×590mm×796mm | 691mm×590mm×796mm |
| NET WEIGHT | 44kg/pc | 47kg/pc |
| GROSS WEIGHT | 49kg/pc | 52kg/pc |
