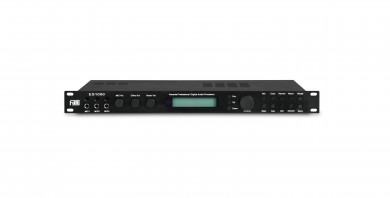

ES1000 / ES1000+
MULTI-CHANNELS KARAOKE EFFECTOR
DESCRIPTION
●This series of products is a karaoke effector with speaker processor function, each part of the functions can be adjusted independently
●Adopt 24Bit data bus and 32Bit DSP
●Music is set to seven-segment parameter equalization.Music to main output high-pass filter: 12dB-24dB( 0 Hz-303Hz)
●MIC is set to fifteen-segment parameter equalization. Microphone has compression and limiting function
●The main output is set to five-segment parameter equalization, has compression and limiting function.
●The middle output, the rear output and the subwoofer are all equipped with three-segment parameter equalization
●The microphone has four kinds of feedback suppression, can select OFF/1/2/3.
●Can store 16 modes.
●The microphone output,main output, middle output,subwoofer output and rear output are all equipped with limited and delay function.
●Built-in management mode and user mode, user mode after adjusting parameters can not be stored
●The effector is equipped with a full-function menu, can also be set through the PC interface.
●Adopt 24Bit data bus and 32Bit DSP
●Music is set to seven-segment parameter equalization.Music to main output high-pass filter: 12dB-24dB( 0 Hz-303Hz)
●MIC is set to fifteen-segment parameter equalization. Microphone has compression and limiting function
●The main output is set to five-segment parameter equalization, has compression and limiting function.
●The middle output, the rear output and the subwoofer are all equipped with three-segment parameter equalization
●The microphone has four kinds of feedback suppression, can select OFF/1/2/3.
●Can store 16 modes.
●The microphone output,main output, middle output,subwoofer output and rear output are all equipped with limited and delay function.
●Built-in management mode and user mode, user mode after adjusting parameters can not be stored
●The effector is equipped with a full-function menu, can also be set through the PC interface.
SPECIFICATIONS
| MODEL | ES1000 | ES1000+ |
| MAX.INPUT LEVEL | 4V(RMS) | 4V(RMS) |
| MAX.OUTPUT LEVEL | 4V(RMS) | 4V(RMS) |
| MUSIC CHANNEL GAIN | Max:12dB | Max:12dB |
| MICROPHONE SENSITIVITY | 64mV(OUTPUT：4V) | 64mV(OUTPUT：4V) |
| S/N RATIO | ＞80dB | ＞80dB |
| INPUT VOLTAGE | AC 220V 50-60Hz | AC 220V 50-60Hz |
| DIMENSIONS(WxDxH)mm | 483×218.5×47.5 | 483×218.5×47.5 |
| NET WEIGHT | 3.5KG | 3.5KG |
