DESCRIPTION

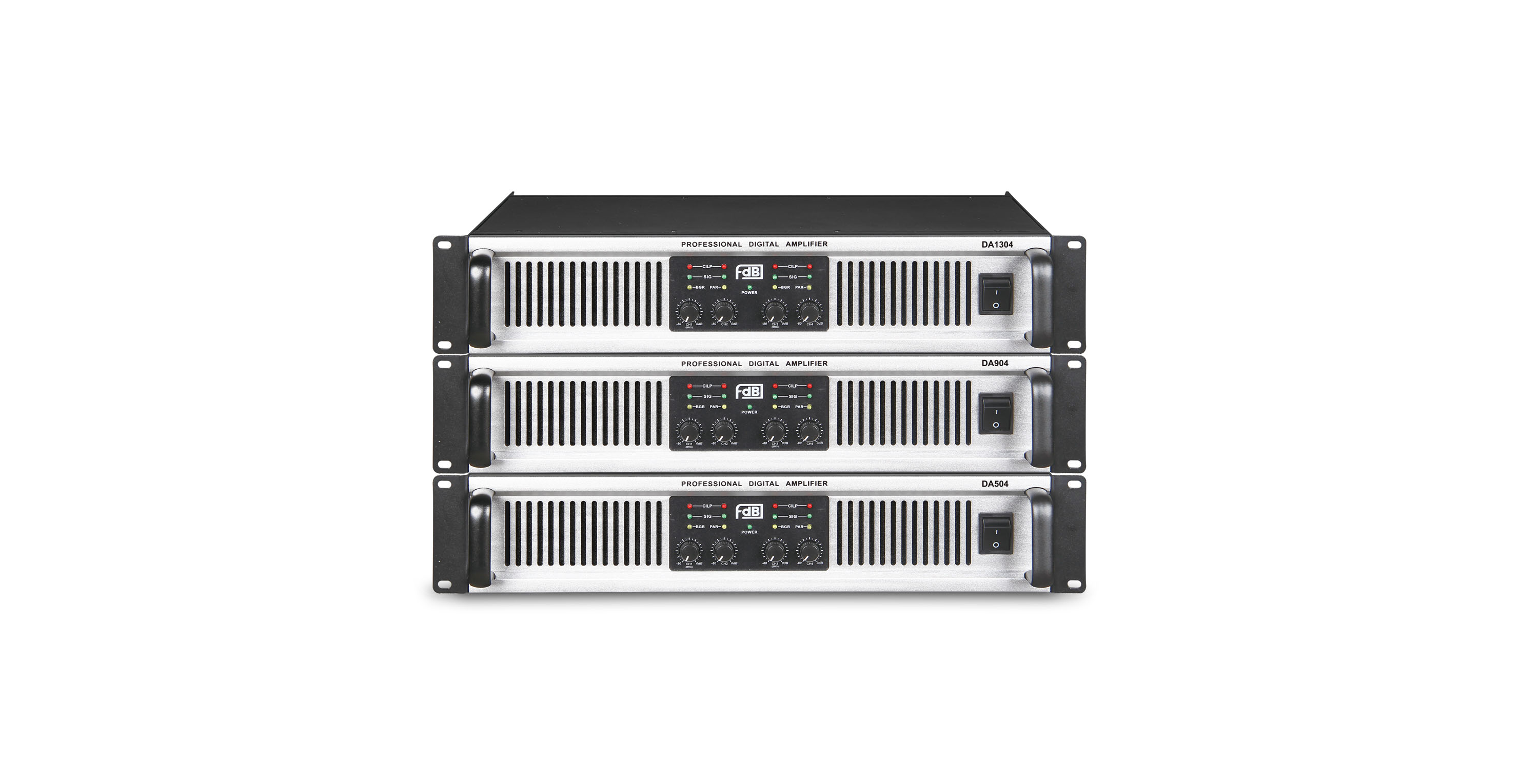

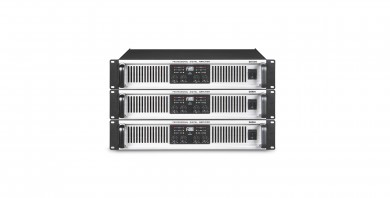

The DA series professional amplifier is a class D digital amplfier with switching power supply, using a special circuit design techniques, focusing on the stability of the products in the long-term continuous full power conditions,improving the protection function to avoid damages caused by operation mistakes and embarrassments caused by error protection. The main components of the PCB board using SMT technology manufacturing and through computer simulation aided design circuit layout, so that the amplifier has a high signal to noise ratio and anti-jamming capability. The DA series products have a higher damping and perfect filtering system, so that the high frequency is more delicate and soft, low-frequency is more powerful. And small size with light weight is more convenient to use.
SPECIFICATIONS
| MODEL | DA504 | DA904 | DA1304 | DA1804 | |
| (EIA 1KHZ 1% THD) | STEREO POWER 8 ohms | 4×500W | 4×900W | 4×1300W | 4×1800W |
| STEREO POWER 4 ohms | 4×750W | 4×1350W | 4×1950W | 4×2700W | |
| BRIDGE POWER 8 ohms | 2×1500W | 2×2700W | 2×3900W | 2×5400W | |
| FREQUENCY RESPONSE | 20Hz-20kHz,±1.5dB | 20Hz-20kHz,±1.5dB | 20Hz-20kHz,±1.5dB | 20Hz-20kHz,±1.5dB | |
| INPUT SENSITIVITY | 0.77V/1V/1.4V | 0.77V/1V/1.4V | 23dB-44dB | 23dB-44dB | |
| SIGNAL TO NOISE | ≥98dB | ≥98dB | ≥100dB | ≥100dB | |
| THD | ＜0.15% | ＜0.15% | ＜0.15% | ＜0.15% | |
| CROSSTALK (8 ohm 1KHz) | ≥62dB | ≥62dB | ≥62dB | ≥62dB | |
| INPUT IMPEDANCE | 20KΩ(BALANCED )10KΩ(UNBALANCED) | ||||
| DAMPING FACTOR | ≥230 | ≥230 | ≥230 | ≥230 | |
| SLEW RATE | 25V/μs | 25V/μs | 25V/μs | 25V/μs | |
| PROTECTION FUNCTION | SOFT START / OVERHEATING / OVERCURRENT / DIRECT CURRENT / RADIO FREQUENCY | ||||
| MAIN POWER SUPPLY | AC:220-230V 50Hz | AC:220-230V 50Hz | AC:220-230V 50Hz | AC:220-230V 50Hz | |
| DIMENSIONS | 482×235×88 | 482×235×88 | 482×433.5×88 | 482×235×88 | |
| NET WEIGHT | 7.4Kg | 7.5Kg | 12.1Kg | 12.4Kg | |
