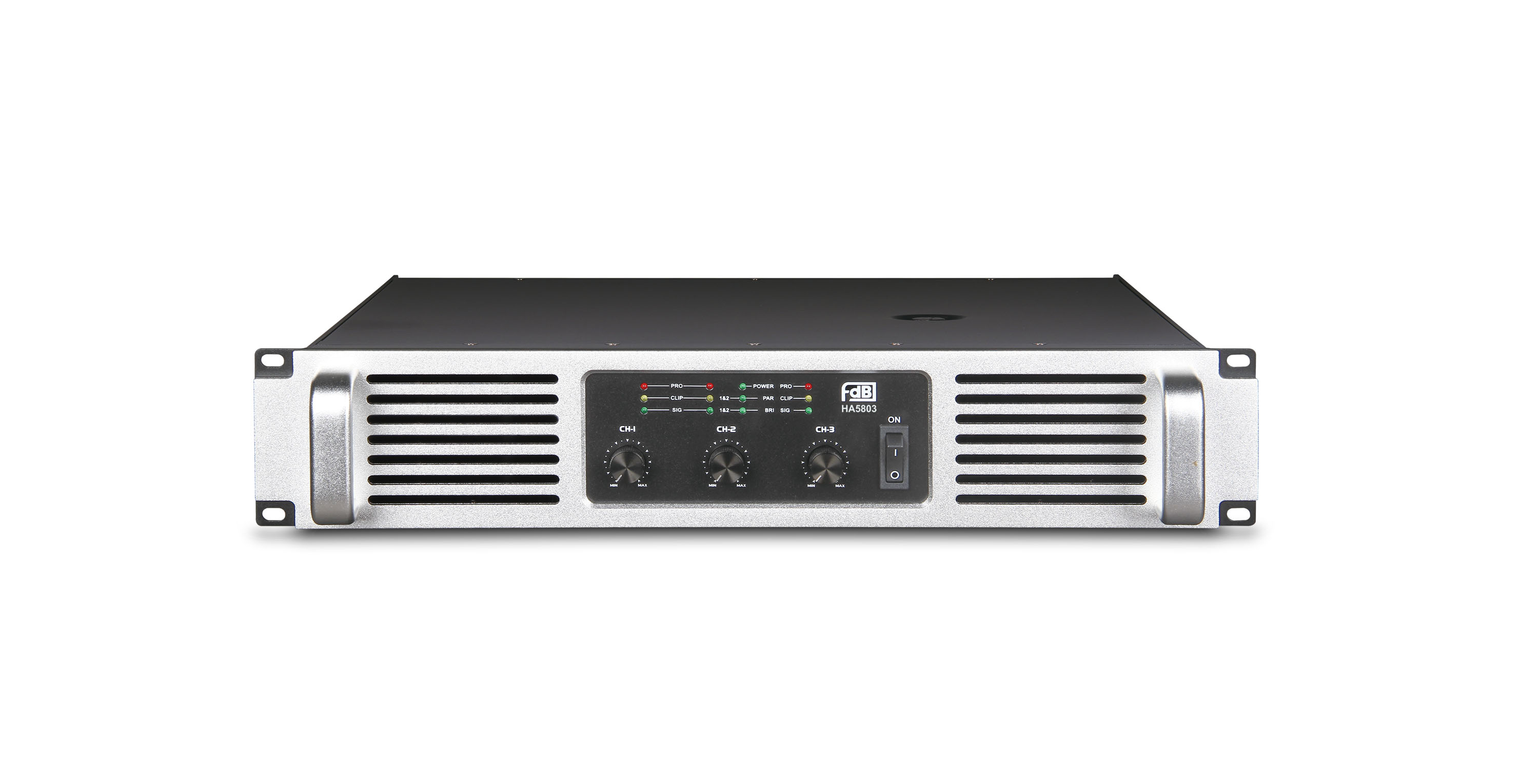

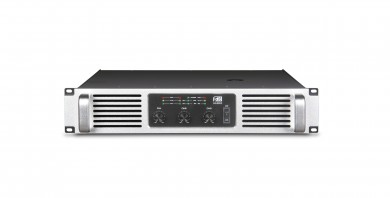

HA5803
3 Channel Amplifier
DESCRIPTION
The HA series professional amplifier using standard modular design techniques, focusing on the stability of the products in the long-term continuous full power conditions, the series power from 600W-1200W, channels from any combination of 2-3 channels to accommodate together a variety of needs.The HA series with higher damping and perfect filtering system, so that the high frequency is more delicate and soft, low-frequency is more flexible. And multi-channel design is more convenient to use.
SPECIFICATIONS
| MODEL | HA5803 | |
| EIA 1KHZ 1% THD | STEREO POWER 8 ohms | 2×500W+800W |
| STEREO POWER 4 ohms | 2×750W+1200W | |
| BRIDGE POWER 8 ohms | 1500W+800W | |
| FREQUENCY RESPONSE | 20Hz-20kHz,±1.5dB | |
| INPUT SENSITIVITY | 0.775V/1.4V/26 | |
| SIGNAL TO NOISE | ＞100dB | |
| THD | ≤0.05% | |
| CROSSTALK (8 ohm 1KHz) | 20KΩ(/BALANCED /)10KΩ(/UN-BALANCED) | |
| DAMPING FACTOR(5Hz-1KHz) | ＞230 | |
| SLEW RATE | 15V/μs | |
| PROTECTION FUNCTION |
SOFT START / OVERHEATING / OVERCURRENT / DIRECT CURRENT / RADIO FREQUENCY |
|
| MAIN POWER SUPPLY | AC:220-230V~50Hz/60Hz | |
| DIMENSIONS(W×D×H)mm | 482×486×88 | |
| NET WEIGHT | 21.9Kg | |
