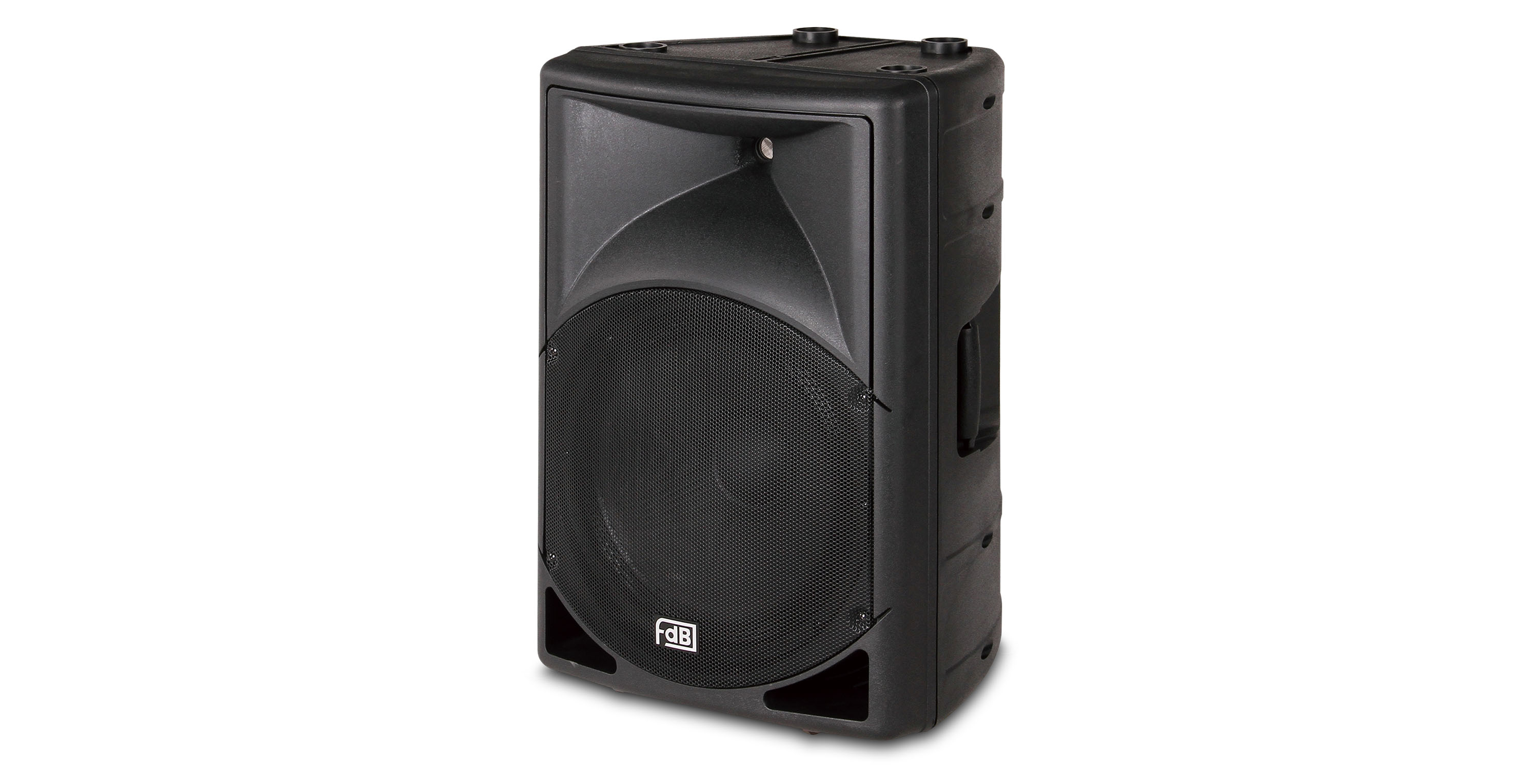

CX15 / CX150A
1x15" 2-way Loudspeaker System / 1x15" 2-way Active Loudspeaker System
DESCRIPTION
The CX15 is a 15" two-way full range plastic speaker. Unit configuration: 1x15" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver.The cabinet is made of engeering plastic injection molding. CX150A is a high power active speaker, equipped with 300W+100W amplifier.
FEATURES
●High quality unit configuration, engineering plastic housing
●Multi-hanging points and support, can be fixed installation and touring
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms
●Multi-hanging points and support, can be fixed installation and touring
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms
SPECIFICATIONS
| MODEL | CX15 | CX150A |
| FREQUENCY RESPONSE(-3dB) | 40Hz-20kHz | 40Hz-20kHz |
|
FREQUENCY RESPONSE(-10dB) |
35Hz-20kHz |
35Hz-20kHz |
| DRIVERS | 1×15"(380mm)/2.5"voice coil LF | 1×15"(380mm)/3"voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | 1×1"(25mm)/ 1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak | 300W+100W RMS |
| SENSITIVITY | 97dB 1watt/1 metre | / |
| MAXIMUM SPL | 121dB continuous,127 dB peak | 121dB continuous,127 dB peak |
| IMPEDANCE | 8 ohms nominal | Line 20k ohm Mic: 2k ohm |
| DISPERSION(-6dB) | 90°×60° | 90°×60° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | / |
| INPUT CONNECTORS | 2×Speakon NL4 | / |
| PACKAGE SIZE | 530mmx490mmx775mm | 530mmx490mmx775mm |
| NET WEIGHT | 19 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 22 kg/pc | 32 kg/pc |
