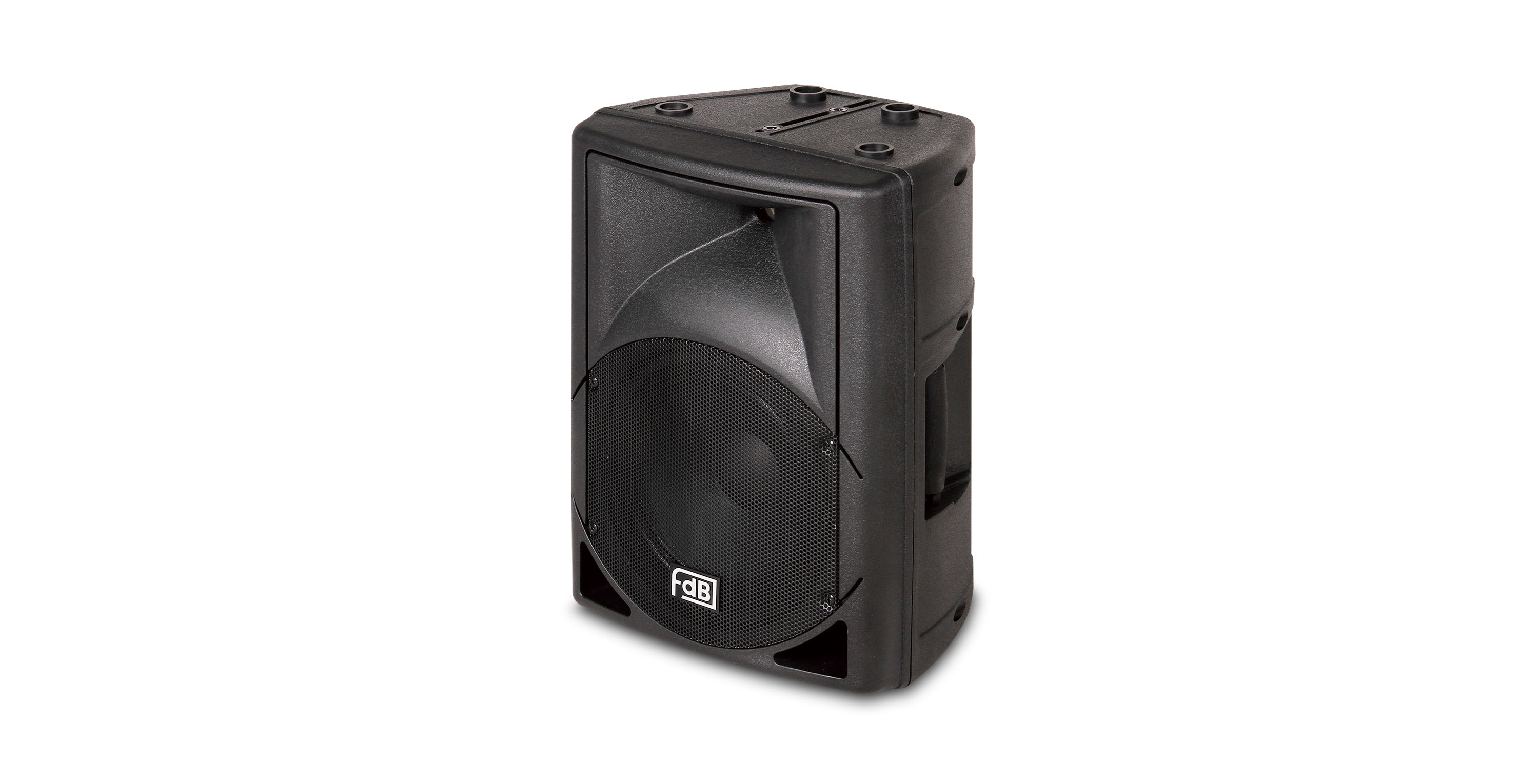

CX12 / CX12A
1x12" 2-way Loudspeaker System / 1x12"2-way Active Loudspeaker System
DESCRIPTION
The CX12 is a 12" two-way full range plastic speaker. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver.The cabinet is made of engeering plastic injection molding. CX12A is equipped with 250W amplifier based on CX12 to be an active speaker.
FEATURES
●High quality unit configuration, engineering plastic housing
●Multi-hanging points and support, can be fixed installation and touring
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms
●Multi-hanging points and support, can be fixed installation and touring
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms
SPECIFICATIONS
| MODEL | CX12 | CX12A |
| FREQUENCY RESPONSE(-3dB) | 40Hz-20kHz | 40Hz-20kHz |
|
FREQUENCY RESPONSE(-10dB) |
35Hz-20kHz |
35Hz-20kHz |
| DRIVERS | 1×12"(300mm)/2.5" voice coil LF | 1×12"(300mm)/2.5" voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 200W RMS,1000W peak | 200W RMS |
| SENSITIVITY | 96dB 1watt/1 metre | / |
| MAXIMUM SPL | 120 dB continuous,126 dB peak | 120 dB continuous,126 dB peak |
| IMPEDANCE | 8 ohms nominal | Line 20k ohm Mic: 2k ohm |
| DISPERSION(-6dB) | 90°×60° | 90°×60° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | / |
| INPUT CONNECTORS | 2×Speakon NL4 | / |
| PACKAGE SIZE | 465mmx385mmx675mm | 465mmx385mmx675mm |
| NET WEIGHT | 15 kg/pc | 19 kg/pc |
| GROSS WEIGHT | 17 kg/pc | 22 kg/pc |
