KW-510R / KW-510C / KW-510B
1x10" 3-way Loudspeaker System
DESCRIPTION
The KW-510 is three way full range speaker with 5 units, which retains the characteristics of the traditional KTV speakers, such as full elasticity of bass, clear and bright mid-high frequency. Unit configuration: 1x10" mid-bass with foaming edge, 2x4" cone mid, 2x3" cone tweeter. The cabinet is made of MDF with wear-resistant PVC.
FEATURES
●Full elasticity of bass, clear and bight mid-high frequency
●Standard hanging device
●Depending on the environment, various colors are available
●Applications: small conference rooms, classrooms, restaurants, shops, family rooms
●Standard hanging device
●Depending on the environment, various colors are available
●Applications: small conference rooms, classrooms, restaurants, shops, family rooms
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 35Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
30Hz-20kHz |
| DRIVERS | 1×10"(250mm)Woofer |
| 2×4"(100mm) cone mid | |
| 2×3"(75mm) cone tweeter | |
| RATED POWER | 150W RMS,450W peak |
| SENSITIVITY | 92dB 1watt/1 metre |
| MAXIMUM SPL | 113 dB continuous,119 dB peak |
| IMPEDANCE | 8 ohms nominal |
| CROSSOVER FREQUENCIES | 1.5KHz, 3KHz passive |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 725mm×405mm×624mm(carton/pair) |
| NET WEIGHT | 12 kg /pc |
| GROSS WEIGHT | 28 kg/Pair |

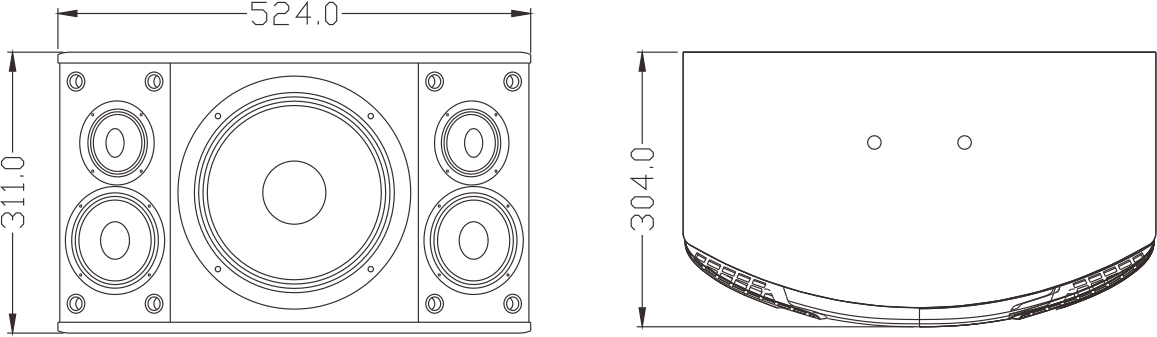

CONFIGURATION
DOWNLOAD
