DESCRIPTION

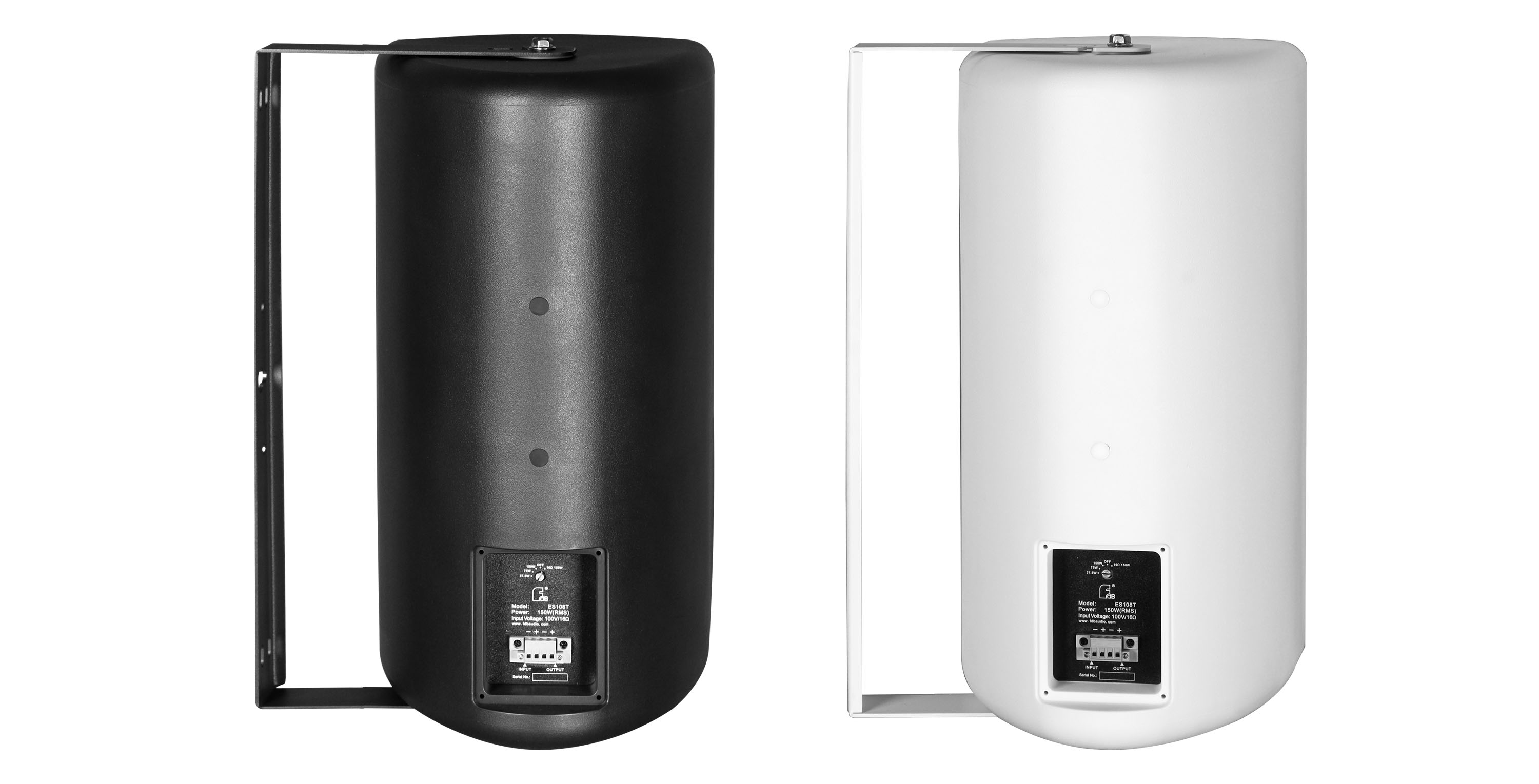

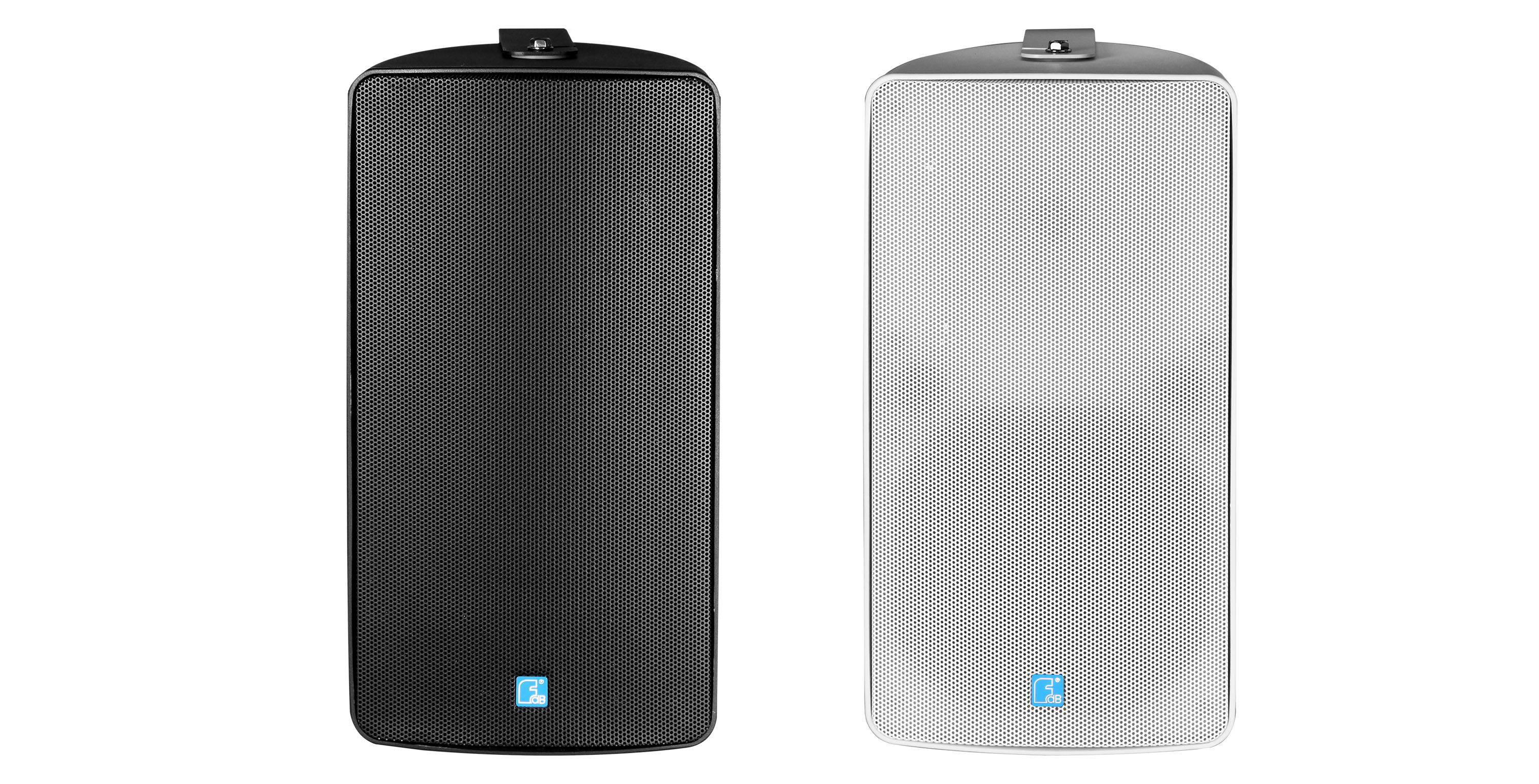

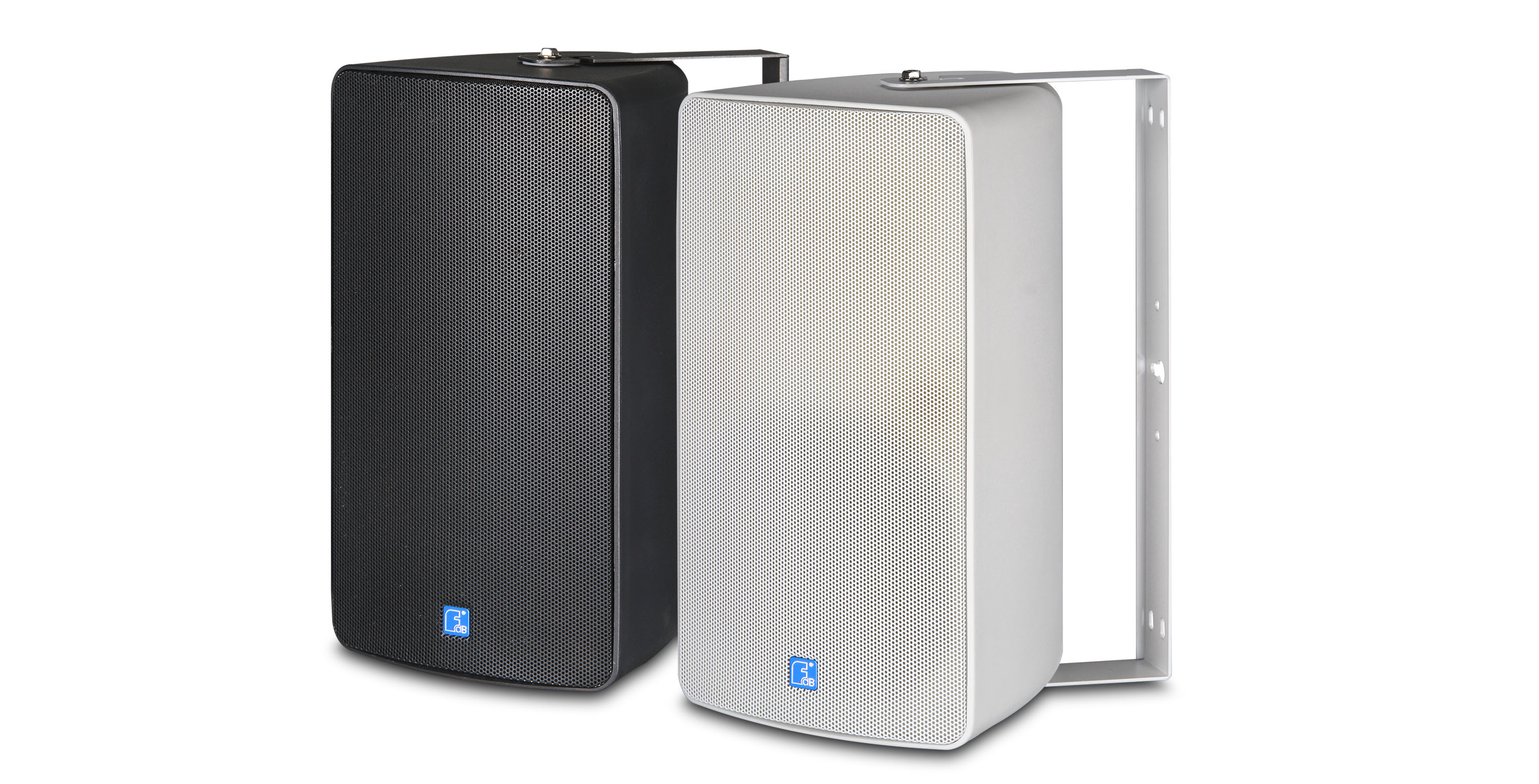

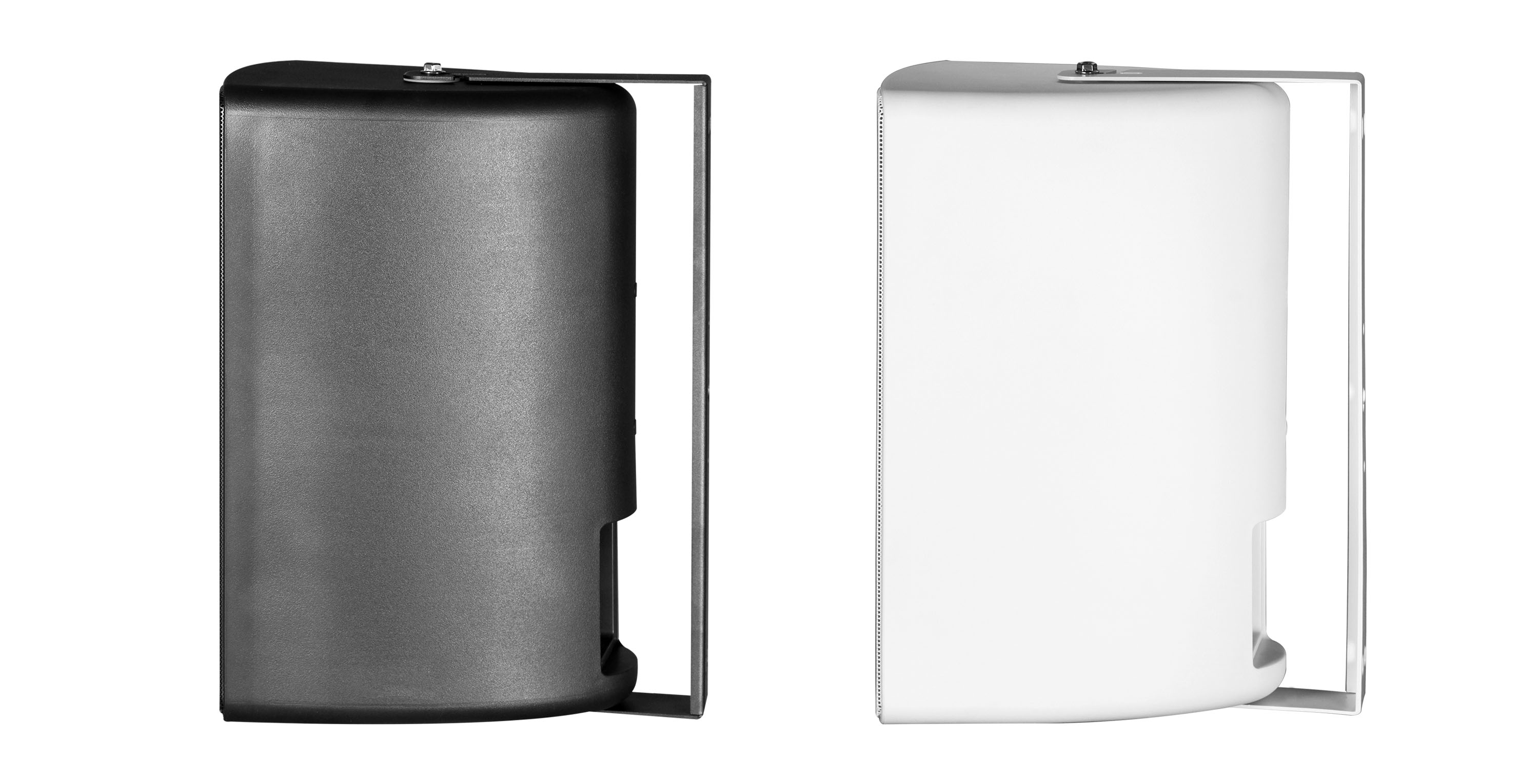

ES108 series is a group of 8" two-way all-weather speakers with different colors and functions. With waterproof, dustproof, windproof, anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, multi-layer different functional grille. The cabinet meets the IP46 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x8" ferrite mid-bass and 1x 1" exit throat 25mm HF driver, the cabinet is made of polymer compound injection molding. B and W after the model represent black and white, T represents the configuration of transformer and band switch, to achieve a variety of different output powers including constant resistance.
FEATURES
●The cabinet is made of polymer compound injection molding
●Customized unit, better bass performance
●Applications: outdoor restaurants, bars, conference rooms, classrooms, parks, sound reinforcement of scenic areas, houseboats and seasides(customized)
SPECIFICATIONS
| MODEL | ES108B/ES108W | ES108BT/ES108WT |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz | 60Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
55Hz-20KHz |
55Hz-20KHz |
| DRIVERS | 1×8"(200mm)/2"voice coil LF | 1×8"(200mm)/2"voice coil LF |
| 1×1"(25mm)/1"voice coil HF | 1×1"(25mm)/1"voice coil HF | |
| INPUT VOLTAGE | 100V | |
| RATED POWER | 150W RMS,600W peak | 37.5W/75W/150W/OFF/16Ω |
| SENSITIVITY | 94dB 1watt/1 metre | 94dB 1watt/1 metre |
| MAXIMUM SPL | 116dB continuous,122 dB peak | 116dB continuous,122 dB peak |
| IMPEDANCE | 16 ohms nominal | 16 ohms nominal |
| DISPERSION(-6dB) | 90°×50° | 90°×50° |
| CROSSOVER FREQUENCIES | 2.3kHz passive | 2.3kHz passive |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 352×292×505mm | 352×292×505mm |
| NET WEIGHT | 9 kg/pc | 10 kg/pc |
| GROSS WEIGHT | 11 kg/pc | 12 kg/pc |
