DESCRIPTION

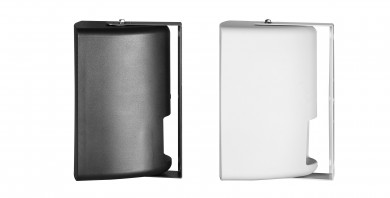

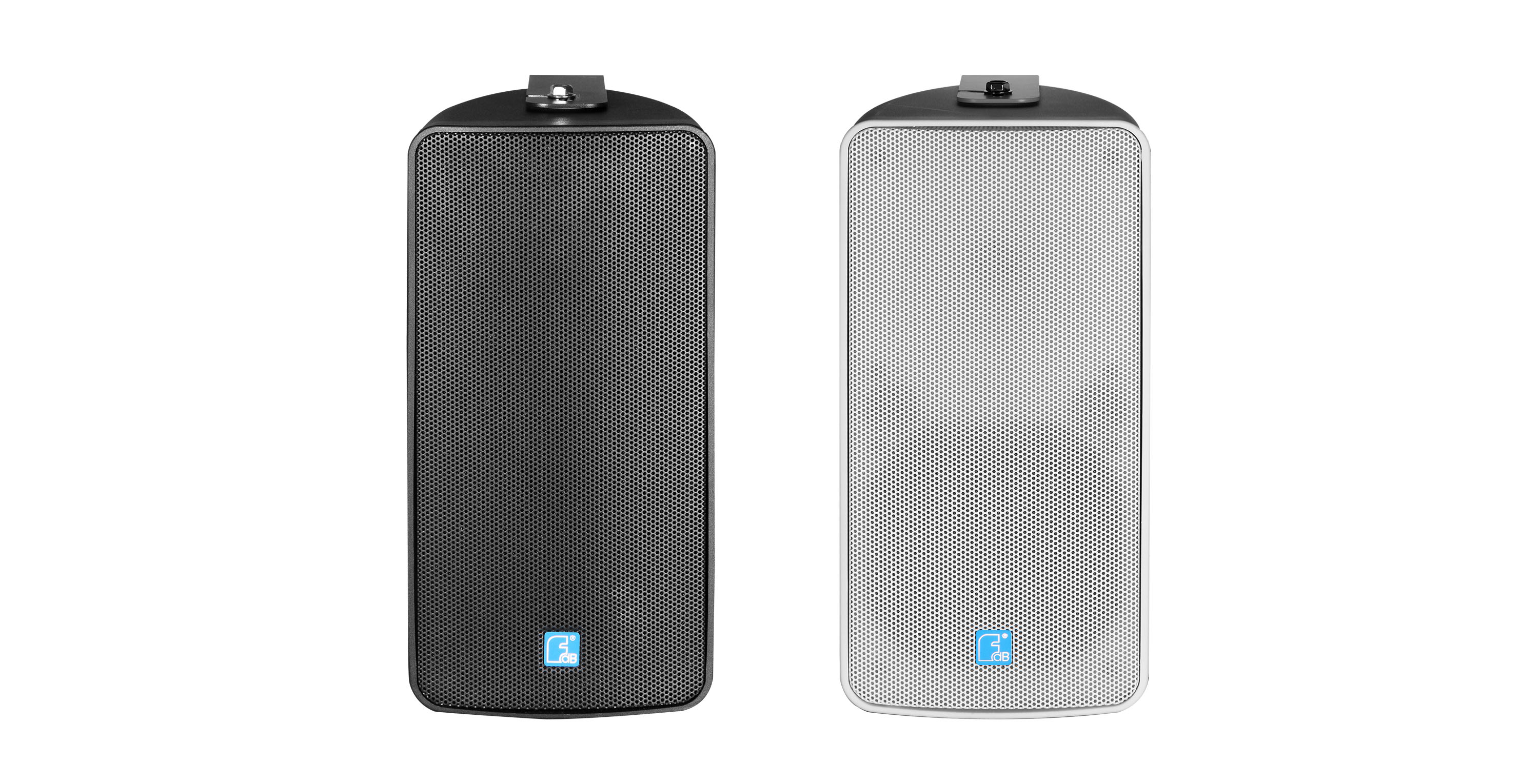

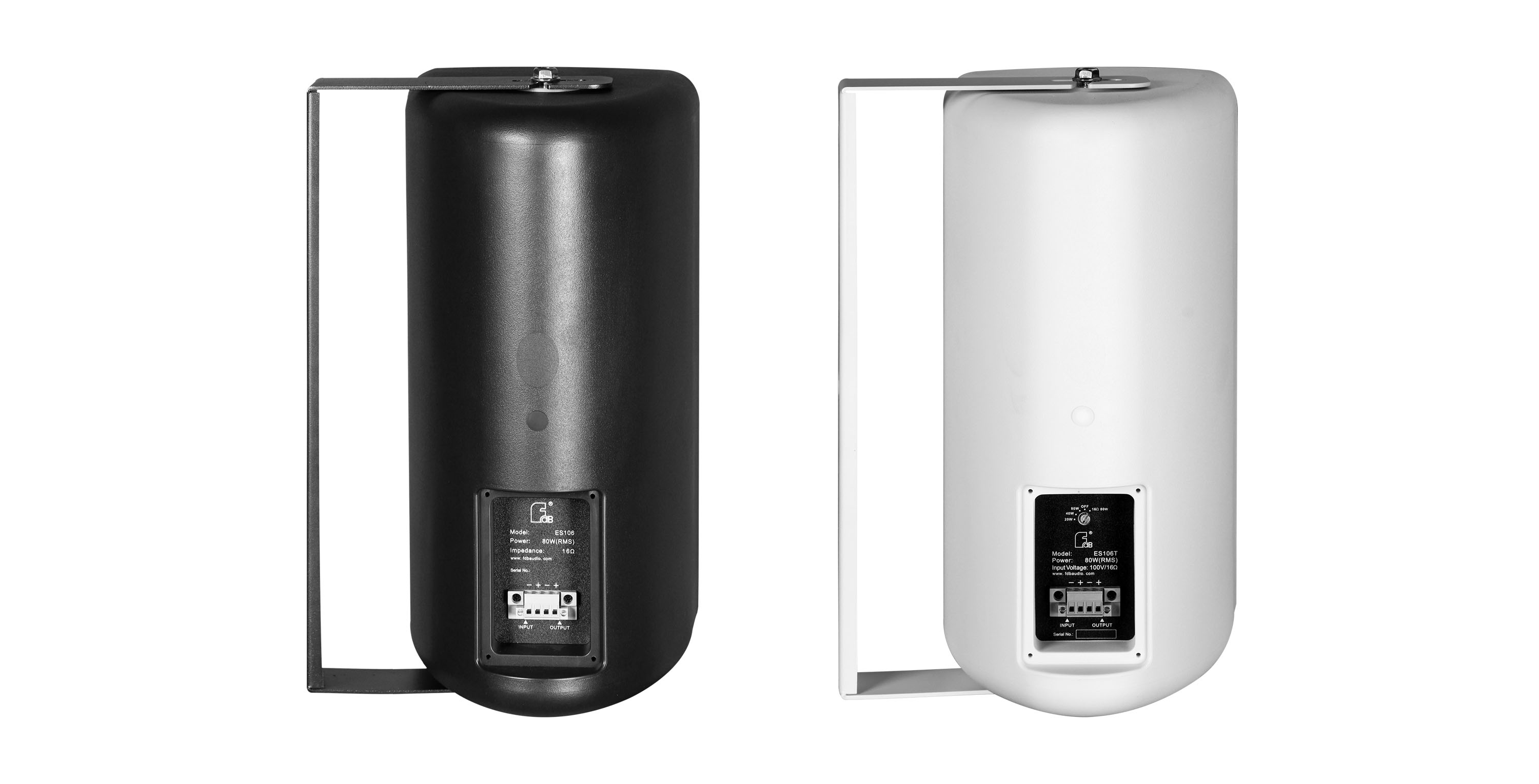

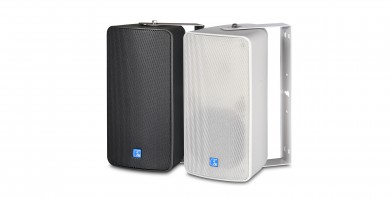

ES106 series is a group of 6" two-way all-weather speakers with different colors and functions. With waterproof, dustproof, windproof, anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, multi-layer different functional grille. The cabinet meets the IP46 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x6" ferrite mid-bass and 1x 1" exit throat 25mm HF driver, the cabinet is made of polymer compound injection molding. B and W after the model represent black and white, T represents the configuration of transformer and band switch, to achieve a variety of different output powers including constant resistance.
FEATURES
●The cabinet is made of polymer compound injection molding
●Customized unit, better bass performance
●Applications: outdoor restaurants, bars, conference rooms, classrooms, parks, sound reinforcement of scenic areas, houseboats and seasides(customized)
SPECIFICATIONS
| MODEL | ES106B/ES106W | ES106BT/ES106WT |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz | 60Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
55Hz-20KHz |
55Hz-20KHz |
| DRIVERS | 1×6"(150mm)/1.5"voice coil LF | 1×6"(150mm)/1.5"voice coil LF |
| 1×1"(25mm)/1"voice coil HF | 1×1"(25mm)/1"voice coil HF | |
| INPUT VOLTAGE | 100V | |
| RATED POWER | 80W RMS,320W peak | 20W/40W/80W/OFF/16Ω |
| SENSITIVITY | 89dB 1watt/1 metre | 89dB 1watt/1 metre |
| MAXIMUM SPL | 108dB continuous,114 dB peak | 108dB continuous,114 dB peak |
| IMPEDANCE | 16 ohms nominal | 16 ohms nominal |
| DISPERSION(-6dB) | 90°×60° | 90°×60° |
| CROSSOVER FREQUENCIES | 2.4kHz passive | 2.4kHz passive |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 528×222×415mm(1 pair) | 528×222×415mm(1 pair) |
| NET WEIGHT | 5 kg/pc | 6 kg/pc |
| GROSS WEIGHT | 15 kg/pair | 16 kg/pair |
