DESCRIPTION

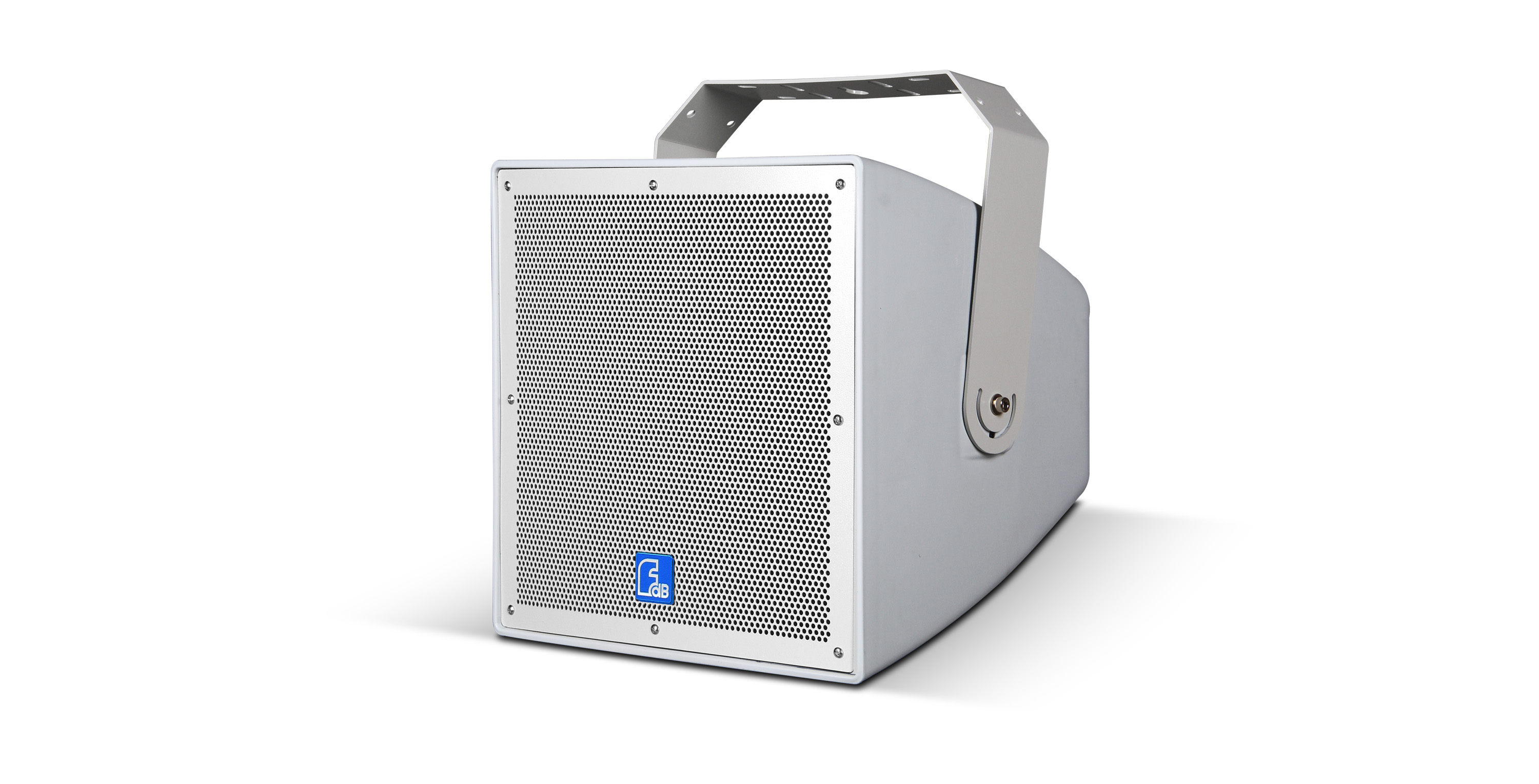

LT212 is a 12",coaxial, two-way, all-weather,long-throw speaker, with waterproof,dustproof,windproof,anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, five-layer different functional grille. The cabinet meets the IP56 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x12" ferrite mid-bass and 1x 1" exit throat 44mm HF driver with horn loaded, the cabinet is made of polymer compound injection molding. LT212T is equipped with transformer and band switch based on LT212 to achieve a variety of different output powers including constant resistance.
FEATURES
●Pass IP56 testing, meet all-weather use
●The cabinet is made of polymer compound injection molding
●Coaxial point sound source
●Horn-loaded design
●Applications: outdoor restaurants, bars, parks, plazas, stadiums, sound reinforcement of scenic areas, transportation hubs, houseboats, seasides (customized)
SPECIFICATIONS
| MODEL | LT212 | LT212T |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz | 55Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
50Hz-20kHz |
50Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | 1×1"(25mm)/1.7"voice coil HF | |
| INPUT VOLTAGE | / | 100V |
| RATED POWER | 300W RMS,1200W peak | 50W/100W/200W/OFF/8Ω 300W |
| SENSITIVITY | 98dB 1watt/1 metre | 98dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128dB peak | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal | 8 ohms nominal |
| DISPERSION(-6dB) | 70°×50° | 70°×50° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | 2.2kHz passive |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 472mm×442mm×460mm | 472mm×442mm×460mm |
| NET WEIGHT | 18 kg/pc | 20 kg/pc |
| GROSS WEIGHT | 20 kg/pc | 22 kg/pc |

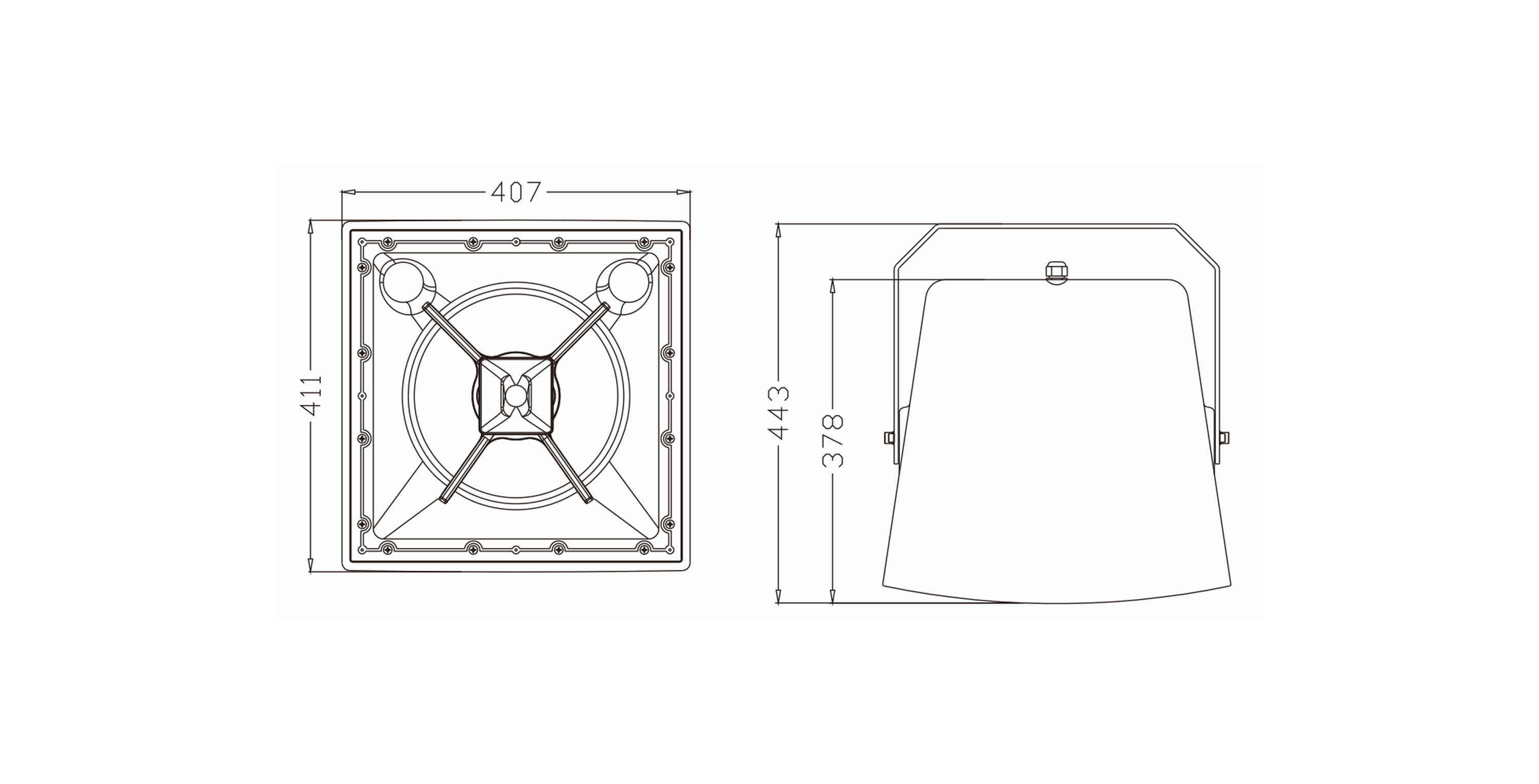

CONFIGURATION
