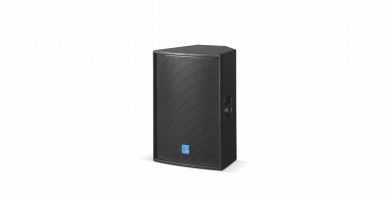

FT12II
1x12" 2-way Loudspeaker System
DESCRIPTION
The FT12Ⅱis a 12" two-way full range speaker. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 34mm titanium diaphragm HF driver with 80°×50° rotatable horn. The cabinet is made of MDF with water-based environmental protection paint.
FEATURES
●High quality MDF housing
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms ,small outdoor reinforcement
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, multifunction halls, classrooms ,small outdoor reinforcement
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 45Hz-20kHz |
|
FREQUENCY RESPONSE(-10dB) |
40Hz-20kHz |
| DRIVERS | 1×12"(300mm)/2.5" voice coil LF |
| 1×1"(25mm)/ 1.4"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 96dB 1watt/1 metre |
| MAXIMUM SPL | 120 dB continuous,126 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 80°×50° |
| CROSSOVER FREQUENCIES | 2.2 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 490mm×455mm×665mm |
| NET WEIGHT | 19 kg/pc |
| GROSS WEIGHT | 21 kg/pc |

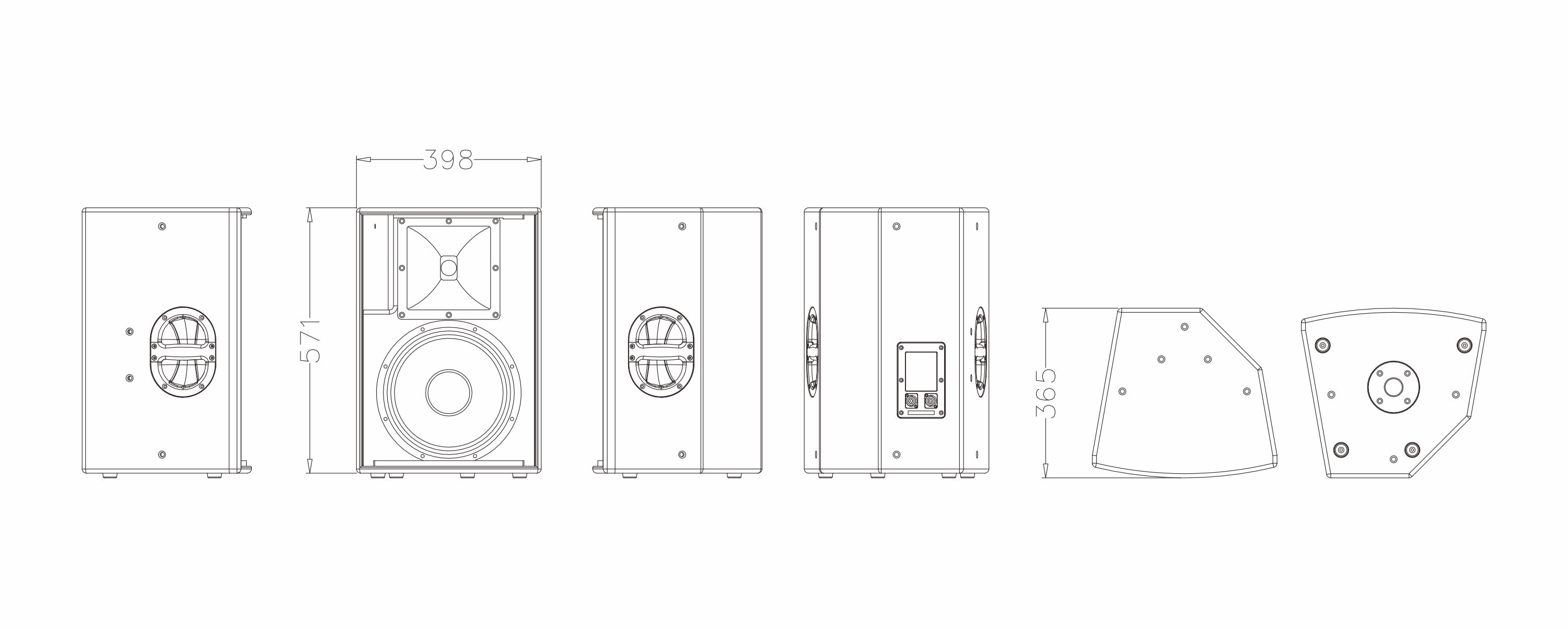

CONFIGURATION
