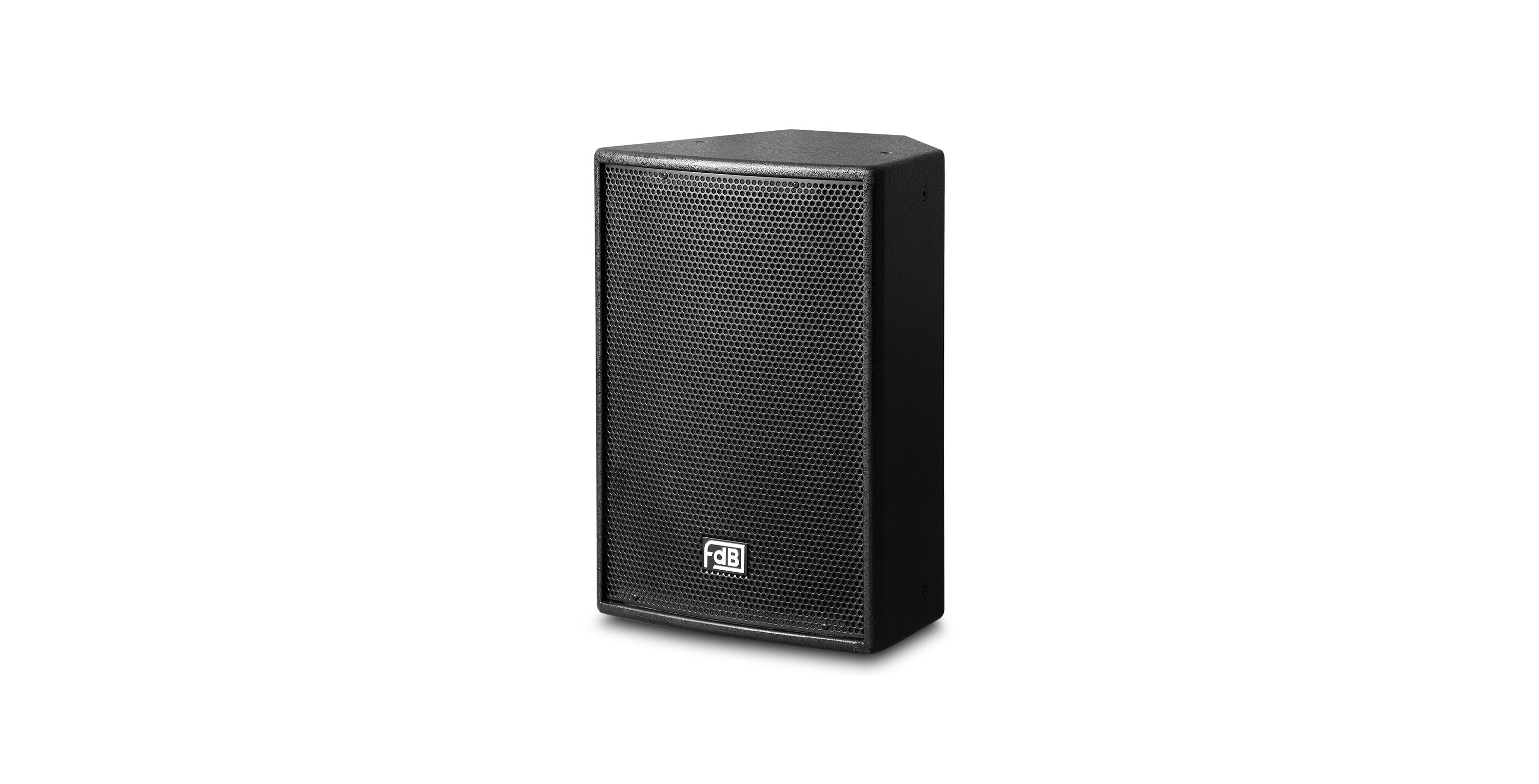

FT10II
1x10"2-way Loudspeaker System
DESCRIPTION
The FT10Ⅱis a 10" two-way full range speaker. Unit configuration: 1x10" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of MDF with water-based environmental protection paint.
FEATURES
●High quality MDF housing
●Light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, background music, classrooms
●Light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, background music, classrooms
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
45Hz-20kHz |
| DRIVERS | 1×10"(250mm)/2" voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 150W RMS,600W peak |
| SENSITIVITY | 95dB 1watt/1 metre |
| MAXIMUM SPL | 117 dB continuous,123 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.2 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 440mm×400mm×585mm |
| NET WEIGHT | 13 kg/pc |
| GROSS WEIGHT | 15 kg/pc |
