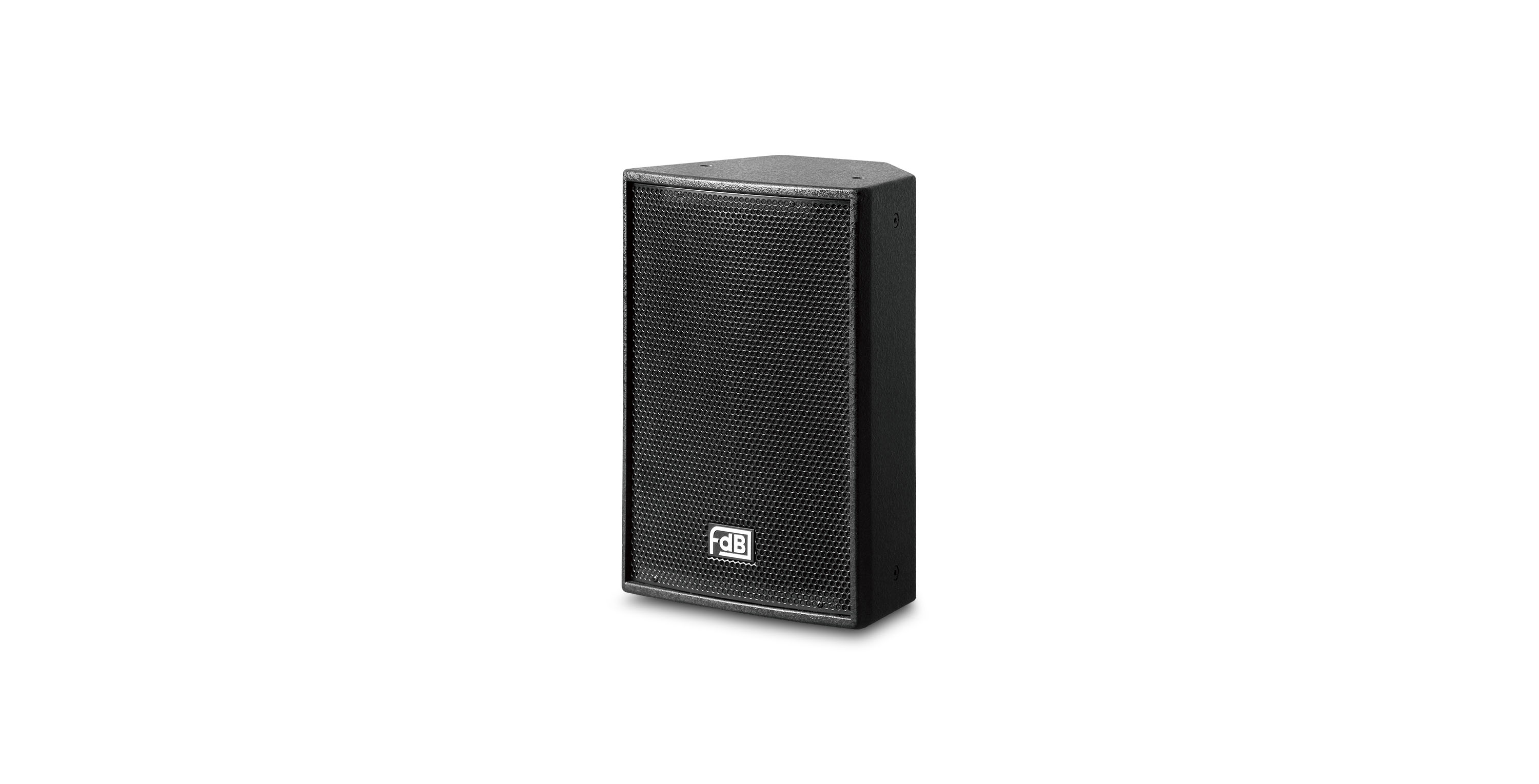

FT8II
1x8"2-way Loudspeaker System
DESCRIPTION
The FT8Ⅱis a 8" two-way full range speaker. Unit configuration: 1x8" high efficiency mid-bass unit, 1x1" exit throat 25mm mylar diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of MDF with water-based environmental protection paint.
FEATURES
●High quality MDF housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, background music, classrooms
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: full range reinforcement, speech and conference halls, background music, classrooms
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
50Hz-20kHz |
| DRIVERS | 1×8"(200mm)/1.5"voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 100W RMS,400W peak |
| SENSITIVITY | 92dB 1watt/1 metre |
| MAXIMUM SPL | 112 dB continuous,118 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.5 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 615mm×380mm×535mm(carton/pair) |
| NET WEIGHT | 9 kg/pc |
| GROSS WEIGHT | 21 kg/pair |
