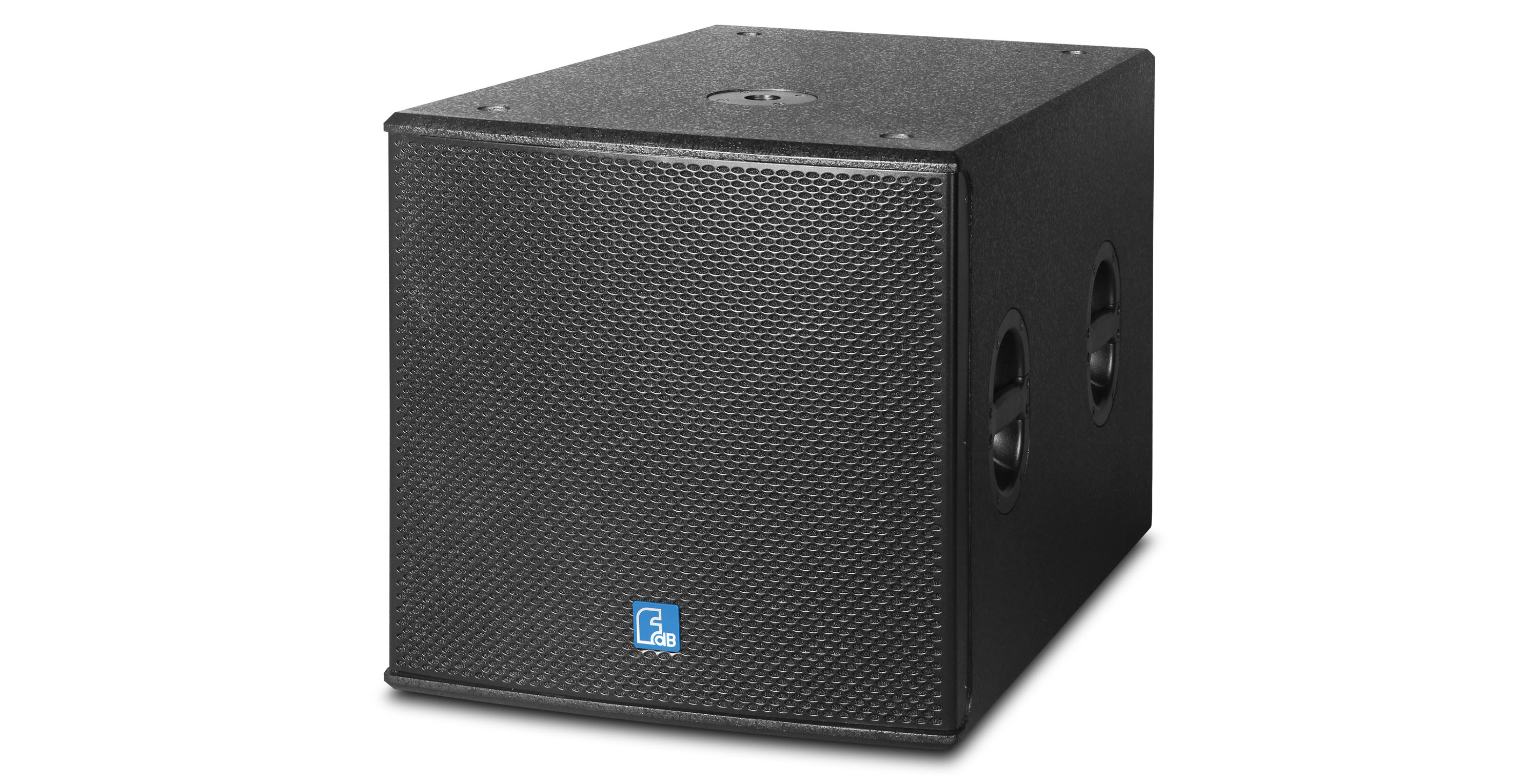

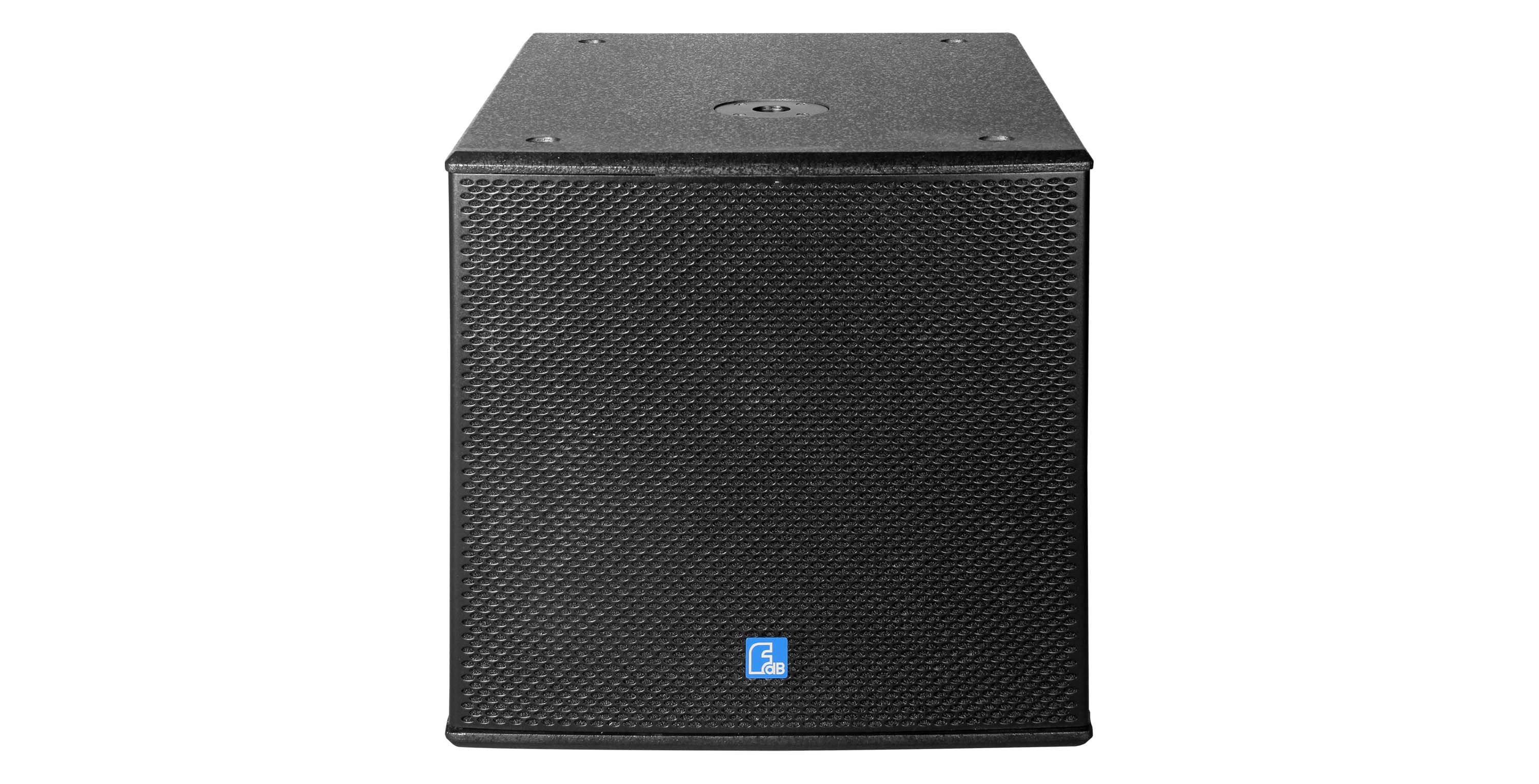

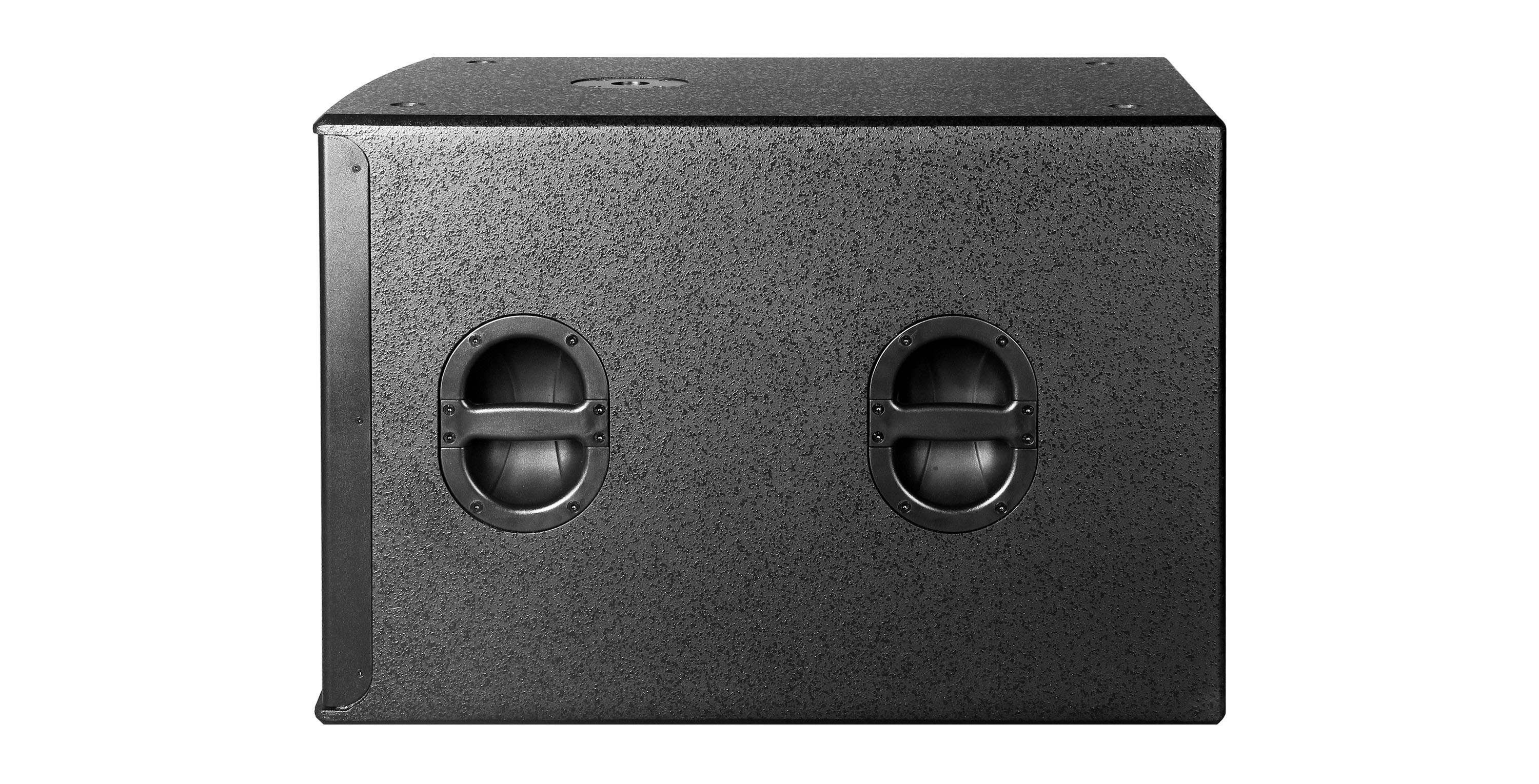

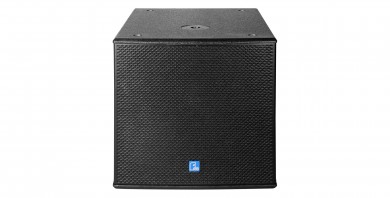

U118W / U118WA
1x18" Sub-woofer System / 1x18" Active Sub-woofer System
DESCRIPTION

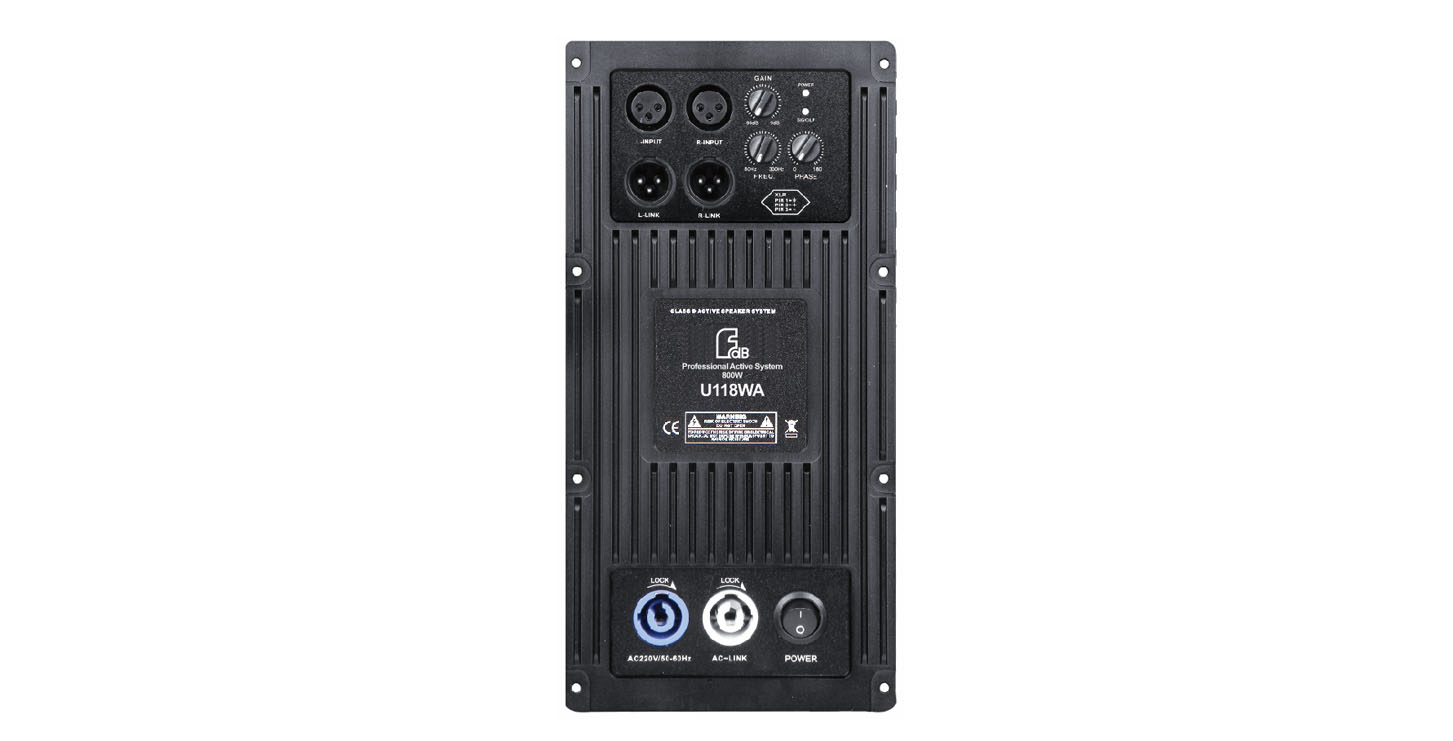

U118W is a single 18" subwoofer, bass-reflex design, full and powerful sound. Unit configuration: 1x18" 100mm high efficicency woofer. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U118WA is an active subwoofer.
FEATURES
●High quality unit configuration, high strength plywood housing
●Bass-reflex design, full and powerful sound
●Applications: multifunction halls, high-end hotel clubs, touring
●Bass-reflex design, full and powerful sound
●Applications: multifunction halls, high-end hotel clubs, touring
SPECIFICATIONS
| MODEL | U118W | U118WA |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz | 35Hz-300Hz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 1200W/4Ω |
| SENSITIVITY | 100dB 1watt/1meter | -- |
| MAXIMUM SPL | 128dB continuous,134dB peak | 128dB continuous,134dB peak |
| IMPEDANCE | 8 ohms nominal | – |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 880mm×660mm×655mm | 880mm×660mm×655mm |
| NET WEIGHT | 40 kg/pc | 42 kg/pc |
| GROSS WEIGHT | 48 kg/pc | 50 kg/pc |
