Location： >> Products >> U Professional Speaker
>> U115W / U115WA

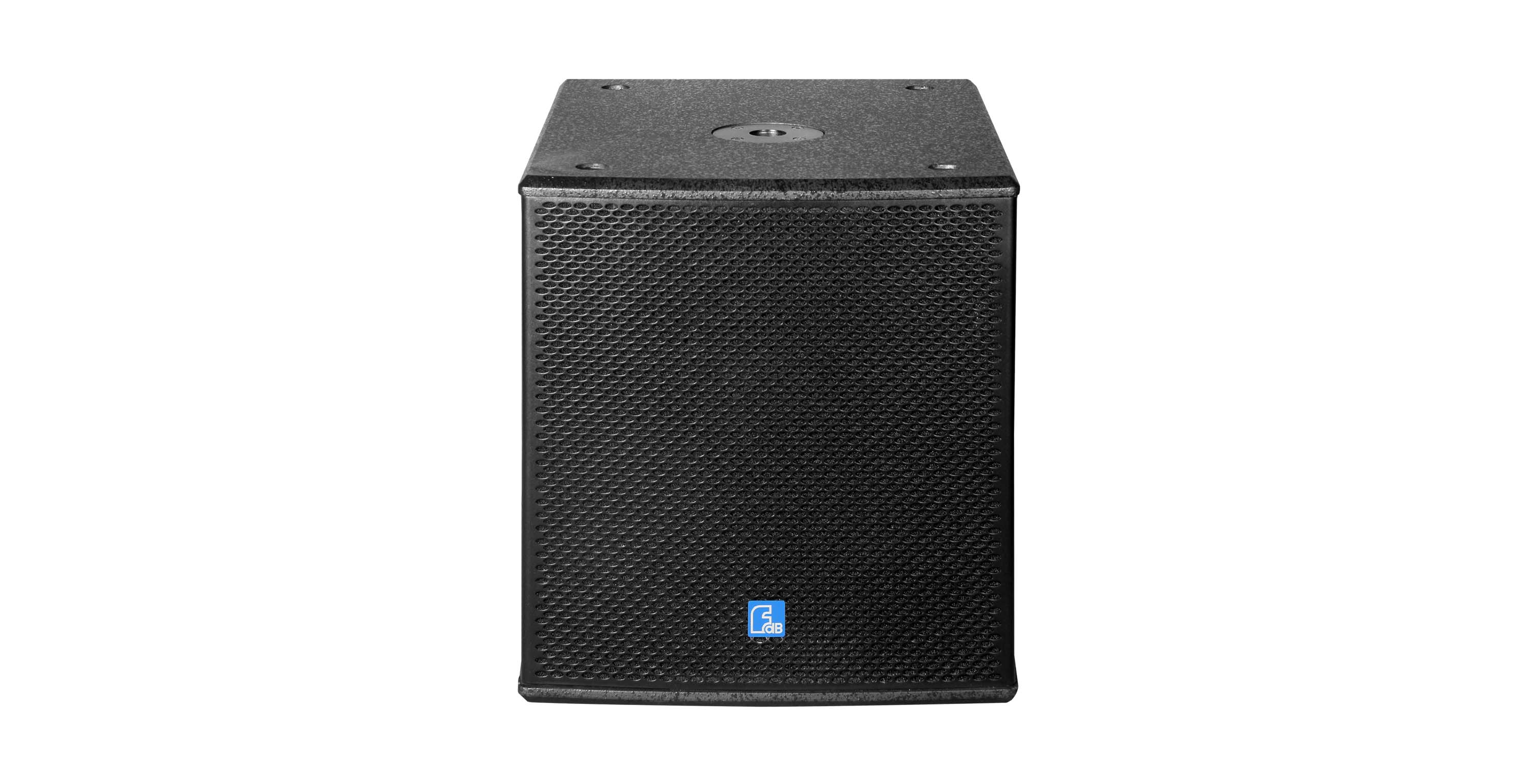

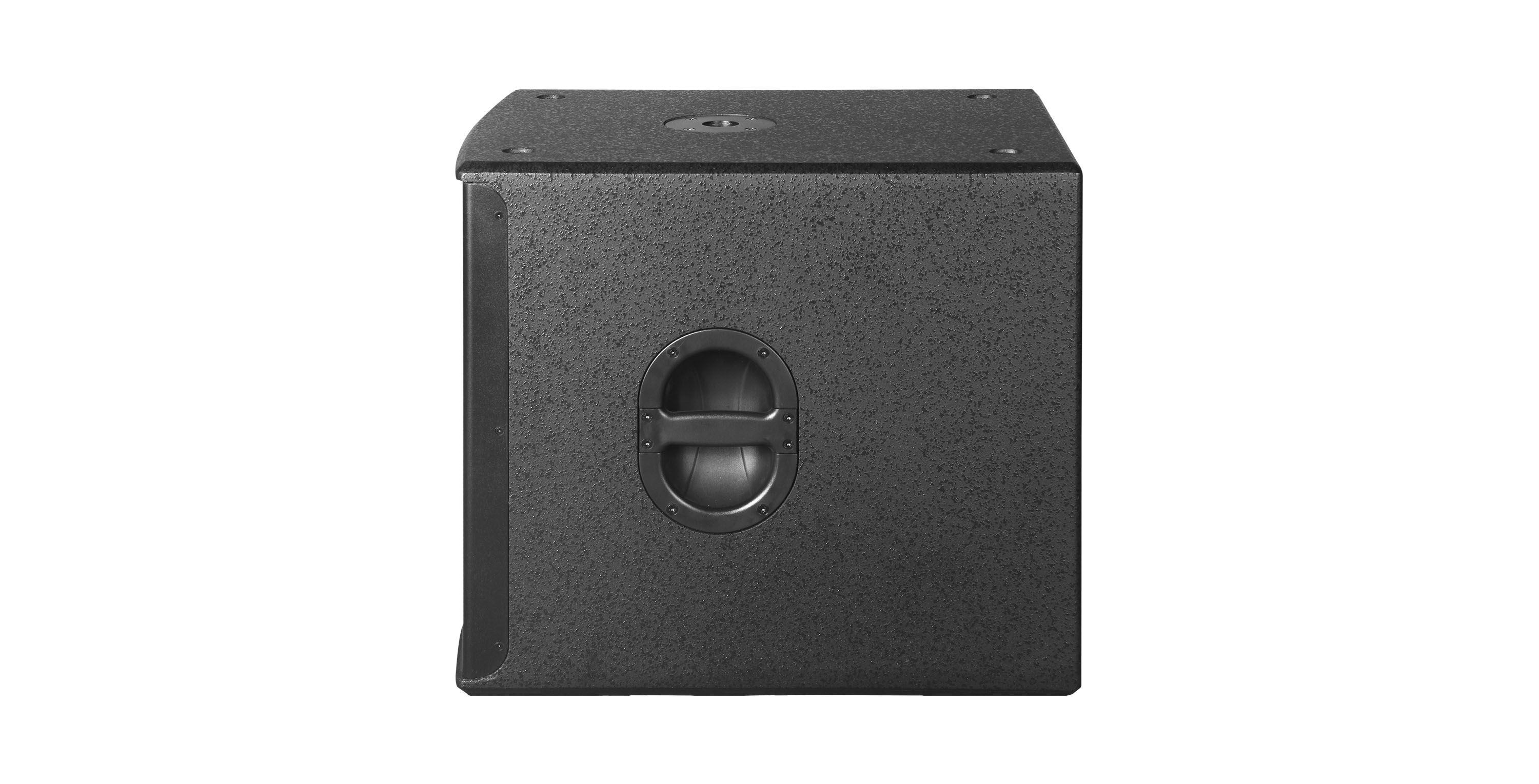

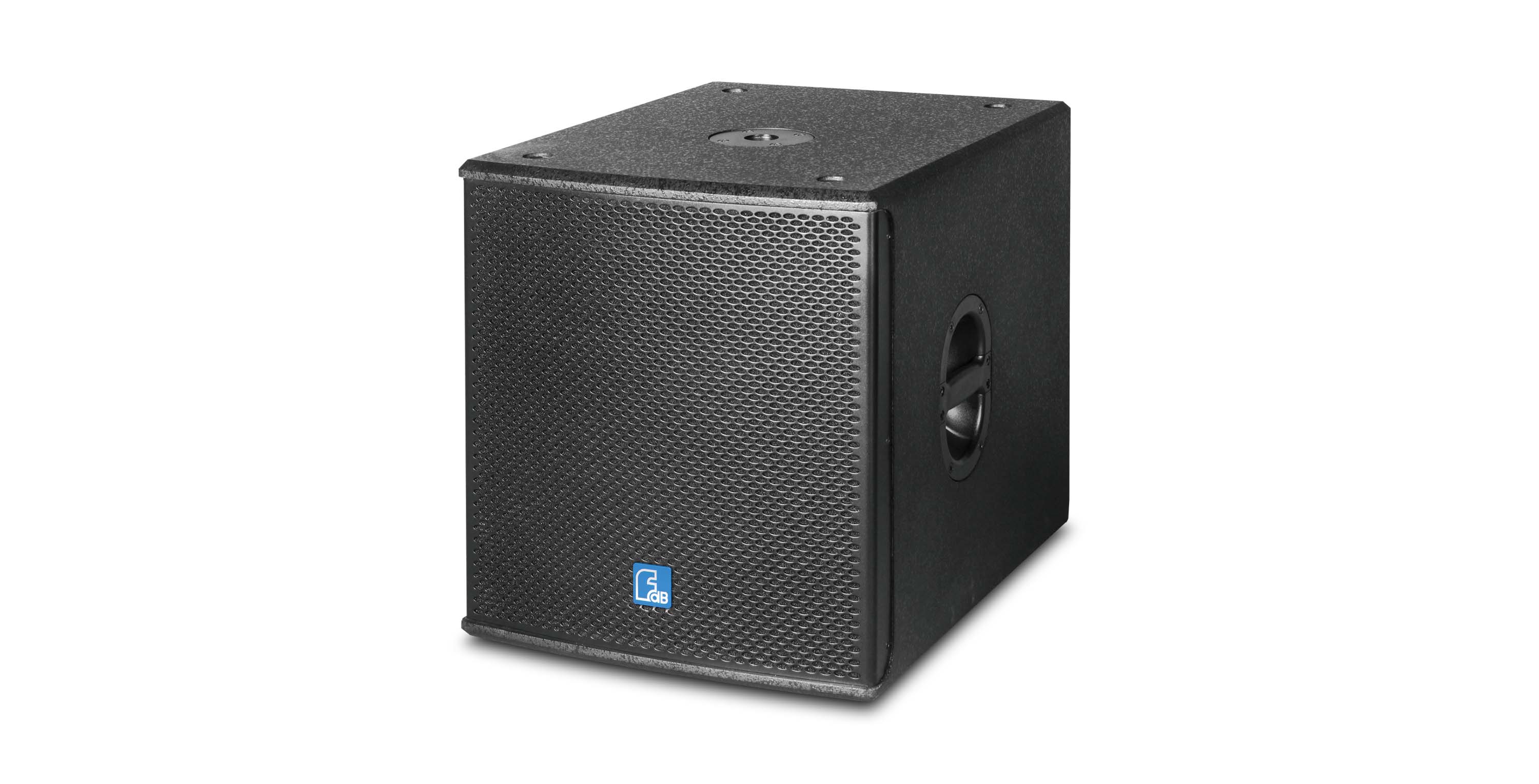

U115W / U115WA
1x15" Sub-woofer System / 1x15" Active Sub-woofer System
DESCRIPTION

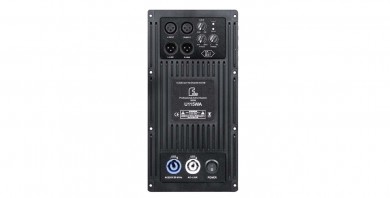

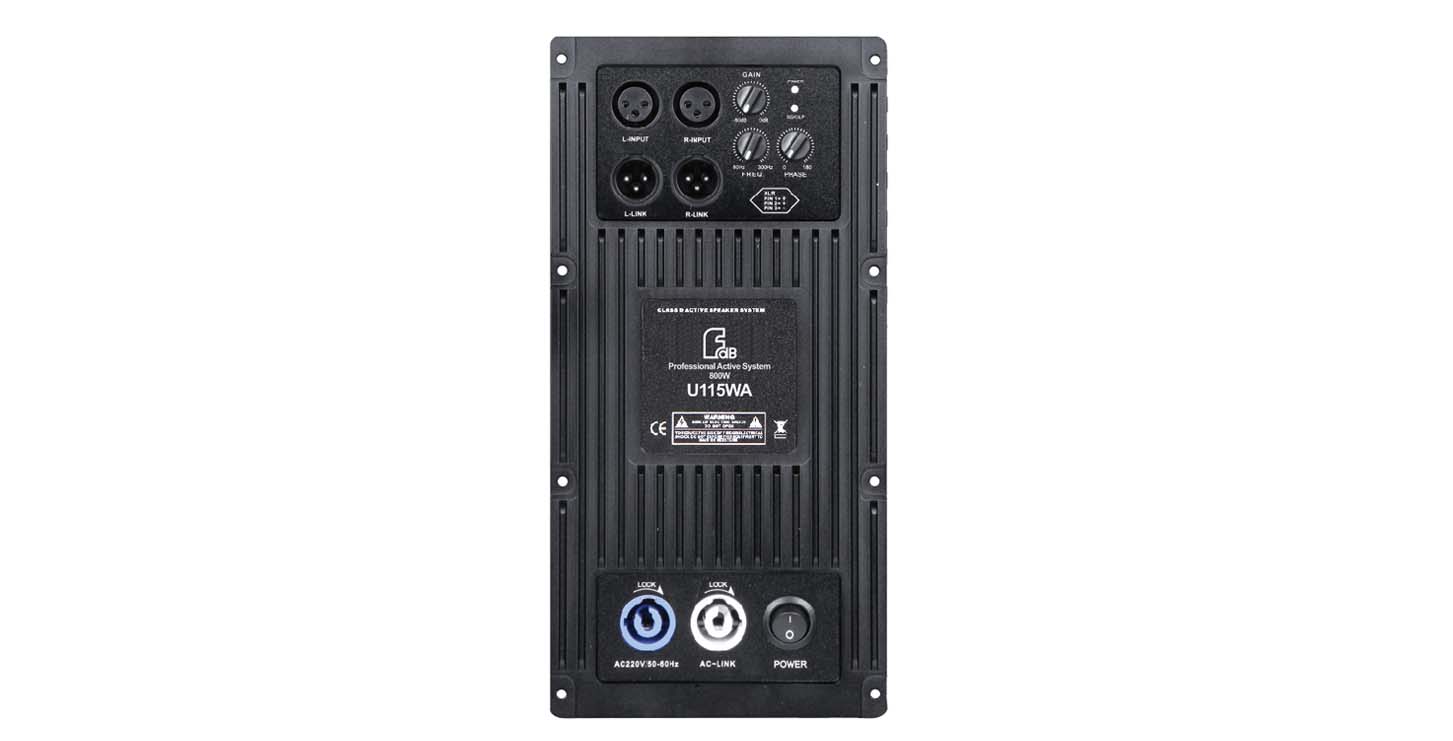

U115W is a single 15" subwoofer, bass-reflex design, full and powerful sound Unit configuration: 1x15" 100mm high efficicency woofer. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U115WA is an active subwoofer.
FEATURES
●High quality unit configuration, high strength plywood housing
●Bass-reflex design, full and powerful sound
●Applications: multifunction halls, high-end hotel clubs, touring
●Bass-reflex design, full and powerful sound
●Applications: multifunction halls, high-end hotel clubs, touring
SPECIFICATIONS
| MODEL | U115W | U115WA |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz |
| DRIVERS | 1×15"(385mm)/4"voice coil LF | 1×15"(385mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | – |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 670mm×550mm×605mm | 670mm×550mm×605mm |
| NET WEIGHT | 31 kg/pc | 33 kg/pc |
| GROSS WEIGHT | 34 kg/pc | 36 kg/pc |

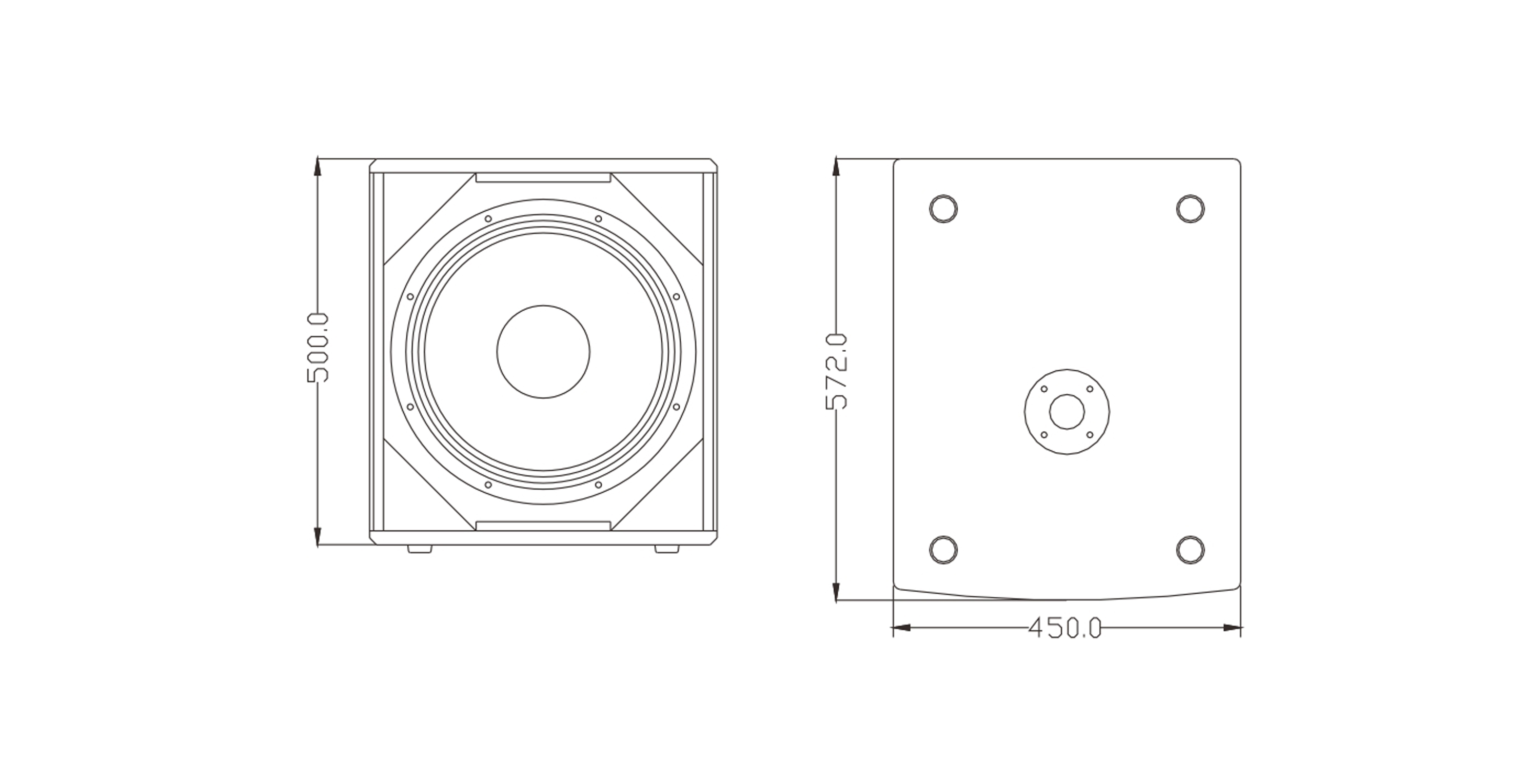

CONFIGURATION
