Location： >> Products >> U Professional Speaker
>> U115VI / U115AVI

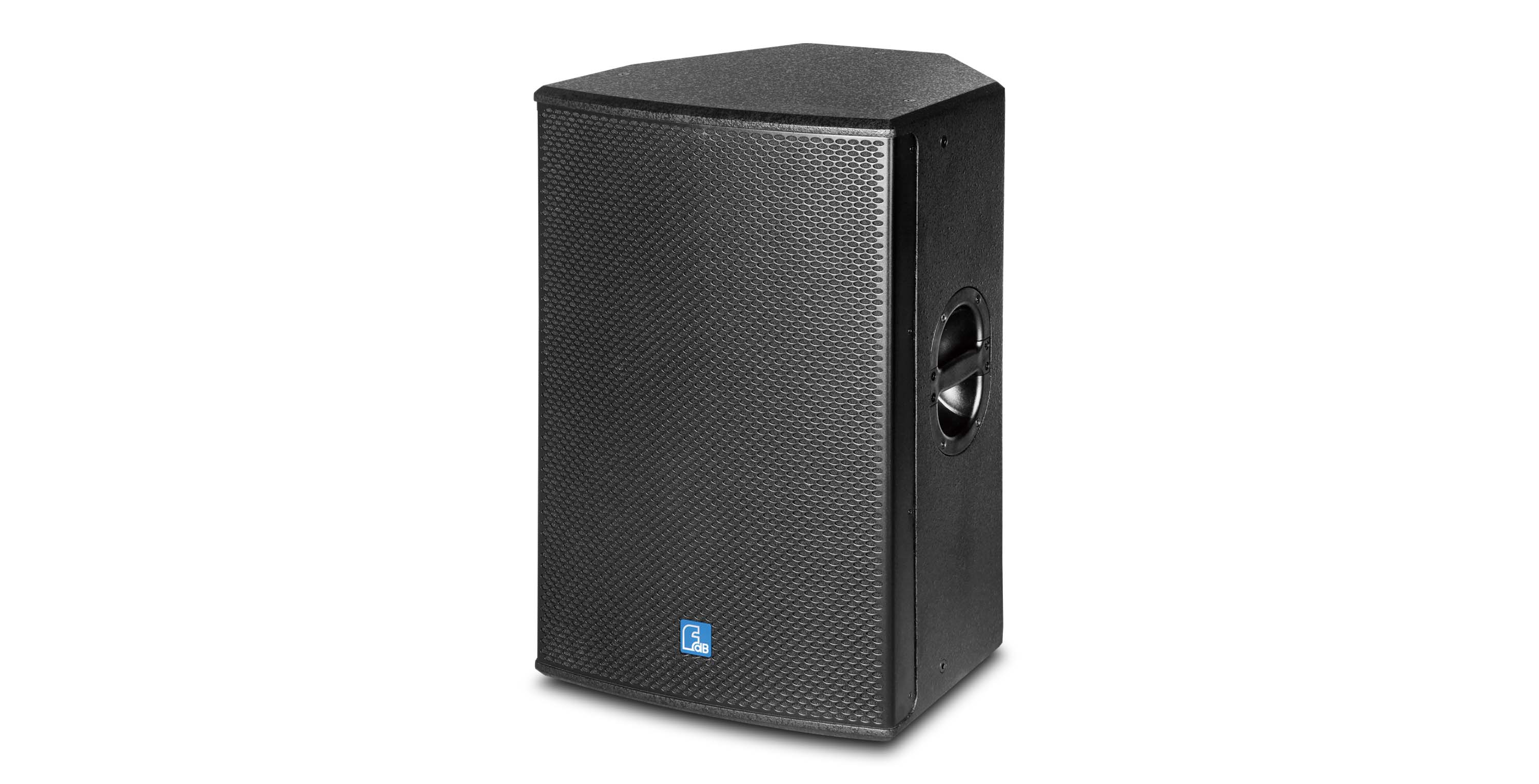

U115VI / U115AVI
1x15" 2-way Loudspeaker System/1x15" 2-way Active Loudspeaker System
DESCRIPTION
The U115VI is a 15" two way full range speaker with bright and powerful sound. Unit configuration: 1x15" high efficiency mid-bass unit, 1x1.4" exit throat 75mm composite diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U115AVI is an active speaker with two channels and DSP digital amplfier.
FEATURES
●Product parameters have been entered into EASE loudspeaker database
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
SPECIFICATIONS
| MODEL | U115VI | U115AVI |
| FREQUENCY RESPONSE(-3dB) | 45Hz-18kHz | 45Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 40 Hz-20kHz | 40 Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(385mm)/2.5"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | 1×1"(25mm)/1.4"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak | 500W/4Ω+50W/8Ω |
| SENSITIVITY | 98dB 1watt/1meter | -- |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 90°×40° | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 580mm×560mm×820mm | 580mm×560mm×820mm |
| NET WEIGHT | 30 kg/pc | 25 kg/pc |
| GROSS WEIGHT | 35 kg/pc | 30 kg/pc |

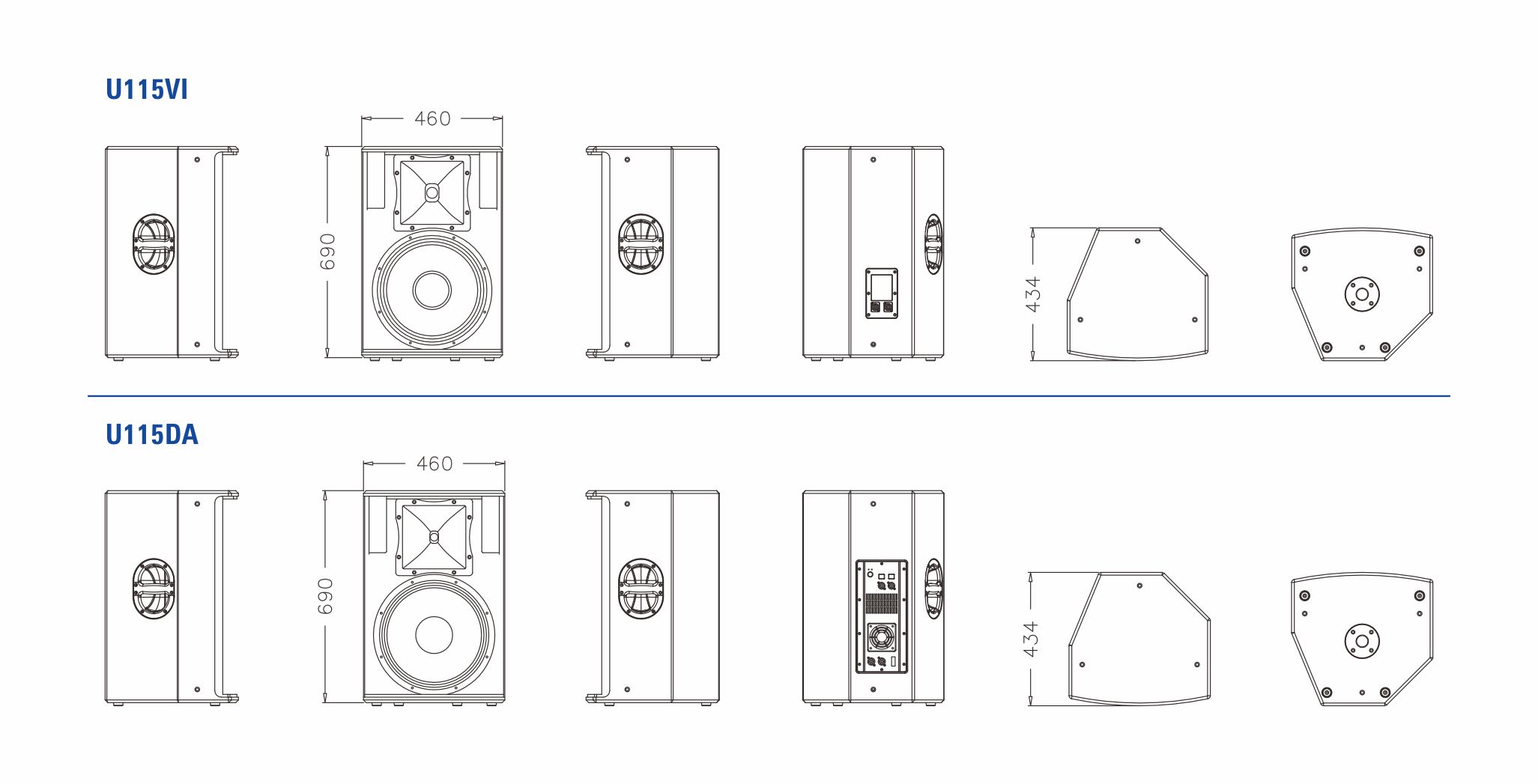

CONFIGURATION
DOWNLOAD
