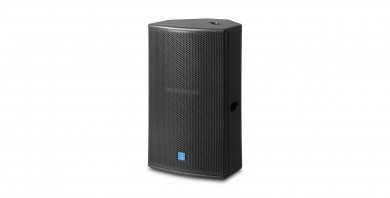

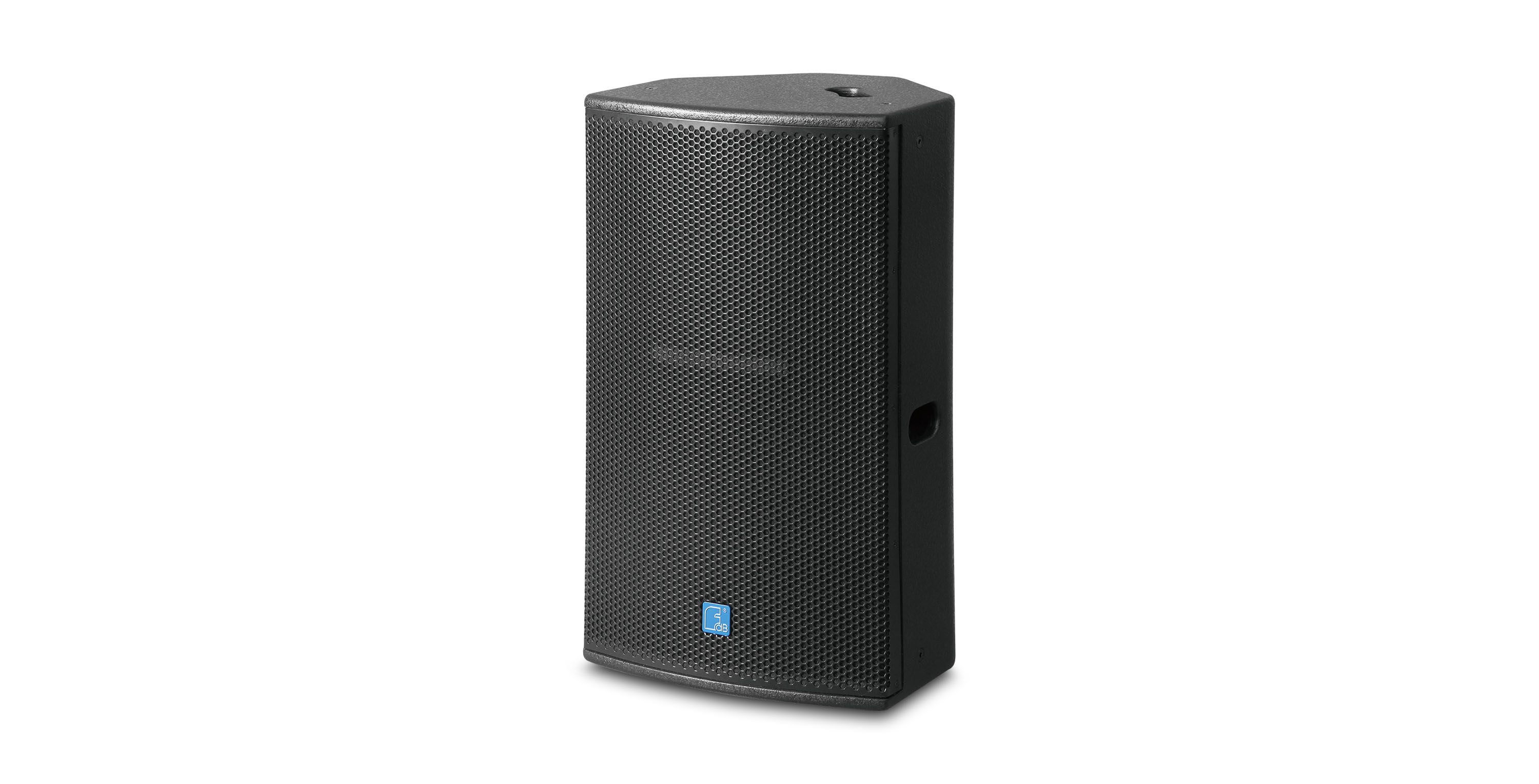

LH12II
1x12" 2-way Loudspeaker System
DESCRIPTION
The LH12Ⅱ is a 12", light weight, high SPL, two way full range speaker with clear and bright sound. Unit configuration: 1x12" high efficiency neodymium mid-bass unit, 1x1" exit throat 44mm neodymium poliyimide diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
SPECIFICATIONS
| MODEL | LH12Ⅱ |
| FREQUENCY RESPONSE(-3dB) | 55 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50 Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 2.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 470mm×450mm×755mm |
| NET WEIGHT | 17 kg/pc |
| GROSS WEIGHT | 19 kg/pc |
