K312/K312DA

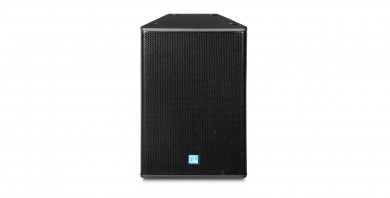

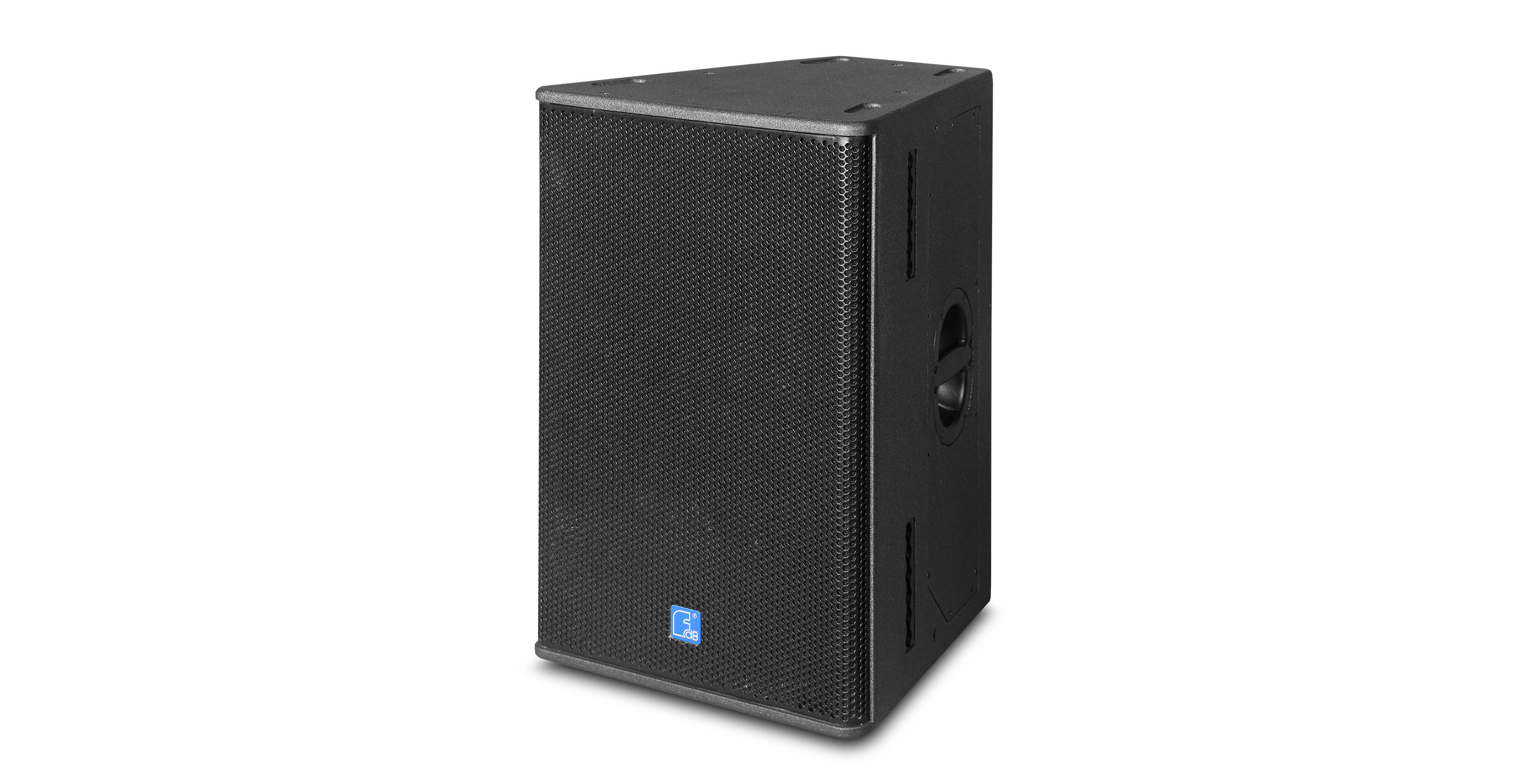

2x12" 2-way loudspeaker system /2x12"2-way active loudspeaker system
DESCRIPTION

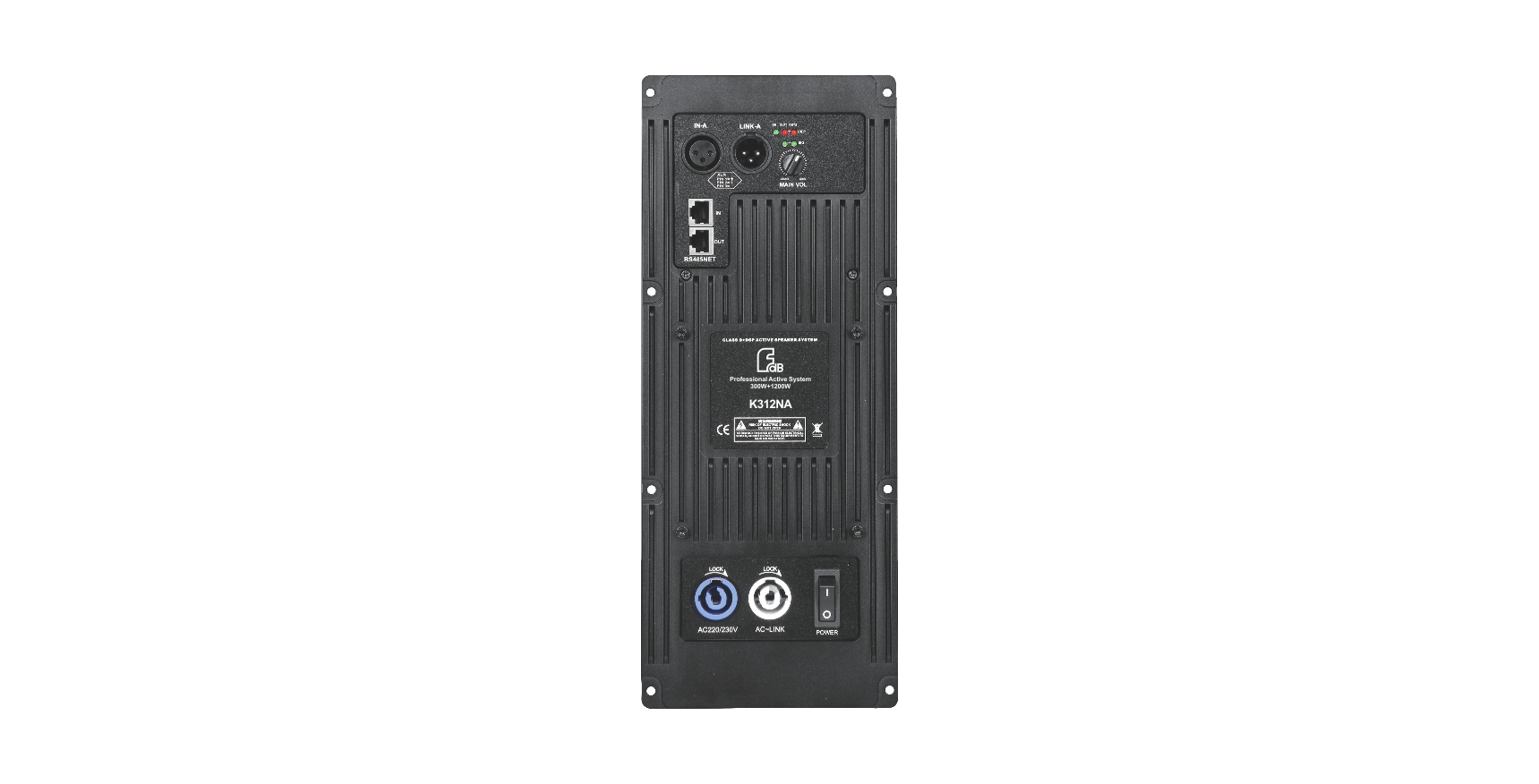

The K312 is a dual 12" middle-long throw speaker system with big power and high SPL, fitted with two 12" neodymium woofer and one 1.4" exit neodymium compression driver. All components are designed with horn-loaded and the box body is made of high quality plywood with polyurea waterproof paint. The K312DA is equipped with FA2.38 digital amplifier module to be an active loudspeaker based on K312.
FEATURES
●High quality plywood with polyurea waterproof paint
●Horn-loaded design with high SPL
●Multi-angle hanging points
●Good used for moving performance and theatre.
●Horn-loaded design with high SPL
●Multi-angle hanging points
●Good used for moving performance and theatre.
SPECIFICATIONS
| MODEL | K312 | K312DA |
| FREQUENCY RESPONSE(-3dB) | 65Hz-18KHz | 65Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
60Hz-20KHz |
60Hz-20KHz |
| DRIVERS | 2x12"(300mm)/3"voice coil LF | 2x12"(300mm)/3"voice coil LF |
| 1x1.4"(36mm)/3"voice coil HF | 1x1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 600W(RMS),2400W peak | 300W/8Ω+1200W/4Ω |
| SENSITIVITY | 103dB 1watt/1meter | -- |
| MAXIMUM SPL | 130dB continuous,136dB peak | 130dB continuous,136dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| DISPERSION(-6dB) | 60°x40° | 60°x40° |
| CROSSOVER FREQUENCIES | 1.3kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 530mmx530mmx795mm | 530mmx530mmx795mm |
| NET WEIGHT | 32 kg/pc | 35 kg/pc |
| GROSS WEIGHT | 37 kg/pc | 40 kg/pc |
