Location： >> Products >> K Column System
>> K606II

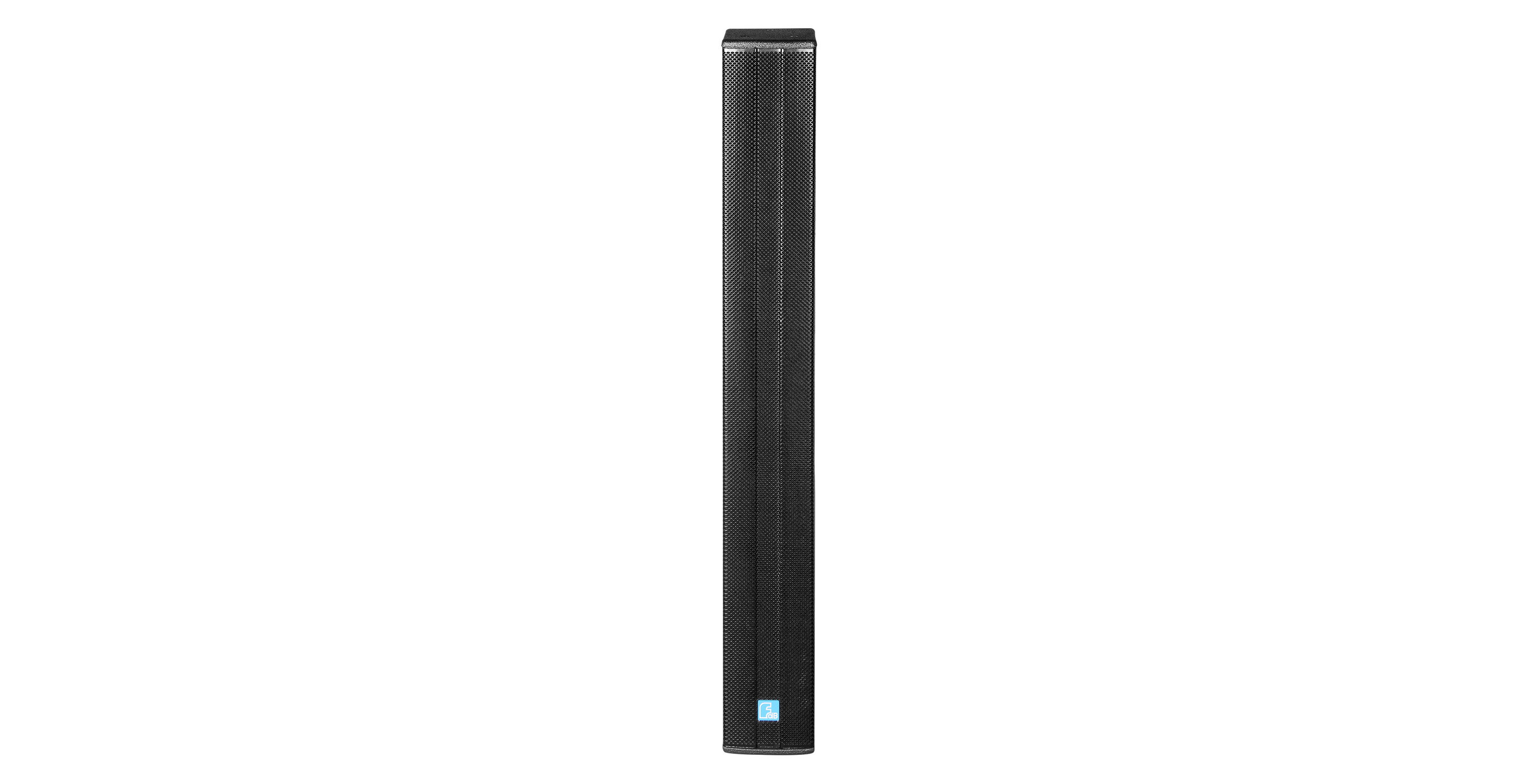

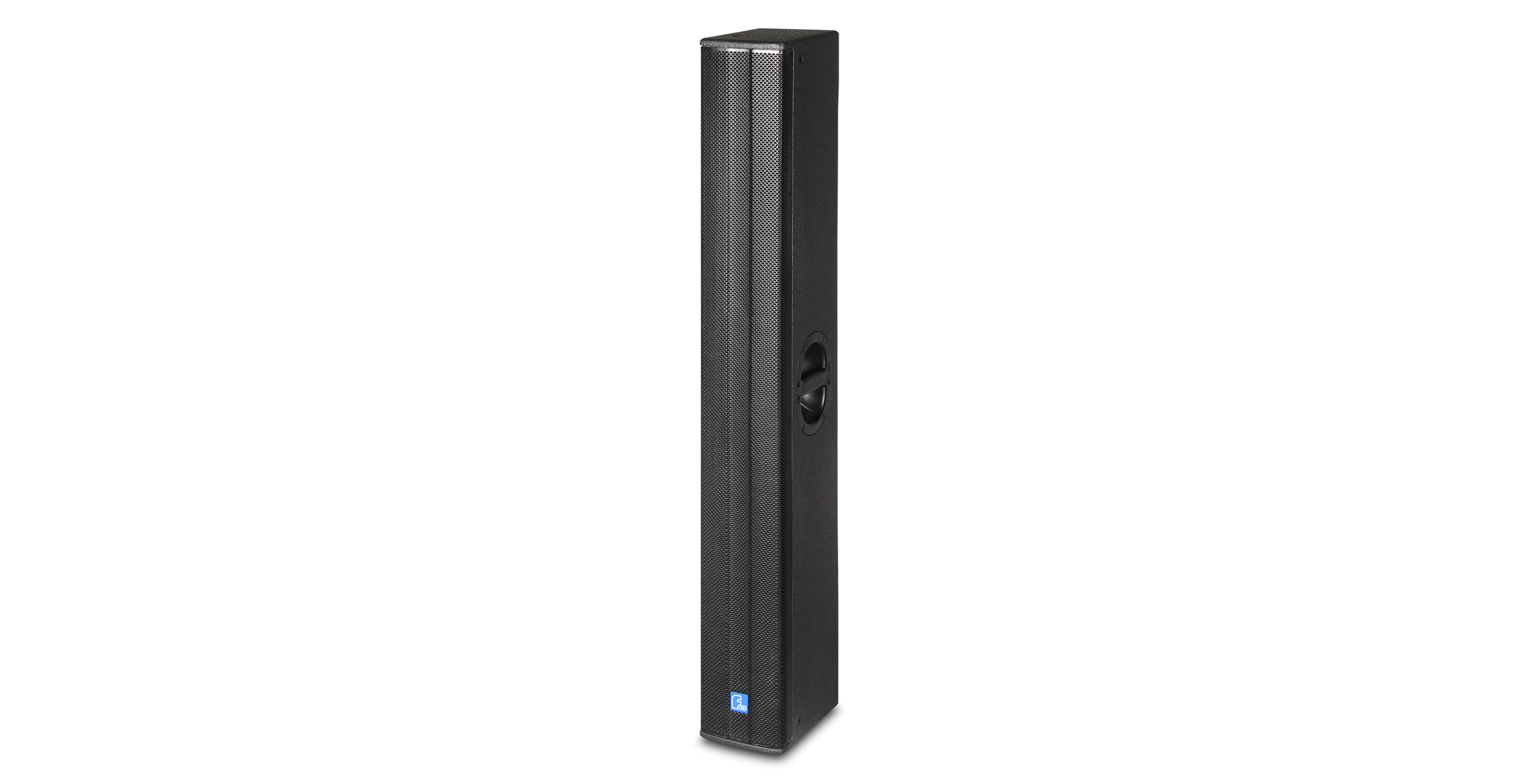

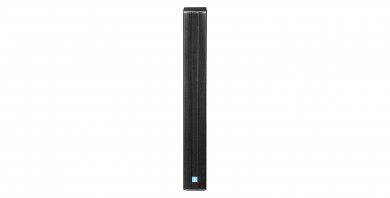

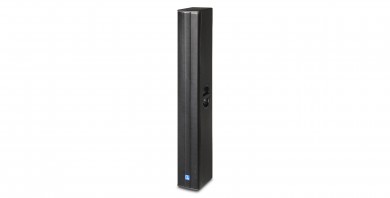

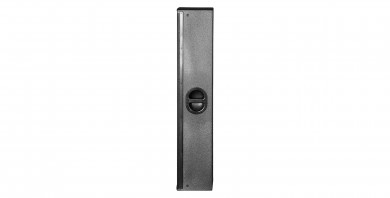

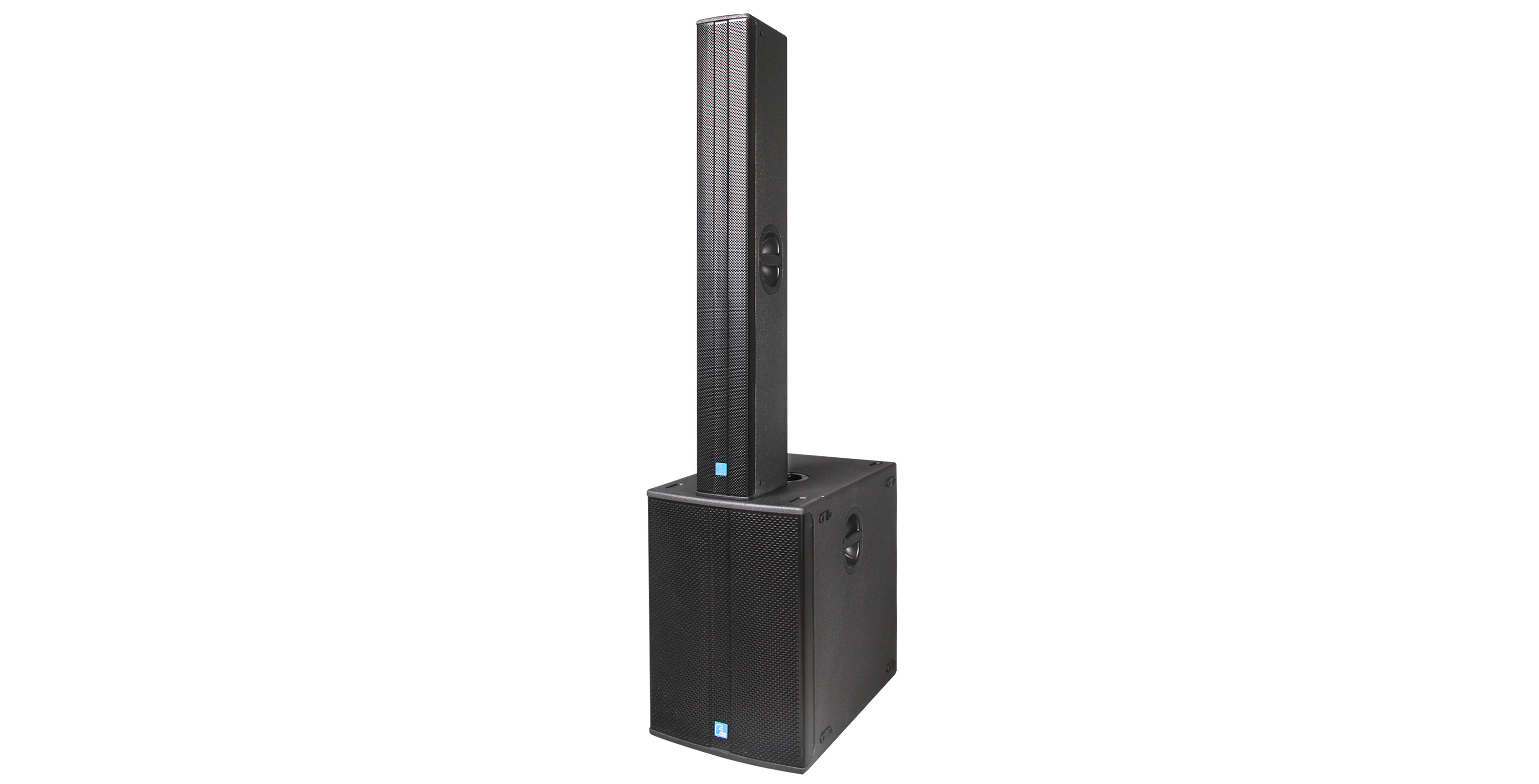

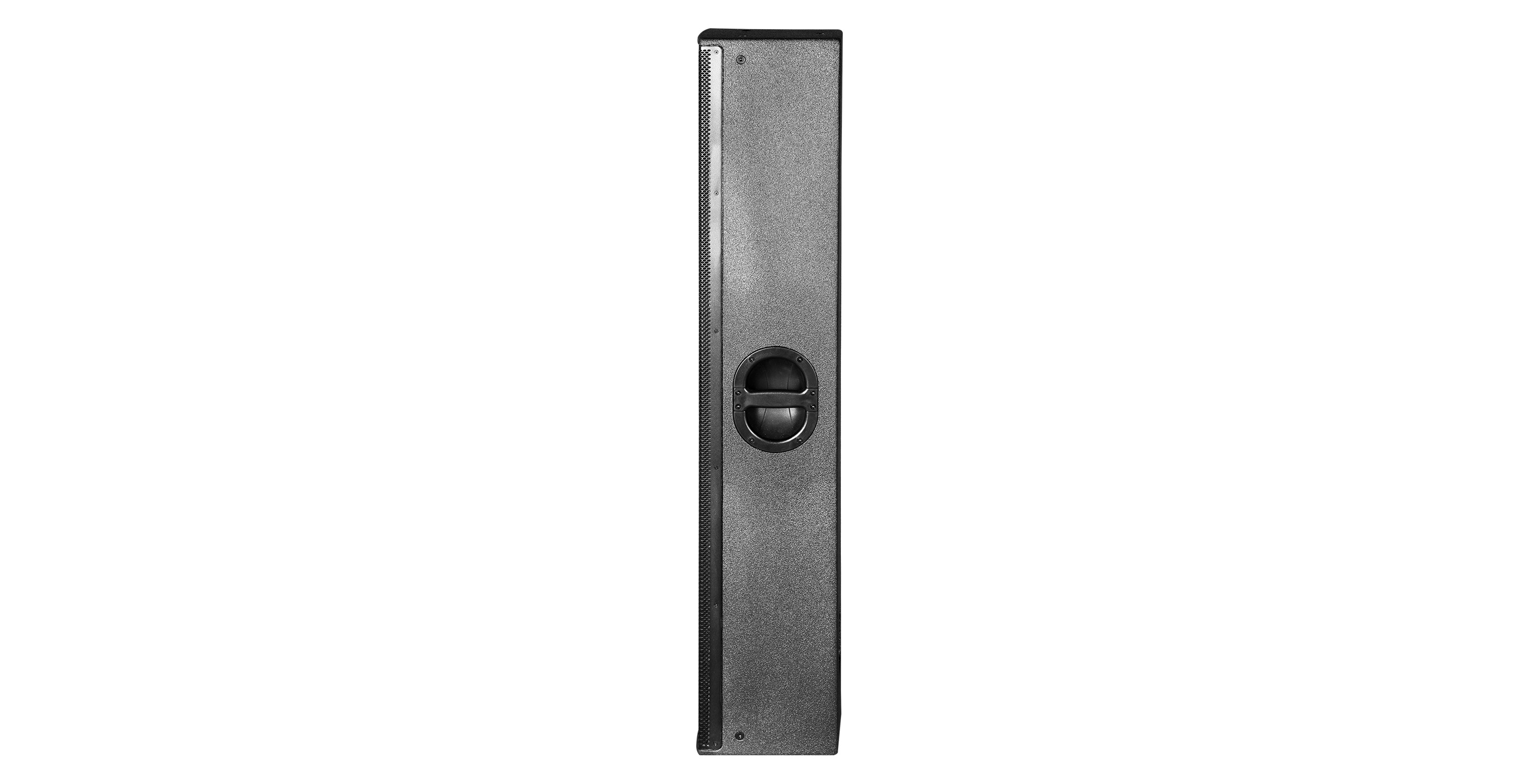

K606II
6x6" 2-way Loudspeaker System
DESCRIPTION
The K506Ⅱ/606Ⅱ/806Ⅱ are a series of product, using the high quality 6" neodymium LF drivers and neodymium HF drivers coupled to special designed horns assembled into small speakers and column speakers to meet the demands of different small and medium-scaled places,and the box body is made of high quality plywood with polyurea waterproof paint.
FEATURES
●High quality plywood with wear-resistant and waterproof polyurea paint
●Multi combinations and installation ways
●Multi combinations and installation ways
●Hidden and external connections
●Used for moving performance, church and multi-purpose hall
SPECIFICATIONS
| MODEL | K606II |
| FREQUENCY RESPONSE(-3dB) | 80Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
75Hz-20KHz |
| DRIVERS | 4×6"(150mm)1.5"voice coil LF |
| 2×1"(25mm)1.7"voice coil HF | |
| RATED POWER | 320W RMS,1280W peak |
| SENSITIVITY | 98dB 1watt/1meter |
| MAXIMUM SPL | 123dB continuous/129dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 110° × 25°(-17.5°/+7.5°) |
| CROSSOVER | 2.5KHz passive |
| FREQUENCIES | |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 1285x340x270mm |
| NET WEIGHT | 16 kg/pc |
| GROSS WEIGHT | 19 kg/pc |
CONFIGURATION
DOWNLOAD
