Location： >> Products >> K Column System
>> K803Ⅱ

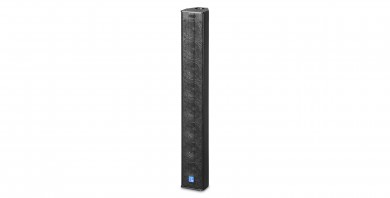

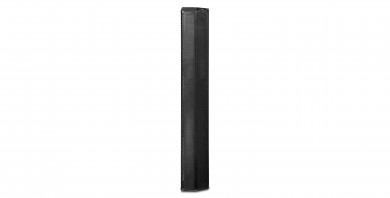

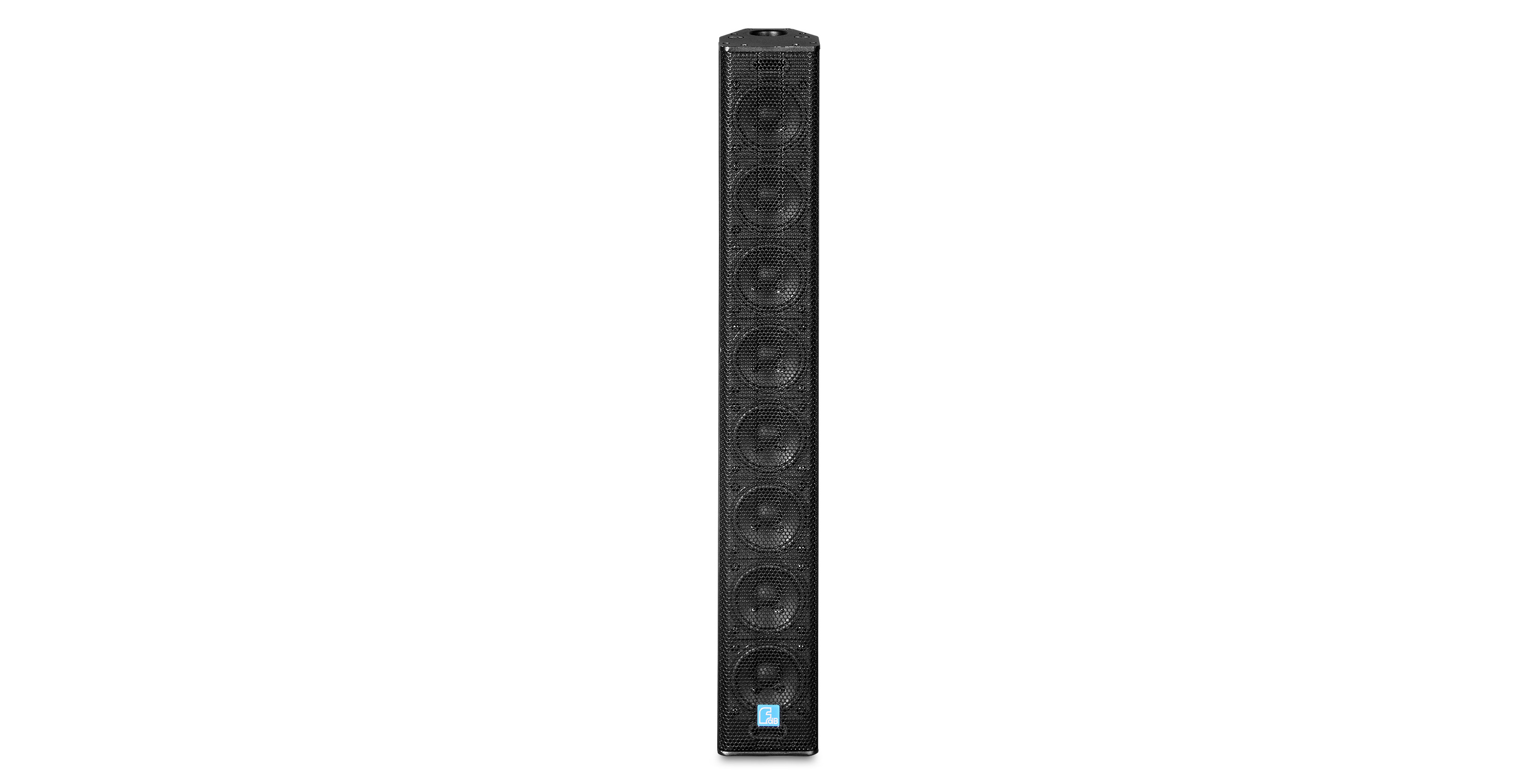

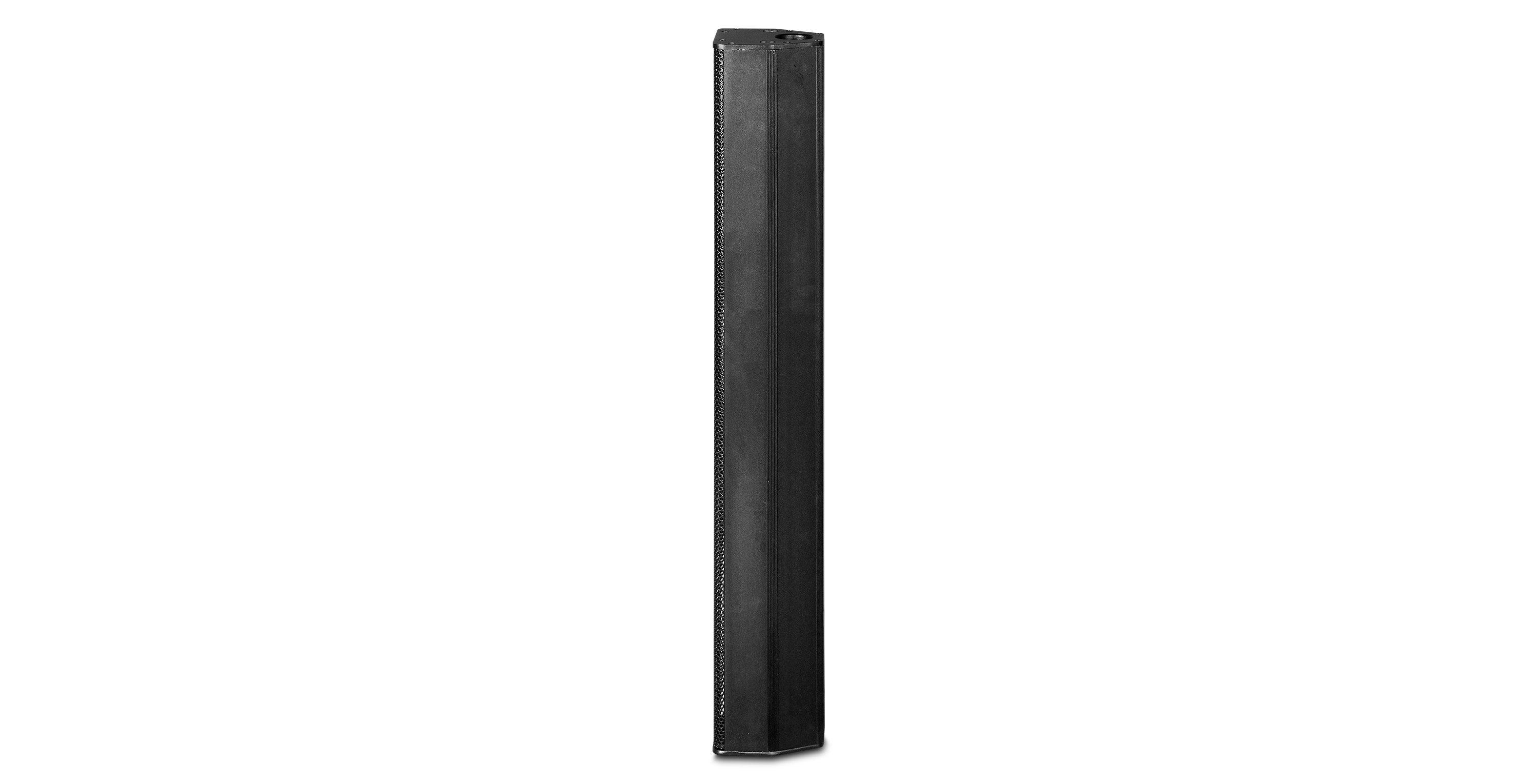

K803Ⅱ
8x3"Mid/High Unit SYstem
DESCRIPTION
The K403Ⅱ/803Ⅱ/163Ⅱ is a series product, using the high quality 3" neodymium speaker units skillfully assembled into column speakers to meet the demands of different small and medium-scaled places,and the box body is made of aluminium alloy. The IP46 international standard can be met based on special request.
FEATURES
● Light weight aluminium alloy enclosure
●Multi combinations and installation ways
●Hidden and external connections
●Multi combinations and installation ways
●Hidden and external connections
●Used for moving performance, church and multi-purpose hall
SPECIFICATIONS
| MODEL | K803 |
| FREQUENCY RESPONSE(-3dB) | 120Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
115Hz-20KHz |
| DRIVERS | 8x3"(83mm)/0.8"voice coil Mid/High Unit |
| RATED POWER | 200W RMS, |
| SENSITIVITY | 800W peak/97dB 1watt/1meter |
| MAXIMUM SPL | 120dB continuous,126dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 70° horizontal |
| INPUT CONNECTORS | 2xSpeakon NL4 |
| PACKAGE SIZE | 826x340x195mm(1pair/carton) |
| NET WEIGHT | 4.7 kg/pc |
| GROSS WEIGHT | 12 kg/pair |
CONFIGURATION
DOWNLOAD
