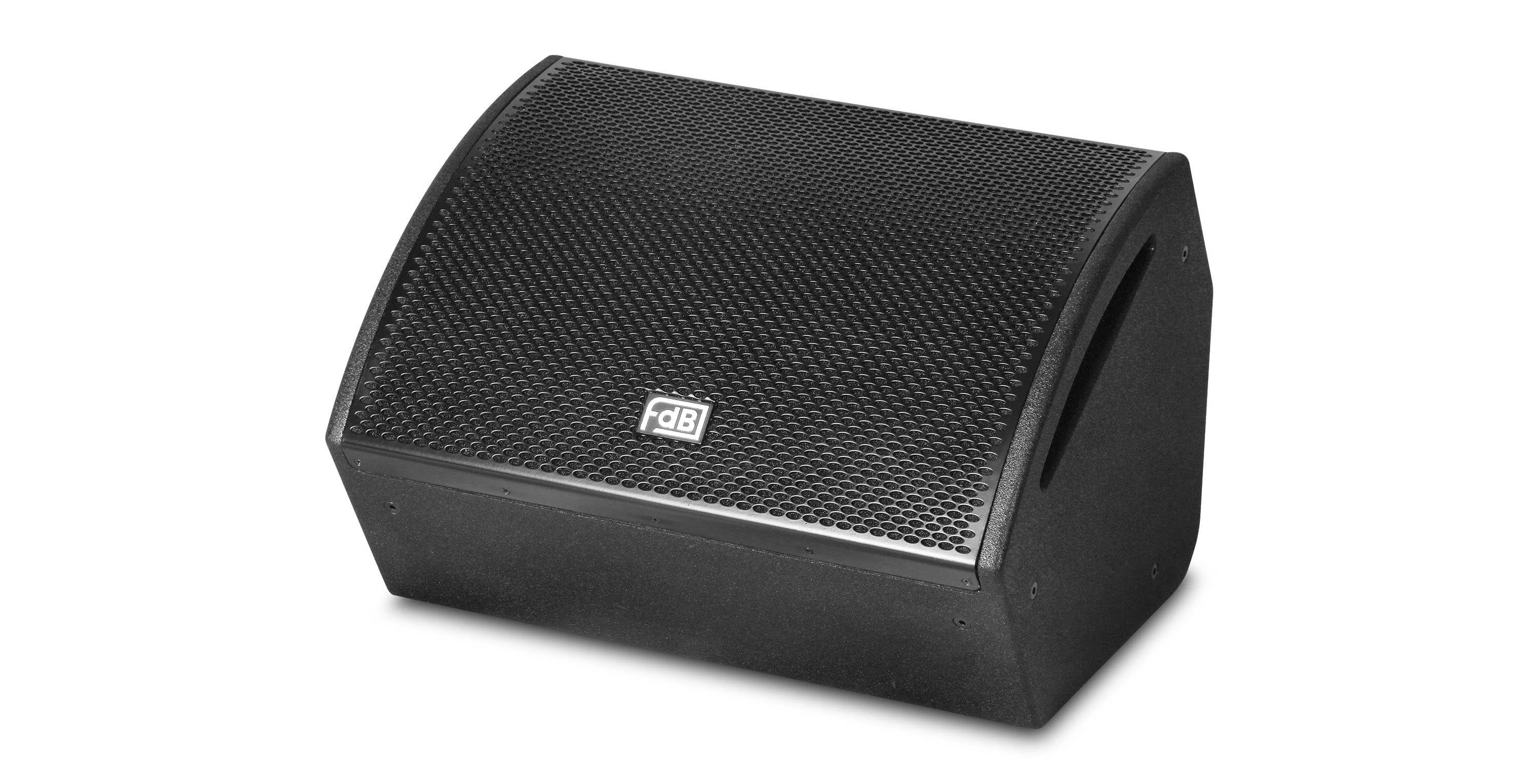

MR15N
15" 2-way loudspeaker system
DESCRIPTION
The MR15N is a high precision and high power stage monitor. It offers a “studio monitoring”type of response, exceptional dynamic capability, very low distortion, and has mechanical system for angle adjustment when floor mounted.
FEATURES
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 50 Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
45 Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 530mm×505mm×685mm |
| NET WEIGHT | 21 kg/pc |
| GROSS WEIGHT | 24 kg/pc |
